Features

Robust Class AB 2-Channel Amplifier: With a robust and powerful 200 watt x 2 channel (8 ohm) / 350 watt x 2 channel (4 ohm) Class AB amplifier,, the Rotel Diamond Series RA-6000 can effortlessly drive large speaker systems. An in-house manufactured toroidal transformer feeds dedicated power to all critical circuits utilizing high efficiency, low ESR slit-foil smoothing capacitors delivering an abundance of ripple free, reserve power and current with exceptional control of rich, deep bass energy. Physical and electrical isolation techniques are utilized in the digital and high gain amplifier circuits reducing noise in the highly sensitive analog stages further lowering the noise floor and reducing distortion.

• The RA-6000's power output is rated at 200 watts per channel into 8 ohms with all channels driven. Rotel has chosen to specify the power output in this way because, in Rotel's experience, it gives the truest value of the receiver or amplifier's power capability.
• When comparing specifications for different amplifiers, you should be aware that power output is often specified in other ways, so you may not be comparing "apples-to-apples". For example, the power output may be quoted with only one channel or two channels driven (not all channels), giving a higher maximum figure.
• Be aware that the RA-6000 is capable of high power levels, in excess of 200 watts respectively per channel. Make sure that your speakers can handle the power of the amplifier. If in doubt about your speakers, ask your Crutchfield advisor.

Balanced Design Concept: Balanced Design Concept is the essential Rotel design philosophy that revolves around three major areas - Parts selection, circuit topology, and critical evaluation. These aspects influence final sound quality significantly and illustrate the holistic Balanced Design Concept approach to Rotel's product development. Thanks to the Balanced Design Concept, Rotel components easily exceed the performance of many mass produced audio products that offer plenty of features but skimp on audio quality, and compare favorably to components that are many times the price. Rotel continues its pursuit of extraordinary audio performance, which elevates the home entertainment experience through their core values of sonic accuracy, reliability, and affordability.

• Parts Selection: Rotel engineers select premium capacitors which provide better performance across both power and frequency spectrums to produce a more accurate and musical reproduction of the audio signal. High quality power supply capacitors provide a more efficient transfer of energy with fast charging and discharge time to ensure the circuits have the reserve power when needed. At each stage of development, Rotel engineers listen to circuit prototypes and revise the design when they feel they can gain a sonic advantage by using a particular component from another manufacturer or by specifying tighter tolerances. Since Rotel is an independent manufacturer, they are free to source parts from highly respected suppliers around the world to fit their requirements.
• Circuit Topology: It’s not enough to simply use good parts. Where you put them is equally if not more important. That's why Rotel keeps their circuit paths as short as possible, so there's less chance that spurious emissions and unwanted leakages will corrupt delicate signal nuances. That's also why Rotel often uses more expensive "on-board" relay source switching, rather than routing a signal from a rear-panel input to a front-panel control. Rotel also relies heavily on something called Symmetrical Signal Trace design. This keeps each channel's signal path identical to the others to preserve the imaging and soundstage. Rotel also uses electrically superior "star" grounding techniques to improve performance because star grounding routes all ground connections to a single point to reduce potential loops that might introduce noise or produce hum. Further, Rotel's Class AB amplifiers don’t use output inductors because they decrease control and, consequently, sound quality.
• Critical Evaluation: Rotel's development team places a lot of importance on critical listening sessions before the final product is sent to market. Rotel electronic and acoustic engineers, both in the UK and Asia, have honed their aural acuity over the course of decades of collective experience to evaluate each stage of product development from working samples, through pre-production and, finally, to verify that final production is the same as the pre-production units. Some sessions evaluate different circuit elements: capacitors, resistors, and active devices such as transistors or operational amplifiers. Others focus on differences in circuit layouts or differences caused by power supply elements. Only after this tuning process is complete with sonic performance confirmed will the product be launched to the market.

Custom Designed Toroidal Transformer: As typical of Rotel amplifiers, the RA-6000 integrated amplifier draws on a high capacity power supply based on a Rotel custom designed and in-house manufactured oversized toroidal transformer. This low impedance power supply has ample power reserves, which enables the RA-6000 to easily reproduce the most demanding audio signals. In addition to providing an abundance of voltage and current for all operating stages, the transformer's toroidal shape helps prevent stray radiation patterns from corrupting audio signals as they pass through adjacent circuit stages. Subsequent power supply segments built with tight-tolerance parts including T-Network capacitors provide the exact voltage and current requirements to ensure stress-free signal reproduction.

Symmetrical Circuit Traces: The integrated amplifier's printed circuit boards (PCB) are designed with Symmetrical Circuit Traces. This ensures that the precise timing of the music is maintained and faithfully recreated. The circuitry uses metal film resistors and polystyrene or polypropylene capacitors in important signal paths. All aspects of this design have been examined to ensure the most faithful music reproduction.

Texas Instruments (TI) 32-bit/384kHz DAC: In recognition of the predominance of digital sources available today, the RA-6000 has a built-in state of the art 32-bit/384kHz Texas Instruments digital-to-analog converter (DAC). The onboard TI 32-bit/384kHz DAC has been optimized to retain your music's full dynamic with precisely tuned output filter circuits that deliver unprecedented acoustic detail, wide sound stage and exact positioning.

Protection Circuitry: The integrated amp has both thermal and over-current protection circuitry that protects the amplifier against damage in the event of extreme or faulty operating conditions. The protection circuits are independent of the audio signal and have no impact on sonic performance. Instead, the protection circuits monitor the temperature of the output devices and shut down the amplifier if temperatures exceed safe limits.

Mounting & Placement Options: The Rotel RA-6000 integrated amp can simply be tabletop mounted (no rack-mount hardware available).

• The RA-6000 generates heat as part of its normal operation. The heat sinks and ventilation openings in the amplifier are designed to dissipate this heat. The ventilation slots in the top cover must be open. There should be at least 4" of clearance around the chassis, and reasonable airflow through the installation location, to prevent the amplifier from overheating.
• Make sure that the shelf or cabinet can support the weight of the amplifier. The amplifier should be installed in or on furniture designed specifically for audio components. Such furniture is designed to reduce or suppress vibration which can adversely affect sound quality. Ask your Crutchfield advisor for advice about component furniture.

Connections

Balanced & Unbalanced Analog Inputs: The Rotel RA-6000 integrated amplifier is outfitted with a total of four line-level analog inputs; there is one balanced XLR stereo analog audio input and three unbalanced stereo RCA analog audio inputs. Balanced XLR connections guard against induced noise and allow long cable runs without compromising sound quality.

MM Phono Input: There is one Phono input which supports the connection of a turntable with a MM (moving magnet) cartridge. There is also a ground terminal for the Phono input to prevent hum and noise.

Digital Audio Inputs: The RA-6000 is equipped with a total of six digital audio inputs; including three optical (toslink) digital inputs and three coaxial (SPDIF) digital inputs. All four digital inputs will support 2ch stereo PCM audio up to 24-bit/192kHz.

USB-B Port: The USB-B port allows connection to your Windows PC or Mac computer, so you can playback your laptop or desktop music libraries through the Rotel integrated amplifier. The DT-6000 supports USB Audio Class 2.0 for playback of 2ch stereo PCM (up to 32-bit/384kHz) and MQA. To take advantage of USB Audio Class 2.0 audio playback supporting up to 384kHz sampling rates you will need to install the Windows driver supplied on the included USB thumbdrive (USB driver not required for Mac). Some audio playback applications do not support 384kHz sampling rate. Please confirm your audio player supports 384kHz audio and you have 384kHz audio files to properly playback this sample rate. Also, you may need to configure the audio driver in your PC to output 384kHz or your computer may "down-sample" to a lower audio sample rate.

• MQA (Master Quality Authenticated): MQA (Master Quality Authenticated) is a revolutionary end-to-end technology that captures and delivers master quality audio in a file that's small enough to download and stream. MQA ensures the your will hear your favorite digital audio music soundtracks exactly the way the artist intended you to hear it when it was approved in the studio.
• Roon Tested: The RA-6000 is certified as Roon Tested and compatible with software via the integrated amp's USB-B port when connected to a compatible Windows or Mac computer. Being  Roon Tested means that Rotel and Roon have collaborated to ensure you have the best experience using Roon software and the RA-6000 together, so you can just enjoy the music.

Front-Panel USB-A Port (Apple iOS Only): The front-panel USB-A port can be connected to an Apple iOS device with Lightning (including iPod touch, iPhone & iPad) connector for music playback through the integrated amplifier. You'll still control search and playback functions, as well as view song/artist/information from your Apple iOS device (not the RA-6000). The front-panel USB can also be used to charge your Apple iOS device and other smartphone or tablet devices; it is rated at 5V/2.1A.

Bluetooth Audio Streaming w/ aptX: Thanks to built-in Bluetooth, you can wirelessly stream stored music libraries, music apps, and other audio content from your Bluetooth-enabled smartphone, tablet, laptop, or desktop computer to the Rotel RA-6000 integrated amplifier. In addition to Bluetooth's standard SBC codec, the RA-6000 supports Apple's AAC codec and Qualcomm's aptX audio technology. aptX delivers "CD-quality" audio (16-bit/44.1kHz) wirelessly over Bluetooth.

• Android, Windows 10 and Mac OS all support aptX.
• Apple iOS does not not support aptX..

A & B Speaker Outputs: The integrated amplifier is outfitted two sets of speaker outputs (A & B) for connecting up to two pair of loudspeakers (a total of four speakers). The A & B speaker outputs consist of binding post terminals that will accept bare wire (up to 12AWG), pin-connectors, spade-lugs, and banana plugs (single or dual).

• If only one set of speakers will be used at any given time, the speakers may have an impedance as low as 4 ohms.
• If there are times when both the A and B speakers will be used at the same time, all the speakers should have an impedance of 8 ohms or more.

Preouts: The Rotel RA-6000 integrated amplifier is equipped with a set of stereo RCA outputs and dual mono-sub outputs for connecting an external amplifier or powered sub(s).

• Stereo RCA: The Rotel RA-6000 has a set of stereo preamp outputs that allows you to output an audio signal to another integrated amplifier or power amplifier which is used to drive more speakers. Changes to the volume, balance, and tone controls of the RA-6000 will affect the signal to the preamp output.
• Dual Mono-Sub: There is also two mono-RCA sub outputs for connecting a powered subwoofer. These mono sub outputs are summed with both the left and right audio signal. They are parallel outputs (not discrete) allowing two powered subs to be connected to the RA-6000. The dual mono sub outputs are full-range, so you must have a powered subwoofer with its own built-in low-pass filter control.

Headphone Output: The front-panel headphone output allows you to connect a set of headphones for private listening. The headphone output consists of a 3.5mm (1/8") jack. Plugging in a set of headphones does not cut off the signal to the speakers. You'll need to manually turn off the speakers from the front-panel or remote control.

Detachable AC Power Cord: The detachable 58" AC power cord (IEC 2-prong) plugs into the back of the integrated amplifier and into an AC wall outlet or surge protector/line conditioner (sold separately - see Accessories Tab).

Controls

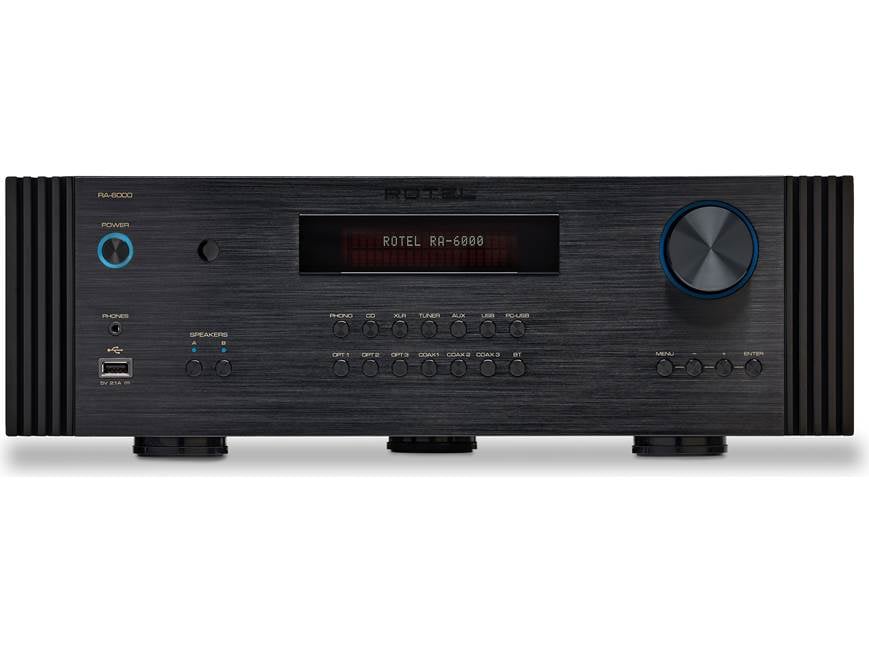

Front-Panel Display & Controls: The Rotel RA-6000 stereo integrated amplifier is equipped with a front-panel display and front-panel controls. The 2-line, front-panel display shows the source selected, volume level, and tone settings. The display also provides access to the setup and configuration menu options of the amplifier. The front-panel display does not support song/artist/album information. The front-panel display offers a dimmer function. Front-panel controls include Power, Source, Volume, Speakers A-B, and Menu.

IR Remote Control: The included IR remote control provides wireless operation over the RA-6000 stereo integrated amplifier. It can also operate a Rotel CD player (such as the DT-6000, sold separately). A dedicated button on the remote turn on the backlight function, so you can clearly see the remote in the dark.

Tone Controls: Bass & Treble circuits are bypassed at factory default to ensure the purest possible sound. You can choose to adjust the Bass & Treble to increase or decrease low and high frequency sounds. There is also a Balance control that adjust the left-to-right sound output of the connected speakers.

Direct-Path Bypass Mode: Analog signal paths feature a Direct-Path Bypass mode eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.

HT Bypass Mode: The HT Bypass mode allows audio signals to be routed directly through the RA-6000 from an AV processor or receiver's output. HT Bypass mode is typically used to connect the analog RCA front left and right preouts on an AV processor or receiver to the analog Aux or XLR inputs of the RA-6000. The audio is routed on the most direct path disabling Tone control at a unity gain setting or fixed level to the RA-6000's amplifier circuits. When the HT Bypass source is selected, the RA-6000's volume control is disabled allowing the volume to be controlled by your AV processor or receiver

Fixed or Variable Input Volume: You can configure a specific input with a Fixed or Variable volume level. The Aux analog input, USB-A input, USB-B input, Optical 1 and 2 inputs, as well as the coaxial 1 and 2 inputs, plus Bluetooth input can all be set to Fixed or Variable. The Volume knob on the front-panel of this unit and the volume of the IR remote is disabled when an input is set to Fixed.

Custom Remote Integration: The Rotel RA-6000 integrated amplifier is outfitted with the following IR, 12V, Ethernet, and RS232 remote inputs for custom integration control.

• IR In: The IR input (3.5mm) receives command codes from industry-standard infrared receivers via a hard-wired connection. This feature is useful when the unit is installed in a cabinet and the front-panel sensor is blocked. Consult your your Crutchfield advisor for information on external IR repeater systems (sold separately - see Accessories Tab).
• 12V Trigger Outputs: The RA-6000 is equipped with two 12-volt trigger outputs (3.5mm) that can be connected to two different components with 12-volt trigger inputs, allowing the components to turn on automatically with the RA-6000 integrated amplifier.
• Ethernet Port: The rear-panel Ethernet (RJ45) jack on the back of the integrated amp allows IP control for integrated with automation systems. The Ethernet jack also allows software updates to be downloaded from the internet.
• RS232 Port: The Rotel RA-6000 integrated amplifier can be controlled via RS232 for integration with automation systems. The RS232 input accepts a standard straight DB-9 Male-to-Female cable.

Auto Power Modes: The Rotel RA-6000 integrated amp offers Auto Signal Sensing and Auto Standby for automatic on and off.

• Auto Signal Sensing: Thanks to Automatic Signal Sensing, the integrated turns on automatically when an audio signal is detected at one of its optical or coaxial digital inputs, or Bluetooth.
• Auto Standby: The RA-6000 can be configured to automatically power off if unused for a specified period (1, 2, 5, or 12 hours). If there is no audio signal or no control within the specified time period, the unit will automatically go into standby mode.
