OSD BK-100W70T 70V commercial transformer

Name: OSD BK-100W70T
Brand: OSD Audio
SKU: 452BK1HW70
Price: 65.39 USD
Availability: InStock

Item # 452BK1HW70

This transformer lets you convert an 8-ohm speaker for use in an indoor 70-volt distributed audio system.

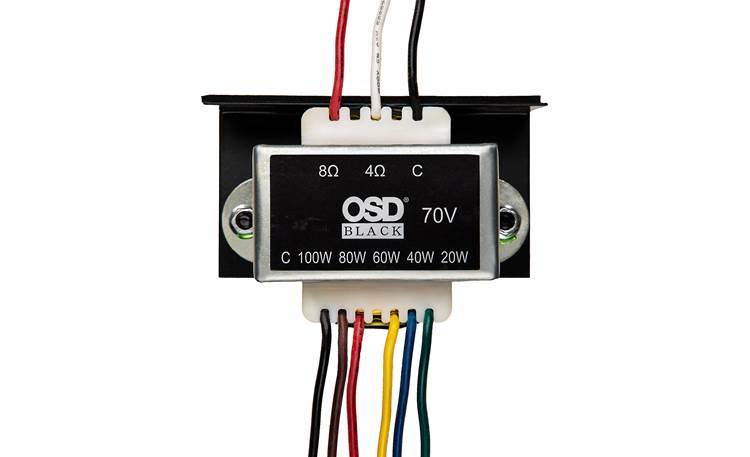

Front

1/2

Only at Crutchfield

2/2

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

This transformer lets you convert an 8-ohm speaker for use in an indoor 70-volt distributed audio system.

Item # 452BK1HW70

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$65.39 each

Add to cart

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-800-315-2758

by Crutchfield's Eric A.

Convert 8-ohm speakers to 70-volt use

The OSD BK-100W70T indoor transformer allows you to convert standard 8-ohm speakers into 70V speakers for use in a commercial-style custom-installed sound system. With taps at 20, 40, 60, 80, and 100 watts, it allows you to daisy-chain the 8-ohm speaker together with multiple additional 70V speakers, all driven by a single amp. It is rated for indoor use only.

Product highlights:

lets you convert a standard 8-ohm speaker for use in a 70-volt distributed audio system
selector for choosing 20, 40, 60, 80, and 100-watt taps
color-coded, in-wall rated 18-gauge wire leads included
4"W x 2-3/4"H x 2-1/2"D
weight: 1.8 lbs.
warranty: 2 years
MFR # BK-100W70T
Item # 452BK1HW70
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

OSD BK-100W70T owner's manual

70V Transformer with 7.5" wire leads and attached mounting bracket (adhesive backed)
Wiring & Specification sheet

Researched by Crutchfield's Stacey B.

Product Research

Features

Overview: The OSD BK-100W70T line-matching audio transformer lets you power 4- or 8-ohm speakers from a commercial 70V amplifier, letting you deliver high wattage over long speaker wire runs. Featuring taps at 20, 40, 60, 80, and 100 Watts, the BK-100W70T lets you connect speakers up to 2000' away using 14 AWG wire, making it an ideal solution for commercial installations where distance is an issue. The transformer has a frequency response of 20Hz-20kHz with little insertion loss and no effect on sound quality.

Mounting: The OSD line-matching audio transformer is pre-attached to an angled mounting plate for installing it on the back of a speaker magnet. An adhesive pad on the the mounting plate allows it to be attached to the speaker without the need for mounting hardware.

Wiring: The BK-100W70T features six input wires for connection to a 70V commercial amplifier, offering five wattage options for your connected speaker. Each wattage can be selected by using a color-coded input wire. Three output wires are used for connection to either a 4- or 8-ohm speaker.

70V Amplifier Input (Primary):
- Black: Common negative
- Brown: 100W (50Ω)
- Red: 80W (62.5Ω)
- Yellow: 60W (83Ω)
- Blue: 40W (125Ω)
- Green: 20W (250Ω)
Speaker Output (Secondary):
- Black: Common negative
- White: 4Ω
- Red: 8Ω

Specifications:

Primary Voltage: 70V
Power Rating: 100W
Primary Taps: 100W, 80W, 60W, 40W, 20W
Secondary Impedance: 4- and 8-ohms
Insertion Loss: 1dB
Frequency Response: 20Hz-20kHz (± 1dB)
Dimensions: Width = 3.91", Height = 2.71", Depth = 2.48"
Weight: 1.8 lbs.

Loading accessories...

1 question already asked

this article, "Convert 8-ohm speakers to 70-volt use". Will these transformers also convert a 8ohm amp signal to 70v for running 70v speakers?

reynold Jan 31, 2023

1 answer

These transformers will not allow allow you to use 70V speakers on an 8-ohm compatible amplifier.

zachary Feb 01, 2023 (Staff)
