About the OSD C1090VK

Product highlights:
- in-ceiling speaker with 8" dual-cone woofer
- 10-watt program/15-watt peak power rating
- multi-tap transformer for 25V or 70V systems
- 25/70-volt taps at .32, .63, 1.25, 2.5 and 5 watts
- 8-ohm bypass setting for use with regular home audio receivers and amps
- frequency response: 40-20,000 Hz
- sensitivity: 90 dB
Dimensions and warranty:
- 10-3/4" cutout recommended
- 12-3/4" diameter x 2-7/8" depth
- warranty: 10 years
- MFR # OSD-C1090VK
- Item # 452C1090VK
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- 25V/70V In-ceiling speaker w/ attached transformer and grille
- Four 2" machine-screws
- 4 Nuts
More details on the OSD C1090VK

Features & specs
General | ||
---|---|---|
Drivers Per Speaker | 1 | |
Woofer Size (inches) | N/A | |
Tweeter Size (inches) | N/A | |
System Frequency Response | 40Hz-20kHz | |
Maximum SPL | N/A | |
Number of Speakers Included | 1 | |
Power Handling | ||
Power Rating | 5 | |
Peak Power Rating | --- | |
70V Transformer Taps (watts) | .32W, .63W, 1.25W, 2.5W, 5W | |
100V Transformer Taps (watts) | None | |
8-ohm Bypass | Yes | |
Specs | ||
Width (inches) | 12-3/4 | |
Height (inches) | 0-13/16 | |
Depth (inches) | 2-7/8 | |
Weight | --- |
Product Research
Features
Overview: The OSD C1090VK is an 8" in-ceiling speaker with built-in transformer, designed for 25V and 70V commercial installations in restaurants, hotels, retail shops, office buildings, and more. The 8" speaker features a dual cone and 6 oz. magnet for deep rich sound quality, and includes a pre-attached, low-profile grille. The metal speaker grille is painted white to blend in with most commercial and business area decor.

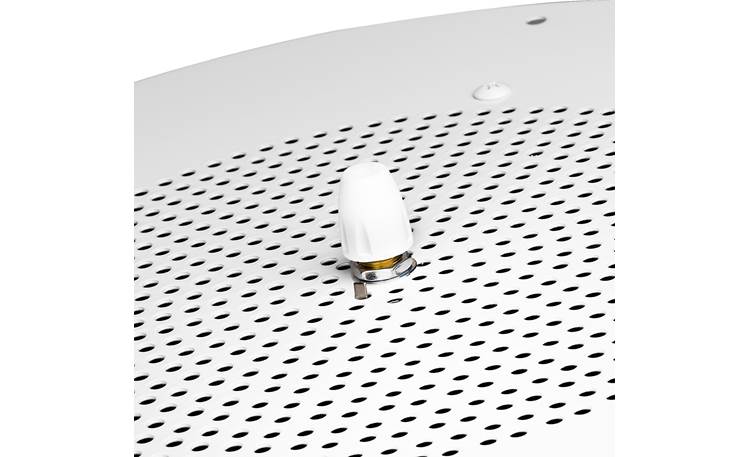

Volume Control: The OSD C1090VK features a grille-mounted volume control that lets you quickly and easily adjust the right amount of sound for the area.
25V/70V/8Ω: The C1090VK in-ceiling speaker includes a built-in 5W 25V/70V transformer mounted on the basket of the speaker. Individual wires for each tap setting are provided, along with connections for a standard 8Ω installation. Tap settings include:
- 25V & 70V: 0.32W, 0.63W, 1.25W, 2.5W, 5W.
- 8Ω: Transformer bypass.
Specifications:
- Maximum Power: 20W (8Ω)
- Maximum Tap Wattage: 5W
- Frequency Response: 40Hz - 20kHz
- Sensitivity: 90dB (±3dB, 1W @ 1M)
- Dimensions:
- Grille Diameter: 12.750"
- Mounting Depth: 2.86"
- Mounting Height: 0.803"
- Overall Depth: 3.663"
- Cutout Diameter: 10.750"
