About the OSD Forza 5 Pendant Speaker
Product highlights:
- 5-1/4" polypropylene cone woofer and 1" silk dome tweeter
- built-in transformer tap for use in a distributed audio system
- 70-volt tap settings: 1.87, 3.75, 7.5 and 15 watts
- 100-volt tap settings: 3.75, 7.5, 15, and 30 watts
- 8-ohm bypass for use with standard stereo receiver or amplifier
- 120° dispersion angle
- power handling: 50 watts RMS
- sensitivity: 84 dB
- frequency response: 100-20,000 Hz (±3dB)
- IP66 rated: dust proof/water-resistant
- Phoenix-style terminal block input connectors
- installation kit and hanging cable included
- matching landscape/surface-mount kit available for outdoor installations (sold separately)
Dimensions and warranty:
- 6-11/16" diameter x 9-5/16" height
- weight: 15 lbs.
- warranty: 1 year
- MFR # FORZA-5S
- Item # 452FZA5S

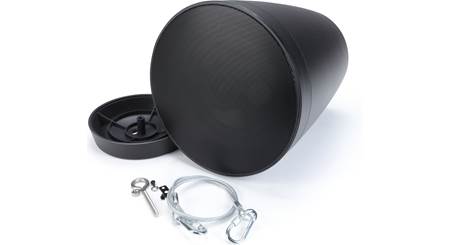

What's in the box:
OSD Forza 5 Pendant Speaker owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 5.25" 70/100V Pendant speaker
- Top cover
- 4-Pin Euroblock connector (installed)
- 40" Hanging cable w/ 2 attached locking-carabiners
- 2-5/8" Eye hook
- 1" Strain-relief
- Five 3/4" screws
- Two 3/8" screws
- Nut
- Lock-washer
- Instruction sheet
More details on the OSD Forza 5 Pendant Speaker
Features & specs
| Installation & setup | ||
|---|---|---|
| Type | Pendant | |
| Built-in amplification | No | |
| Bluetooth | No | |
| Wall-mountable | Pendant | |
| Bracket included | --- | |
| Connector type | 4-Pin Euroblock | |
| Driver details | ||
| Tweeter type | --- | |
| Tweeter size (inches) | 1 | |
| Midrange size (inches) | N/A | |
| Woofer size (inches) | 5.25 | |
| Woofer composition | --- | |
| Woofer surround | --- | |
| Audio specs | ||
| Power range (watts) | 50 | |
| Sensitivity | N/A | |
| Impedance (ohms) | 8 | |
| Frequency response | 100Hz-20 Hz | |
| Enclosure | Sealed | |
| Dimensions & other info | ||
| Height (inches) | 9-5/16 | |
| Width (inches) | 6-11/16 | |
| Depth (inches) | --- | |
| Weight (pounds) | 15 | |
| Parts warranty | 1 Year | |
| Labor warranty | 1 Year | |
Product Research
Features
Overview: The OSD Forza 5 pendant speaker is designed for distributed 70/100V audio systems in home and commercial applications. The pendant speaker is an ideal choice for spaces with irregular or uneven architectural features such as vaulted ceilings in high-end home environments, malls, restaurants, bars, museums, and other spaces where multiple speakers are required and placement is challenging.
Speaker Design: The Forza 5 2-way pendant speaker features a 5.25" polypropylene woofer and a 1" silk dome tweeter that can provide accurate, full-range sound with a wide 120˚ dispersion pattern. Both drivers are housed in a sealed enclosure that's UV-resistant and is IP66 rated, making it suitable for both indoor and outdoor applications.

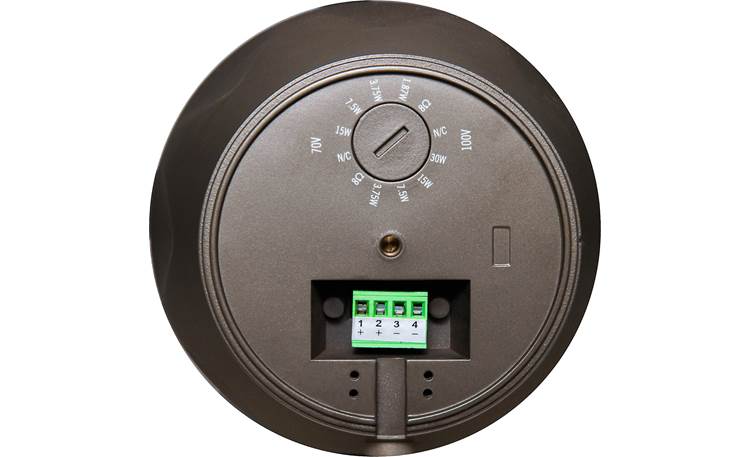

70/100V & 8Ω: The OSD Forza 5 features a built-in 15 watt 70/100V transformer for commercial applications. An 8Ω bypass also allows it to be used in a "standard" speaker configuration. A tap-dial on top of the speaker provides selections for the following:
- 70V: 1.87W, 3.75W, 7.5W, and 15W.
- 100V: 3.75W, 7.5W, and 15W
- 8Ω: Bypass
Connection: Wiring connections to the Forza 5 pendant speaker are made through a 4-pin Euroblock connector located on top of the speaker, accommodating speaker wire up to 14-gauge. Two pins are used for the connection from an amplifier while the other two pins are used for daisy-chaining the signal out to additional speakers. An included strain relief attachment helps prevent the wire connection from being pulled loose (speaker wire sold separately).
Mounting: Designed for pendant mounting, the Forza 5 includes a 40" (3.3') suspension cable with two locking-carabiners. The cable attaches to the speaker using the provided eye-bolt that threads into the top of the speaker housing, while the other end can be attached to a mounting point in the ceiling. A top cover is provided to protect the tap dial and Euroblock wiring connector.
Optional Mounting: The optional Landscape and Surface Mount Kit, found here, can be used for mounting the Forza 5 to a wall or placed on the ground in an outdoor landscape installation. The wall mount features a ball-in-socket bracket that allows the speaker to be precisely aimed. For landscape installation, a ground stake and mounting plate are included.
