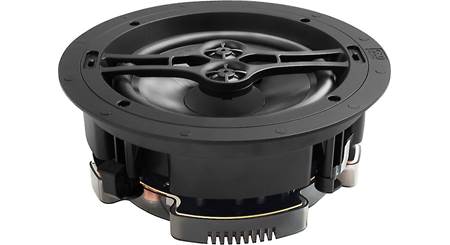

About the OSD Black Series R62DT

Product highlights:
- 2-way stereo-input in-ceiling speaker
- 6-1/2" graphite woofer with butyl rubber surround
- two aimable 3/4" silk dome tweeters
- tweeter contour switch (-3, 0, +3) boosts tweeter level to match room acoustics
- "surround mode" switch enables mono input for use as surround speakers in home theater systems
- handles up to 120 watts RMS
- frequency response: 55Hz-20,000Hz
- impedance: 8 ohms
- sensitivity: 86dB
- cutout diameter: 7-3/4"
- frame diameter: 9-3/8"
- mounting depth: 3-5/8
- warranty: lifetime
- MFR # R62DT
- Item # 452R62DT
What's in the box:
OSD Black Series R62DT owner's manual
If you need assistance accessing this owner's manual, please give us a call.- In-ceiling loudspeaker
- Grille
- Cutout Template
- Install Guide
More details on the OSD Black Series R62DT

Features & specs
Features | ||
---|---|---|
Quantity in Package | Single | |
Tweeter | Soft-Dome | |
Aimable Tweeter | No | |
Woofer Composition | Graphite | |
Woofer Surround | Butyl Rubber | |
Connector Type | Spring post | |
Bi-Amp Inputs | No | |
Built-in Back-box | No | |
Moisture Resistance | ||
Indoor (Moisture-resistant) | No | |
Outdoor (Partial Exposure) | No | |
Outdoor (Full Exposure) | No | |
Specs | ||
Tweeter Size | 0.75 | |
Midrange Size | N/A | |
Speaker Shape | Round | |
Woofer Size | 6.5 | |
Cutout Width | 7.75 | |
Cutout Height | 7.75 | |
Mounting Depth | 3.625 | |
Power Range (Watts) | up to 120 | |
Sensitivity | 86 dB | |
Impedance (Ohms) | 8 | |
Frequency Response | 55-20kHz | |
Parts Warranty | Lifetime | |
Labor Warranty | Lifetime |
Product Research
Features
2-Way Stereo Driver Design: The OSD Audio BK-R62DT in-ceiling loudspeaker employs a 2-way stereo driver design with two 0.75" silk soft-dome tweeters and one 6.5" graphite cone woofer for room-filling stereo sound.
Stereo Input: The BK-R62DT in-ceiling loudspeaker is outfitted with two sets of spring-post terminals to connect the left and right channels of your stereo amplifier. The spring-post terminals will accommodate bare wire (up to 12AWG), pin-connectors, and banana plugs (single only).
- For wire lengths of less than 50', use at least 16-gauge in-wall rated speaker wire (CL3/FT4).
- For wire lengths between 50' and 100', use at least 14-gauge in-wall rated speaker wire CL3/FT4).
- For wire lengths of greater than 100', use at least 12-gauge in-wall rated speaker wire (CL3/FT4).
Note: Your speaker wire must comply with all local building and safety codes for use in in-ceiling applications.
Tweeter Level: You can adjust the output level of the tweeter to -3dB, 0dB, or +3dB. The tweeter level control is located on the front baffle behind the detachable grille. Highly reflective "live" rooms benefit from a -3dB reduction, while fabric-heavy "dead" rooms will sound better with tweeter boosted +3dB.
Protected Crossover Network: The OSD Audio BK-R62DT utilizes advance crossover components including Mylar bypass capacitors to enhance high frequency extension for exceptional clarity and an "airy" response. Integrated plastic shields protect the components from debris and suffocating insulation, while integrated air vents keep things cool.
Applications: Because of its stereo design, the OSD Audio BK-R62DT is perfect for distributed audio applications where you want stereo sound, but only have room or the budget for a single loudspeaker.
Note: Volume controls (sold separately) can be a great addition to a system providing both proper impedance matching and more hands-on local control of the volume in the listening area.
Mounting Options: The OSD Audio BK-R62DT features a "dog leg" (L-shaped) mounting system that is part of the frame to secure the speaker in the ceiling. The speaker requires a round cutout that measures 7.75" (diameter) x 3.625" (depth). Its outer frame measures 9.375" (diameter) x 0.25" (depth). The "dog leg" (L-shaped) mounting system accommodates a 0.25" to 1.5" thick ceiling. Make sure to leave at least 0.75" of open space (without obstruction) around the cutout above the ceiling, so the speaker's "dog leg" mount system will have room to engage fully.
Note: Be sure that there are no studs, lengths of conduit, pipes, heating ducts or air returns in the ceiling cavity that will interfere with the speaker.
Low-Profile Magnetic Grille: The low-profile magnetic grille is removable and can be painted to better match the color of your ceiling. The low-profile grille only protrudes 0.25" from the ceiling's surface.
