OSD Black Series R63A Angled in-ceiling speaker

Item # 452R63A

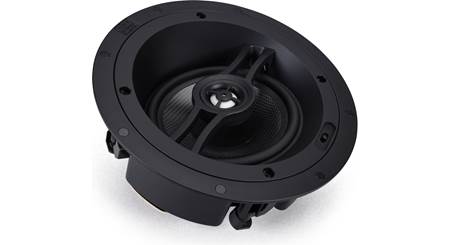

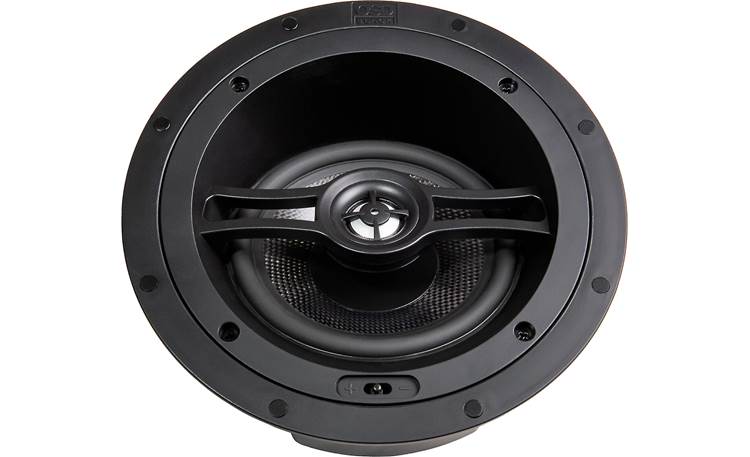

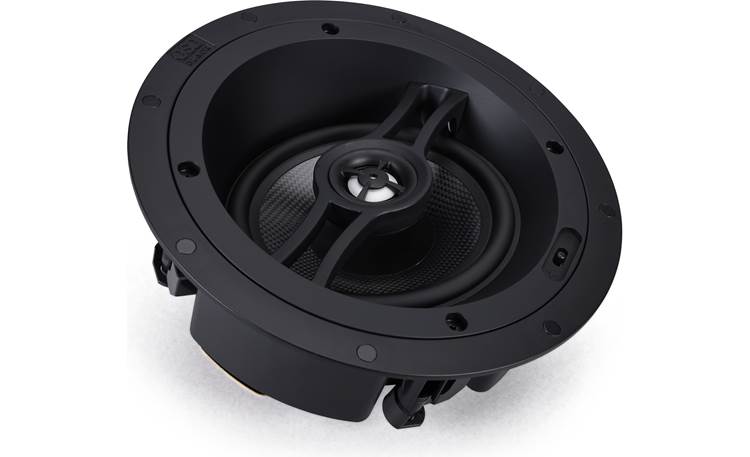

OSD's R63A features angled drivers to aim the sound toward your listening position.

OSD's R63A features angled drivers to aim the sound toward your listening position.

Item # 452R63A

Ships free

Ship date unknown
$169.99 each

About the OSD Black Series R63A

Steve Kindig

A great in-ceiling solution for smaller rooms

OSD's R63A features angled drivers to aim the sound toward your listening position. You can achieve big sound even in smaller home theater setups by installing three R63As across the front of your room for the left, center, and right channels. This design works well for rear or Dolby Atmos speakers, too. The speaker's 6-1/2" carbon fiber woofer and 1" aimable ceramic-coated aluminum dome tweeter combine to produce seamlessly natural sound.

A great in-ceiling solution for smaller rooms

OSD's R63A features angled drivers to aim the sound toward your listening position. You can achieve big sound even in smaller home theater setups by installing three R63As across the front of your room for the left, center, and right channels. This design works well for rear or Dolby Atmos speakers, too. The speaker's 6-1/2" carbon fiber woofer and 1" aimable ceramic-coated aluminum dome tweeter combine to produce seamlessly natural sound.

The R63A's angled design allows ceiling placement closer to the front wall, just above your TV or projector screen. This ties the sound more closely to the on-screen image, increasing your sense of immersion. Standard in-ceiling speakers are generally placed at least three feet out from the wall, while the angled R63A can be placed within one foot of the wall.

Adjust the tweeter level to your liking

A tweeter level switch lets you adjust the R63A's high-frequency output to match your room's acoustics. If your room has lots of reflective surfaces, you can set the switch to "-3dB" to keep the tweeter from being too overbearing. If your room has lots of carpet, cloth upholstery, or other sound absorbing materials, try the "+3dB" option for some extra treble emphasis.

Got wire?

Most speakers don't include any. Learn more about in-wall wiring.
Shop our selection of in-wall speaker wire.

READ LESS

Product highlights:

  • 2-way angled in-ceiling speaker:
    • 1" pivoting ceramic-coated aluminum dome tweeter
    • 6-1/2" carbon fiber composite woofer cone
  • drivers are angled 15° to direct sound toward your listening area
  • tweeter contour switch (-3dB, flat, +3dB) adjusts the tweeter level to match your room's acoustics
  • "dog-ear" style L-shaped mounting brackets for easier installation — no construction brackets needed
  • frequency response: 38-22,000 Hz
  • handles up to 150 watts
  • sensitivity: 89 dB
  • impedance: 8 ohms
  • cutout diameter: 8-3/8"
  • frame diameter: 9-13/16"
  • mounting depth: 4-3/4"
  • low-profile magnetic grille is paintable to match your ceiling
  • warranty: 10 years
  • MFR # R63A

Customer reviews for OSD Black Series R63A

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the OSD Black Series R63A

Stacey B.

Features & specs

Features
Quantity in Package Single
Tweeter Hard dome
Aimable Tweeter Yes
Woofer Composition Carbon Fiber
Woofer Surround Butyl Rubber
Connector Type Spring post
Bi-Amp Inputs No
Built-in Back-box No
Moisture Resistance
Indoor (Moisture-resistant) No
Outdoor (Partial Exposure) No
Outdoor (Full Exposure) No
Specs
Tweeter Size 1
Midrange Size N/A
Speaker Shape Round
Woofer Size 6.5
Cutout Width 8.375
Cutout Height 8.375
Mounting Depth 4.75
Power Range (Watts) up to 150
Sensitivity 89 dB
Impedance (Ohms) 8
Frequency Response 38-22kHz
Parts Warranty 10 Years
Labor Warranty 10 Years

Product Research

Features

2--Way Driver Design: The OSD Audio BK-R63A in-ceiling speaker employs a 2-way driver design featuring a 1" ceramic coated aluminum dome tweeter with integrated waveguide and an 6.5" carbon fiber cone woofer with TPR surround for full-range sound from your home theater setup.

  • 1" Ceramic Coated Aluminum Dome Tweeter: The 1" ceramic coated aluminum dome tweeter provides crisp, clear, and distortion free high frequencies. The tweeter's integrated waveguide helps to evenly distribute your music or movie soundtracks high frequencies for a well balanced sound.
  • 6.5" Carbon Fiber Cone Woofer: The 6.5" carbon fiber cone woofer delivers smooth midbass and deep bass frequencies. The woofer surround is fabricated from injection molded Thermoplastic Rubber (TPR); a copolymer that has superior damping characteristics and greater resistance to chemicals, UV and pollutants.

Angled Design: The BK-R63A in-ceiling loudspeaker incorporates 15-degree angled baffle for the mid/bass woofer, plus a pivoting mechanism for the high frequency tweeter for application & placement flexibility. Due to its angled design, OSD Audio BK-R63A can be utilized as a Front, Center, or Rear channel speaker in a home theater setup. The angled design allows the ideal placement in the ceiling closer to the wall just above the monitor. This creates a more realistic sound image when compared to normal in-ceiling speakers that are mounted closer to directly above the viewing area. Standard in-ceiling speakers are generally placed at least 3' from the wall to avoid reflective sound, while the angled BK-R63A speaker can be placed within a 1' of the wall.

Tweeter Level: You can adjust the output level of the tweeter to -3dB, 0dB, or +3dB. The tweeter level control is located on the front baffle behind the detachable grille. Highly reflective "live" rooms benefit from a -3dB reduction, while fabric-heavy "dead" rooms will sound better with tweeter boosted +3dB.

Spring Post Terminals: The OSD Audio BK-R63A in-ceiling speaker is outfitted with a set of spring post terminals that accept bare wire (up to 12AWG), pin-connectors, and banana plugs (single only).

  • For wire lengths of less than 50', use at least 16-gauge in-wall rated speaker wire (CL3/FT4).
  • For wire lengths between 50' and 100', use at least 14-gauge in-wall rated speaker wire CL3/FT4).
  • For wire lengths of greater than 100', use at least 12-gauge in-wall rated speaker wire (CL3/FT4).

Note: Your speaker wire must comply with all local building and safety codes for use in in-ceiling applications.

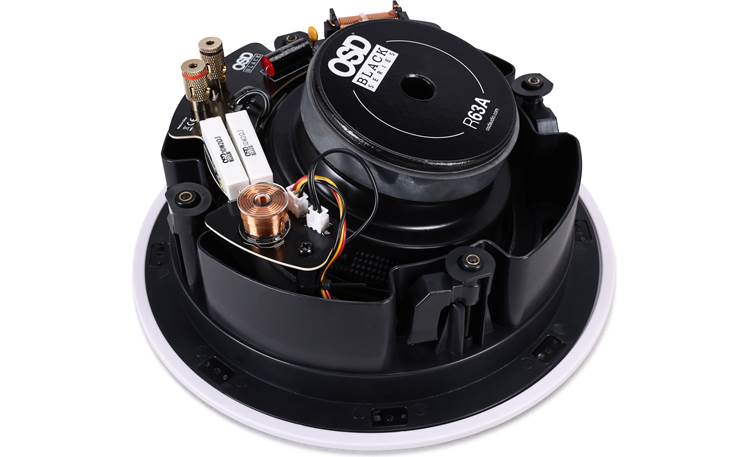

Mounting Options: The OSD Audio BK-R63A features a "dog leg" (L-shaped) mounting system that is part of the frame to secure the speaker in the ceiling. The speaker requires a round cutout that measures " (diameter) x " (depth). Its outer frame measures " (diameter) x 0.25" (depth). The "dog leg" (L-shaped) mounting system accommodates a 0.25" to 1.25" thick ceiling. Make sure to leave at least 0.75" of open space (without obstruction) around the cutout above the ceiling, so the speaker's "dog leg" mount system will have room to engage fully.

Note: Be sure that there are no studs, lengths of conduit, pipes, heating ducts or air returns in the ceiling cavity that will interfere with the speaker.

Low-Profile Magnetic Grille: The low-profile magnetic grille is removable and can be painted to better match the color of your ceiling. The low-profile grille only protrudes 0.25" from the ceiling's surface.
