About the OSD Black Series R82DT
Stout stereo-input speakers
Stout stereo-input speakers

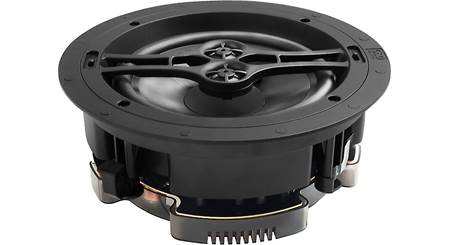

OSD's R82DT is a powerful entry in the company's in-ceiling speaker lineup. The R82DT uses finely crafted tweeters and a potent woofer to deliver pristine detail and clarity in your music. Since this speaker has stereo inputs, you only need one to enjoy your music's full stereo mix.
A punchy graphite woofer and twin silk dome tweeters
OSD used premium materials for the R82DT's drivers. The speaker uses an 8" graphite woofer with a butyl rubber surround that dishes out rockin' bass. Twin pivoting 3/4" CatEye parachute silk dome tweeters mounted over the middle woofer handle the high notes in your music with care and finesse.
Contour switches and custom crossovers
The speaker comes with two unique contour switches that change
s the output level of the tweeters. There are -3dB, 0dB, and +3dB settings to help you match each tweeter to the area's acoustics. If your room is full of reflective surfaces, you'll want to set the switches to "-3dB" to keep the tweeters from being too overbearing. If your room has lots of carpet, cloth, or other sound absorbing materials, you'll want to go with the inverse "+3dB" option to give the tweeters some extra oomph and help them come through clearly in your room.
OSD also included custom crossovers on the speakers, made with audiophile-grade components like Mylar® bypass capacitors. The crossovers were specifically designed to enhance the detail and soundstage width of the tweeters. They have their own protective shields to keep dust and debris out and air vents to keep things running cool.
Modern, easy mounting
The speaker fits into a 9-1/2" cutout and attaches to your ceiling using four mounting clamps. The clamps themselves have brass inserts and machined steel bolts that resist thread stripping and rust. Rubber damping pads on the clamps reduce vibration and buzzing while also giving the speakers a supportive foundation to rest on.
Most speakers don't include any. Learn more about in-wall wiring.
Shop our selection of in-wall speaker wire.
- 2-way stereo-input in-ceiling speaker
- 8" graphite woofer with butyl rubber surround
- two aimable 3/4" CatEye Parachute Silk Soft Dome tweeters
- two tweeter contour switches (-3, 0, +3) boost tweeter levels to match room acoustics
- optional square grilles available for modern look (sold separately)
- frequency response: 45-20,000Hz
- handles up to 150 watts RMS
- sensitivity: 87dB
- impedance: 8 ohms
- cutout diameter: 9-7/16"
- frame diameter: 11-1/16"
- mounting depth: 3-15/16
- warranty: lifetime
- Our 60-day money-back guarantee
- MFR # R82DT
What's in the box:
OSD Black Series R82DT owner's manual
- In-ceiling loudspeaker
- Cutout Template
- Install Guide
OSD Black Series R82DT reviews
Thanks for submitting your review
This review was collected as part of a promotion
More details on the OSD Black Series R82DT
Features & specs
|Quantity in Package||Single|
|Woofer Surround||Butyl Rubber|
|Connector Type||Spring post|
|Outdoor (Partial Exposure)||No|
|Outdoor (Full Exposure)||No|
|Power Range (Watts)||up to 150|
|Parts Warranty||Limited Lifetime|
|Labor Warranty||Limited Lifetime|
2-Way Stereo Driver Design: The OSD Audio BK-R82DT in-ceiling loudspeaker employs a 2-way stereo driver design with two 0.75" silk soft-dome tweeters and one 8" graphite cone woofer for room-filling stereo sound.
Stereo Input: The BK-R82DT in-ceiling loudspeaker is outfitted with two sets of spring-post terminals to connect the left and right channels of your stereo amplifier. The spring-post terminals will accommodate bare wire (up to 12AWG), pin-connectors, and banana plugs (single only).
- For wire lengths of less than 50', use at least 16-gauge in-wall rated speaker wire (CL3/FT4).
- For wire lengths between 50' and 100', use at least 14-gauge in-wall rated speaker wire CL3/FT4).
- For wire lengths of greater than 100', use at least 12-gauge in-wall rated speaker wire (CL3/FT4).
Note: Your speaker wire must comply with all local building and safety codes for use in in-ceiling applications.
Tweeter Level: You can adjust the output level of the tweeter to -3dB, 0dB, or +3dB. The tweeter level control is located on the front baffle behind the detachable grille. Highly reflective "live" rooms benefit from a -3dB reduction, while fabric-heavy "dead" rooms will sound better with tweeter boosted +3dB.

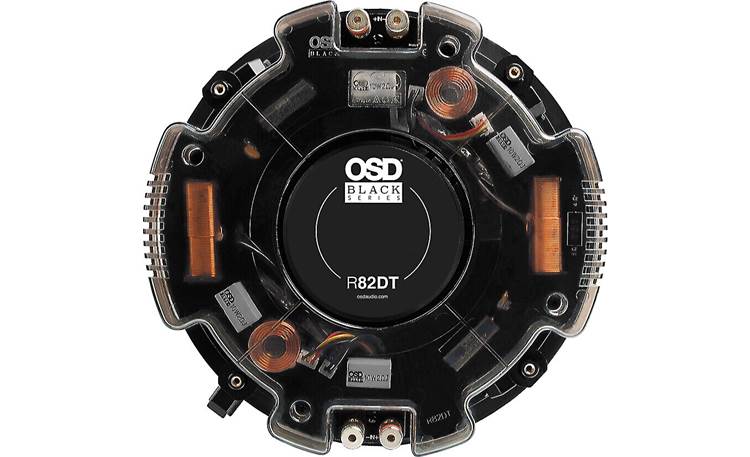

Protected Crossover Network: The OSD Audio BK-R82DT utilizes advance crossover components including Mylar bypass capacitors to enhance high frequency extension for exceptional clarity and an "airy" response. Integrated plastic shields protect the components from debris and suffocating insulation, while integrated air vents keep things cool.
Applications: Because of its stereo design, the OSD Audio BK-R82DT is perfect for distributed audio applications where you want stereo sound, but only have room or the budget for a single loudspeaker.
Note: Volume controls (sold separately) can be a great addition to a system providing both proper impedance matching and more hands-on local control of the volume in the listening area.
Mounting Options: The OSD Audio BK-R82DT features a "dog leg" (L-shaped) mounting system that is part of the frame to secure the speaker in the ceiling. The speaker requires a round cutout that measures 9.4375" (diameter) x 3.9375" (depth). Its outer frame measures 11.0625" (diameter) x 0.25" (depth). The "dog leg" (L-shaped) mounting system accommodates a 0.25" to 1.25" thick ceiling. Make sure to leave at least 0.75" of open space (without obstruction) around the cutout above the ceiling, so the speaker's "dog leg" mount system will have room to engage fully.
Note: Be sure that there are no studs, lengths of conduit, pipes, heating ducts or air returns in the ceiling cavity that will interfere with the speaker.
Low-Profile Magnetic Grille: The low-profile magnetic grille is removable and can be painted to better match the color of your ceiling. The low-profile grille only protrudes 0.25" from the ceiling's surface.
