Features

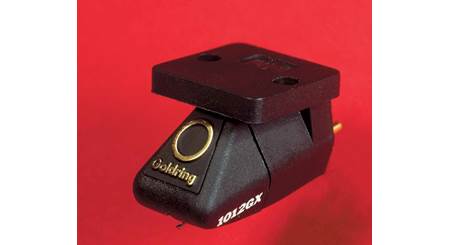

Goldring 1012GX Moving Magnet (MM) Cartridge: The 1012GX is part of Goldring's 1000 series lineup of hand-built, moving magnet (MM) cartridges and uses the acclaimed Gyger II nude diamond stylus. This fine-line elliptical type stylus with a 6 µm small radius delivers smooth, extended highs with low distortion and reproduces a highly detailed and dynamic sound. Advanced diamond tip polishing ensures excellent tracking ability and reduces record wear. Because it fills the record groove more completely due to its larger major radius, the Gyger II represents a major upgrade over normal elliptical stylus types.

• Low Mass Pocan Body: The 1000 series cartridge uses a strong one piece body which holds the fixed parts securely in place. Made from a special type of ultra-rigid, glass reinforced polyester called Pocan, the body can be tightly bolted to the head shell for maximum efficiency and optimum sound quality. The user replaceable stylus carrier slots tightly into the body with a locating pin preventing unwanted vibrations which would otherwise color the sound. An integral mu-metal can keeps the generator parts shielded from hum-inducing stray magnetic fields. Because Pocan has a high strength-to-mass ratio, the overall mass of the 1000 series cartridge is kept below 6.5 g. Low mass and moderate compliance keep the natural arm/cartridge resonance within safe limits for easy matching to a wide range of tonearms.
• High Efficiency Magnetic Circuit: Finely etched mu-metal is laminated to form the pole pieces around which are fitted two formerless coils of four thousand turns each. This unique design reduces mass and also makes for a very efficient magnetic circuit producing a higher than average output. This construction also reduces the loss at high frequencies inherent in conventional designs, making for a smooth and extended frequency response.
• Reduce Moving Mass: The 1000 series cartridge uses a unique ultra-low-mass, micro-miniature Alnico V magnet. Welded to the magnet is a gold plated nickel tie-bar which provides an earth path for vinyl static charge build up and stabilizes the cantilever in unwanted vibrational modes. The whole ultra-low-mass assembly is then mounted in a special butyl rubber polymer with optimized damping characteristics.
• Expert Adjustment: The correct setting of stylus azimuth (or horizontal tracking angle) is essential for the maintenance of a proper stereo sound stage. Azimuth is the term used to describe the angle that the vertical center-line of the stylus makes with the record surface and this must be exactly perpendicular to the record groove. This is not usually a user adjustable parameter on most budget decks, so it is vital that the cartridge leaves the factory with the azimuth precisely set (like every Goldring 1000 series cartridge). Badly adjusted azimuth can cause uneven channel balance and increased crosstalk between channels which would severely degrade the stereo image.

Specifications:

• Frequency Range: 20Hz to 20 kHz (+/-3dB)
• Channel Balance: within 2 dB @ 1 kHz
• Channel Separation: >25 dB @ 1 kHz
• Sensitivity: 6.5 mV +/- 1.5 dB; 1 kHz @ 5 cm/sec
• Static Compliance: 24 mn/N (lat); 16 mn/N (vert)
• Vertical Tracking Angle: 24 degrees
• Load Resistance: 47,000 ohm
• Load Capacitance: 150 to 200 pf
• Internal Inductance: 570 mH
• Internal Resistance: 660 ohm
• Cartridge Mass: 6.3 g (7.6 g with fixings)
• Fixing Centers: 12.7 mm (0.5")
• Playing Weight: 1.5 g to 2.0 g (1.7 g recommended)
