Features

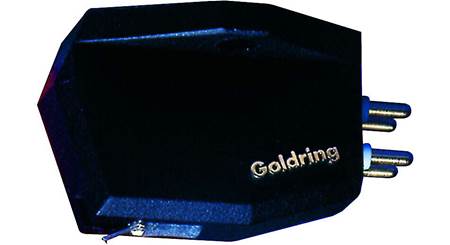

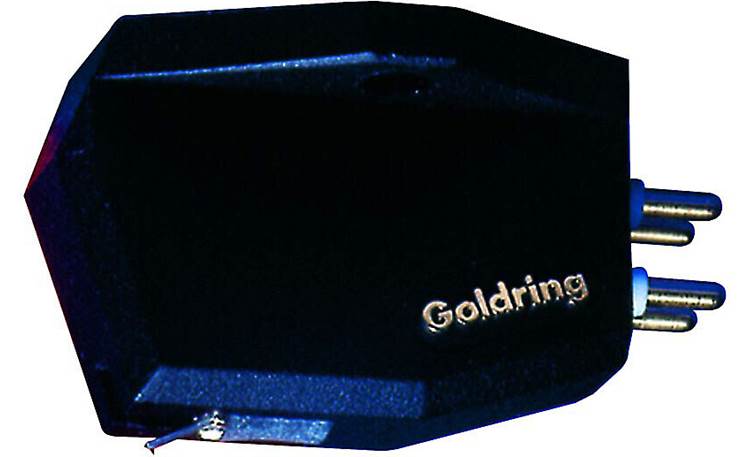

Goldring Elite Moving Coil (MC) Cartridge: The Elite is an ultra high-performance low-output moving coil cartridge which incorporates all of Goldring's most time-honored design features. These include advanced magnetic circuitry with neodymium magnet and an ultra-rigid Pocan body. The Elite incorporates a Gyger S line-contact nude diamond stylus, providing maximum groove information retrieval and an outstandingly smooth and extended frequency response. The Swedish iron armature is hand-wound with pure silver wire which provides much higher definition than is found in standard record cartridge construction.

• Gyger S Stylus Profile: The Elite cartridge uses a nude, natural-diamond stylus with a Gyger S profile. This patented, line contact design is shaped to more closely resemble the record cutting head. It features a substantially flat frontal area and a triangular trailing section with the contact radius being at opposite ends of the front edge. These radius is necessarily larger than that of the cutting head, but still small enough for the playback of quadraphonic recordings, at 6 microns. The stylus profile is the main factor governing overall sound quality in a cartridge, and the line-contact shape of the Gyger S allows the Elite to trace the smallest groove detail with complete fidelity. Mid-range tonality is incredibly accurate and precise with high frequency sibilance (hissing) banished.
• Efficient Magnetic Circuit: The Elite cartridge uses a neodymium (NdFeB), rare-earth, permanent magnet; the strongest type commercially available. This gives us the opportunity to shorten the magnetic circuit in the cartridge and still achieve the required field strength in the pole shoe gap. In this way the overall mass of the cartridge has been reduced to help improve trackability and make it compatible with a wider range of tonearms.
• Low Mass Pocan Body: The Elite cartridge uses a strong one piece body which holds the fixed parts securely in place. Made from a special type of ultra-rigid, glass reinforced polyester called Pocan, the body can be tightly bolted to the head shell for maximum efficiency and optimum sound quality. Because Pocan has a high strength-to-mass ratio, the overall mass of the Elite is kept below 6.0 g.
• Expert Adjustment: Each Elite cartridge is hand-built and then individually adjusted for azimuth and compliance by our experts. The correct setting of stylus azimuth (or horizontal tracking angle) is essential for the maintenance of a proper stereo sound stage. Badly adjusted azimuth can cause uneven channel balance and increased crosstalk between channels which would severely degrade the stereo image. Correct compliance ensures that the cartridge has an even frequency response within the specified limits and will be compatible with all low to medium-mass tonearms.

Specifications:

• Frequency Range: 20Hz to 30kHz (+/-2dB)
• Channel Balance: within 1 dB @ 1 kHz
• Channel Separation: >25 dB @ 1 kHz
• Sensitivity: 0.5 mV +/- 1 dB; 1 kHz @ 5 cm/sec
• Static Compliance: 18 mn/N
• Vertical Tracking Angle: 20 degrees
• Load Resistance: 100 ohm
• Load Capacitance: 100 to 500 pf
• Internal Inductance: 2 µH
• Internal Resistance: 8 ohm
• Cartridge Mass: 5.7 g (6.6 g with fixings)
• Fixing Centers: 12.7 mm (0.5")
• Playing Weight: 1.5 g to 2.0 g (1.7 g recommended)
