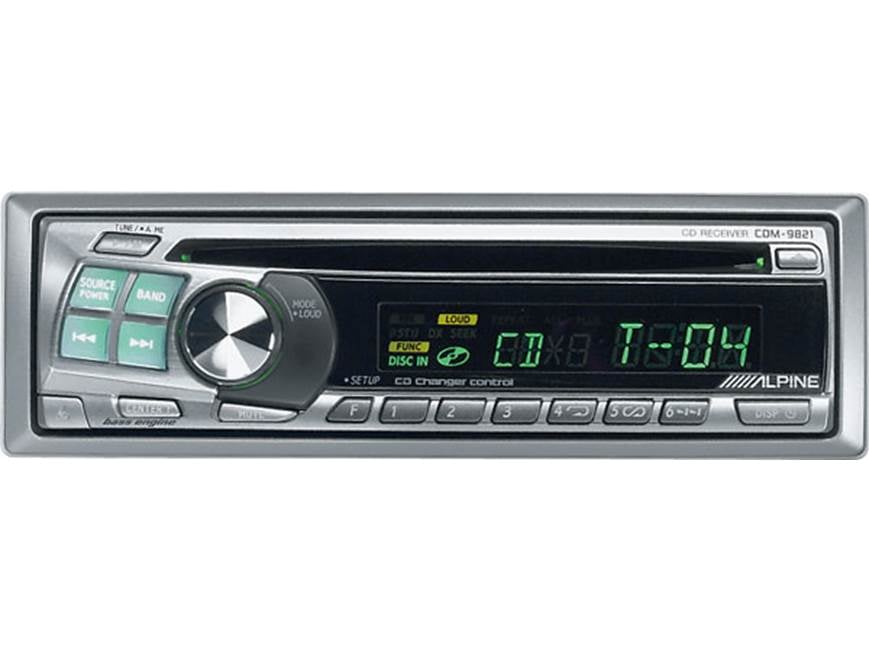

Alpine CDM-9821 CD receiver with CD changer controls

Item # 500CDM9821

Rock your ride with four channels of built-in MOSFET high power from Alpine's CDM-9821 CD receiver!

Find what Fits your vehicle

Remove

Checking fit...

Rock your ride with four channels of built-in MOSFET high power from Alpine's CDM-9821 CD receiver!

Item # 500CDM9821

Shop all Alpine Car Stereos

About the Alpine CDM-9821

Robert Ferency-Viars
Rock your ride with four channels of built-in MOSFET high power from Alpine's CDM-9821 CD receiver! The Bass Engine® feature lets you choose which bass and treble frequencies get adjusted (and how wide or narrow the bass adjustment is), so you get a more effective match to your vehicle's acoustics.

Rock your ride with four channels of built-in MOSFET high power from Alpine's CDM-9821 CD receiver! The Bass Engine® feature lets you choose which bass and treble frequencies get adjusted (and how wide or narrow the bass adjustment is), so you get a more effective match to your vehicle's acoustics.

CD-R and CD-RW discs are no problem for this classy deck — it plays your mixes flawlessly. The sensitive MaxTune radio tuner pulls in your favorite AM and FM stations like a champ. Add an Alpine 6-disc CD changer, and your road trips will fly by. You can add extra bass to your car by connecting an amplifier/subwoofer combo to the CDM-9821's preamp outputs.

READ LESS

Product highlights:

  • detachable face
  • MaxTune tuner
  • 12 FM/6 AM presets
  • plays audio CDs, CD-Rs, and CD-RWs
  • Bass Engine (bass center frequency, width, and level, plus treble center frequency and level adjustments)
  • CD changer controls for the CHM-S630 6-disc changer (will control the CHA-S634 6-disc changer with optional M-Bus/Ai-Net cable)
  • optional auxiliary input
  • source tone memory
  • preamp outputs
  • MOSFET internal amp
  • clock
  • 16 watts RMS/45 peak x 4 channels (CEA-2006 Compliant)
  • CD frequency response 5-20,000 Hz
  • CD signal-to-noise ratio 105 dB
  • FM sensitivity 9.3 dBf
  • warranty: 1 year
  • MFR # CDM-9821

What's in the box:

  • AM/FM/CD/Changer controller receiver
  • Sleeve
  • Face
  • Hard plastic face case
  • Trim ring
  • Wiring harness with in-line fuse/fuse holder
  • 4 ISO-mount screws
  • Owner's Manual (English/French/Spanish)
  • Customer Care Registration card

Customer reviews for Alpine CDM-9821

Loading reviews...

Average review:

4.0 out of 5 stars
1 review

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Alpine CDM-9821

Stacey B.

Features & specs

Expandability
AUX Input Optional
Audio/video Input ---
USB Input ---
USB Port Power ---
Backup Camera Input No
Second Camera Input No
CarPlay No
Android Auto No
Siri Control No
Alexa Voice Control
Android Control No
Memory Card Slot No
Bluetooth Compatible ---
Satellite Radio Ready No
HD Radio ---
Navigation ---
iPod Compatibility
Full size ---
Nano ---
Touch ---
iPhone ---
General
RMS Power (CTA-2006) 16 watts
RMS Power (Manufacturer) ---
Peak Output 45 watts
RMS Power Bandwidth N/A
Preamp Outputs 2-channel
Sub Preamp Outputs No
Switchable Rear Preamp Outputs ---
Video Screen No
Navigation App Compatible (iOS)
Navigation App Compatible (Android)
Preamp Voltage 2 volts
Screen Size ---
Screen Type ---
Display Color Green/Amber
Key Button Color Green/Amber
EQ Bands None
Wireless Remote No
Steering Wheel Control Compatible ---
Parts Warranty 1 Year
Labor Warranty 1 Year
Tuner
FM Sensitivity 9.3 dBf
European Tuning Yes
Seek/Scan Seek
Radio Data System No
File Playback
Music File Playback
High-res Playback

Product Research

Features
Changer Controls
Clock Display Note

Features

Bass Engine: Bass Engine functions provide control over your system, so you can tailor the sound to your personal tastes. Bass Engine includes the following functions:

  • Bass Center Frequency Control: To tailor bass response to your preference, you may select the bass control's center frequency. You may select from the following center frequencies: 60Hz, 80Hz, 100Hz, or 200Hz.
  • Bass Width Control: You may choose from four band width (Q-Factor) settings for the bass control; the bass control can be set to affect a wide or narrow band of frequencies.
  • Bass Type: You may choose from the following Bass Type settings: Type 1, Type 2, or Type 3. Type 1 will sound best if you have a subwoofer in your system. Use Type 2 or Type 3 if you are using small diameter speakers.
  • Treble Center Frequency Control: To tailor treble response to your preference, you may select the treble control's center frequency. You may select from the following center frequencies: 10kHz, 12.5kHz, 15kHz, or 17.5kHz.
  • Subwoofer Level Control: The level of the subwoofer preamp outputs can be adjusted to balance the output of your subwoofer with that of your other speakers.

Rear/Subwoofer Preouts: This unit has one set of rear/subwoofer outputs. When set to "subwoofer", the level of the outputs can be adjusted.

Auxiliary Input Ready: With the addition of the optional KCM-122B M-Bus/RCA interface cable, the audio from an auxiliary source can be played through this unit. When the KCM-122B interface cable is used, a CD changer cannot be connected to the head unit.

Changer Controls

Compatibility: This unit is compatible with 6-disc Alpine M-Bus CD changers. Using the optional M-Bus/Ai-NET compatible cable (KCA-130B), this unit can control the CHA-S634 Ai-NET 6-disc CD changer.

Clock Display Note

Clock Operation: This unit allows you to choose "keyed" or "unit on" clock operation. When the clock has been given display priority and the unit is turned off, the clock will be displayed whenever the ignition key is in the "on" or "accessory" position. If the clock is not given display priority, the clock is not displayed when the unit is off.
