Apple CarPlay & Android Auto
USB/iPhone/Aux Integration
Built-in Bluetooth
AM/FM Radio + SiriusXM Ready
Audio & DSP Section
Touchscreen Display + Camera Connectivity

Apple CarPlay & Android Auto

Built-In WiFi: The Alpine iLX-W770 features built-in WiFi wireless connectivity specifically designed to support a cable free connection between your Apple iPhone or Android smartphone and the receiver for Wireless Apple CarPlay and Wireless Android Auto.

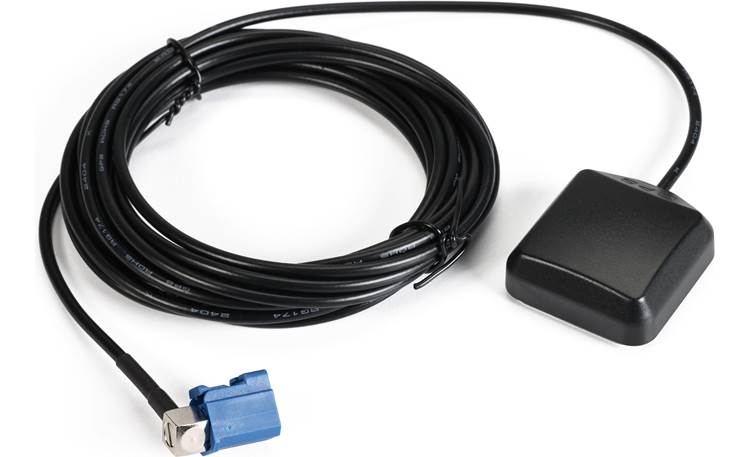

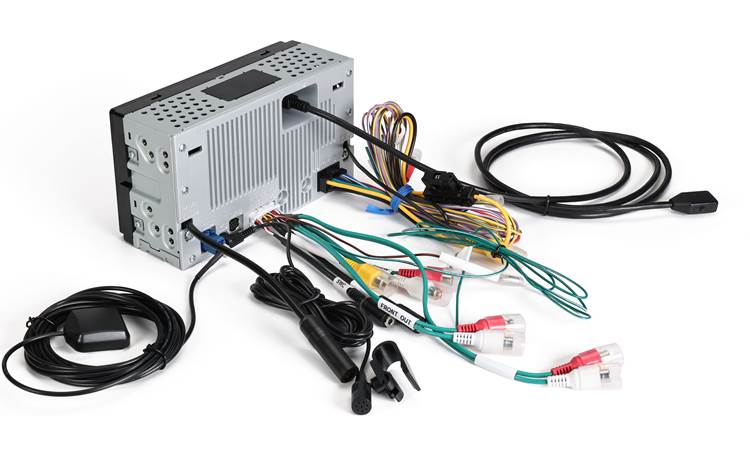

• GPS Antenna: Before using CarPlay or Android Auto, make sure the included GPS antenna is properly connected. The GPS antenna is required for Android Auto and Apple CarPlay navigation maps (including Google Maps, Apple Maps, and Waze). The GPS antenna comes with a self-stick pad which mounts it on top of your dash inside the vehicle.
• Data Plan Required: Access to CarPlay and Android Auto apps will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Your compatible Apple or Android device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

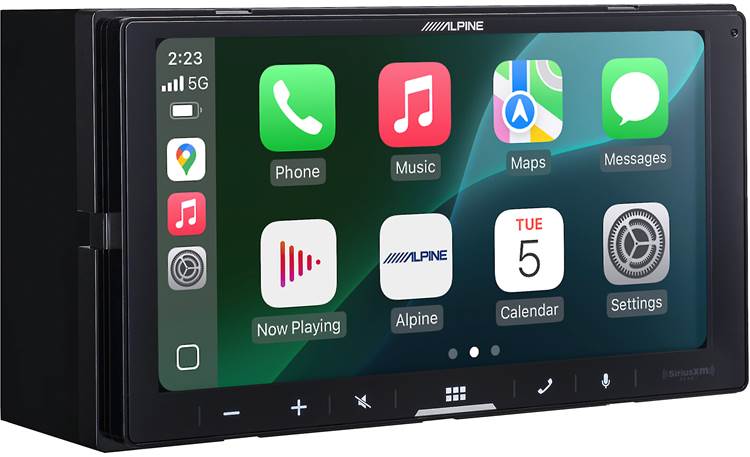

Wireless Apple CarPlay: Apple CarPlay is a smarter, safer way to use your iPhone 6 or newer in the car, while you stay focused on the road. Your iPhone can be connected to the Alpine iLX-W770 wirelessly via WiFi + Bluetooth or hardwired via its rear-panel USB-A port. An iPhone 6 or newer (running iOS 9.0+) is required for a wireless connection, while an iPhone 6 or newer (running iOS 7.1+) is required for a hardwired connection. Apple CarPlay takes the things you want to do with your iPhone while driving and integrates them into the Alpine iLX-W770. Apple CarPlay offers an incredibly intuitive way to make calls, view maps, listen to music, and access messages from your compatible iPhone through the Alpine in-dash digital multimedia receiver. With Apple CarPlay, you can control these functions from the Alpine receiver's touchscreen or activate Siri for minimized distraction.

• Maps: Apple Maps will be mirrored on the screen, including traffic information and estimated time to destination. Use the head unit's touchscreen or ask Siri to get turn-by-turn directions. You can search by address, favorites, recents, points-of-interest, and more. CarPlay can even predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. You can also choose to navigate via Google Maps or Waze instead of CarPlay. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
• Phone: Use the head unit's touchscreen or ask Siri to make calls, return missed calls, and listen to voicemail messages. Caller ID information will be displayed on the receiver's touchscreen. You'll carry on your side of the conversation through the included microphone, while the other party is heard through your vehicle's speakers.
• Messages: Ask Siri to send, read, and reply to text messages. This hands-free operation minimizes distraction and allows you to keep hands on the wheel and eyes on the road. Text messages cannot be read or typed from the head unit's touchscreen to prevent driver distraction.
• Music: You can access music by artist, song, playlist, and more through the receiver's touchscreen or via Siri. The receiver will display artist/song/album information (including album art in the background). You can access your iPhone's iTunes music library, as well as Apple Music. In addition, you can access other music apps that you have on your iPhone; including Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, TuneIn Radio, SiriusXM, Slacker Radio, Google Play Music & more.
• Apple HomeKit: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.
• Other Applications: In addition to navigation and music apps, Apple CarPlay supports a variety of other applications ranging from Podcasts, Audiobooks, Sports, News, Weather, and More.

Wireless Android Auto: The Alpine iLX-W770 supports Android Auto with select Android smartphones using a wireless or wired connection. A Google or Samsung smartphone with Android OS 10.0+ or any smartphone with Android OS 11.0+ and 5GHz WiFi can utilize Android Auto Wireless with the Alpine receiver using the latest version of the Android Auto app, plus a WiFi and Bluetooth connection. Android smartphones running Oreo 8.0 or newer can also be hardwired to the iLX-W770 via the head unit's rear-panel USB-A port and Bluetooth. Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into a simple on-screen user interface. It's designed to minimize distraction so you can stay focused on the road ahead.

• Google Assistant: With Google Assistant on Android Auto, you can keep your eyes on the road and your hands on the wheel while using your voice to help you with your daily commute. Simply say, "Ok Google" or press the mic button to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, or listen to music.
• Navigation Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. You can use the unit's touchscreen or Google Assistant to select your destination and route. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app.
• Calls & Messages: Android Auto's Google Assistant lets you stay connected while you're driving. The Google Assistant lets you use voice commands to call phone numbers and your favorite contacts, as well as read-reply-send text messages; all while keeping your hands on the wheel.
• Music Apps: Android Auto gives you access to your Android smartphone's music library via YouTube Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen or the Google Assistant to select songs, artists, albums, or playlists. You also get access to select music apps on your Android smartphone; including Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, Slacker Radio, Tune-In, and more. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible app for Android Auto.

Smartphone Charging: The Alpine iLX-W770 will also charge (5V/1.5A) your Android smartphone or Apple iPhone while connected via USB with the vehicle's ignition switch set to the 'ACC' or 'On' position.

USB/iPhone/Aux Integration

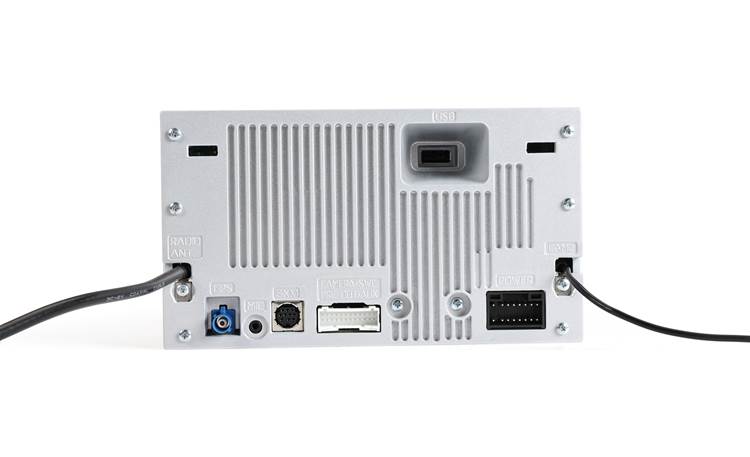

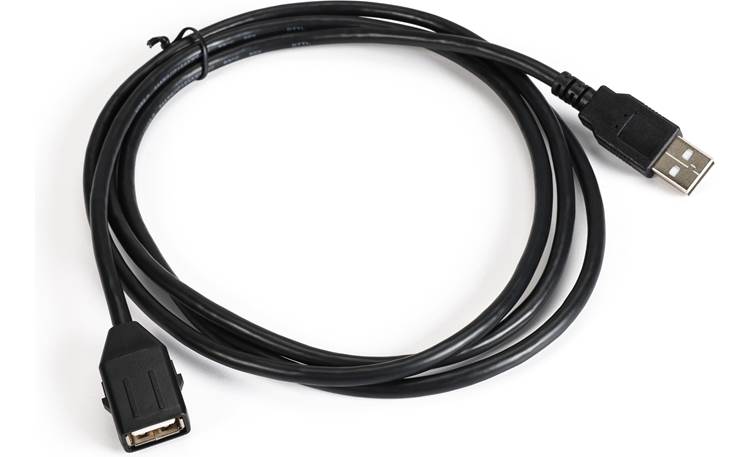

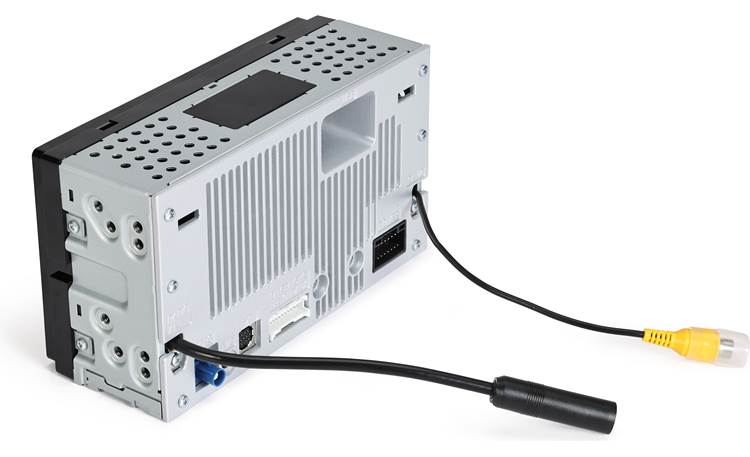

USB MSC Playback: In addition to iPhone & Android connectivity, the head unit's rear-panel USB (type-A) port allows you to connect a USB Mass Storage Class (MSC) device; such as a USB thumbdrive. A 42" USB extension cable is included. The unit supports playback and control of a variety of audio, video, and photo files stored on a compatible USB MSC device. USB portable devices that can be charged via USB will be charged when plugged into the dig

iPhone Music Playback: If you don't desire Apple CarPlay, you can also connect your Apple iPhone 6 and newer to the iLX-W770's rear-panel USB port for music playback & control only. The iLX-W770 supports audio playback, music navigation, information display, and charging of your USB-connected Apple iPhone 6 and newer.

• Head Unit Control: The Alpine iLX-W770 lets you navigate your iPhone's music library by Playlist, Artist, Album, Song, Genre, Composer, Podcast, or Audiobook. You can then search each category alphabetically. The head unit also offers playback functions such a Play/Pause, Previous/Next Track, & Random/Repeat for stored music files. Play/Pause & Previous/Next Track are supported by many music apps too; not all apps will be compatible. Your USB-connected iPhone will remain unlocked, so you can use its touchscreen to access music apps.
• Song/Artist Information: The Alpine in-dash digital media receiver will display your iPhone's stored music file information; such as Track number, Elapsed playing time, Artist name, Song/Album title, as well as Album Art. The unit will also display song/artist information, album art, and station identification from select music apps.
• 1.5A Charging: The head unit's USB connection provides 1.5A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position (if your /iPhone has no initial battery charge, then the unit will not recognize it).

AV Aux Input: In addition to the USB port which allows for USB MSC or iPhone device connectivity, the Alpine iLX-W770 offers a rear-panel 3.5mm AV input that lets you connect almost any external audio source that features an analog output or headphone jack out. The iLX-W770's parking brake wire must be connected to your vehicle and the vehicle's parking brake engaged to watch video on the touchscreen monitor of the Alpine receiver.

Built-in Bluetooth

Bluetooth 5.0: The Alpine iLX-W770 features built-in Bluetooth version 5.0. The head unit's built-in Bluetooth allows you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles -

• Hands-Free Communication: HFP (Hands Free Profile), PBAP (Phone Book Access Profile).
• Audio Streaming: A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Video Remote Control Profile).

Secure Simple Pairing (SSP) w/ Dual Phone Connection: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the iLX-W770 without having to enter pin codes or go through complicated settings (your phone must also support SSP). You can pair multiple devices with the Alpine head unit, but only one device can be connected and used at a time. When a previous paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically connects the receiver and device.

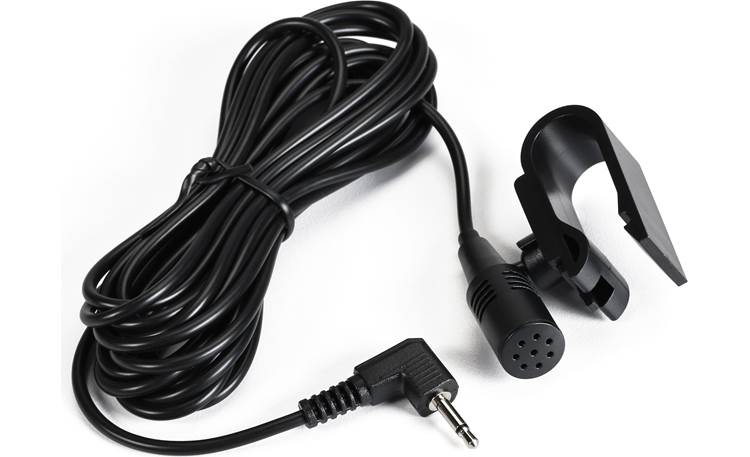

Hands-Free Communication: The Alpine iLX-W770 supports wireless hands-free communication for your Bluetooth enabled mobile phone (including iPhone & Android). You'll be able to receive and make calls using the iLX-W770. The iLX-W770 allows you to carry on a phone conversation using the included external microphone and your car audio speakers. You can emphasize or weaken the volume level of the phone caller, the ring tone, and the microphone to fit your own preference. All Bluetooth phone functions are available with or without the parking brake engaged.

• Receiving Calls: Incoming calls are announced by a caller ring tone through your vehicle's speakers (music will be muted) & a Caller ID message across your Alpine head unit's touchscreen display. You can answer an incoming phone call by pressing the telephone icon button on the Alpine receiver's front-panel. Press the telephone icon button again to end the call.
• Making Calls: The Alpine iLX-W770 provides a variety of functions for placing a phone call without using your mobile phone. The Alpine iLX-W770 features full phone book access, call history, and voice-dialing with compatible phones.
  • Phone Number Entry: Allows you to directly dial a phone number from the head unit's touchscreen.
  • Phonebook: Your contacts and their phone numbers can be downloaded from your compatible mobile phone. You can then search the contacts of your phonebook alphabetically.
  • Call History: The previously dialed, received, or missed numbers can be retrieved and dialed from memory.

Audio Streaming: The Alpine iLX-W770 can stream stored music, music apps, and other content from your Bluetooth source device (such as your iPhone or Android smartphone). The iLX-W770 will be able to control basic playback functions such as Play/Pause, Previous/Next Track, Fast Forward/Rewind and Random/Repeat. Advanced music browsing (such as song/artist/album search) will still need to be done from your Bluetooth source device. The head unit will also display your stored music's song information; such as Artist name & Song/Album title (no Album Art). When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

AM/FM Radio + SiriusXM-Ready

AM/FM Tuner: The Alpine iLX-W770 features a built-in AM/FM tuner with manual, seek, preset, and preset scan tuning. The built-in tuner provides 18 FM and 6 AM preset stations. You can manually save your own presets or have the head unit automatically save the strongest station presets.

SiriusXM Ready: The Alpine iLX-W770 is SiriusXM-Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300, sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 175+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:

• Channel List + Song/Artist Info: A channel list displays a list of all available channels. Displayed Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit's touchscreen monitor.
• Category Search & Presets: The Category Search function searches for channels in a certain category. Up to 18 SiriusXM Satellite Radio station presets can be saved for easier access.
• Parental Lock: This function restricts the listening of channels for children of certain age levels and is protected by a 4-digit "lock-code".

Audio & DSP Section

CTA-2006 Compliant: The specifications given by Alpine for the built-in amplifier comply with the CTA-2006 mobile amplifier power testing and measurement standards from the CTA (Consumer Technology Association). All manufacturers who comply with the standard can display the CTA-2006 logo on their product.

• CTA-2006 Power Rating: 16 watts x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
• Max Power Output: 50 watts x 4 channels (200 total watts Peak)

Power Pack Compatible: Add the KTP-445A Head Unit Power Pack (500KTP445A, sold separately) to deliver 45 watts x 4-channel RMS of power. The KTP-445A is compact enough to install behind the Alpine receiver. It plugs in-line with the head unit's wiring harness, so you don't even need additional wires.

PowerStack Compatible: The iLX-W770's compact and shallow chassis is optimized to mount one of Alpine's Power Pack amplifiers (sold separately) to the back of the in-dash receiver. Alpine's PowerStack design lets you add more power to your sound system, while occupying the same depth as a traditional Double-DIN (4") radio. These amplifiers are not plug-and-play, and will still require power run to your battery. They feature power/ground/remote wires, as well as line-level RCA inputs and speaker wire outputs.

• KTA-450 Amplifier: The KT-A450 (sold separately) is a 4-channel amplifier that is rated at 50 watts x 4 channels into 4-ohms. It can also be bridged to provide 100 watts x 2 channels into 4-ohms. The amp features a variable high-pass crossover (60Hz, 80Hz, 120Hz, or Off) and adjustable gain control.
• KTA-200M Amplifier: The KTA-200M (sold separately) is a mono-subwoofer amplifier that utilizes Alpine's exclusive Dynamic Peak Power technology to produce 200 watts x 1 channel into 4- or 2-ohms. The amp features a variable low-pass crossover (60Hz, 80Hz, 120Hz, or Off) and adjustable gain control.

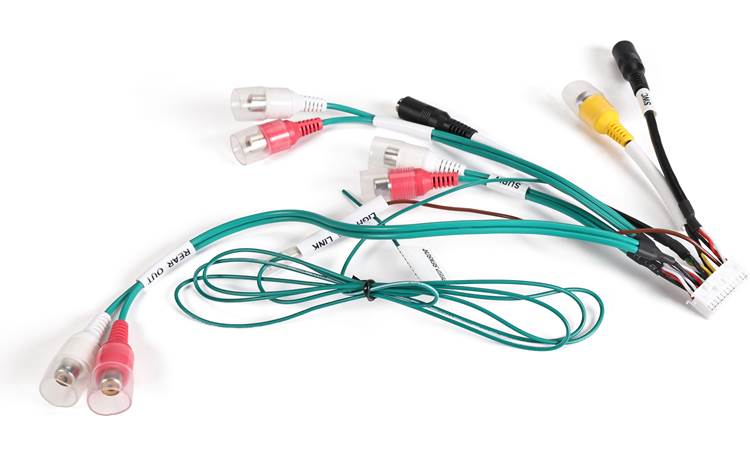

6ch/4V Preouts + Sub Control: The iLX-W770 has three sets of 4-volt RCA pre-outs (Front/Rear/Sub) for connection of external amplifiers. The unit's front and rear preamp output can be faded, while the subwoofer preamp output is non-fading. The subwoofer output level can be adjusted independently from the main volume setting (0-15); so even at low volume settings the subwoofer is still audible. The subwoofer output phase can be set to Normal (0°) or Reverse (180°).

High-Pass & Low-Pass Crossovers: The head unit is equipped with independent High Pass Crossover Filters for the front and rear speaker outputs or preamp-outputs, as well as a Low Pass Crossover Filter for the subwoofer preamp-output.

• High Pass Filter: The Alpine head unit is equipped with a high-pass filter for its front and rear speaker outputs or preamp-outputs. You can set the unit's high-pass filter center frequency point to 25Hz, 32Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, 250Hz or Off (through).
• Low Pass Filter: The unit's subwoofer output low-pass filter can be set to 25Hz, 32Hz, 40Hz, 50Hz, 63Hz, 80Hz, 100Hz, 125Hz, 160Hz, 200Hz, 250Hz or Off (through).

Equalizer: The Alpine iLX-W770 is equipped with a variety of EQ Presets, a 3-Band EQ, and a custom 13-Band EQ to tailor the music to your listening preference. The EQ settings are applied to all sources.

• Preset EQ: The simplest way to adjust the head unit's EQ curve is by select from one of the 7 EQ presets. You can choose from Flat, Hip-Hop/R&B, Rock, Easy Listening, Pop, Bass Boost, and Mid Bass Boost. The Custom mode allows you to manually adjust a 3-Band or 9-Band EQ.
• 3-Band EQ: The 3-Band EQ allows you to manually adjust the Alpine receiver's Bass, Midrange, and Treble from -12 to +12 dB for a better listening experience.
• 13-Band Graphic EQ: The advanced 13-Band Graphic EQ allows you to further fine-tune the Alpine receiver's sound. The 13-Band Graphic EQ offers 50, 80, 125, 200, 315, 500, 800, 12.5k, 2k, 3.15k, 5k, 8k, and 12.5k center frequency bands that can be adjust from -12 to +12 dB. You can up to 3 custom EQ presets.

Time Correction + Speaker Level: This unit is able to delay the audio signal to the speakers and subwoofer(s) closest to the listener with its built-in Time Correction feature. This effectively creates a perception of increased distance for those speakers. Time Correction allows the listener to be placed at an equal distance between the left and right speakers for optimum staging. You can adjust the time delay (0.0-10.0msec) of each speaker and subwoofer to the listener. You can also adjust the level of each speaker and subwoofer (Front Left, Front Right, Rear Left, Rear Right, and Subwoofer) from 0 to 10dB.

Beep Guide: This function will give audible feedback with varying tones depending upon the button pressed. This feature can be turned On or Off.

Touchscreen Display + Camera Connectivity

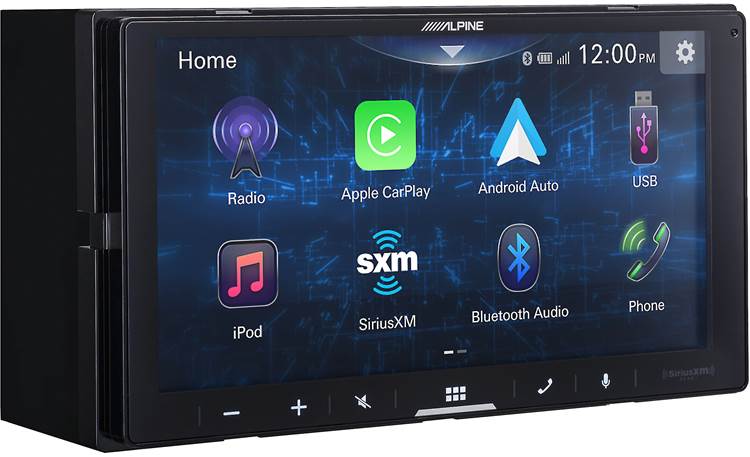

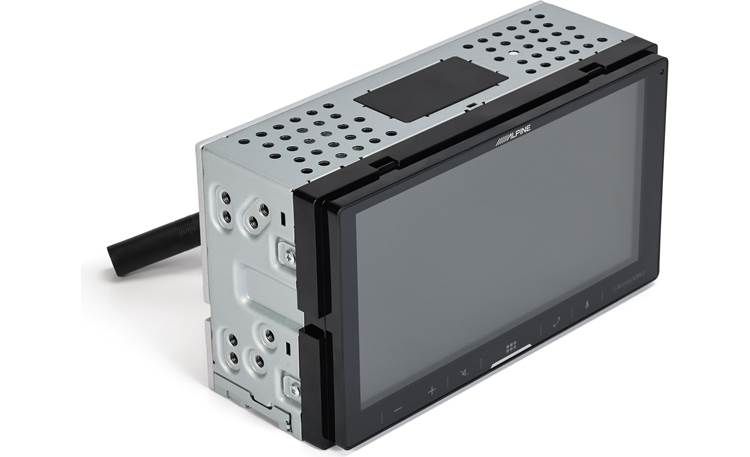

6.75" Capacitive Touchscreen: The 6.75" capacitive touchscreen boasts a 800 x 480 resolution (1.15 million pixels) with a 16:9 widescreen aspect ratio. The touchscreen monitor provides a balanced picture, not over-emphasizing dark or light areas, so album art, map screens, and videos are seen with greater clarity. The capacitive touchscreen requires less pressure, responds faster, and can recognize multiple touch points simultaneously; all advantages when compared to traditional resistive touchscreen displays.

• Background (Wallpaper): You can select between 5 presets backgrounds (wallpapers) or select a custom background (wallpaper) image from a connected USB thumbdrive.
• Brightness (Dimmer) Control: You can adjust the brightness of the touchscreen monitor's LCD backlight for Day and Night time driving. You can manually switch between Day or Night brightness mode, or have the unit automatically adjust the brightness based on the ambient light in your vehicle.
• Clock Display: The iLX-W770 lets you select between a 12 hour or 24 hour clock, and is displayed on each source screen. The clock can be set to turn off with the unit, or continue to display after the unit is turned off (as long as the vehicle's key is in the accessory or on position).

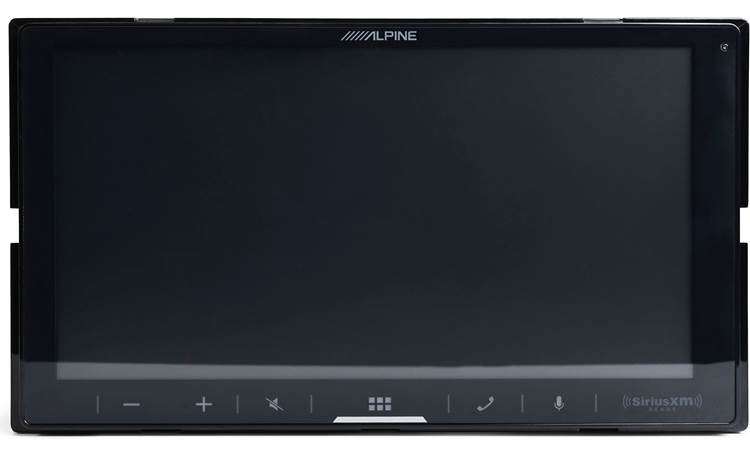

Touch-Sensitive Buttons: Conveniently located touch-sensitive buttons (including Power/Menu, Source, Volume Up/Down, Mute, Phone/Answer, and Voice/Mic)s are accessible along the bottom edge of the 6.75" touchscreen monitor for quick access and simple control. The touch-sensitive buttons offer variable color illumination. Choose from Blue, Red, Amber, Green, or White.

Front & Rear Camera Inputs: The Alpine iLX-W770 is outfitted with two composite video camera inputs for adding a rearview and frontview camera (both sold separately) to enhance visibility around your vehicle and allow for safer driving.

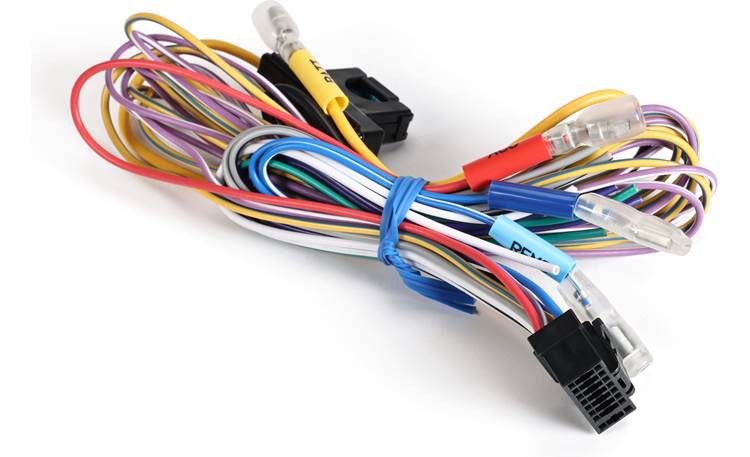

• Auto Switching: If a rear-view camera is connected, you should also connect the unit's reverse lead wire (violet/white) to your vehicle's back-up lamp circuit. When properly connected, the image from the rear-view camera automatically appears on the monitor when the vehicle is shifted into reverse. Automatic video switching takes approximately 0.75 seconds.
• Guidelines: The rear-view camera function also provides on-screen color-coded guidelines to assist you when backing up your vehicle into a parking space.
• Visual Adjust: Visual Adjust lets you can change the picture quality (Brightness, Color, Contrast) for the connected camera.
• Backup Mute: When the Backup Mute features is activated, the receiver's sound will be muted automatically when your vehicle's gear lever is moved to the reverse position.

Lighting Link Control: The iLX-W770 is also compatible with Alpine PrismaLink Subwoofers; including the S2-SB8, S2-SB10, & S2-SB12 (sold separately). Through a proprietary wired connection, you'll be able to control your Alpine PrismaLink Subwoofer's LED lighting effects using the iLX-W770's touchscreen monitor. Choose from Blue, Red, Amber, Green, or White.

Steering Wheel Control Input: The head unit features a steering wheel remote control input on the rear of the unit that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).
