About the Alpine R-W10D2
Maximum bass output
Maximum bass output
For those who like it loud, Alpine salutes you! Their legendary R-Series subwoofers are made to bring powerful bass to just about any vehicle. The R-W10D2 10" sub features a cone made from Kevlar® treated pulp — the same material used to make bulletproof vests — while its durable Santoprene™ surround allows for huge amounts of excursion. Alpine built this sub for bassheads who want the best of both worlds: accurate response and otherworldly thump.
Bring on the power
The R-W10D2 can handle up to 750 watts RMS, so be sure to choose a suitable amplifier as these bass monsters definitely want lots of power. Its dual oversized 2-ohm voice coils offer wiring flexibility you'll appreciate as your system changes and grows, so you can always pull maximum power from your amp. It works well in sealed and ported enclosures so you can choose what kind of bass you want to hear and feel.
Note: If you are wiring this DVC sub for lower impedance, make sure that your amp is compatible.
Product highlights:
- 10" subwoofer with dual 2-ohm voice coils
- Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
- frequency response: 26-200 Hz
- power handling: 750 watts RMS (375 watts per coil)
- peak power: 2250 watts
- top-mount depth: 5-7/8"
- grille not included
- warranty: 1 year
- MFR # R-W10D2
What's in the box:
- One 10" Dual 2-ohm voice coil subwoofer
- 1 Rubber concealing ring (installed)
- Two 3" jumper cables (each has a single banana connector on each end)
- R-Series Subwoofer Application Guide (English/ French)
- On-line product registration information (English/ French/ Spanish)
- Warranty information (English/ French)
- Important Notice! (English/ French)
Reviews (12)
Customer reviews for Alpine R-W10D2
Loading reviews...
Average review:
5.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Alpine R-W10D2
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10 -inch | |
| Impedance (Ohms) | 1, 4 | |
| Cone Material | Kevlar-Reinforced Pulp | |
| Surround Material | Rubber | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
82.4 dB at 1 watt | |
| Frequency Response | 26 - 200 Hz | |
| Max RMS Power Handling | 750 | |
| Peak Power Handling (Watts) | 2250 | |
| Top Mount Depth (inches) | 5 7/8 | |
| Bottom Mount Depth (inches) | 6 3/4 | |
| Cutout Diameter or Length (inches) | 9 1/8 | |
| Vas (liters) | 21 | |
| Fs (Hz) | 30 | |
| Qts | 0.55 | |
| Xmax (millimeters) | 20 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 0.58 | |
| Minimum Sealed Box Volume (cubic feet) | 0.48 | |
| Maximum Sealed Box Volume (cubic feet) | 0.93 | |
| Ideal Ported Box Volume (cubic feet) | 1.3 | |
| Minimum Ported Box Volume (cubic feet) | 1.03 | |
| Maximum Ported Box Volume (cubic feet) | 1.58 | |
Product Research
Features
Enclosure Compatibility
Features

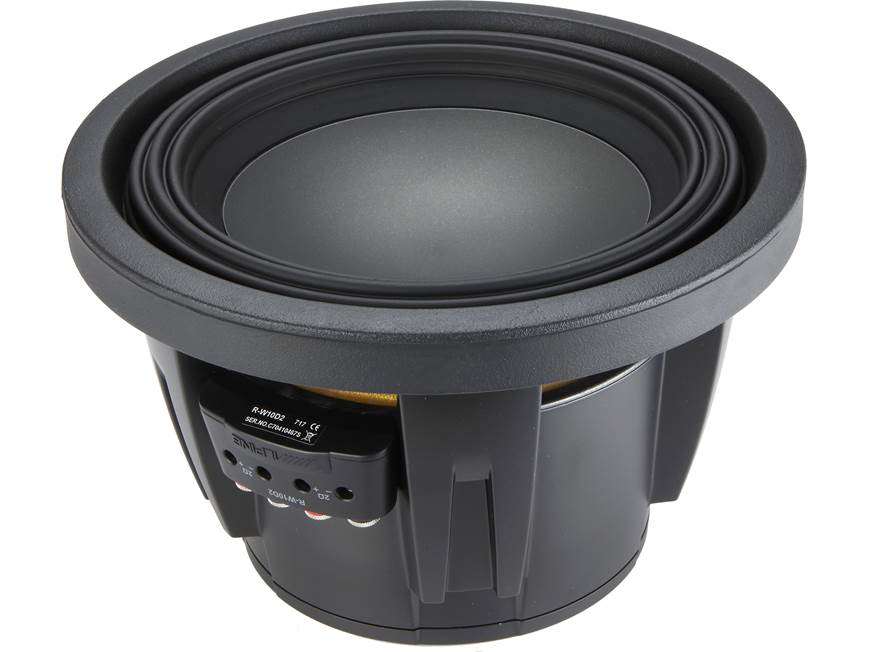

Kevlar Reinforced Pulp Cone: This Alpine R-Series subwoofer has a parabolic, Kevlar reinforced pulp cone. Kevlar adds strength and tear resistance to the woofer cone while maintaining the benefits of a pulp cone design. There is also an inverted polypropylene/mica/talc dust cap, which increases rigidity.
HAMRS: The woofer features a High Amplitude Multi Roll Surround (HAMRS), made of rubber, that allows a large linear excursion and greater SPL. The HAMRS design allows extreme excursions without sacrificing valuable cone area.
Progressive Spider: The progressive spider has reinforced layer tinsel leads to ensure reliable and consistent control of the tinsel leads and eliminate any mechanical noise or interference often seen in high excursion cone designs.
Compound Radius Curve Pole Geometry: Alpine's Patented Compound Radius Curve pole geometry ensures a symmetrical magnetic field, while optimizing flux density to reduce distortion and further improve power handling and output.
Oversized Voice Coil: The oversized (65mm), high-temperature, 4-layer dual voice coils increase the sub's power handling.
Dual Voice Coils: For system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.

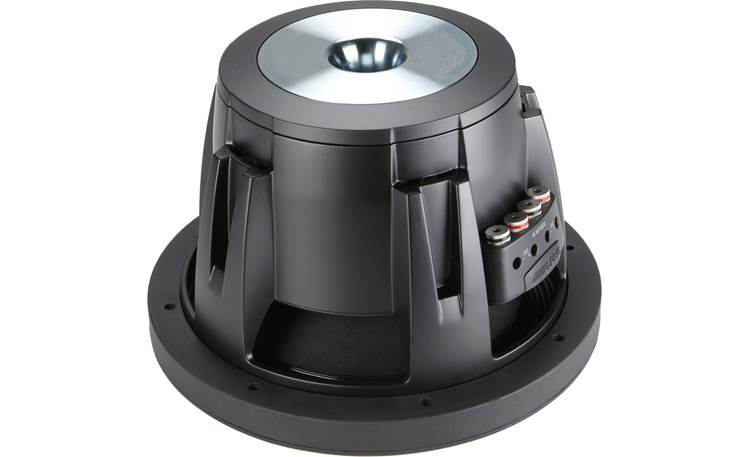

Spring Terminals: The spring post terminals are all located on one side of the woofer. The terminals will accept bare wire up to 8 gauge, pin connectors, or single banana plugs.
Jumpers: Included with the woofer are two voice coil terminal jumpers. These jumpers allow you to easily wire the voice coils in parallel (for a 1Ω load) or series (for a 4Ω load).
Enclosure Compatibility
Sealed Box Volume: The recommended sealed box volume ranges from 0.48 cubic feet to 0.93 cubic feet, with 0.58 cubic feet being the ideal size. (The volume in the manual is given as net, before accounting for the displacement of the subwoofer when installed.)
Ported Box Volume: The recommended ported box volume ranges from 1.03 cubic feet to 1.58 cubic feet. The ideal size is 1.3 cubic feet, using a slot port measuring 10" (Width) x 1" (Height) x 17" (Length). (The volume in the manual is given as net, before accounting for the displacement of the subwoofer and slot port.)
The Alpine R-W10D2 replaces these items
- Kevlar reinforced pulp cone with HAMRS Santoprene rubber surround
- power handling: 300-1,000 watts RMS
- frequency response: 26-200 Hz
