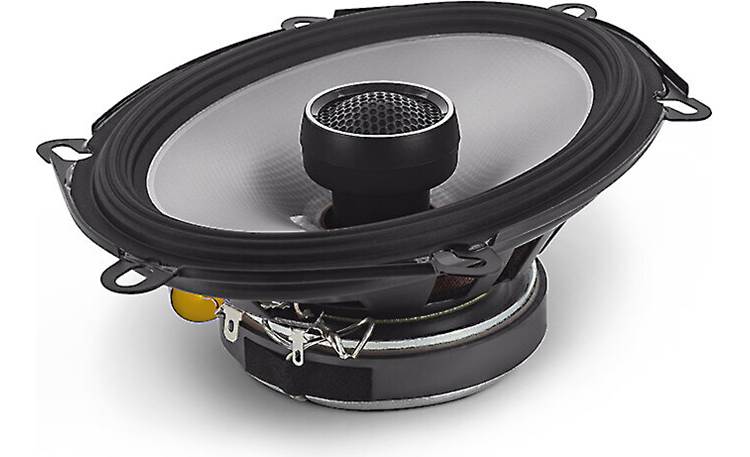

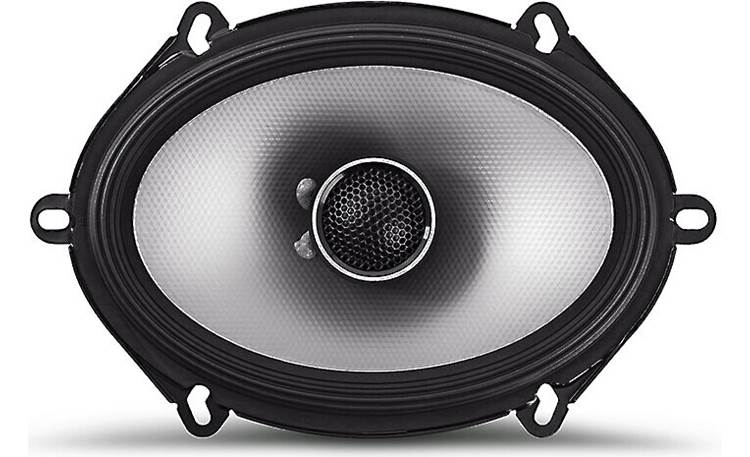

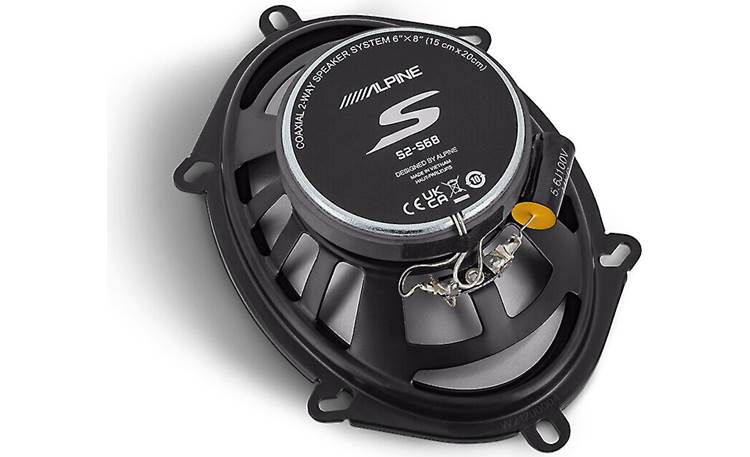

About the Alpine S2-S68

Product highlights:
- 6"x8" 2-way speakers
- polypropylene/glass fiber/mica woofer cone with specialized rubber surround

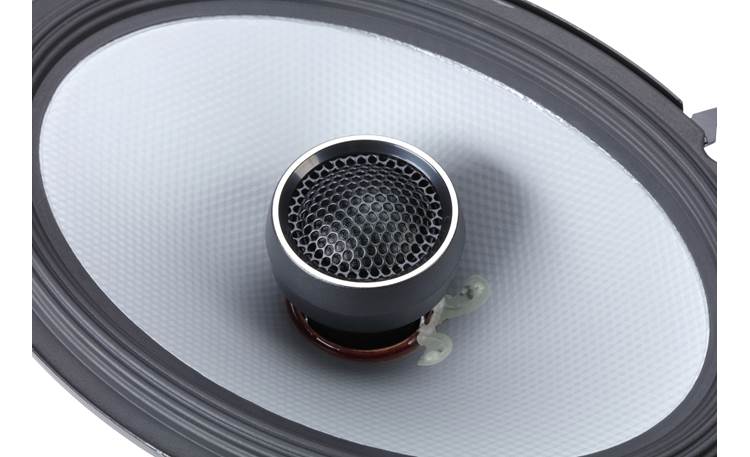

- 1" cloth dome tweeter
- handles up to 75 watts RMS (230 watts peak power)
- frequency response: 75-40,000 Hz
- impedance: 4 ohms
- sensitivity: 88 dB

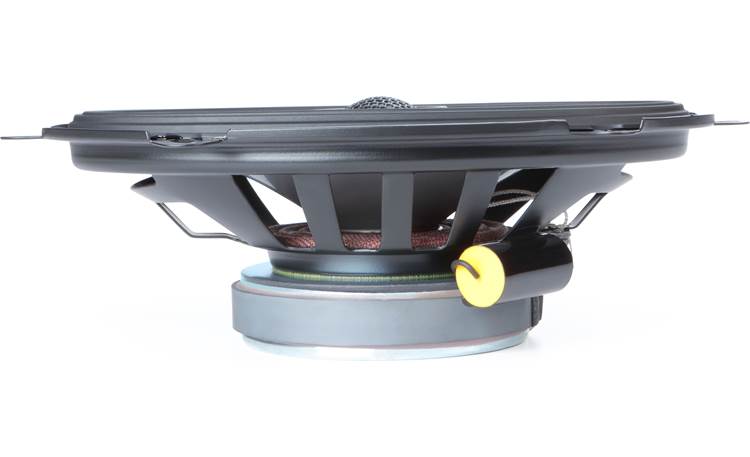

- mounting depth: 2.374"
- grilles not included
- Hi-Res Audio Certified
- warranty: 1 year
- MFR # S2-S68
- Item # 500S2S68
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- Two 2-way speakers
- 2 Bottom mount brackets
- Two 6x8 Special application brackets
- Two 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Eight 1-1/8" Screws
- Eight 3/8" Screws
- 8 Speed clips
- 8 Flat washers
- 8 Spacers
- 2 Adhesive backed gaskets
- Warranty information
- On-line product registration information
- Important Notice sheet
- Declaration of conformity
- Template and specs on box
More details on the Alpine S2-S68

Features & specs
General | ||
---|---|---|
Speaker Size | 6X8 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene/Glass Fiber/Mica | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Cloth | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 88 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 75 - 40k Hz | |
Maximum RMS Wattage | 75 | |
Peak Power Handling (Watts) | 230 | |
Top-mount Depth (Inches) | 2 3/8 | |
Bottom-mount Depth (Inches) | 2 13/16 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.418 | |
Frame Width | 5.484 | |
Frame Length | 7.7 |
Product Research
Features
Mounting Applications: Alpine describes this speaker as a 6x8, but it also fits many 5x7 applications. Please enter your vehicle information to confirm fit.
No Grilles: No grilles are included with these speakers.
The Alpine S2-S68 replaces these items:
- carbon fiber-reinforced plastic woofer cone with specialized rubber surround
- 1" silk dome tweeter
- handles up to 75 watts RMS (230 watts peak power)
Loading...
Loading accessories...
Customer Q&A
3 questions already asked
Loading...
Loading articles...
They are a great set of speakers, I put them in my 2002 F350 just to replace one that wasn't working and it's some of the best money I have spent on the truck. Also worth noting that the install instructions were easy to understand and very helpful.
Morgan from Savage, MN
