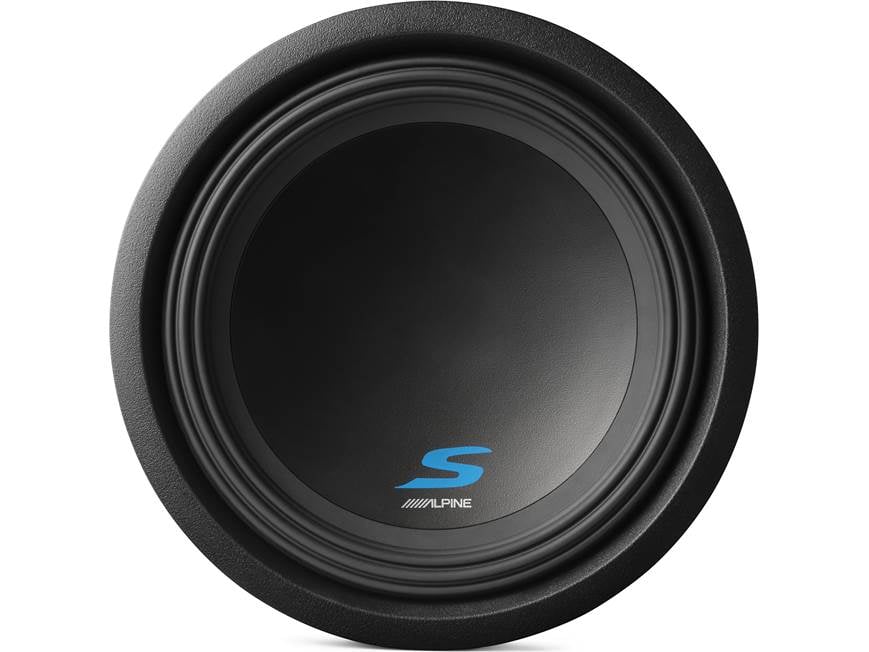

About the Alpine S-W12D2
Great bass in less space
Great bass in less space
To create great bass, you need the best in materials and engineering. Alpine's S-Series subwoofers apply technology from their higher end subs to bring you the depth and punch that'll make your tunes come alive. And to make things even better, these subs are about an inch shallower than their predecessors, making them great candidates for locations where regular high-power subs won't fit.
Advanced materials
The S-W12D2 12" sub can handle up to 600 watts RMS, so you can drive it hard without any worries. The tough Kevlar® treated cone stays rigid under pressure, while its rubber High Amplitude Multi-Roll (HAMR) surround enables maximum excursion for impressive performance. Its dual 2-ohm voice coils allow for extra wiring flexibility, which helps if you plan on adding another subwoofer down the line. Also, it rocks in both sealed and ported boxes, so you can choose an enclosure that suits your tastes.
Product highlights:
- 12" subwoofer with dual 2-ohm voice coils
- Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
- frequency response: 26-200 Hz
- power handling: 600 watts RMS (300 watts per coil)
- peak power handling: 1,800 watts
- top-mount depth: 5-1/16"
- grille not included
- warranty: 1 year
- MFR # S-W12D2
What's in the box:
- One 12" Dual 2-ohm voice coil subwoofer
- 1 Rubber concealing ring (installed)
- Two 3" jumper cables (each has a single banana connector on each end)
- Subwoofer Application Guide (English/ French)
- On-line product registration information (English/ French/ Spanish)
- Warranty information (English/ French)
- Important Notice! (English/ French)
Reviews (19)
Customer reviews for Alpine S-W12D2
Loading reviews...
Average review:
5.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Alpine S-W12D2
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 12 -inch | |
| Impedance (Ohms) | 1, 4 | |
| Cone Material | Kevlar-Reinforced Pulp | |
| Surround Material | Rubber | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | Yes | |
| Sensitivity |
86.2 dB at 1 watt | |
| Frequency Response | 24 - 200 Hz | |
| Max RMS Power Handling | 600 | |
| Peak Power Handling (Watts) | 1800 | |
| Top Mount Depth (inches) | 5 1/8 | |
| Bottom Mount Depth (inches) | 5 7/8 | |
| Cutout Diameter or Length (inches) | 10 9/16 | |
| Vas (liters) | 44.6 | |
| Fs (Hz) | 31 | |
| Qts | 0.51 | |
| Xmax (millimeters) | 15 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 0.85 | |
| Minimum Sealed Box Volume (cubic feet) | 0.61 | |
| Maximum Sealed Box Volume (cubic feet) | 1.06 | |
| Ideal Ported Box Volume (cubic feet) | 1.51 | |
| Minimum Ported Box Volume (cubic feet) | 1.06 | |
| Maximum Ported Box Volume (cubic feet) | 1.615 | |
Product Research
Features
Enclosure Compatibility
Features
Kevlar Reinforced Pulp Cone: This Alpine S-Series subwoofer uses a parabolic cone structure, with a Kevlar reinforced pulp cone and a Poly-Mica-Talc dust cap. Kevlar adds strength and tear resistance to the woofer cone while maintaining the benefits of a pulp cone material. The oversized, inverted dust cap increases rigidity and virtually eliminates cone distortion at extreme volume levels.
HAMRS: The woofer features a High Amplitude Multi Roll Surround (HAMRS) that allows a large linear excursion and greater SPL. The HAMRS design allows extreme excursions without sacrificing valuable cone area.
Progressive Spider: The progressive spider has reinforced layer tinsel leads to ensure reliable and consistent control of the tinsel leads and eliminate any mechanical noise or interference often seen in high excursion cone designs.
Compound Radius Curve Pole Geometry: Alpine's Patented Compound Radius Curve extended pole geometry ensures a symmetrical magnetic field, while optimizing flux density to reduce distortion and further improve power handling and output.
Dual Voice Coils: For system flexibility, the woofer has two 2Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 1Ω load. When the voice coils are wired in series, the woofer presents a 4Ω load.
Spring Terminals: The spring post terminals are all located on one side of the woofer. The terminals will accept pin connectors, single banana plugs, or bare wire up to 8 gauge.
Jumpers: Included with the woofer are two voice coil terminal jumpers. These jumpers allow you to easily wire the voice coils in parallel (for a 1Ω load) or series (for a 4Ω load).
Enclosure Compatibility
Sealed Box: Alpine recommends a sealed enclosure with an internal volume between 0.61 and 1.06 cubic feet, with an ideal volume of 0.85 cubic feet. Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
Ported Box Volume: The recommended ported box volume ranges from 1.06 cubic feet to 1.56 cubic feet, with the ideal size being 1.51 cubic feet, using a slot port measuring 12-1/2" (W) x 1" (H) x 16" (L).
The Alpine S-W12D2 replaces these items
- Kevlar reinforced pulp cone with HAMRS Santoprene rubber surround
- power handling: 150-500 watts RMS
- frequency response: 26-200 Hz
