Vehicle Specific Kit & Radio Replacement Interface
Floating Touchscreen Design
Android & iPhone Integration
Built-in Bluetooth
USB/HDMI/AV Connectivity
AM/FM Radio + SiriusXM-Ready
Amplifier & Audio Section
Optional Navigation & Camera Inputs

Vehicle Specific Kit & Radio Replacement Interface

Vehicle Compatibility: The included PAC SR-TAC16H Integration & Installation Kit enables you to replace the factory radio in select 2016 to 2021 Toyota Tacoma trucks with the Stinger HEIGH10 digital multimedia receiver, while retaining many of your Toyota Tacoma's important factory features and adding upgraded features and convenience of the Stinger digital multimedia receiver. All mounting hardware, interface modules, and cables are included.

• Not compatible with Toyota Tacoma trucks factory equipped with Panoramic View Monitor (PVM) camera.

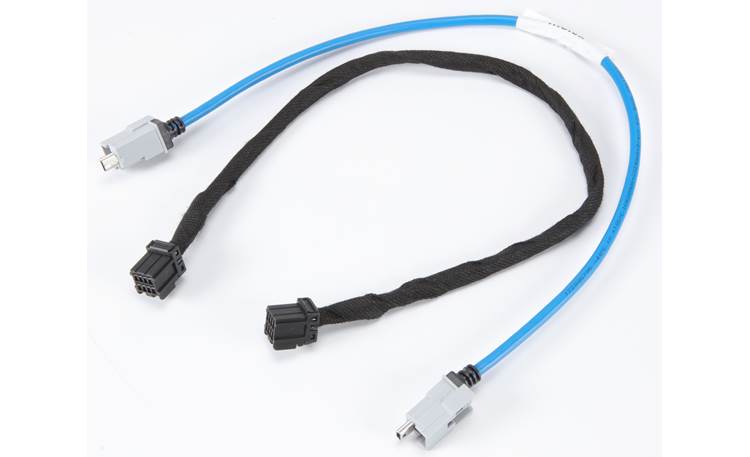

• The included radio/vehicle integration harness replaces the wiring harness that comes in the box of the Stinger HEIGH10 digital multimedia receiver.

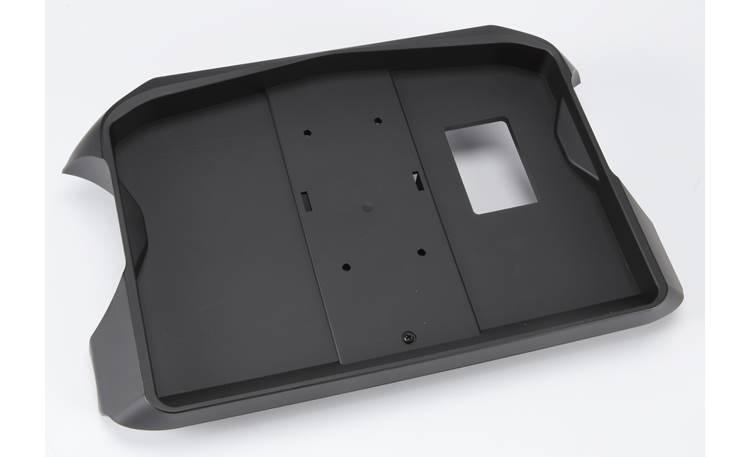

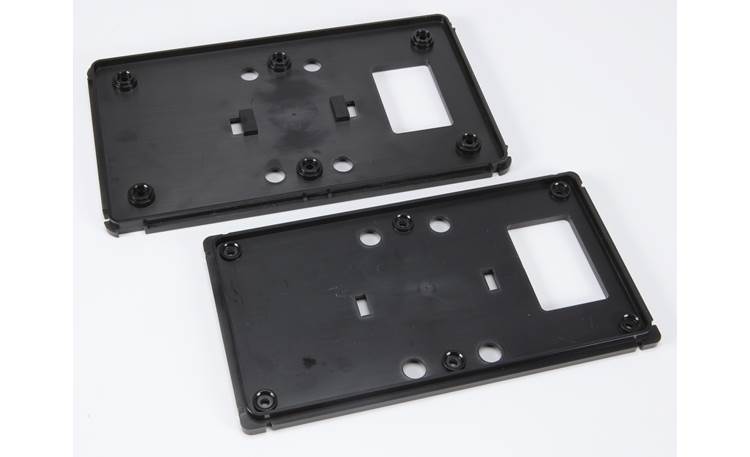

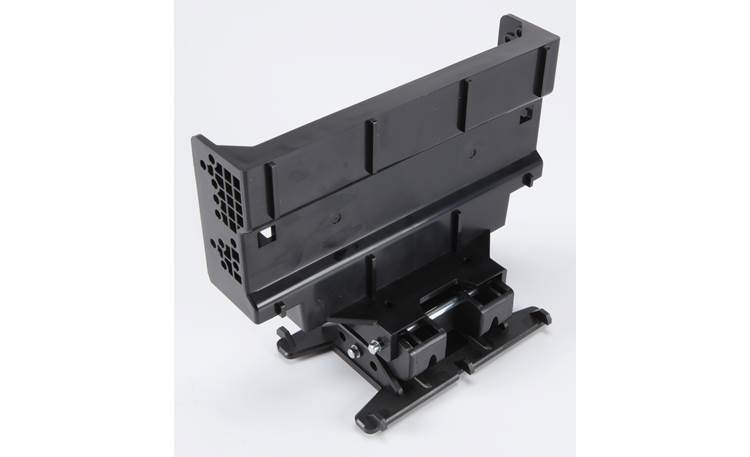

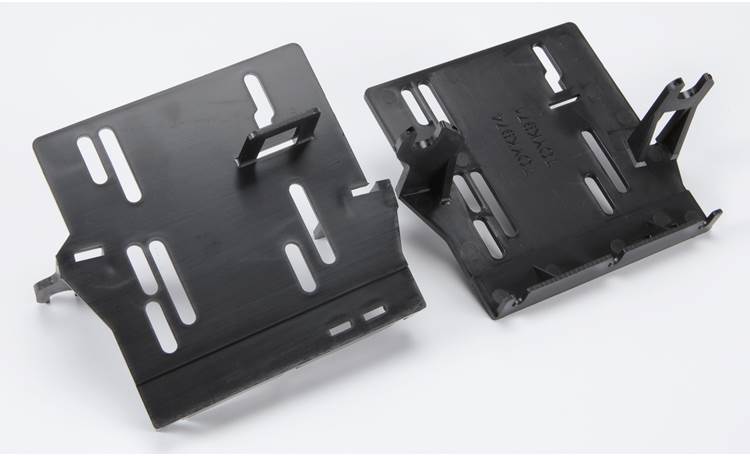

Factory Look Dash Kit: The PAC SR-TAC16H Integration & Installation Kit mounts the Stinger HEIGH10 digital multimedia receiver in the dash of your compatible Toyota Tacoma truck for a factory look and finish, with no dash modifications required.

Retained Factory Features: The PAC SR-TAC16H Integration & Installation Kit is able to retain select factory equipped features of your compatible Toyota Tacoma.

• Factory JBL amplifier with balance and fade control
• Factory backup camera
• Steering wheel mounted radio controls

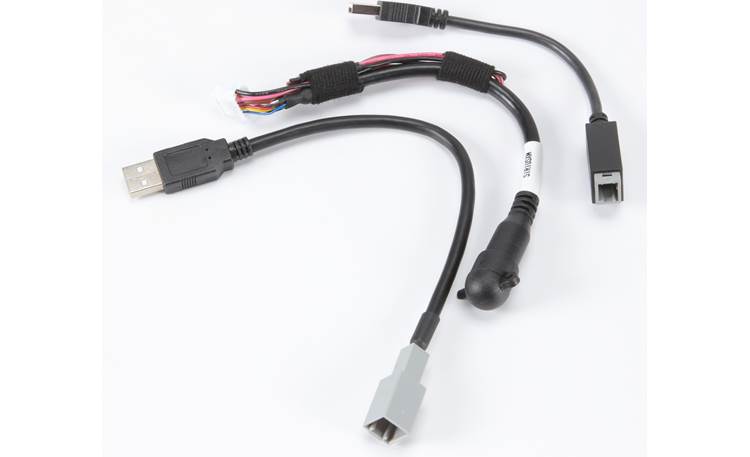

• Factory USB ports (adapters included) and Aux input (male RCA jacks)

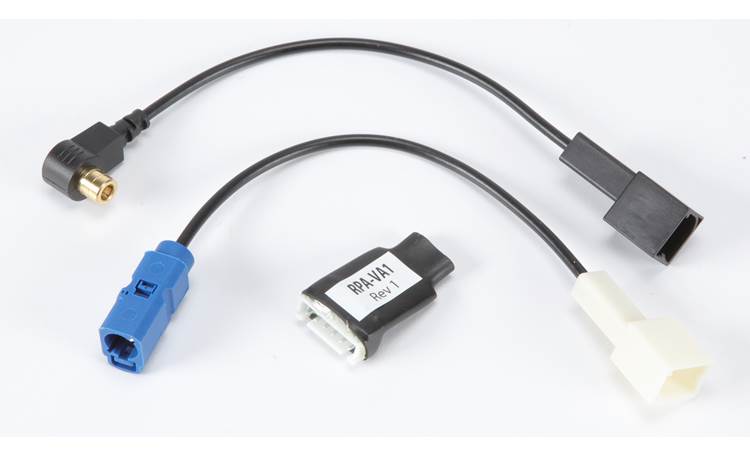

• Factory GPS antenna for use with Apple CarPlay or Android Auto navigation maps
• Factory SiriusXM antenna for use with the SXV300 SiriusXM Radio vehicle tuner (sold separately); does not retain factory SiriusXM tuner

Important Notes: The following factory features are not retained.

• If the truck is equipped with a factory 360° camera system, changing camera views using the touch screen will no longer be available. Camera views can be changed using the steering wheel controls only.
• The PAC SR-TAC16H Integration & Installation Kit does not retain your truck's factory Rear Seat Entertainment (RSE).
• The factory SiriusXM Radio tuner is not retained. In order to retain SiriusXM Radio, the SXV300 SiriusXM Radio vehicle tuner is required and sold separately.

Floating Touchscreen Design

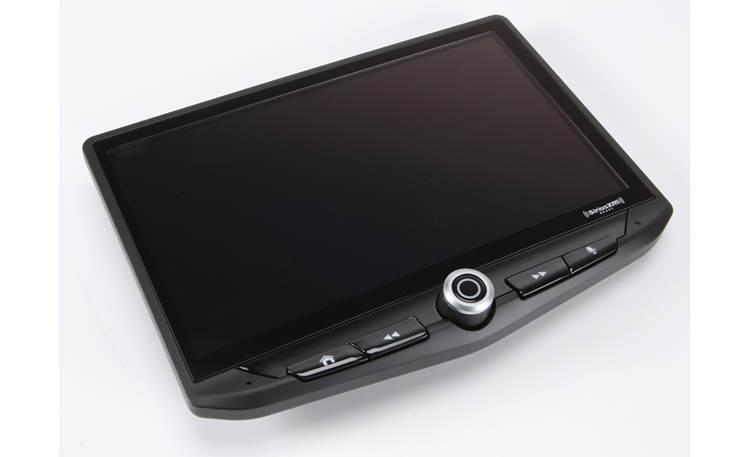

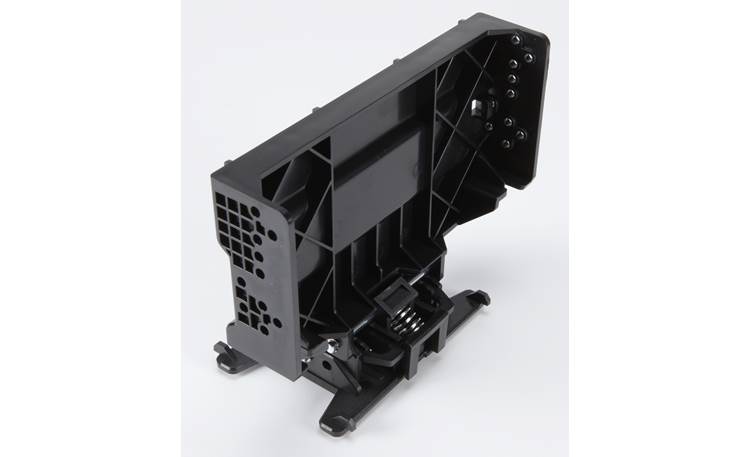

Two-Piece Configuration: The Stinger HEIGH10 (UN1810) digital multimedia receiver features a two-piece floating display configuration with an external 10" capacitive touchscreen monitor and a separate source unit. The floating 10" touchscreen monitor and source unit mount in the vehicle's dash using the included PAC SR-GM14H Integration & Installation Kit.

10" Capacitive Touchscreen: The 10" floating capacitive touchscreen monitor delivers a high-quality image with highly responsive touchscreen operation. It has a resolution of 1024 x 600 (1,843,200.0 total pixels) with a high contrast ratio, crystal clear display, and vivid text. Capacitive touchscreen operations include touch, swipe, and drag.

• Backgrounds (Wallpaper): You can choose from 9 preset background images (wallpaper) or upload 3 of your own images from a USB thumbdrive. Uploaded images must be in JPEG or PNG file format with a resolution of 1024 x 600.
• Dimmer & Brightness Settings: You can manually adjust the LCD touchscreen monitor's brightness for day and nighttime viewing. You can also setup the unit to have the display dim when you turn your vehicle's lights on (the orange wire of the wiring harness must be connected to your vehicle's headlight circuit).
• Date/Time Display: The receiver offers date (Month/Date/Year) and time (12 or 24 hour) display

Parking Brake Wire: For safety reasons, you cannot view a video source on the built-in touchscreen monitor as long as the vehicle is in motion. In order to display video, the light green wire (within harness) must be connected to the vehicle's parking brake light circuit, and the vehicle's parking brake must be engaged. The parking brake wire must also be connected and the parking brake engaged for certain setup functions and menu options. While your vehicle is in motion (parking brake off), you can still view all of the head unit's menu screens/settings, source information, metadata, and album artwork; as well as use CarPlay and Android Auto.

Rotary Knob & Push-Button Controls: In addition to its 10" capacitive touchscreen, there are 4 push-buttons and a 3-way rotary knob along the bottom edge of the touchscreen that operate Power On/Off, Volume Up/Down, Voice Recognition (for Android Auto and Apple CarPlay), Home Menu, and Previous/Next Track. The unit offers variable color button illumination; choose from Amber, Red, Aqua, Green, Blue, or White

Android & iPhone Integration

Android Auto: The Stinger HEIGH10 (UN1810) receiver supports the Android Auto app for Android smartphones running OS Oreo 8.0 and newer. Your compatible Android smartphone must be connected to the receiver's top rear-panel USB port (USB-1) via the USB cable that came with your smartphone (a USB extension cable may be required and sold separately), plus be paired via Bluetooth. Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into a simple on-screen user interface. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include -

• Google Assistant: The receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, or listen to music.
• Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and Google Speech Technology. You can even listen to music from your Android Auto device or other connected source device while using Google Maps. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
• Phone & SMS: With Android Auto you get access to your contacts and messages through the receiver while keeping your eyes on the road. Use the unit's external mic and Google Speech Technology to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
• Music: Access your Android smartphone's music library through the receiver via YouTube Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and Google Speech Technology. You also get access to online music and radio stations from Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, Slacker Radio, & Tune-In. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible app for Android Auto.

Apple CarPlay: Apple CarPlay is a smarter, safer way to use your USB-connected iPhone 5 or newer (running iOS 7.1+) with Lightning-connector in the car, while you stay focused on the road. Simply plug your compatible iPhone into the receiver's top rear-panel USB port (USB-1). Apple CarPlay takes the things you want to do with your iPhone while driving and integrates them into the Stinger HEIGH10 (UN1810). Apple CarPlay offers an incredibly intuitive way to make calls, view maps, listen to music, and access messages from your compatible iPhone through the HEIGH10 (UN1810) in-dash receiver. With Apple CarPlay, you can control these functions from the HEIGH10 (UN1810) receiver's 10" touchscreen or activate Siri for minimized distraction.

• Maps: Through Apple CarPlay, the power and simplicity of Apple Maps comes to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze, you can choose to navigate via Google Maps or Waze instead of CarPlay. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
• Phone: With Apple CarPlay, you can use the HEIGH10 (UN1810)'s interactive touchscreen or ask Siri to make calls, return calls, and check voicemail. To dial a phone number, simply tap the "Phone" icon and Siri will ask you who you want to call. Using the touchscreen you can manually enter a phone number from the on-screen keypad, scroll through contacts, or select from recent and miss calls. In addition, you get access to your voicemails via touchscreen and Siri. When a call comes in, simply tap the "Phone" icon to answer. You'll carry on your side of the conversation through the included external microphone, while the other party is heard through your vehicle's speakers. You can emphasize or weaken the volume level of the microphone.
• Text Messages: Apple CarPlay also lets you enjoy a better and safer way of text messaging with friends and family when you're on the road, through the receiver and Siri. Through your voice commands, Siri can send, read, and reply to your text messages so that you never have to glance at your phone while behind the wheel. When a new message comes in a banner will come across the screen and Siri will read back the message for you. Text messages cannot be read or typed from the head unit's touchscreen to prevent driver distraction.
• Music Library: CarPlay lets you access your music in your iPhone's music library, plus Apple Music from the HEIGH10 (UN1810). You can browse your music by Playlist, Artist, Song, etc.. just like you would on your iPhone from the HEIGH10 (UN1810)'s touchscreen. You can also use Siri to find and play back your music. The HEIGH10 (UN1810)'s touchscreen will display song/artist information, as well as album art in the background. Tap the Now Playing icon on the receiver's capacitive touchscreen and see song, artist, album information with Album Art displaying in the background. From the Now Playing screen you also get basic playback function, like Play/Pause, Previous Next/Track, Fast Forward/Rewind, and Repeat/Shuffle.
• Audio Apps & Podcasts: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, podcasts, sports, news, and audiobooks - including Pandora, Tidal, Spotify, iHeart Radio, TuneIn Radio, Slacker Radio, Vox, Stitcher, MLB.com At Bat, CBS Radio News, NPR One, OverCast, Audiobooks.com & Audible (subscriptions and fees may app). Control them from the head unit's touchscreen or Siri just like you would from your iPhone. Your iPhone's touchscreen remains unlocked during CarPlay connection, so you are able to access additional music apps and listen to them through the receiver; however these apps offer no control or display information from the head unit's touchscreen.
• Apple HomeKit Compatible: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.

Smartphone Music Playback: If you don't desire Apple CarPlay or Android Auto, you can simply connect an Apple iPod/iPhone device or Android MTP compatible device via USB for music playback and control through the Stinger HEIGH10 (UN1810). Make sure to plug your compatible Apple iPod/iPhone or Android MTP device to the unit's top rear-panel USB port (USB-1).

• Android MTP Compatible: The receiver supports MTP for playback & control of stored music files on your Android (OS 4.0+) device through the receiver's rear-panel USB port. In this mode, you get basic playback control (like Play/Pause & Previous/Next Track), plus song/artist information on the receiver's LCD screen. During MTP connection, you cannot use your Android smartphone's touchscreen to control music playback and you cannot select music apps from your smartphone for playback. However, you can continue to listen to stored music on your Android smartphone through the head unit while you check your Calendar, Facebook, Texts, etc on your phone. You smartphone's battery will also be charged while connected via USB (5V/1.5A).
• iPod/iPhone Compatible: The unit''s rear-panel USB port can also be used to connect your Apple iPhone (5 and newer) or iPod touch (5th gen and newer) to the head unit. You'll need an Apple Certified USB cable to connect your compatible Apple device to the head unit. The USB connection allows for audio playback (stored music and music apps), music browsing (artist/album/song.), song/artist/album display (including album art), and charging of your compatible iPhone or iPod.

GPS Antenna: The included GPS antenna is required for CarPlay, Android Auto, and optional iGO navigation.

Cellular & Data Plan Requirements: Access to CarPlay and Android Auto apps will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Your compatible Apple or Android device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

Smartphone Charging: The Stinger HEIGH10 (UN1810) will also charge (5V/1.5A) your compatible Apple iOS or Android OS smartphone device while connected via USB with the vehicle's ignition switch set to the 'ACC' or 'On' position.

Built-in Bluetooth

Bluetooth 4.2: The Stinger HEIGH10 (UN1810) is equipped with built-in Bluetooth 4.2 allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

• Hands-Free Communication: HFP 1.6 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile).
• Audio Streaming: A2DP 1.2 (Advanced Audio Distribution Profile), AVRCP 1.4 (Audio/Video Remote Control Profile).

Secure Simple Pairing: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the HEIGH10 (UN1810) without having to enter pin codes or go through complicated settings. You can pair multiple Bluetooth devices with the head unit, but only one can be used at a time. When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.

Hands-Free Communication: The Stinger HEIGH10 (UN1810) allows for wireless communication between the head unit and your Bluetooth enabled smartphone. The receiver will display the caller's phone number and an audible ring tone will be heard through your vehicle's speaker during an incoming call. You can manually answer or end a call through the head unit's front-panel controls. The HEIGH10 (UN1810) allows you to carry on the phone conversation using the built-in front-panel mic or the included external microphone and your car audio speakers. Your music will mute automatically during a call. You can make a call using the receiver's LCD touchscreen via its on-screen keypad, your phone's transferred phonebook, or a list of your most recent calls.

Wireless Audio Streaming w/ aptX: The Stinger HEIGH10 (UN1810) allows wireless play back of stored music and music apps from your Bluetooth enabled smartphone, tablet, or other device using a Bluetooth connection. In addition to supporting Bluetooth's standard SBC codec, the head unit offers support for aptX. With aptX you get "CD-quality" type sound (16-bit/44.1kHz) from a Bluetooth-enabled source device that also supports aptX (like many Android smartphones). You can control basic music playback functions, like Play/Pause & Previous/Next Track from the head unit (advanced music browsing will still be done from your Bluetooth source device). The unit will also display song/artist information (no Album art).

USB/HDMI/AV Connectivity

Dual USB Ports: The Stinger HEIGH10 (UN1810) is equipped with two rear-panel USB (type-A) ports that allow you to connect a USB MSC (mass storage class) devices, such as a USB thumbdrive formatted in FAT 32 or NTFS. The unit supports playback of a variety of audio, video, and photo files on a compatible USB MSC device. You'll be to control basic playback & search functions from the digital multimedia receiver, as well as view song/artist/album information (including Album Art). The USB ports (5V/1.5A) can also be used to charge your USB-enabled device.

• Audio Files: MP3, WMA, AAC, FLAC, WAV, and OGG (up to 48kHz)
• Video Files: AVI, MPEG 1/2/4, MOV, FLV, and VOB (up to 1080p)
• Photo Files: JPEG, GIF, PNG, and BMP (up to 1024 x 600)

HDMI Input: The digital multimedia receiver is outfitted with a rear-panel HDMI input for the connection of an external audio/video source device with an HDMI output, such as a Blu-ray player or game console. The HDMI input can also be used to mirror the display of a compatible Apple iPhone or Android smartphone using the appropriate adapters (sold separately). The HDMI input provides video and audio playback, but not control. Playback functions will still need to be controlled from your HDMI-connected device (not the in-dash head unit). The HDMI input will support up to 480p, 720p, 1080i, and 1080p video; as well as 2ch PCM audio.

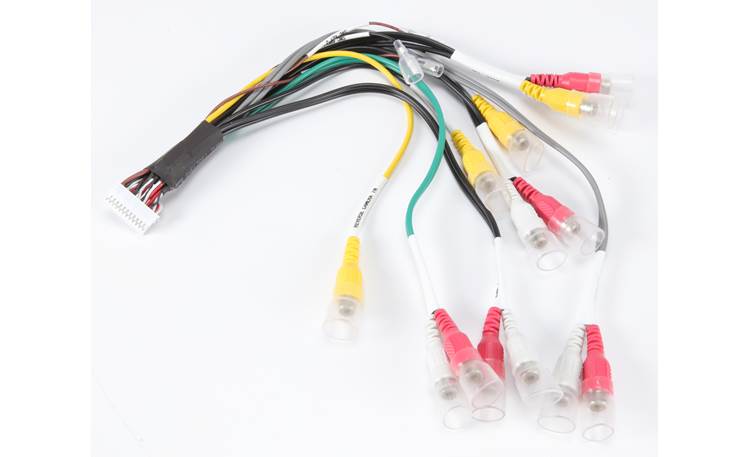

AV Input: The Stinger HEIGH10 (UN1810) has rear-panel AV input that consists of a composite video input and stereo RCA inputs. You can use the AV input to connect an external audio/video device, such as a DVD player or TV tuner (sold separately.)

AV Output: The Stinger HEIGH10 (UN1810) offers an AV output that consists of two composite video output jacks and a shared stereo RCA output for connection of an external rear entertainment system, such as a rear headrest or overhead monitor (sold separately). The AV output can transmit audio/video content from the unit's AV-input or a connected USB MSC device, regardless if the vehicle's parking brake is engaged or not. Both video outputs will display the same video signal.

Optical Digital Output: There is a rear optical (Toslink) digital output on the back of the Stinger HEIGH10 (UN1810) that allows you to output a digital audio signal to an external digital audio processor (sold separately). The optical digital output supports up to 48kHz audio.

AM/FM Radio + SiriusXM-Ready

AM/FM Tuner: The Stinger HEIGH10 (UN1810) is equipped with a built-in AM/FM tuner with manual, seek, and preset tuning. You store up to 18 FM and 12 AM stations as presets. Presets can be manually chosen or you can have the unit automatically select presets for each band.

SiriusXM-Ready: The Stinger HEIGH10 (UN1810) is SiriusXM-Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300 sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 150+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include -

• Display Information: Displayed Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit's LCD
• Channels & Categories: The head unit displays a list of available SiriusXM channels and channel categories to choose from.
• Replay & Direct Tuning: Replay allows you to pause, rewind and replay up to 1 hour of live SiriusXM Satellite Radio. Using the on-screen keypad you can even directly enter a channel number.
• Presets & Parental Controls: You can store up to 18 SiriusXM Satellite Radio station presets. In addition, channels containing unsuitable content for children can be blocked.

Amplifier & Audio Section

25W x 4Ch Amp: The Stinger HEIGH10 (UN1810) receiver is equipped with a 25 watt (RMS) x 4 channel amplifier.

6Ch/4V Pre-outs: The HEIGH10 (UN1810) features front, rear and subwoofer 4.0-volt pre-outs. The front and rear speaker pre-outs are balance and fade adjustable. The subwoofer pre-outs output are non-fading.

Sub Controls: The sub pre-out offers independent subwoofer controls - including a Low-Pass Crossover (see below), Phase (0 or 180 degrees) and Level (0-15).

High-Pass & Low-Pass Crossovers: The unit offers a high-pass crossover for the front and rear speaker outputs or pre-outs, as well as a low-pass crossover for the sub pre-out. You can indicate the Frequency (25/40/63/80/100/160/250Hz), Slope (-6/-12/-18dB), and Level (-12 to 0) independently for the front and rear high-pass crossovers, as well as the subwoofer low-pass crossover. You can save up to six crossover presets.

Time Correction: Time Correction compensates for the uneven distances between the speakers and your (the listeners) ears. Time Correction delays signals from the closest speaker(s), so that all the sound arrives at the listening position at the same time, giving the listener a more accurate, life like stereo image. To set Time Correction, select a listening position (for example - driver seat); then measure from each speaker to the listening position and input the speaker distance values. You can store up to six Time Correction presets.

Equalizer: The digital multimedia receiver features a 15 band graphic equalizer and offers 6 EQ presets. You can choose from Rock, Hip-Hop, Electronic, Jazz, Pop, or User. The User preset lets you manually adjust the 15 band graphic equalizer.

Loudness: The Loudness function boosts low and high frequencies when listening at low volume levels.

Source Gain: Adjusting the Source Gain will allow gain/volume adjustments for individual sources. You can independently adjust the source level of the Radio, Android Auto, CarPlay, Bluetooth, AV-IN, and USB for smoother volume level transition between sources.

Start Volume: You can set the turn-on and default volume of the head unit's Main Source, Bluetooth Phone (Talk/Ring), Navigation Voice Prompts, and Voice Control Assistants from 0 to 40.

Beep Confirmation: The in-dash digital multimedia receiver provides an audible beep to confirm button operation (this can be turned On or Off).

Optional Navigation & Camera Inputs

Optional iGO Navigation: Stinger's SE-P14 navigation microSD card (sold separately) contains iGO navigation software that allows you to add navigation maps to the HEIGH10 (UN1810) in-dash digital multimedia receiver. You'll get on-screen navigation maps with audible and visual guidance - including TTS (text-to-speech), Lane Information & Signposts, Speed & Safety Alerts, plus millions of POIs (points-of interests).

• Navigation Software & Maps: The iGO navigation software provides turn-by-turn visual and voice assistance to your selected destination. The software quickly calculates step-by-step directions to any destination available on the included on-screen navigation map. The map database was created using high-resolution aerial and land based data collection. Map coverage includes the United States (all 50 states), Puerto Rico, and the Virgin Islands with over 1,000,000 points-of-interests from TomTom;.
• Map Updates: iGO offers periodic updates (purchase fees will apply) for data such as roads, new addresses, and other navigational information that will keep the navigation system up to date and provide the best possible experience. For updates and add-on options, please visit www.naviextras.com (requires Windows XP or newer; not compatible with Mac). A free program called "Toolbox" can be downloaded from this website so you can create a copy of your map as a backup, as well as assist in easily checking for updates and optional features that are available.

4 Camera Inputs: The Stinger HEIGH10 (UN1810) is outfitted with 4 camera inputs, each consisting of a composite video jack. There is a dedicated backup camera input with a reverse trigger wire and audio input, plus 3 other camera inputs with trigger wires. These camera inputs allow you to add-on an optional rearview camera, frontview camera, and two sideview cameras. The camera images will display on the touchscreen monitor of the Stinger HEIGH10 (UN1810).

• Backup Camera Input: The video from the backup camera input will automatically display on the unit's touchscreen monitor when your vehicle is shifted into Reverse gear (the purple/white wire of the wiring harness must be connected to your vehicle's reverse lamp circuit for automatic video switching). Automatic video switching takes approximately 1.0 second. The backup camera input also has an audio input for connecting a backup camera with microphone.
• Other Camera Inputs: In addition to the dedicated backup camera input, there are 3 other composite video camera inputs that can be used to connect front and side view cameras. You can even label the cameras Outside, Aux, Inside, Bed, or Trailer. Each camera has its own +12V trigger wire.
