Rockford Fosgate HD9813SG-STG3

Features
Amplifier
Speakers&Wiring

Features

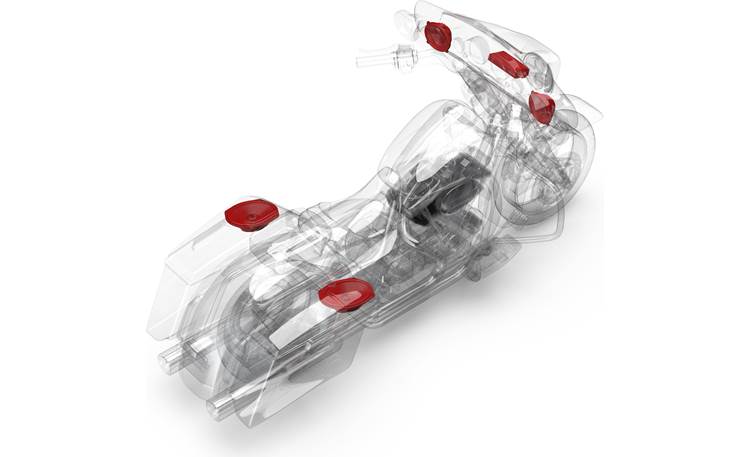

Overview: The Rockford Fosgate HD9813SG-STG3 sound system has been specifically designed for installation on select 1998-2013 Harley-Davidson motorcycles. The system includes a 4-channel 400 watt amplifier, amplifier wiring kit, two 6-1/2" 2-way speakers for the fairing, and two 6"x9" 2-way speakers for the factory Harley-Davidson baglid locations (non-fiberglass models only).

Compatibility: The HD9813SG-STG3 sound system is compatible with the following model Harley-Davidson motorcycles:

Compatibility Notes:

• Saddlebag Kit only compatible with ABS plastic lids; not compatible with fiberglass lids.
• Saddlebag Kit not compatible with H-D Power Lock Kit.
• Installation on CVO and Screaming Eagle models are not plug-and-play and will require modifications.
• Tour-Pak speakers not 100% plug-and-play.

Amplifier

Overview: The Rockford Fosgate M5-800X4 is a 4-channel powersports amplifier with a rated power output of 100 watts per channel at 4-ohms or 2-ohms. This Element Ready amplifier can be used on motorcycles, ATVs, UTVs, or boats, and can withstand harsh environmental conditions.

CEA-2006 Compliant: CEA-2006 is a system of testing and measurement methods for mobile audio amplifiers. This voluntary standard advocates a uniform method for determining an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring power uses a DC input voltage of 14.4 volts and the RMS power output is measured into a 4Ω load with 1% or less Total Harmonic Distortion plus noise (THD+N). CEA-2006 allows consumers to compare amplifiers and receivers under identical conditions. The CEA-2006-rated RMS power output is 100 watts RMS x 4 channels. Additionally the power output is 100 watts RMS x 4 channels into 2Ω and 200 watts RMS x 2 channels bridged (into 4Ω).

Element Ready: Rockford Fosgate's Element Ready Amplifiers are protected against dust, UV rays, and corrosion. Marine-grade, two-part epoxy-coated circuit boards are used to prevent corrosion due to exposure in moist and humid places. In addition, stainless hardware is used to help prevent rust and corrosion of all electrical connections. The M5-800X4 carries an IPX6 rating, making it impervious to water spray.

Class-AD: The M5-800X4 features Rockford Fosgate's proprietary Class-AD technology, which allows the amplifier to produce more power with less current draw from the vehicle's charging system.

MEHSA 4 Cooling: The amplifier features Rockford Fosgate's MEHSA 4 (Maximum Efficiency Heat Sink Application) technology that reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output circuitry's life span.

DSM (Discrete Surface Mount): High speed robotics are used in the manufacturing process to place 1% tolerance parts and large board traces. DSM improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

CLEAN Set-Up: Rockford's integrated level setting technology, CLEAN (Calibrated Level Eliminates Audible Noise), replaces sophisticated test equipment with input/output clip LEDs, allowing you to match the source unit's output to the amp's gain, and optimize the amp's output. The input clip indicator works in conjunction with the audio source volume, illuminating red when the source reaches its clipping point. The output clip indicator works in conjunction with the input level dial on the amp, illuminating the appropriate color depending on the audio content used for the setup.

PRESET: The M5-800X4 features Rockford Fosgate's PRESET setting (On/Off) that eliminates the need to set-up the amplifier when used with a compatible Rockford Fosgate ATV/UTV audio kit. When set to On, the PRESET circuitry automatically optimizes the front & rear input levels, Punch EQ, and crossover settings. If manually setting these adjustments, the PRESET switch should be set to the Off position.

Input Level: The amplifier has dual input level controls for the front and rear channels, conveniently accessible from the top. To accommodate the varying range of signal levels from today's factory and aftermarket radios, the input levels are adjustable from 150mV to 12V. A small flat-head screwdriver (not supplied) is needed to adjust the levels.

Input Switch: With the input switch in the 2-channel position, connecting only the front inputs will send the signal to both the front and rear sections of the amplifier. In the 4-channel position, both front and rear inputs must be used.

Crossover: The amplifier has dual built-in crossovers for the front and rear channels, variable from 50Hz to 250Hz with a slope of 12dB/octave. They can be independently set to high-pass, all-pass (full range), or low-pass operation. The rotary frequency settings can be adjusted with a small screwdriver.

Punch EQ: The amplifier has dual Punch EQ functions that change with the crossover switches. When the crossover is set to low-pass, the Punch EQ acts as a variable bass boost; 0 to +18dB at 45Hz. When the crossover is set to high-pass, the Punch EQ acts as a variable treble boost, 0 to +14dB at 12.5kHz. When the crossover is set to all-pass, both the bass and treble boost circuits are active.

Power Connections: The M5-800X4's power, ground, and remote turn-on terminals are located on a single 11" harness with matching adapter. The adapter accepts up to 8 AWG wire (recommended) and features set-screws for locking the wire in place. The power/ground harness is combined with the speaker output harness and attached to the amp in one large connector that's held in place with 2 hex-socket screws.

Fuse: The amplifier does not have an on-board fuse. A 60-amp fuse should be placed on the power wire within 18" of the battery.

Speaker Connections: The amplifier is equipped with two 11" speaker output harnesses which are combined with the power/ground harness to one connector at the amplifier. Two 7.5" speaker harnesses plug into the output harnesses and provide bare-ended wire for connection to your speakers. Speaker outputs can be bridged to provide two 2 x 400W @4O outputs, or be wired for a 3-channel mode with only 2 speaker outputs bridged.

Signal Input: The amplifier's Differential Inputs will accept either a line-level or speaker-level input on the Molex-style connectors. A single amp connector, secured with hex-socket screws to the amp, features two 4-pin Molex connectors on the other end for connecting the included input adapter harnesses. Each input adapter harness has a 4-pin Molex plug on one end and dual RCAs on the other end. Front and rear line-level signals can simply be connected via RCA cables from the source unit to each input harness. For a speaker-level signal, you can cut the RCA connectors from the input harnesses and splice the wires to the speaker wires of the source unit. When using a speaker-level input signal, the auto turn-on feature is active and the remote turn-on terminal becomes a 12 volt output, which can be used to turn on/off an additional amplifier or other component.

Speakers&Wiring

TMS6SG: The TMS6SG 6-1/2" full-range coaxial speakers are designed to fit the fairing speaker location. The weather resistant speakers feature a reinforced polypropylene cone, with Santoprene surround and Neodymium motor structure, along with a ultra-efficient 1" dome tweeter. The speakers include grilles and mount in the factory location using the factory hardware.

• Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

• CEA-2031 Compliant: The power handling specifications conform to the CEA-2031 industry standards; meaning the speaker has the capacity to handle its rated power under continuous demand, not just for an instant.

• VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket. The surround is made of Santoprene rubber.

TMS69BL9813: The Rockford Fosgate Power 6"x9" speakers are designed to mount into the factory baglid locations (non-fiberglass models only).

• Mounting: The included templates guide cutting the opening in each saddlebag lid. The grille and mounting bracket are bolted together with the saddlebag lid sandwiched between them, then the speaker is mounted to the bottom of the bracket.
• Weather: The speakers are made weather resistant by the Santoprene front isolation spider, connecting the tweeter housing and woofer cone assembly.
• Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
• CEA-2031 Compliant: The power handling specifications conform to the CEA-2031 industry standards; meaning the speaker has the capacity to handle its rated power under continuous demand, not just for an instant.
• VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective

RFK-HD9813M5 Wiring Kit: The 1998-2013 Harley-Davidson amplifier wiring kit includes pre-cut, pre-loomed 100% Pure Crystal-Oxygen Free Copper (PC-OFC) wiring for installing the sound system, meeting or exceeding American Wire Gauge (AWG) requirements. It includes 8-gauge power and ground wires for running to the battery, as well as all input and output harnesses for running signal from the headunit to the amp and then on to each individual speaker. The battery power wire includes an inline fuse holder with installed 60A Maxi fuse. The amplifier wiring kit also includes an additional amplifier heatsink, for better heat dissipation at higher volumes, and an amplifier mounting bracket.
