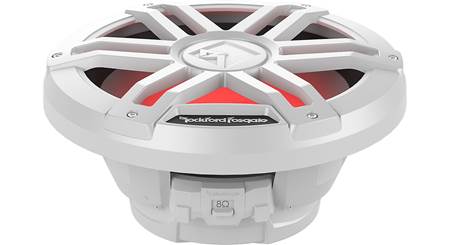

About the Rockford Fosgate M1D4-12
Product highlights:
- 12" marine subwoofer with dual 4-ohm voice coils
- injection-molded mineral-filled polypropylene cone with Santoprene rubber surround
- integrated Color Optix RGB LED lighting included (requires separate PMX-RGB lighting controller)
- synthetic fiber blend spider
- Element Ready™ design
- rugged, UV-stable plastic parts
- corrosion-resistant spring-loaded push terminals
- IP67 certification
- removable grille included
- power handling: 300 watts RMS/1200 watts peak
- sensitivity: 92 dB
- selectable impedance: 2 or 8 ohms
- top-mount depth: 4.77"
- cutout diameter: 10.66"
- warranty: 2 years
- MFR # M1D4-12
- Item # 575M1D412
What's in the box:
Rockford Fosgate M1D4-12 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One marine subwoofer
- One 11" LED power harnesses with 4-pin Deutsch connector on one end
- Six 2" Stainless steel Allen head screws
- 4mm Allen head bit
- 4.5mm Drill bit
- Instruction manual (English/ French/ Spanish/ German/ Italian)
- Rockford Fosgate contact information
More details on the Rockford Fosgate M1D4-12
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 12-inch | |
| Impedance (Ohms) | 2, 8 | |
| Cone Material | Mineral Filled Polypropylene | |
| Surround Material | Santoprene Rubber | |
| Basket Material | ASA Plastic | |
| Grille | White plastic, Fixed | |
| Free-Air | Yes | |
| Dual Voice Coil | Yes | |
| Sensitivity |
92 dB at 2.83 volts | |
| Frequency Response | 28 - 750 Hz | |
| Max RMS Power Handling | 300 | |
| Peak Power Handling (Watts) | 1200 | |
| Top Mount Depth (inches) | 4 13/16 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 10 11/16 | |
| Frame Width | 13.265 | |
| Frame Length | 13.265 | |
| Vas (liters) | 114.2 | |
| Fs (Hz) | 26 | |
| Qts | 0.53 | |
| Xmax (millimeters) | 7 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 1.65 | |
| Minimum Sealed Box Volume (cubic feet) | 1.25 | |
| Maximum Sealed Box Volume (cubic feet) | 1.75 | |
| Ideal Ported Box Volume (cubic feet) | 2.45 | |
| Minimum Ported Box Volume (cubic feet) | N/A | |
| Maximum Ported Box Volume (cubic feet) | N/A | |
| Port diameter (inches) | 4 | |
| Port length (inches) | 14 | |
Product Research
Features
Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M1D4-12 subwoofers are durable in the difficult marine environment.
Impedance Switch: A switch on the input terminal allows you to easily change the subwoofer's impedance between 2Ω and 8Ω, internally changing between wiring the dual 4Ω voice coils in parallel and in series. (The connected amplifier should be off when changing the impedance.) The power handling is the same for either setting; 300 watts RMS/1200 watts peak.
LEDs: There are red, green, and blue LEDs on the back of the grille to create a glow on the woofer cone. The LEDs can be powered individually, or in any combination you like. Depending on what combination of LED wires is connected, they light red, green, blue, yellow, pink, aqua, or white. A 12 volt power supply is needed to turn the LEDs on and a 1-amp fuse should be added in-line (fuse not included). The LEDs can also be controlled using Rockford Fosgate's LED Controller (item number 575PMXRGB, sold separately). An LED power wire harness is included with a 4-pin waterproof Deutsch DT Series connector that plugs into the subwoofer frame.
Speaker Terminals: In addition to standard male quick slide terminals, the subwoofer also has a 2-pin waterproof Deutsch terminal. A speaker wire harness with a 2-pin waterproof Deutsch DT Series connector is not included.
VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
Stainless Steel: The mounting hardware is stainless steel to resist corrosion.
Enclosure/Free-Air: The sub can be mounted in a sealed or ported box, or in an infinite-baffle (free-air) application. The optimum internal volume of a sealed enclosure is 1.65 ft³; from 1.25 to 1.75 ft³ is acceptable. The 1.65 ft³ enclosure yields a -3dB point of 43.1 Hz. The best ported enclosure volume is 2.45 ft³ using one 4" diameter x 14" long port; this yields a tuning frequency of 35 Hz and a -3dB point of 36 Hz. Infinite-baffle mounting yields a -3dB point of 43.3 Hz.
