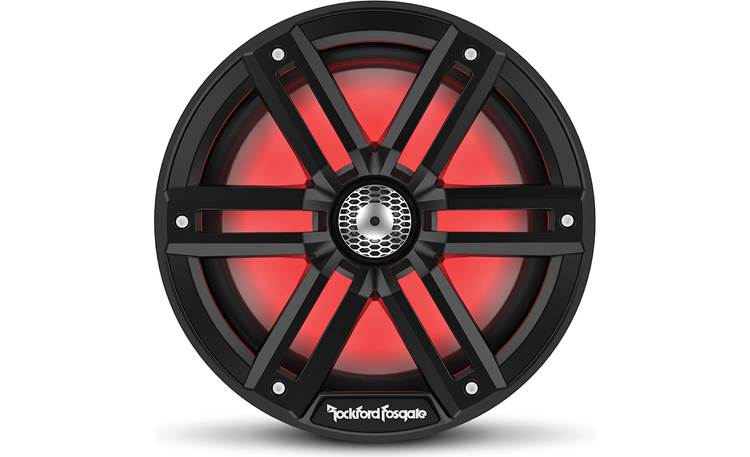

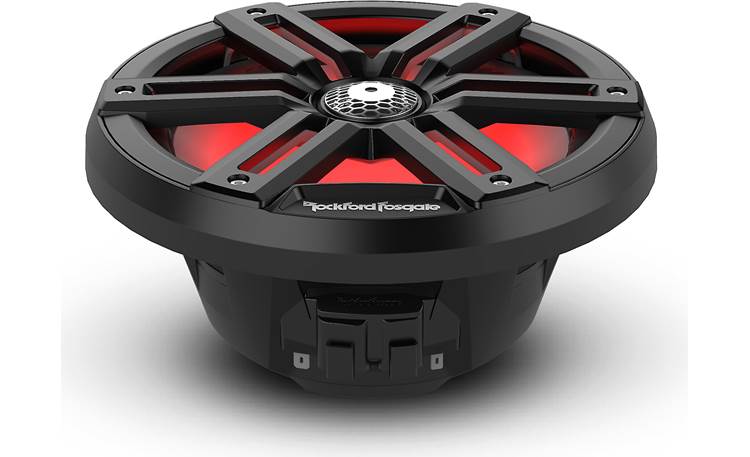

About the Rockford Fosgate M2-8B
Product highlights:
- 8" 2-way marine speakers
- LED illumination
- compatible with Rockford Fosgate Color Optix™ Controller and RF Connect App
- injection-molded, mineral-filled polypropylene cone
- concealed crossover
- laminated 1" dome tweeter
- Element Ready™ design and IP67 certification
- salt-, fog-, and UV-resistant Thermo-Plastic Elastomer (TPE) surround
- gold-plated connection terminals
- stainless-steel mounting hardware included
- handles up to 250 watts RMS (1000 watts peak)
- sensitivity: 90 dB
- frequency response: 40-20,000 Hz
- impedance: 4 ohms
- cutout diameter: 7.05"
- frame diameter: 8.48"
- woofer top-mount depth: 3.334"
- warranty: 2 years
- MFR # M2-8B
- Item # 575M28B
What's in the box:
Rockford Fosgate M2-8B owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way marine speakers
- 2 Centrex plastic grilles (Black)
- 2 Stainless steel grilles
- 2 Grille rings (Black)
- Two 11" LED power harnesses with 4-pin Deutsch connectors on one end
- Twelve 1-3/4" Stainless steel Allen head screws
- 3mm Allen head bit
- 3.5mm Drill bit
- Instruction manual (English/ French/ Spanish/ German/ Italian)
More details on the Rockford Fosgate M2-8B
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 8 | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Tweeter Composition | Proprietary Material | |
| Woofer Composition | Mineral Filled Polypropylene | |
| Woofer Surround | Thermo-Plastic Elastomer | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity |
93.1 dB at 2.83 volts |
|
| Frequency Response | 35 - 24k Hz | |
| Max RMS Power Handling | 250 | |
| Peak Power Handling (Watts) | 1000 | |
| Impedance (Ohms) | 4 | |
| Top-mount Depth (Inches) | 3 3/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 7 1/16 | |
| Bolt Circle | 7.758 | |
Product Research
Features
Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M2-8B speakers are durable in the difficult marine environment.
Woofers: The woofer cones are injection molded, mineral filled polypropylene with UV inhibitors. This molding process assures a uniform cone thickness for superior linearity and clarity. It is also light weight and rigid for decreased distortion and improved bass response.
Surrounds: The TPE surrounds (Thermo-Plastic Elastomer, a synthetic rubber) are UV and salt/fog resistant.
Tweeters: The 1" dome tweeters are bridge mounted, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.
LEDs: There are red, green, and blue LEDs in the back of the tweeter casing, to create a glow on the woofer cone. The LEDs can be powered individually, or in any combination you like. Depending on what combination of LED wires is connected, they light red, green, blue, yellow, pink, aqua, or white. A 12 volt power supply is needed to turn the LEDs on and a 1-amp fuse should be added in-line (fuse not included). The LEDs can also be controlled using Rockford Fosgate's LED Controller (item number 575PMXRGB, sold separately). Two LED power wire harnesses are included with 4-pin waterproof Deutsch DT Series connectors that plug into the speaker frames.
Speaker Terminals: In addition to standard male quick slide terminals, each speaker also has 2-pin waterproof Deutsch terminals. Speaker wire harnesses with 2-pin waterproof Deutsch DT Series connectors are not included.
ICC Crossover: The ICC (Integrated Concealed Crossover) simplifies installation and protects the crossover by concealing it inside the basket, creating a cleaner look and easier installation. The crossover is 12 dB/octave high pass.
VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
Stainless Steel: The mounting hardware is stainless steel to resist corrosion.
Loading...
Loading accessories...
Customer Q&A
4 questions already asked
Loading...
Loading articles...
Very nice speakers handles alot of power,clear, clean, crisp sound, hard hitting speakers like Rockford Fosgate has always done with their speakers.
Reuben from Detroit, MI
