Rockford Fosgate Punch P6001 Mono subwoofer amplifier
300 watts RMS x 1

Item # 575P6001

Don't let your sound system dance around the ring; fire up a Punch series amplifier from Rockford Fosgate and enjoy...

Find what Fits your vehicle

Remove

Checking fit...

Don't let your sound system dance around the ring; fire up a Punch series amplifier from Rockford Fosgate and enjoy...

Item # 575P6001

Shop all Rockford Fosgate Car Amplifiers

About the Rockford Fosgate Punch P6001

Tim Sprinkle
Don't let your sound system dance around the ring; fire up a Punch series amplifier from Rockford Fosgate and enjoy a knockout performance every time. These amps will sting your speakers with plenty of clean power, while serving up the sound-shaping controls and high-quality components you need to create a heavyweight audio system.

Want big bass? Look at our SubwoofersDon't let your sound system dance around the ring; fire up a Punch series amplifier from Rockford Fosgate and enjoy a knockout performance every time. These amps will sting your speakers with plenty of clean power, while serving up the sound-shaping controls and high-quality components you need to create a heavyweight audio system.

A power-hungry subwoofer might strain a lesser amp, but not the Punch P6001. With 300 watts RMS at 4 ohms (or 600 watts RMS at 2 ohms), the P6001 delivers ultra-clean power to bring out extraordinary impact in your music. The innovative circuit design, MOSFET output stages, and proprietary technology round out the package for cool, efficient operation at any volume.

Rockford Fosgate knows that it takes more than muscle to create a prize-winning car audio system. So, the P6001 includes a variable low-pass crossover — to maximize your bass performance by sending the proper frequencies to your sub/box combination — and a Punch bass boost (0-18 dB at 45 Hz) with wired remote for hands-on control. You choose the right settings for your car, your speakers, and your ears.

READ LESS

Product highlights:

  • mono subwoofer car amplifier
  • 300 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
  • variable low-pass filter (35-250 Hz, 12 dB/octave)
  • variable Punch Bass boost with remote (0-18 dB at 45 Hz)
  • MOSFET power supplies and outputs
  • MEHSA transfers heat efficiently from the MOSFET devices to the heat sink for high performance
  • TOPAZ eliminates ground loop noise
  • trans-ANA circuitry keeps preamp signal clean
  • NOMAD "intelligent" protection circuitry
  • fuse rating: 60A x 1
  • 4-gauge wiring kit recommended — wiring and hardware not included with amplifier
  • 13-11/16"W x 2-1/2"H x 11-1/8"D
  • warranty: 1 year
  • MFR # P6001

What's in the box:

  • Mono amplifier with 2 removable chrome covers
  • 4 Allen-head screws (installed)
  • One 1/8" Allen wrench
  • 4 Large self-tapping screws
  • 2 Small self-tapping screws
  • Remote Punch Bass controller
  • Remote controller mounting bracket
  • 16.25' Flat remote cable (with RJ-45 plugs on both ends)
  • Installation & Operation manual (English/French/Spanish/German/Italian)
  • Punch Amplifier Performance Verification Certificate

Customer reviews for Rockford Fosgate Punch P6001

Loading reviews...

Average review:

5.0 out of 5 stars
1 review

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

Product Research

Features
Inputs and Outputs Notes
Dimensions
Specification Note

Features

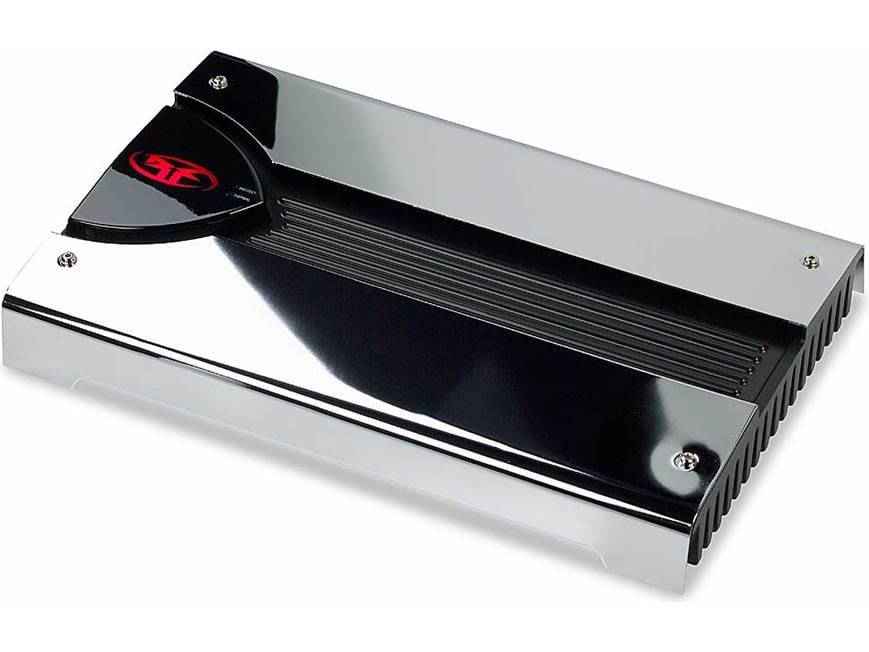

Removable Chrome Covers: The Rockford Fosgate Punch P6001bd amplifier features dual removable chrome covers. One of the covers conceals all speaker, signal, remote, power and ground connections, as well as the gain and crossover frequency controls for a cleaner installation.

Cast Aluminum Heatsink: The cast aluminum heatsink dissipates heat generated by the amplifier's circuitry. The inherent advantage of casting provides a 30% improvement of cooling over conventional extrusion heatsink designs.

MEHSA (Maximum Efficiency Heat Sink Application): MEHSA is a Rockford Fosgate proprietary process that increases the heat transfer from the MOSFET devices to the heatsink. The multi-layer insulated metal MEHSA substrate operates with minimal thermal resistance, spreading heat both downward and outward to quickly dissipate heat from each device across the heatsink. This allows greater power output, enhanced thermal stability, and maximum reliability.

TOPAZ (Tracking Operation Pre-Amplifier Zone): TOPAZ is a circuit that simply eliminates noise. The TOPAZ circuit allows the amplifier ground to move with the source unit ground, creating a "noise elimination" zone just before the preamp section. If there is any noise in the ground coming down the RCA line to the amplifier, TOPAZ amazingly tracks it down and eliminates it. The result is a 30-40dB improvement of the isolation between input ground and chassis ground.

Trans-ANA (TRANSconductance Active Nodal Amplifier): The trans-ANA is a circuit that allows the audio signal to pass through the amplifier at low voltage. The signal is directly level-shifted to the fixed high voltage rails via a pair of drive transistors. Signal linearity is assured by an active node formed  by the drive transistors at ultrasonic frequencies. The result is crystal clear sound quality.

NOMAD (NOn-Multiplying Advanced Decision): NOMAD is an intelligent protection circuit that uses an analog computer to make real time decisions regarding temperature, voltage, current and impedance. The unit is protected without limiting sound output unless needed.

DSM (Discrete Surface Mount): In the manufacturing process high speed robotics are used to place 0% tolerance resistors and large board traces providing greater reliability and efficiency.

TO-247 MOSFET: The Punch P6001bd utilizes ultra high performance MOSFET output devices, giving the amplifier more power handling capability as well as lower thermal impedance for more reliable operation, even under the harshest load conditions.

Internal Filter: The amplifier's internal 12 dB per octave Butterworth low-pass filter is variable from 35 to 250 Hz.

Infrasonic Filter: The infrasonic filter allows the amplifier to block ultra-low frequencies that your subs can't reproduce, improving the efficiency of your speaker system. The filter is fixed at 27 Hz, and has a slope of 12 dB per octave. You can turn the filter on or off.

Remote Punch Bass: The Punch Bass helps correct for acoustical deficiencies in the listening environment by helping reproduce full range sound without adding excessive boost. The Punch Bass control has a narrow band adjustment centered at 45Hz, variable from 0dB to +18dB. Using the mounting bracket, the supplied Punch Bass wired remote can be mounted in any convenient location. The module's case can be configured with the bracket above or below the module, or, without the case, mounted flush in your vehicle's dash (requires a 2" x 7/8" cutout with a maximum thickness of 3/8"). The wired remote is 2.281" wide, 1.214" tall and 1.509" deep (2.471" including the knob and cable connection). The included cable is 16.25' in length.

RCA Pass-Thru Jacks: The pass-thru jacks provide a convenient source for daisy-chaining an additional amplifier without running an extra set of RCA cables from the front of the vehicle to the amplifier location. The pass-thru jacks output a full-range signal.

Power Indicator and Protection LEDs: The RF logo, located on the top left of the amplifier, illuminates when the unit is turned on. The "Swirl" portion of the logo illuminates with the output signal level. A yellow "Protect" LED, located next to the RF logo, illuminates if a short circuit or too low of an impedance is detected at the speaker connections. Another yellow LED, labeled "Thermal", illuminates if the amplifier overheats. The amplifier will automatically shut down if either of the two LEDs indicate amplifier trouble.

Inputs and Outputs Notes

Power Connections: The power and ground terminals are nickel-plated captive c-clamp wire connectors and will accommodate up to 4-gauge wire. The remote turn-on terminal will accept wire sizes of 12- to 24-gauge. A Phillips-head or slotted screwdriver (not supplied) is required to tighten/loosen the terminals.

Speaker Connections: The nickel-plated clamp wire connectors will accept wire sizes of 8- to 18-gauge. A Phillips-head or slotted screwdriver (not supplied) is required to tighten/loosen the terminals.

Note: Although there are two sets of speaker terminals, the amplifier still produces a monaural signal. The A and B speaker outputs are internally wired in parallel.

Remote Punch Bass Connection: An RJ-45 jack is provided for connecting the supplied Remote Punch Bass cable.

Dimensions

Dimensions:

  • Without Covers: W=13.5625", H=2.456", D=10.875"
  • With Covers Installed: W=13.6875", H=2.456", D=11.105"

Specification Note

CEA-2006 Compliance: The specifications given by Rockford Fosgate for the Punch P6001bd amplifier comply with the new CEA-2006 Amplifier Power Standard from the CEA (Consumer Electronics Association). All manufacturers who comply with the standard can display the CEA-2006 logo on their product.
