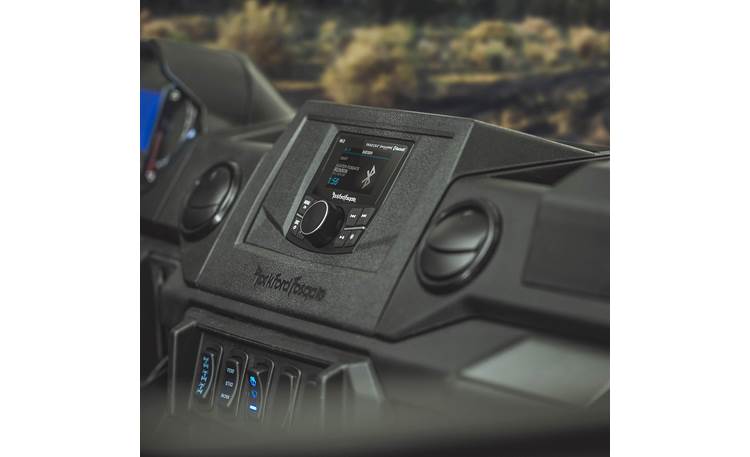

PMX-3 Headunit
M5-1500X5 Amplifier
M2-65B Speakers & Enclosures
M2D4-10IB Subwoofer & Enclosure
PMX-RGB LED Controller

Features

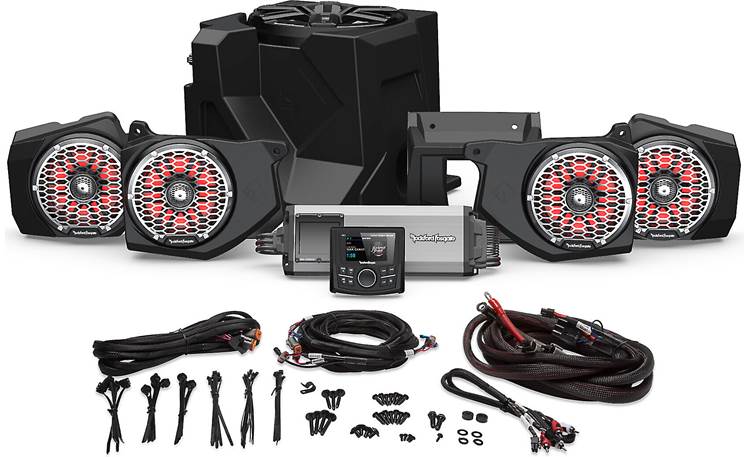

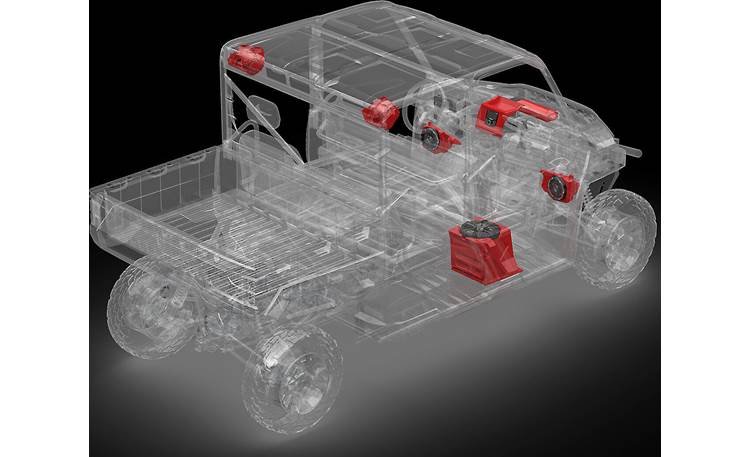

Overview: The Rockford Fosgate Ranger Stage-6 (RNGR18-STG6) is an all-in-one "Element Ready" audio system that includes a Rockford Fosgate PMX-3 headunit, four 6-1/2" M2-series speakers - 2 front and 2 rear, an M2-series subwoofer, and a Color Optix RGB LED controller. The Ranger Stage-6 kit also includes a durable all-weather dash kit, front and rear speaker mounting pods (must have factory Polaris Ranger Poly Roof), subwoofer enclosure, and wiring that connects directly into your compatible vehicle. The Ranger Stage-6 is designed to install in select 2018-up Polaris Ranger XP 1000 Full-Size (3-seat) and Crew (6-seat) models.

Installation Help: Rockford Fosgate features a helpful instructional videos on their site that provides a step-by-step guide for installing the RNGR18-STG6 kit into your Polaris vehicle. Instructional videos can be found here. No paper instructions are provided.

Compatibility

Compatible Models: The Ranger Stage-2 audio system is designed specifically to be installed in the following Polaris Ranger vehicles that feature a factory Polaris Ranger Poly Roof (must be present for rear speaker installation). The Stage-2 system is compatible with the Polaris Ranger Premium Roof Liner and Polaris Ranger HVAC system.

• Full-Size (3-Seat):

• Crew (6-Seat):

Note: The Rockford Fosgate Ranger Stage-2 audio system is not compatible with Polaris Ranger: Mid-Size (2-Seat) models, Crew (4-Seat) models, Youth 150 EFI models, Crew 570-6, Crew 570 Full-Size, Crew Diesel, Crew 1000, Crew 1000 EPS, Crew 1000 Premium, Crew 1000 Premium + Winter Prep Package, Crew XP 900 EPS, Crew XP 900, 570 Full-Size, Ranger Diesel, Ranger 1000, 1000 EPS, 1000 Premium, 1000 Premium + Winter Prep Package, XP 900, and XP 900 EPS models.

PMX-3 Headunit

Marine Certified: Rockford Fosgate's PMX series of source units are fully tested against UV radiation degradation as well as tested to IPX water intrusion standards. They are also fully tested for ever changing environmental conditions such as temperature extremes, as well as vibration testing to make sure they can take a bump and keep performing. The PMX-3 is protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

• Dust: The unit's display and motor structure are sealed up tight so they look as clear as possible and perform day in and day out no matter how many times you hit the trails.
• UV Inhibitor Materials: Centrex and ASA plastic materials are used for UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
• Thermal Shock Tested: Tested for extreme temperature operation as well as severe fluctuations in ambient temperature. Components are taken to both low and high temperature extremes and then tested to ensure operational capabilities.
• Water Tested: IPX5 and IPX6 Ratings allow for the components to be directly sprayed with water without water incursion.
• Corrosion Protection: Two part epoxy coated PCB boards prevent corrosion of critical components due to exposure in moisture rich environments.
• Vibration: Subjected to full vibration and shock testing to ensure that it will take abuse and keep performing to our stringent standards.

Applications: The PMX-3 digital media receiver is designed for marine and motorsports systems.

Optically Bonded LCD: The Rockford Fosgate PMX-3 features a 2.7" TFT color LCD for optimum viewing, even in full sun, that is optically wet bonded to prevent any dust or moisture penetration. There are two brightness settings for the LCD screen.

Water Resistant Control Knob: The PMX-3 uses a water resistant rotary encoder knob, along with push-button controls that feature white LED illumination.

Voltage Gauge & Warning: You can check the voltage of your system through the PMX-3's menu. The unit also provides a Low Voltage Warning Alert.

EEPROM (Electrically Erasable Programmable Read-Only Memory): The Rockford Fosgate PMX-3 features an EEPROM memory system which retains settings even when power is removed.

Bluetooth Music Streaming: The Rockford Fosgate PMX-3 offers built-in Bluetooth (version 3.0+EDR) for wireless music playback from your Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows phone, Blackberry, and more. You are able to stream stored music and music apps from your Bluetooth device to the PMX-3 marine receiver. You can control basic playback functions like Play/Pause, Previous Next/Track and Repeat/Shuffle for stored music and music apps on your device. When using a Bluetooth AVRCP 1.4 compatible device like the Apple iPhone (iOS 5.0+) or an Android smartphone (OS 4.0+), you can even browse your stored music by category (Playlist/Artist/Song/Genre). The PMX-3 will also display your device's song/artist information with album art.

Optional Wired Remotes: The PMX-3 features a wired remote input which is compatible with Rockford Fosgate's PMX-1R & PMX-0R wired remote controllers (both sold separately). In most cases you will need one of Rockford Fosgate's extension cables (sold separately) to connect a wired remote controller. Up to 3 remotes can be added to one marine receiver using PMXYC Y-cable (sold separately).

Camera Input: The PMX-3 features a composite video input for adding a backup camera (sold separately), so you can see what's behind your vehicle on the PMX-3's LCD monitor. In addition, there is a Reverse Gear (purple/white) wire which connects to your vehicle's reverse lamp that will allow the marine receiver to automatically switch over to the display of the backup camera.

USB Port: The Rockford Fosgate features a rear-panel USB (type-A) port for connection of a USB mass storage class device, like a USB thumbdrive or flashdrive. The unit supports playback of MP3 and WMA music files (999 folders/999 songs) loaded onto a USB MSC device (up to 32GB). You are able to browse your music by folders, as well as control basic playback functions like Play/Pause, Previous/Next Track and Repeat/Random.

iPod/iPhone Direct Connection: The Rockford Fosgate PMX-3's USB port can be used to connect your Lightning-connector or 30-pin dock connector iPod/iPhone to the head unit. Simply use the cable that came with your iPod/iPhone device or a 3rd party Apple certified cable (sold separately). The PMX-3 supports audio playback, music navigation, information display (including album art), and charging of your compatible Apple device.

• Music Control: The PMX-3 lets you navigate your Apple device's stored music by Playlist, Artist, Album, Song, Genre, Podcast, Composer, or Audiobook. The head unit also offers basic playback functions like Play/Pause, Previous/Next Track, and Random/Repeat. Newer Apple devices with iOS 6.0+ will remain unlocked while connected, so you can access music apps on your device. Older Apple device's clickwheels & touchscreens will lock when connected to the PMX-3.
• Song/Artist Info + Album Art: The head unit will display your iPod/iPhone's stored music file information; including Track number, Elapsed playing time, Song title, and Artist/Artist name. It will also display album art.
• Charging: The head unit's USB connection provides 1A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position (if your iPod/iPhone has no initial battery charge, then the unit will not recognize it).

Apple Device Compatibility Chart: The Rockford Fosgate PMX-3 is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 7/23/2019):

Aux Input: The Rockford Fosgate PMX-3 is fitted with a rear-panel stereo RCA AUX input to connect an external audio source. You can give the Aux input a custom  name.

AM/FM Tuner: The PMX-3 features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM and 12 AM preset stations; these presets can be stored manually or automatically. You can set the tuner to Local or Distance tuning. The Local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to Distance tuning enables the unit to tune in to more distant stations. You can choose between US or European tuning.

Weather Band: The Rockford Fosgate PMX-3 is also equipped with a built-in weather band tuner. Select from weather band frequencies between 162.40 to 162.55.

Pandora Internet Radio: The free Pandora App (either from Apple's App Store or Google Play) lets you play music from the Pandora music service through the Rockford Fosgate PMX-3 using your USB-connected or Bluetooth-paired Apple iPhone (iOS 9.0+), or Bluetooth-paired Android smartphone. Your Apple iPhone must be connected to the PMX-3 via the appropriate the Dock-/Lightning-cable that came with your iPhone or via Bluetooth. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the marine receiver. Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, EDGE, or WiFi. The PMX-3 provides control over the Pandora music service and displays Artist, Album, and Song information.

• Station List: You can select Pandora stations from your Station List by date or alphabetically.
• New Station: Based on a currently playing track or artist, you can create a new station and save it to your Pandora account.
• Skip Songs: You can skip song tracks within a station. You cannot skip back to a previous song. Pandora limits the number of skips allowed.
• Thumbs Up/Down: You can give songs a thumbs up or thumbs down to help Pandora personalize stations to suit your preferences.
• Bookmarking: The song or artist currently being played can be bookmarked & stored in your Pandora account.

SiriusXM-Ready: The Rockford Fosgate PMX-3 is SiriusXM-Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300 sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 175+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here.

• Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit's display
• Category Search feature lets you search for channels within a certain genre or category
• Up to 18 SiriusXM Satellite Radio station presets
• Direct tuning of a SiriusXM station
• Channels containing unsuitable content for children can be blocked

MOSFET Amplifier: The PMX-3 is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.

• Full Bandwidth Power: 25 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
• Maximum Output Power: 50 watts x 4 channels (200 watts total)

4V/4Ch Preouts: The Rockford Fosgate PMX-3 is equipped with two pair of 4-volt preamp outputs (Front & Rear/Sub). You can configure the Rear/Sub pre-out for rear speakers with fading capability or as a non-fading sub output. You can turn off the unit's internal amplifier, you plan on using only external amps.

Equalizer: The PMX-3 is equipped with a variety of EQ presets, and 7-Band EQ, and Rockford Fosgate's Punch EQ.

• Presets: Select between seven EQ presets - FLAT, ROCK, CLASSIC, ACOUSTIC, DANCE, ELECTRONIC, or HIP-HOP.
• 7-Band EQ: Use the built-in 7-band EQ to custom tailor the sound of your music to your liking.
• Punch EQ: Punch EQ is an onboard equalizer with up to +18dB at 45Hz and/or up to +12dB boost at 12.5kHz.

High-Pass & Low-Pass Crossovers: The PMX-3 provides a high-pass crossover for the front & rear channels which can be set to 60Hz, 80Hz, 120Hz, or Full-Range. The unit also provides a low-pass crossover for the subwoofer output that can be set to 60Hz, 80Hz, 120Hz, or Full-Range.

Sub Control: When the sub out is activated, you can independently adjust its volume level from 0 to 40.

Source Gain: You can adjust the gain of each source so they all play at the same volume level. Select between -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB for each source.

Key Beep: A beep tone will sound with any press of a button on the receiver. This can be turned on or off.

Dash Kit: The Rockford Fosgate RNGR18-DK dash kit is designed to facilitate the installation of the Rockford Fosgate PMX-3 digital marine source unit into select Polaris Ranger model ATVs. This kit is custom molded to match the existing dash and mounts using the factory (OEM) mounting holes.

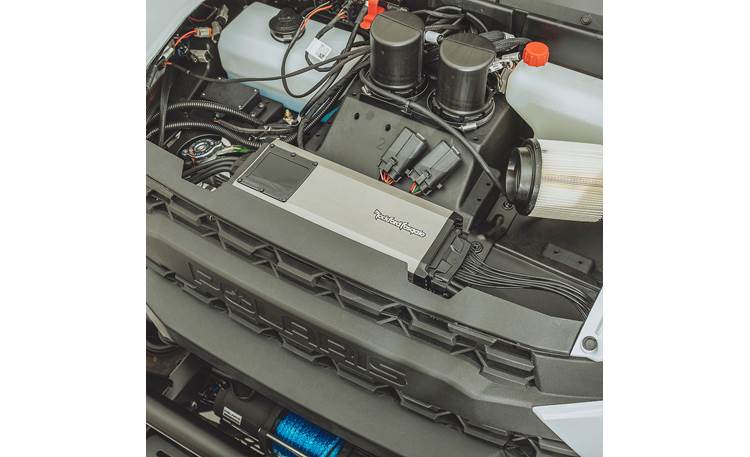

M5-1500X5 Amplifier

Overview: The Rockford Fosgate M5-1500X5 is a 5-channel powersports amplifier with a rated power output of 100 watts per channel at 4-ohms or 2-ohms for the four main channels, and 400 watts @4Ω/600 watts @2Ω for the subwoofer channel. This Element Ready amplifier can be used on motorcycles, ATVs, UTVs, or boats, and can withstand harsh environmental conditions.

CEA-2006 Compliant: CEA-2006 is a system of testing and measurement methods for mobile audio amplifiers. This voluntary standard advocates a uniform method for determining an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring power uses a DC input voltage of 14.4 volts and the RMS power output is measured into a 4Ω load with 1% or less Total Harmonic Distortion plus noise (THD+N). CEA-2006 allows consumers to compare amplifiers and receivers under identical conditions. The CEA-2006-rated RMS power output is 100 watts RMS x 4 channels. Additionally the power output is 100 watts RMS x 4 channels into 2Ω and 200 watts RMS x 2 channels bridged (into 4Ω). The subwoofer output is rated for 400W x 1 @4Ω, 600W x 1 @2Ω, and 600W x 1 @1Ω.

Element Ready: Rockford Fosgate's Element Ready Amplifiers are protected against dust, UV rays, and corrosion. Marine-grade, two-part epoxy-coated circuit boards are used to prevent corrosion due to exposure in moist and humid places. In addition, stainless hardware is used to help prevent rust and corrosion of all electrical connections. The M5-1500X5 carries an IPX6 rating, making it impervious to water spray.

Amp Class: The M5-1500X5 features Rockford Fosgate's proprietary Class-AD technology for the front & rear speaker channels and Class-BD for the subwoofer channel. This allows the amplifier to produce more power with less current draw from the vehicle's charging system.

MEHSA 4 Cooling: The amplifier features Rockford Fosgate's MEHSA 4 (Maximum Efficiency Heat Sink Application) technology that reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output circuitry's life span.

DSM (Discrete Surface Mount): High speed robotics are used in the manufacturing process to place 1% tolerance parts and large board traces. DSM improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

CLEAN Set-Up: Rockford's integrated level setting technology, CLEAN (Calibrated Level Eliminates Audible Noise), replaces sophisticated test equipment with input/output clip LEDs, allowing you to match the source unit's output to the amp's gain, and optimize the amp's output. The input clip indicator works in conjunction with the audio source volume, illuminating red when the source reaches its clipping point. The output clip indicator works in conjunction with the input level dial on the amp, illuminating the appropriate color depending on the audio content used for the setup.

PRESET: The M5-1500X5 features Rockford Fosgate's PRESET setting (On/Off) that eliminates the need to set-up the amplifier when used with a compatible Rockford Fosgate ATV/UTV Stage 3 or Stage 4 audio kit (sold separately). When set to On, the PRESET circuitry automatically optimizes the front, rear, and subwoofer input levels, Punch EQ, and crossover settings. If manually setting these adjustments, the PRESET switch should be set to the Off position. Individual PRESET switches are provided for the front, rear, and subwoofer outputs.

Input Level: The amplifier has dual input level controls for the front and rear channels, conveniently accessible from the top. To accommodate the varying range of signal levels from today's factory and aftermarket radios, the input levels are adjustable from 150mV to 12V. A small flat-head screwdriver (not supplied) is needed to adjust the levels.

Crossover: The amplifier has three built-in crossovers for the front, rear, and subwoofer channels. All three crossovers are variable from 50Hz to 250Hz with a slope of 12dB/octave. The front and rear channels can be independently set to high-pass, all-pass (full range), or low-pass operation, while the subwoofer channel is set for low-pass operation. The rotary frequency settings can be adjusted with a small screwdriver.

Punch EQ: The amplifier has two Punch EQ functions (for front and rear) that change with the crossover switches. When the crossover is set to low-pass, the Punch EQ acts as a variable bass boost; 0 to +18dB at 45Hz. When the crossover is set to high-pass, the Punch EQ acts as a variable treble boost, 0 to +14dB at 12.5kHz. When the crossover is set to all-pass, both the bass and treble boost circuits are active. The subwoofer channel's Punch EQ acts as a variable bass boost only.

Power Connections: The M5-1500X5's power, ground, and remote turn-on terminals are located on a single 11" harness with matching adapter. The adapter accepts up to 4 AWG wire (recommended) and features set-screws for locking the wire in place. The power/ground harness is combined with the subwoofer output harness and attached to the amp in one large connector that's held in place with 2 hex-socket screws.

Fuse: The amplifier does not have an on-board fuse. A 200-amp fuse should be placed on the power wire within 18" of the battery.

Speaker Connections: The amplifier is equipped with two 11" speaker output harnesses which are combined with the power/ground harness to one connector at the amplifier. Two 7.5" speaker harnesses plug into the output harnesses and provide bare-ended wire connections. Front and rear speaker outputs can be bridged to provide two 2 x 200W @4Ω outputs. The subwoofer output cannot be bridged. Pre-configured harnesses are provided in the RNGR18-STG6 kit that will connect directly into the amplifier and the factory wiring, without the need for cutting or splicing.

Signal Input: The amplifier's Differential Inputs will accept either a line-level or speaker-level input on the Molex-style connectors. A single amp connector, secured with hex-socket screws to the amp, features three 4-pin Molex connectors on the other end for connecting the included input adapter harnesses. Each input adapter harness has a 4-pin Molex plug on one end and dual RCAs on the other end. Front and rear line-level signals can simply be connected via RCA cables from the source unit to each input harness. For a speaker-level signal, you can cut the RCA connectors from the input harnesses and splice the wires to the speaker wires of the source unit. When using a speaker-level input signal, the auto turn-on feature is active and the remote turn-on terminal becomes a 12 volt output, which can be used to turn on/off an additional amplifier or other component.

RNGR18-K4 Amp Mounting & Wiring Kit: The included RNGR18-K4 amplifier mounting bracket has been designed specifically for mounting a single M5 Series Element Ready amplifier (included) in the front of the vehicle under the hood. The mounting bracket features pre-drilled and tapped mounting holes for the amplifier and mounting tabs that line up to factory bolts. The kit also includes pre-cut and loomed 4 AWG power and ground wires along with signal input and speaker output leads that are designed to plug directly into the M5-1500X5 amplifier and into the factory wiring.

M2-65B Speakers & Enclosures

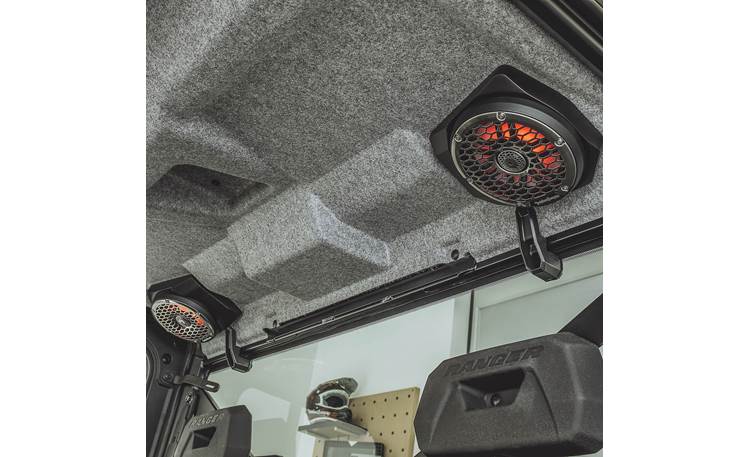

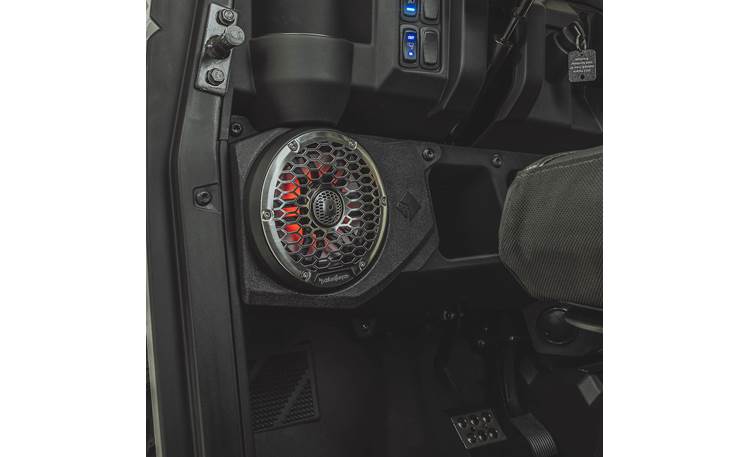

Speaker Overview: The Rockford Fosgate RNGR18-STG6 kit includes two pairs of M2-65B 2-way marine speakers along with custom enclosures for mounting in the front and rear of your compatible Polaris Ranger. The enclosures are constructed of reinforced polymer along with a UV resistant finish, and are roto-molded for a seamless speaker mount that's both lightweight and durable. The speaker enclosures are also color and texture matched to the vehicle's interior and are a direct bolt-in using the OEM mounting holes. Pre-attached wiring harnesses in each enclosure provide a direct plug-in to the factory wiring and to each speaker.

Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M2-65B speakers are durable in the difficult marine environment.

Woofers: The woofer cones are injection molded, mineral filled polypropylene with UV inhibitors. This molding process assures a uniform cone thickness for superior linearity and clarity. It is also light weight and rigid for decreased distortion and improved bass response.

Surrounds: The TPE surrounds (Thermo-Plastic Elastomer, a synthetic rubber) are UV and salt/fog resistant.

Tweeters: The 1" dome tweeters are bridge mounted, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.

Color Optix: The M2-65B marine speakers feature Rockford Fosgate's Color Optix RGB LED lighting integrated into the back of the tweeter casing, creating a glow on the woofer cone. Control of the RGB LED lighting is done using the included Rockford Fosgate PMX-RGB Color Optix controller in conjunction with the free RF Connect App on your smartphone or tablet. This lets you select from a wide range of colors along with adjusting brightness and scrolling speed.

Speaker Terminals: In addition to standard male quick slide terminals, each speaker also has 2-pin waterproof Deutsch terminals. Speaker wire harnesses with 2-pin waterproof Deutsch DT Series connectors are not included.

ICC Crossover: The ICC (Integrated Concealed Crossover) simplifies installation and protects the crossover by concealing it inside the basket, creating a cleaner look and easier installation. The crossover is 12 dB/octave high pass.

VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Stainless Steel: The mounting hardware is stainless steel to resist corrosion.

M2D4-10IB Subwoofer & Enclosure

Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M2D4-10IB subwoofers are durable in the difficult marine environment.

Impedance Switch: A switch on the input terminal allows you to easily change the subwoofer's impedance between 2Ω and 8Ω, internally changing between wiring the dual 4Ω voice coils in parallel and in series. (The connected amplifier should be off when changing the impedance.) The power handling is the same for either setting; 400 watts RMS/1600 watts peak.

Infinite-Baffle Operation: The M2D4-10IB is optimized for infinite-baffle operation (free air) so it can be installed in a variety of locations, without the need for a dedicated enclosure.

LEDs: There are red, green, and blue LEDs on the back of the bridge over the cone to create a glow on the woofer cone. The LEDs can be powered individually, or in any combination you like. Depending on what combination of LED wires is connected, they light red, green, blue, yellow, pink, aqua, or white. The LEDs can be controlled using the included Rockford Fosgate PMX-RGB LED Controller. An LED power wire harness is included with a 4-pin waterproof Deutsch DT Series connector that plugs into the subwoofer frame.

Speaker Terminals: In addition to standard male quick slide terminals, the subwoofer also has a 2-pin waterproof Deutsch terminal. A speaker wire harness with a 2-pin waterproof Deutsch DT Series connector is not included.

VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Stainless Steel: The mounting hardware is stainless steel to resist corrosion.

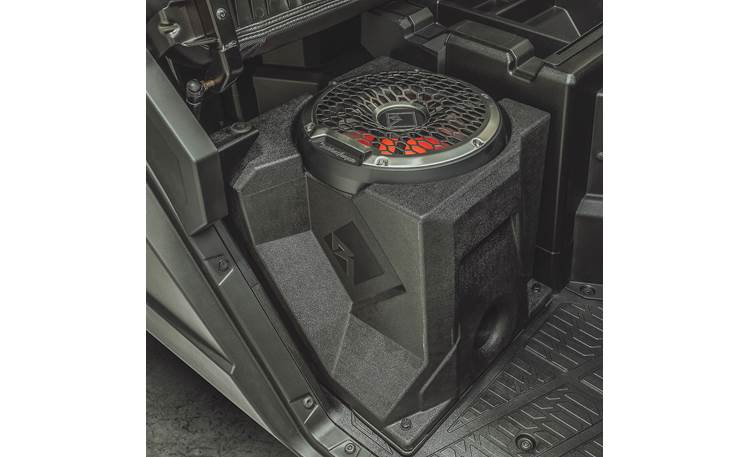

RNGR18-FWE Subwoofer Enclosure: The RNGR18-FWE 10" subwoofer enclosure is a roto-molded, composite-blend subwoofer enclosure which is designed to be a direct fit for select Polaris Ranger model ATVs. The enclosure's texture and color is matched to the ATV's interior and is up to 40% lighter than previous generation enclosures. The subwoofer enclosure mounts under the passenger side front seat. A mounting bracket is provided for the enclosure which bolts directly to the factory mounting holes.

PMX-RGB LED Controller

Overview: The Rockford Fosgate PMX-RGB Color Optix controller lets you illuminate and control the included M2-65B and M2D4-10IB Color Optix marine speakers and subwoofers. Featuring a completely encased housing, rubberized wiring, and Element Ready watertight connectors, the PMX-RGB is IPX7 waterproof certified, making it impervious to even the harshest marine environments.

App Control: The PMX-RGB can be controlled from your smartphone using Rockford Fosgate's proprietary RF CONNECT App, available from the Apple App and Google Play stores. After connecting your smartphone wirelessly to the PMX-RGB controller, you'll be able to choose from 30 different color scrolling options or choose a fixed color from the color wheel. Scrolling speed and brightness controls are also available for customizing the lighting.

Plug&Play: The Rockford Fosgate PMX-RGB controller features easy configuration and connection via proprietary Element Ready connectors that provide a secure, watertight seal. It features 8 individual 17" RGB output cables for lighting up to 8 Rockford Fosgate Color Optix marine speakers (maximum 2A total current draw).

Powering: The PMX-RGB controller includes a 17" power and ground harness with inline 2A fuse, and has an operating voltage range of 9-24VDC.

PMX-RGB Specifications:

• RGB Control Outputs: 8
• Maximum Amp Draw (Total): 2A
• Operating Voltage: 9-24VDC
• Waterproof Rating: IPX7
• Control Module Dimensions: W = 2.411", H = 0.913", D = 5.050"
• Overall Length: 38.5"
