Compatibility
PMX-2 Radio & Dash Kit
M5-1500X5 Amplifier
Front Speakers & Enclosures
M1WL-65MB Moto-Can Speakers
M1D2-10B Subwoofer & Enclosure
PMX-RGB LED Controller

Compatibility

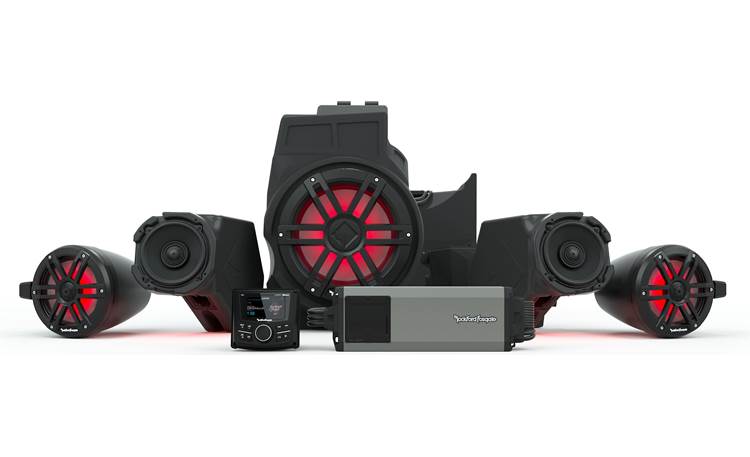

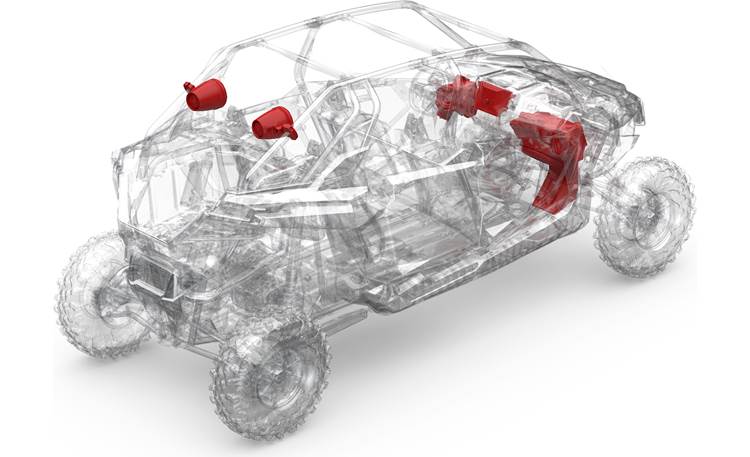

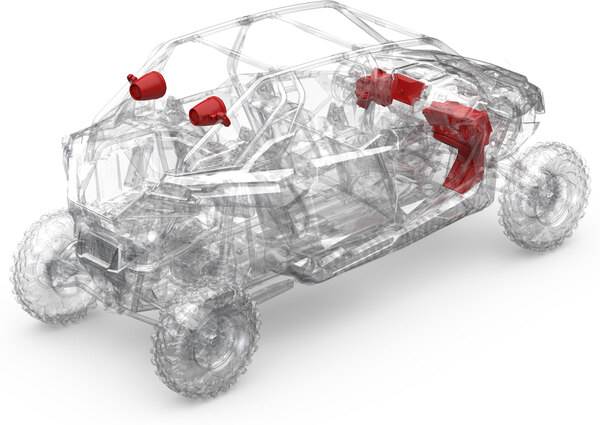

Polaris Compatibility: The Rockford Fosgate RZR19PXP-STG4 audio system can be used with the following 2020-2024 Polaris RZR vehicles:

Pro XP 2-Seat:

Pro XP 4-Seat:

Pro R & Turbo R:

PMX-2 Radio & Dash Kit

Marine Certified: Rockford Fosgate's PMX series of source units are fully tested against UV radiation degradation as well as tested to IPX water intrusion standards. They are also fully tested for ever changing environmental conditions such as temperature extremes, as well as vibration testing to make sure they can take a bump and keep performing. The PMX-2 is protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

• Dust: The unit's display and motor structure are sealed up tight so they look as clear as possible and perform day in and day out no matter how many times you hit the trails.
• UV Inhibitor Materials: Centrex and ASA plastic materials are used for UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
• Thermal Shock Tested: Tested for extreme temperature operation as well as severe fluctuations in ambient temperature. Components are taken to both low and high temperature extremes and then tested to ensure operational capabilities.
• Water Tested: IPX5 and IPX6 Ratings allow for the components to be directly sprayed with water without water incursion.
• Corrosion Protection: Two part epoxy coated PCB boards prevent corrosion of critical components due to exposure in moisture rich environments.
• Vibration: Subjected to full vibration and shock testing to ensure that it will take abuse and keep performing to our stringent standards.

Applications: The PMX-2 digital media receiver is designed for marine and motorsports systems.

Optically Bonded LCD: The Rockford Fosgate PMX-2 features a 2.7" TFT color LCD for optimum viewing, even in full sun, that is optically wet bonded to prevent any dust or moisture penetration. There are two brightness settings for the LCD screen.

Water Resistant Control Knob: The PMX-2 uses a water resistant rotary encoder knob, along with push-button controls that feature white LED illumination.

Voltage Gauge & Warning: You can check the voltage of your system through the PMX-2's menu. The unit also provides a Low Voltage Warning Alert.

EEPROM (Electrically Erasable Programmable Read-Only Memory): The Rockford Fosgate PMX-2 features an EEPROM memory system which retains settings (including Audio & Bluetooth settings) even when power is removed.

Bluetooth Music Streaming: The Rockford Fosgate PMX-2 offers built-in Bluetooth (version 3.0+EDR) for wireless music playback from your Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows phone, Blackberry, and more. You are able to stream stored music and music apps from your Bluetooth device to the PMX-2 marine receiver. You can control basic playback functions like Play/Pause, Previous Next/Track and Repeat/Shuffle for stored music and music apps on your device. When using a Bluetooth AVRCP 1.4 compatible device like the Apple iPhone (iOS 5.0+) or an Android smartphone (OS 4.0+), you can even browse your stored music by category (Playlist/Artist/Song/Genre). The PMX-2 will also display your device's song/artist information with album art.

Optional Wired Remotes: The PMX-2 features a wired remote input which is compatible with Rockford Fosgate's PMX-1R & PMX-0R wired remote controllers (both sold separately). In most cases you will need one of Rockford Fosgate's extension cables (sold separately) to connect a wired remote controller. Up to 3 remotes can be added to one marine receiver using PMXYC Y-cable (sold separately).

USB Port: The Rockford Fosgate features a rear-panel USB (type-A) port for connection of a USB mass storage class device, like a USB thumbdrive or flashdrive. The unit supports playback of MP3 and WMA music files loaded onto a USB MSC device (up to 32GB). You are able to browse your music by folders, as well as control basic playback functions like Play/Pause, Previous/Next Track and Repeat/Random.

iPod/iPhone Direct Connection: The Rockford Fosgate PMX-2's USB port can be used to connect your Lightning-connector or 30-pin dock connector iPod/iPhone to the head unit. Simply use the cable that came with your iPod/iPhone device or a 3rd party Apple certified cable (sold separately). The PMX-2 supports audio playback, music navigation, information display (including album art), and charging of your compatible Apple device.

• Music Control: The PMX-2 lets you navigate your Apple device's stored music by Playlist, Artist, Album, Song, Genre, Podcast, Composer, or Audiobook. The head unit also offers basic playback functions like Play/Pause, Previous/Next Track, and Random/Repeat. Newer Apple devices with iOS 6.0+ will remain unlocked while connected, so you can access music apps on your device. Older Apple device's clickwheels & touchscreens will lock when connected to the PMX-2.
• Song/Artist Info + Album Art: The head unit will display your iPod/iPhone's stored music file information; including Track number, Elapsed playing time, Song title, and Artist/Artist name. It will also display album art.
• Charging: The head unit's USB connection provides 1A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position (if your iPod/iPhone has no initial battery charge, then the unit will not recognize it).

Apple Device Compatibility Chart: The Rockford Fosgate PMX-2 is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 7/23/2019):

Aux Input: The Rockford Fosgate PMX-2 is fitted with a rear-panel stereo RCA AUX input to connect an external audio source. You can give the Aux input a custom  name.

AM/FM Tuner: The PMX-2 features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM and 12 AM preset stations; these presets can be stored manually or automatically. You can set the tuner to Local or Distance tuning. The Local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to Distance tuning enables the unit to tune in to more distant stations. You can choose between US or European tuning.

Weather Band: The Rockford Fosgate PMX-2 is also equipped with a built-in weather band tuner. Select from weather band frequencies between 162.40 to 162.55.

Pandora Internet Radio: The free Pandora App (either from Apple's App Store or Google Play) lets you play music from the Pandora music service through the Rockford Fosgate PMX-2 using your USB-connected or Bluetooth-paired Apple iPhone (iOS 9.0+), or Bluetooth-paired Android smartphone. Your Apple iPhone must be connected to the PMX-2 via the appropriate the Dock-/Lightning-cable that came with your iPhone or via Bluetooth. Your Android smartphone must support A2DP/AVRCP/SPP Bluetooth profiles and be paired with the marine receiver. Your iPhone or Android smartphone will also need an active Data Plan account with connection to the Internet via 3G, EDGE, or WiFi. The PMX-2 provides control over the Pandora music service and displays Artist, Album, and Song information.

• Station List: You can select Pandora stations from your Station List by date or alphabetically.
• New Station: Based on a currently playing track or artist, you can create a new station and save it to your Pandora account.
• Skip Songs: You can skip song tracks within a station. You cannot skip back to a previous song. Pandora limits the number of skips allowed.
• Thumbs Up/Down: You can give songs a thumbs up or thumbs down to help Pandora personalize stations to suit your preferences.
• Bookmarking: The song or artist currently being played can be bookmarked & stored in your Pandora account.

MOSFET Amplifier: The PMX-2 is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.

• Full Bandwidth Power: 25 watts RMS x 4 channels (at 4-ohms, 20-20kHz, 1% THD)
• Maximum Output Power: 50 watts x 4 channels (200 watts total)

4V/4Ch Preouts: The Rockford Fosgate PMX-2 is equipped with two pair of 4-volt preamp outputs (Front & Rear/Sub). You can configure the Rear/Sub pre-out for rear speakers with fading capability or as a non-fading sub output. You can turn off the unit's internal amplifier, you plan on using only external amps.

Equalizer: The PMX-2 is equipped with a variety of EQ presets, and 7-Band EQ, and Rockford Fosgate's Punch EQ.

• Presets: Select between seven EQ presets - FLAT, ROCK, CLASSIC, ACOUSTIC, DANCE, ELECTRONIC, or HIP-HOP.
• 7-Band EQ: Use the built-in 7-band EQ to custom tailor the sound of your music to your liking.
• Punch EQ: Punch EQ is an onboard equalizer with up to +18dB at 45Hz and/or up to +12dB boost at 12.5kHz.

High-Pass & Low-Pass Crossovers: The PMX-2 provides a high-pass crossover for the front & rear channels which can be set to 60Hz, 80Hz, 120Hz, or Full-Range. The unit also provides a low-pass crossover for the subwoofer output that can be set to 60Hz, 80Hz, 120Hz, or Full-Range.

Sub Control: When the sub out is activated, you can independently adjust its volume level from 0 to 20.

Source Gain: You can adjust the gain of each source so they all play at the same volume level. Select between -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB for each source.

Key Beep: A beep tone will sound with any press of a button on the receiver. This can be turned on or off.

Dash Kit: The Rockford Fosgate RZR19PXP-DK dash kit is designed to facilitate the installation of the Rockford Fosgate PMX-2 digital marine source unit into select Polaris RZR model ATVs. This kit is custom molded to match the existing dash and mounts in place of the center pocket door using the factory (OEM) mounting holes.

M5-1500X5 Amplifier

Amp Overview: The Rockford Fosgate M5-1500X5 is a 5-channel powersports amplifier with a rated power output of 100 watts per channel at 4-ohms or 2-ohms for the four main channels, and 400 watts @4-ohms/600 watts @2-ohms for the subwoofer channel. This Element Ready amplifier can withstand harsh outdoor environmental conditions.

CEA-2006 Compliant: CEA-2006 is a system of testing and measurement methods for mobile audio amplifiers. This voluntary standard advocates a uniform method for determining an amplifier's RMS power output and signal-to-noise ratio. The criteria for measuring power uses a DC input voltage of 14.4 volts and the RMS power output is measured into a 4-ohm load with 1% or less Total Harmonic Distortion plus noise (THD+N). CEA-2006 allows consumers to compare amplifiers and receivers under identical conditions. The CEA-2006-rated RMS power output is 100 watts RMS x 4 channels. Additionally the power output is 100 watts RMS x 4 channels into 2-ohms and 200 watts RMS x 2 channels bridged (into 4-ohms). The subwoofer output is rated for 400W x 1 @4-ohms, 600W x 1 @2-ohms, and 600W x 1 @1-ohm.

Element Ready: Rockford Fosgate's Element Ready Amplifiers are protected against dust, UV rays, and corrosion. Marine-grade, two-part epoxy-coated circuit boards are used to prevent corrosion due to exposure in moist and humid places. In addition, stainless hardware is used to help prevent rust and corrosion of all electrical connections. The M5-1500X5 carries an IPX6 rating, making it impervious to water spray.

Amp Class: The M5-1500X5 features Rockford Fosgate's proprietary Class-AD technology for the front & rear speaker channels and Class-BD for the subwoofer channel. This allows the amplifier to produce more power with less current draw from the vehicle's charging system.

MEHSA 4 Cooling: The amplifier features Rockford Fosgate's MEHSA 4 (Maximum Efficiency Heat Sink Application) technology that reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output circuitry's life span.

DSM (Discrete Surface Mount): High speed robotics are used in the manufacturing process to place 1% tolerance parts and large board traces. DSM improves the efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.

CLEAN Set-Up: Rockford's integrated level setting technology, CLEAN (Calibrated Level Eliminates Audible Noise), replaces sophisticated test equipment with input/output clip LEDs, allowing you to match the source unit's output to the amp's gain, and optimize the amp's output. The input clip indicator works in conjunction with the audio source volume, illuminating red when the source reaches its clipping point. The output clip indicator works in conjunction with the input level dial on the amp, illuminating the appropriate color depending on the audio content used for the setup.

PRESET: The M5-1500X5 features Rockford Fosgate's PRESET setting (On/Off) that eliminates the need to set-up the amplifier when used with a compatible Rockford Fosgate ATV/UTV Stage 3 or Stage 4 audio kit (sold separately). When set to On, the PRESET circuitry automatically optimizes the front, rear, and subwoofer input levels, Punch EQ, and crossover settings. If manually setting these adjustments, the PRESET switch should be set to the Off position. Individual PRESET switches are provided for the front, rear, and subwoofer outputs.

Input Level: The amplifier has dual input level controls for the front and rear channels, conveniently accessible from the top. To accommodate the varying range of signal levels from today's factory and aftermarket radios, the input levels are adjustable from 150mV to 12V. A small flat-head screwdriver (not supplied) is needed to adjust the levels.

Crossover: The amplifier has three built-in crossovers for the front, rear, and subwoofer channels. All three crossovers are variable from 50Hz to 250Hz with a slope of 12dB/octave. The front and rear channels can be independently set to high-pass, all-pass (full range), or low-pass operation, while the subwoofer channel is set for low-pass operation. The rotary frequency settings can be adjusted with a small screwdriver.

Punch EQ: The amplifier has two Punch EQ functions (for front and rear) that change with the crossover switches. When the crossover is set to low-pass, the Punch EQ acts as a variable bass boost; 0 to +18dB at 45Hz. When the crossover is set to high-pass, the Punch EQ acts as a variable treble boost, 0 to +14dB at 12.5kHz. When the crossover is set to all-pass, both the bass and treble boost circuits are active. The subwoofer channel's Punch EQ acts as a variable bass boost only.

Wiring Connections: All of the M5-1500X5's wiring connections are ready to accept the included 4 AWG amp wiring kit harnesses, including RCA signal input and speaker output connections.

RZR19PXP-K4 Amp Wiring Kit: The Rockford Fosgate amplifier wiring kit has been designed specifically for mounting a single M5-1500X5 powersports amplifier into select Polaris RZR UTVs, both 2-seat and 4-seat models. The wiring kit includes pre-cut and loomed 4 AWG power and ground wires along with signal input and speaker output leads that are designed to plug directly into an M5-1500X5 amplifier and the factory wiring. Two amplifier mounting plates are provided for mounting the amp under the dash (only one will be used, based on year/model).

Amplifier Mounting: An amplifier mounting plate is provided and comes pre-installed to the M5-1500X5 amplifier. This allows the amp to be mounted in the left front outer dash area.

Front Speakers & Enclosures

Front Speaker Overview: The Rockford Fosgate powersports package includes a pair of 6.5" 2-way speakers pre-mounted in Color Optix enclosures designed to mount in the front dash.

Weather: The speakers are made weather resistant by the Santoprene front isolation spider, connecting the tweeter housing and woofer cone assembly.

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

CEA-2031 Compliant: The power handling specifications conform to the CEA-2031 industry standards; meaning the speaker has the capacity to handle its rated power under continuous demand, not just for an instant.

VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket. The surround is made of Santoprene rubber.

Front Speaker Enclosures: The Rockford Fosgate RZR19PXP-FSE Color Optix front speaker enclosures are constructed of reinforced polymer along with a UV resistant finish and are roto-molded for a seamless speaker mount that's both lightweight and durable. The speaker enclosures are also color and texture matched to the vehicle's interior and are a direct bolt-in using the OEM mounting holes. Each enclosure provides a direct plug-in harness for the included speaker wiring, along with Color Optix RGB LED wiring connections.

M1WL-65MB Moto-Can Speakers

Moto-Can Speakers: The Rockford Fosgate M1WL-65MB Color Optix Moto-Can speakers each feature an 6.5" 2-way speaker mounted in a sealed enclosure. Built for off-road use, both the speakers and enclosures are part of Rockford Fosgate's "Element Ready" products, designed to stand up to water, dirt, mud, and UV rays. The Moto-Can speakers feature Rockford's Color Optix RGB LED lighting that can illuminate the cone area as well as the rear logo (RGB controller sold separately).

Two-Way Design: The Rockford Fosgate M1WL-65MB Moto-Can speakers come loaded with an M1 Series 6.5" 2-way marine speaker, designed to provide superb low and midrange frequencies with a smooth high-frequency roll-off. Both the tweeter and woofer have been treated for UV radiation and salt-fog resistance for maximum lifespan.

• 1" Tweeter: The M1WL-65MB features a 1" dome tweeter for crisp, clear highs. The tweeter is coaxially mounted to the 6.5" woofer.
• 6.5" Woofer: The woofer is made of a mineral filled, injection molded polypropylene material and features integrated UV inhibitors protecting it from sun exposure. This is attached to the UV stable injection molded frame assembly by a VAST vertically attached surround, designed to increase the cone's effective radiating area by up to 25%.
• ICC Crossover: The ICC (Integrated Concealed Crossover) protects the crossover by concealing it inside the basket. This Integrated 12dB/octave sealed crossover features a built-in protection circuit.
• Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Power: Each Rockford Fosgate speaker can handle up to 75W RMS (300W peak).

Color Optix: The M1WL-65MB Moto-Can speakers feature Rockford Fosgate's Color Optix RGB LED lighting integrated into the enclosure, allowing the speaker cone and rear logo to be illuminated. Control of the RGB LED lighting is done using the included Rockford Fosgate included PMX-RGB Color Optix controller in conjunction with the free RF Connect App on your smartphone or tablet. This lets you select from a wide range of colors along with adjusting brightness and scrolling speed.

Rugged Enclosure: The enclosures are constructed of high density ASA material and coated with a UV inhibitor to withstand the harsh outdoor environment.

IPX6: The M1WL-65MB speakers carry an IPX6 waterproof rating, making them impervious to water spray from all directions.

Mounting: The Rockford Fosgate M1WL-65MB speakers are designed to be mounted to SXS ROPS (Roll Over Protection System) tubing ranging from 1.0" - 2.0" in diameter. Stainless steel mounting clamps are included that provide up to 360° of rotation for optimal speaker aiming, and include rubber shims for a secure fit. The illuminated rear logo features Rockford Fosgate's 3DIL technology, allowing it to be rotated up to 360° for proper orientation after mounting.

Grilles: Each speaker includes a UV stable, ASA plastic Sport grille (black).

Wiring: Speaker and RGB connections to the M1WL-65MB speakers are made through the two provided 12" 6-pin wire harnesses with Deutsch marine-grade connectors. Both wire harnesses feature integrated rubber seals that prevent water and dirt ingress when the connector is attached to the speaker.

M1D2-10B Subwoofer & Enclosure

Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M1D2-10B subwoofers are durable in the difficult marine environment.

Impedance Switch: A switch on the input terminal allows you to easily change the subwoofer's impedance between 1-ohm and 4-ohms, internally changing between wiring the dual 2-ohm voice coils in parallel and in series. (The connected amplifier should be off when changing the impedance.)

LEDs: There are red, green, and blue LEDs on the back of the grille to create a glow on the woofer cone. The LEDs can be powered individually, or in any combination you like. Depending on what combination of LED wires is connected, they light red, green, blue, yellow, pink, aqua, or white. The LEDs can be controlled using the included Rockford Fosgate PMX-RGB LED Controller. An LED power wire harness is included with a 4-pin waterproof Deutsch DT Series connector that plugs into the subwoofer frame.

Speaker Terminals: In addition to standard male quick slide terminals, the subwoofer also has a 2-pin waterproof Deutsch terminal. A speaker wire harness with a 2-pin waterproof Deutsch DT Series connector is not included.

VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Stainless Steel: The mounting hardware is stainless steel to resist corrosion.

RZR Subwoofer Enclosure: The RZR19PXP-M1FWE 10" subwoofer enclosure is a roto-molded, composite-blend subwoofer enclosure which is designed to be a direct fit for select Polaris RZR model ATVs. The enclosure's texture and color is matched to the ATV's interior and is up to 40% lighter than previous generation enclosures. The subwoofer enclosure mounts under the passenger side dash and bolts directly to the factory mounting holes.

PMX-RGB LED Controller

Overview: The Rockford Fosgate PMX-RGB Color Optix controller lets you illuminate and control up to 8 Rockford Fosgate M1 & M2 Color Optix marine speakers and subwoofers. Featuring a completely encased housing, rubberized wiring, and Element Ready watertight connectors, the PMX-RGB is IPX7 waterproof certified, making it impervious to even the harshest marine environments.

App Control: The PMX-RGB can be controlled from your smartphone using Rockford Fosgate's proprietary RF CONNECT App, available from the Apple App and Google Play stores. After connecting your smartphone wirelessly to the PMX-RGB controller, you'll be able to choose from 30 different color scrolling options or choose a fixed color from the color wheel. Scrolling speed and brightness controls are also available for customizing the lighting.

Plug&Play: The Rockford Fosgate PMX-RGB controller features easy configuration and connection via proprietary Element Ready connectors that provide a secure, watertight seal. It features 8 individual 17" RGB output cables for lighting up to 8 Rockford Fosgate Color Optix marine speakers (maximum 2A total current draw).

Mounting & Powering: The PMX-RGB controller includes a bracket for mounting it behind the radio in the dash area. Pre-attached harnesses allow for quick connection to the included RGB wiring harnesses.
