About the Rockford Fosgate T1S1-10P
Product highlights:
- 10" subwoofer with 1-ohm impedance

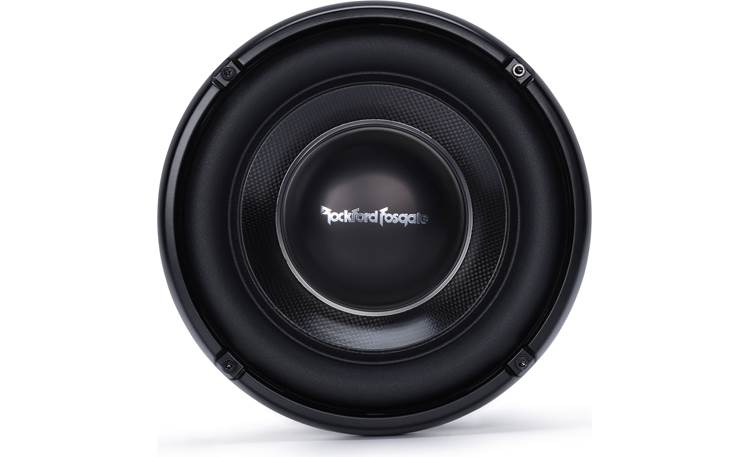

- carbon fiber/PMI/glass fiber cone with aluminum dustcap and polymer surround
- diecast aluminum frame
- power handling: 500 watts RMS (1000 watts peak)
- frequency response: 32-250 Hz
- sensitivity: 82 dB

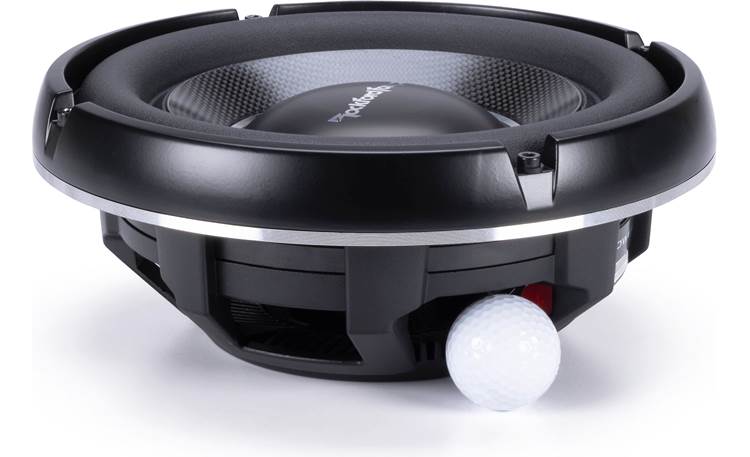

- top-mount depth: 3.01"
- mounting height: 1.33
- cutout diameter: 9.1"
- ported box volume: 1.0-1.5 cu. ft.
- warranty: 1 year
- MFR # T1S1-10P
- Item # 575T1S11P
What's in the box:
Rockford Fosgate T1S1-10P owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 10" 1-ohm subwoofer
- Aluminum trim ring (installed)
- Twelve 1-5/8" Allen head screws
- 4mm Allen head bit
- Installation/Operation manual (English/ French/ Spanish/ German/ Italian)
More details on the Rockford Fosgate T1S1-10P
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10-inch | |
| Impedance (Ohms) | 1 | |
| Cone Material | Carbon/PMI/Glass Fiber | |
| Surround Material | Synthetic Polymer | |
| Basket Material | Cast Aluminum | |
| Grille | None included | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity |
82 dB at 1 watt | |
| Frequency Response | 32 - 250 Hz | |
| Max RMS Power Handling | 500 | |
| Peak Power Handling (Watts) | 1000 | |
| Top Mount Depth (inches) | 3 1/16 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 9 1/8 | |
| Frame Width | 10.86 | |
| Frame Length | 10.86 | |
| Vas (liters) | 13.1 | |
| Fs (Hz) | 42 | |
| Qts | 0.95 | |
| Xmax (millimeters) | 15 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | N/A | |
| Minimum Sealed Box Volume (cubic feet) | N/A | |
| Maximum Sealed Box Volume (cubic feet) | N/A | |
| Ideal Ported Box Volume (cubic feet) | 1.38 | |
| Minimum Ported Box Volume (cubic feet) | 1 | |
| Maximum Ported Box Volume (cubic feet) | 1.5 | |
| Port diameter (inches) | 4 | |
| Port length (inches) | 13.75 | |
Product Research
Features
CEA-2031 Compliant: The power rating on this Power Series subwoofer conforms to CEA-2031 industry standards, meaning it has the capacity to handle its rated power under continuous demand.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and computer software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the sub's motor structure, voice coil alignment, and suspension to yield the best possible performance.

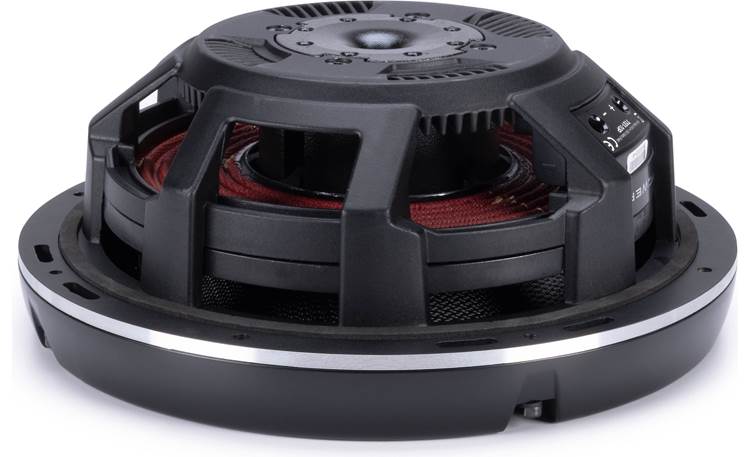

FlexFit Basket: The Flex Fit frame utilizes slots (where possible) instead of single screw sized holes; allowing slight adjustment of the speaker when mounted.
Spring Terminals: The spring terminals are designed to accept up to 10-gauge wire.
Trim Ring: The included aluminum trim ring mounts over the flange of the woofer. When using the optional T1SG-10 grille (item number 575T1SG10, sold separately) the grille is sandwiched between the subwoofer flange and the trim ring.
Ported Enclosure: The T1S1-10P is designed to be mounted in a ported (or vented) enclosure. Rockford Fosgate recommends a volume of 1.38 ft³ (1.0 ft³ to 1.5 ft³ is acceptable), using one 4" diameter x 13.75" long port, resulting in a tuning frequency of 40 Hz and a 3 dB down point of 38 Hz. Ported enclosures typically provide better overall efficiency than sealed, giving you more bass output from a given amount of power.
