Compatibility
PMX-1 Marine Receiver & Dash Kit
M0-65B 6.5" Speakers
X317-FSE Speaker Enclosures

Compatibility

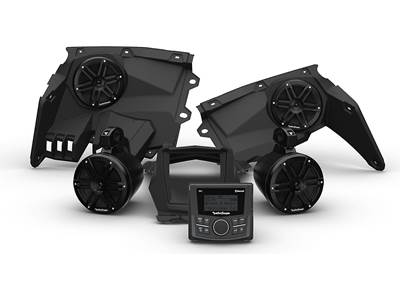

Vehicle Compatibility: The Rockford Fosgate X317-STG1 can be used with the following Can-Am Maverick vehicles:

PMX-1 Marine Receiver & Dash Kit

Marine Certified: Rockford Fosgate's PMX series of source units are fully tested against UV radiation degradation as well as tested to IPX water intrusion standards. They are also fully tested for ever changing environmental conditions such as temperature extremes, as well as vibration testing to make sure they can take a bump and keep performing. The PMX-1 is protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

• Dust: The unit's display and motor structure are sealed up tight so they look as clear as possible and perform day in and day out no matter how many times you hit the trails.
• UV Inhibitor Materials: Centrex and ASA plastic materials are used for UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
• Thermal Shock Tested: Tested for extreme temperature operation as well as severe fluctuations in ambient temperature. Components are taken to both low and high temperature extremes and then tested to ensure operational capabilities.
• Water Tested: IPX5 and IPX6 Ratings allow for the components to be directly sprayed with water without water incursion.
• Corrosion Protection: Two part epoxy coated PCB boards prevent corrosion of critical components due to exposure in moisture rich environments.
• Vibration: Subjected to full vibration and shock testing to ensure that it will take abuse and keep performing to our stringent standards.

Applications: The PMX-1 digital media receiver is designed for marine and motorsports systems.

Optically Bonded LCD: The Rockford Fosgate PMX-1 features a 2.3" LCD screen (with white background and black text) for optimum viewing, even in full sun. The LCD screen is optically bonded to prevent any dust or moisture penetration. There are two brightness settings for the LCD screen.

Water Resistant Control Knob: The PMX-1 uses a water resistant rotary encoder knob, along with push-button controls that feature white LED illumination.

Voltage Gauge & Warning: You can check the voltage of your system through the PMX-1's menu. The unit also provides a Low Voltage Warning Alert.

EEPROM (Electrically Erasable Programmable Read-Only Memory): The Rockford Fosgate PMX-1 features an EEPROM memory system which retains settings (including Audio & Bluetooth settings) even when power is removed.

Bluetooth Music Streaming: The Rockford Fosgate PMX-1 offers built-in Bluetooth (version 3.0+EDR) for wireless music playback from your Bluetooth-enabled Apple iPod/iPhone/iPad, Android smartphone/tablet, Windows phone, Blackberry, and more. You are able to stream stored music and music apps from your Bluetooth device to the PMX-1 marine receiver. You can control basic playback functions like Play/Pause, Previous Next/Track and Repeat/Shuffle for stored music and music apps on your device. When using a Bluetooth AVRCP 1.4 compatible device like the Apple iPhone (iOS 5.0+) or an Android smartphone (OS 4.0+), you can even browse your stored music by category (Playlist/Artist/Song/Genre). The PMX-1 will also display your device's song/artist information with album art.

USB Port: The Rockford Fosgate features a rear-panel USB (type-A) port for connection of a USB mass storage class device, like a USB thumbdrive or flashdrive. The unit supports playback of MP3 and WMA music files loaded onto a USB MSC device (up to 32GB). It can recognize up to 255 folders and 999 files. You are able to browse your music by folders, as well as control basic playback functions like Play/Pause, Previous/Next Track and Repeat/Random. The USB port (1A) will also charge a connected USB-enabled electronic device.

Aux Input: The Rockford Fosgate PMX-1 is fitted with a rear-panel stereo RCA AUX input to connect an external audio source. You can give the Aux input a custom  name.

AM/FM Tuner: The PMX-1 features a built-in AM/FM tuner with manual, seek, and preset tuning. You can store up to 18 FM and 12 AM preset stations; these presets can be stored manually or automatically. You can set the tuner to Local or Distance tuning. The Local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to Distance tuning enables the unit to tune in to more distant stations. You can choose between US or European tuning.

Weather Band: The Rockford Fosgate PMX-1 is also equipped with a built-in weather band tuner. Select from weather band frequencies between 162.40 to 162.55.

MOSFET Amplifier: The PMX-1 is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.

• Full Bandwidth Power: 25 watts RMS x 4 channels (at 4-ohms, 20-20kHz, 1% THD)
• Maximum Output Power: 50 watts x 4 channels (200 watts total)

4V/4Ch Preouts: The Rockford Fosgate PMX-1 is equipped with two pair of 4-volt preamp outputs (Front & Rear/Sub). You can configure the Rear/Sub pre-out for rear speakers with fading capability or as a non-fading sub output. You can turn off the unit's internal amplifier, you plan on using only external amps.

Equalizer: The PMX-1 is equipped with a variety of EQ presets, and 7-Band EQ, and Rockford Fosgate's Punch EQ.

• Presets: Select between seven EQ presets - FLAT, ROCK, CLASSIC, ACOUSTIC, DANCE, ELECTRONIC, or HIP-HOP.
• 7-Band EQ: Use the built-in 7-band EQ to custom tailor the sound of your music to your liking.
• Punch EQ: Punch EQ is an onboard equalizer with up to +18dB at 45Hz and/or up to +12dB boost at 12.5kHz.

High-Pass & Low-Pass Crossovers: The PMX-1 provides a high-pass crossover for the front & rear channels which can be set to 60Hz, 80Hz, 120Hz, or Full-Range. The unit also provides a low-pass crossover for the subwoofer output that can be set to 60Hz, 80Hz, 120Hz, or Full-Range.

Sub Control: When the sub out is activated, you can independently adjust its volume level from 0 to 20.

Source Gain: You can adjust the gain of each source so they all play at the same volume level. Select between -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB for each source.

Key Beep: A beep tone will sound with any press of a button on the receiver. This can be turned on or off.

Radio Dimensions: The receiver has the following dimensions:

• Chassis:
  • Diameter: 2.975"
  • Depth: 4.675"
• Nose:
  • Width: 4.335"
  • Height: 3.955"
  • Depth: 1.25"
• Trim Ring:
  • Width: 4.495"
  • Height: 4.125"
  • Depth: 0.675"

X317-DK Dash Kit: The X317-STG1 dash kit is designed to mount the PMX-1 receiver into the dash of select 2017-up Maverick X3 vehicles. The dash kit includes a main dash housing, an outer trim ring, speaker output wiring, and mounting hardware.

M0-65B 6.5" Speakers

Marine Tested: Rockford Fosgate uses industry standard tests (ASTM B117 salt/fog and ASTM G154 UV) to ensure the M0-65B speakers are durable in the difficult marine environment.

Tweeters: The ½" balanced dome tweeters are made of LCP (liquid crystal polymer), a high strength/light weight material. The tweeters are bridge mounted to the grille, useful in a marine speaker because no opening through the middle of the woofer for the mounting post is needed.

ICC Crossover: The ICC (Integrated Concealed Crossover) simplifies installation and protects the crossover by concealing it inside the basket, creating a cleaner look and easier installation. The crossover has a 6 dB/octave slope.

VAST Surround: The Vertical Attach Surround Technique (VAST) increases a speaker's effective radiating cone area without increasing the size of the basket.

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and sophisticated software to do large-scale analysis of drivers in motion, lets Rockford Fosgate optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

Stainless Steel: The mounting hardware is stainless steel to resist corrosion.

X317-FSE Speaker Enclosures

Construction: The X317-FSE enclosures feature an injection-molded design that offers seamless construction, and are texture and color matched to the vehicle's interior.

Mounting: The X317-FSE speaker enclosures get mounted into the front driver and passenger side dash areas using the OEM mounting holes, with minimal drilling required for installation.

Wiring: The X317-FSE includes 2 pre-loomed speaker wire harness designed to plug directly into a compatible Rockford Fosgate Marine/Powersports amplifier or headunit (both sold separately). The other end of the speaker wire is terminated in female slip-on terminals for attaching to the speakers.
