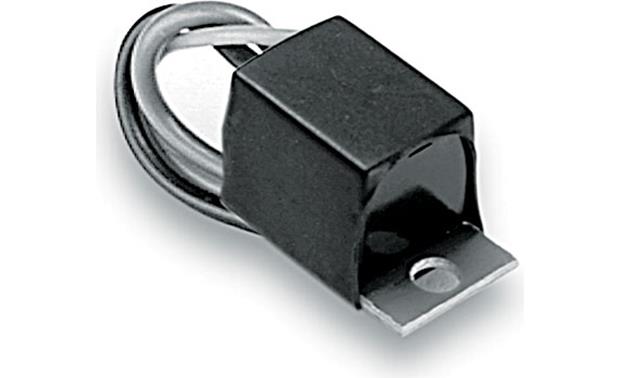

XpressKit's 8616 20/10-amp mini relay is a useful tool for managing small automotive circuits that require electrical switching, such as domelight supervision, a trunk release, or delay circuits. It comes pre-wired for easier installation. Warranty: 1 year
Note: If you've had little experience installing electronic equipment, please call 1-888-955-6000 to discuss your purchase with one of our Advisors.
What's in the box:
XpressKit 8616 Mini Relay owner's manual
- Pre-wired mini relay (20A normally open/10A normally closed)
REVIEWS
Customer reviews
Loading reviews...
XpressKit 8616 Mini Relay reviews
Average review:
Thanks for submitting your review
Customer photos
More details on the XpressKit 8616 Mini Relay
Product Research
Features
Overview: A relay is simply an electrically activated switch. Relays are used in a wide variety of automotive applications. This relay is composed of three contacts (terminals #30, #87A, and #87). Activating this relay is done with the coil (terminals #85 and #86). For auto security applications there are numerous features which require the use of a low-current relay such as Siren Chirp, WarnAway, Circuit Isolation, Trigger Inversion, Truck Release, and Temporary Sensor Disconnect. The 8616 relay is capable of handling 20A maximum across its normally open contacts and 10A maximum across its normally closed contacts.
Note: This relay is not intended for high current applications such as Starter Kill or Headlight Turn-On.
