About the Elite Screens VMAX Tab-Tension 3 Series
Product highlights:
- 100" diagonal image size (16:9 aspect ratio)
- viewing area: 90-1/8"W x 49"H
- motorized screen ships fully assembled
- standard 3-prong AC power connection
- tab-tensioned screen maintains a flat, ripple-free projection surface
CineWhite® ISF screen material:
- optimized for darkened rooms
- compatible with ultra short throw, short throw, and standard throw projectors
- screen gain: 1.1
- ISF certified for accurate color reproduction
- supports 4K/8K Ultra HD video and HDR (High Dynamic Range)
- 180° viewing angle (does not drop to half gain)
- flexible screen material can be hand-cleaned
Motorized screen control options:
- 5V-12V trigger input for raising and lowering screen via your projector's power cycle
- included IR remote operates screen directly via IR receiver built into the case
- additional IR target included for recessed installations
- included RF remote operates screen directly or can be programmed to trigger it via your projector's power
- included 3-way wired wall switch for pushbutton control
Other info:
- black screen border: 6" at top, 2-7/16" at bottom
- mounts to wall or ceiling with included brackets
- optional L-brackets sold separately
- case dimensions: 100-13/16"W x 4-13/16"H x 5"D
- weight: 29 lbs.
- warranty: 2 years
- MFR # VMAXT100XWH3
- Item # 651AXT100X
What's in the box:
- Projection screen w/ eletric roll-up motor
- IR Remote
- RF remote
- Wall switch control box
- Trigger cable
- IR extender
- Wireless trigger cable
- 2 Wall/Ceiling-brackets
- 2 Connector-brackets
- 2 Hidden-brackets
- Four M5x6mm screws
- Two M5x25mm screws
- Four M5x11mm bolts
- Four Washers
- 2 Snap-links
- 2 Eyebolts (with nuts)
- 4 Wall-anchors
- 3 "AAA" batteries
- Bubble leveler
- User's Guide
More details on the Elite Screens VMAX Tab-Tension 3 Series
Product Research
Features

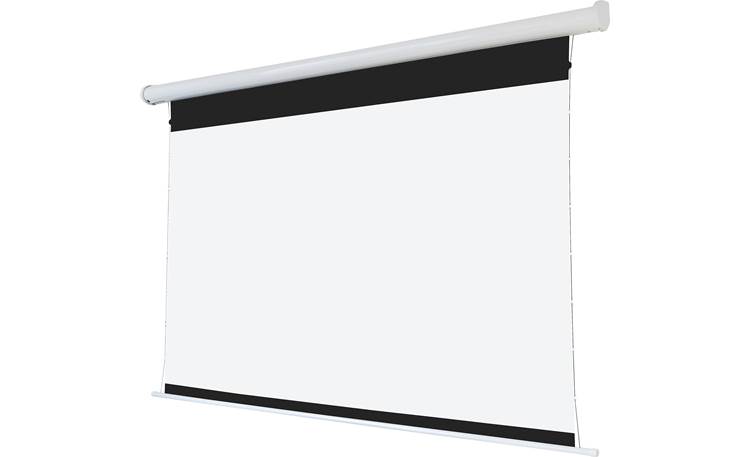

VMAX Tab-Tension 3 Series: The Elite Screens VMAX Tab-Tension 3 is an electric/motorized projection screen with CineWhite ISF matte white flexible material. It has a tab-tension design to pull and stretch the surface on all sides to achieve a flat and taut projection surface suitable for ultra, short, and standard throw projectors. The material CineWhite ISF is ISF Certified for achieving accurate color reproduction in a dark room environment. Its elegant white arc-shaped housing allows it to be mounted on a wall and includes a pair of brackets for ceiling installation. The included control kit operates the motorized screen.
CineWhite ISF: CineWhite ISF a flexible matte white 1.1 gain front projection screen material that is certified by the world-renowned Imaging Science Foundation for its accurate color reproduction and offers exceptional high resolution performance. It has wide diffusion uniformity that allows equal brightness levels over a 180 degree viewing angle. The tension PVC material construction has the needed pliability to maximize flatness in a "roll-up" projection surface. The versatile properties of this material make it a natural fit with either standard, short-throw or ultra-short throw projectors. The material is also suited for either residential or commercial applications.
- Gain: 1.1
- Viewing Angle: 180 degrees (90 degrees L/R)
- Resolution: 4K/8K Ultra HD, Active 3D, HDR Ready
Note: Screen material surface can be cleaned with hand or soft soap diluted in warm water using a fiber cloth.
Remote Controlled Electric Roll-Up: The VMAX Tab-Tension 3 projection screen features an eletric "roll-up" design with a silent operation synchronous motor and low power consumption. The eletric roll-up motor can be controlled from the included wall-mounted switch box, IR remote, RF remote, 3rd party control system (via RJ45), or 5-12V trigger. Control functions included Up, Down, and Stop.

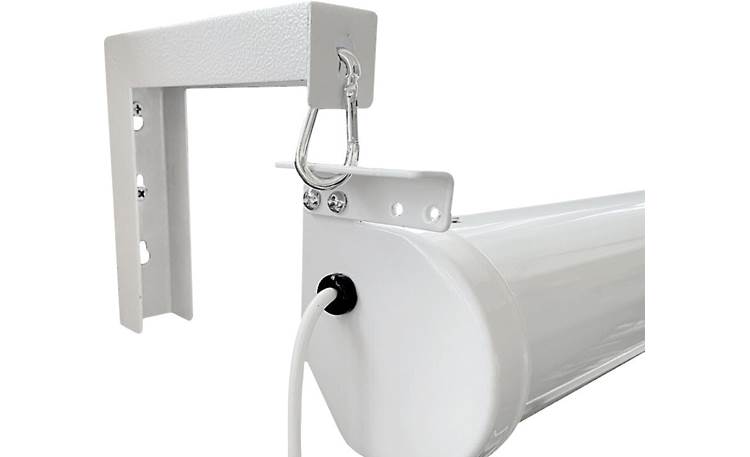

Mounting Options: The Elite Screens VMAX Tab-Tension 3's white arc-shaped housing allows the projection screen to be mounted on a wall and includes a pair of brackets for ceiling installation.
