About the Channel Master 7778
The 7778 is part of Channel Master's high-performance Titan 2 series of mast-mounted preamplifiers. Its low-noise, medium-gain design can solve a number of reception problems, and is especially effective for long-range "deep-fringe" applications used in combination with Channel Master's 4228HD antenna.
Two-piece mast-mounted preamplifiers have an advantage over more typical one-piece in-line units because the amplifier module is mounted near the antenna itself, to eliminate amplification of any noise or interference in your coax cable. A preamplifier can improve reception whether the problem is weak signal strength at your antenna, or loss of signal quality due to a long cable run between your antenna and TV.
Installation is simple: run a length of RG-6 cable from your antenna to the 7778's amplifier module, and another RG-6 cable from the amp to the 7778's power supply. Power is provided to the amplifier via the RG-6 cable, so no other wiring is necessary, and the power supply can be placed indoors to avoid exposure to the elements. Finally, run a length of RG-6 from the power supply either directly to your TV, or to a video distribution hub.
- two-piece design with separate mast-mounted amplifier module and indoor power supply
- medium-gain, low-noise operation for deep fringe reception
- compatible with both digital and analog TV signals
- amplifies VHF (channels 2-13) and UHF (channels 14-51) signals
- gain: 16 dB
- noise: typically less than 2 dB
- filtering for rejection of out-of-band signals
- switchable FM trap (allows FM reception)
- 75-ohm input and output
- built-in lightning and surge protection
- shielded die-cast aluminum housing
- warranty: 90 days
- mast not included
- RG-6 cable is recommended
- MFR # 7778
What's in the box:
- VHF/UHF preamplifier (Mediium Gain)
- 2 In/1 Out power inserter
- 6' Coax cable (RG6)
- 2 Nuts
- 2 Screws
- User Guide
Customer reviews for Channel Master 7778
Average review:4.5 out of 5 stars
Thanks for submitting your review
More details on the Channel Master 7778
Medium Gain Antenna Preamplifier: The Channel Master Titan 2 Model CM-7778V3 Mast Mounted Antenna Preamplifier provides amplification for HD and digital signals received by your antenna. Preamplifiers can also be used when distributing the antenna signal to multiple TVs, as splitters reduce the signal strength at each output. The preamplifier comes with an indoor power supply, which connects via coaxial cable.
Signal Gain: The CM-7778V3 is a medium gain, low noise preamplifier to be used in moderate signal areas to boost the antenna signal to a viewable strength. The preamplifier provides 16 dB of signal gain on both VHF and UHF bands, at frequencies between 54 MHz and 1000 MHz.
Note: For areas with weak signal strength, where ALL broadcast towers are 80+ miles away, the CM-777V3 High Gain Preamplifier may be recommended.
Switchable FM Trap: The amplifier has an FM trap to block FM signals to prevent them from interfering with the TV signal. If you wish to unblock the FM signals, you will need to remove the cover, held in place by 4 Phillips-head screws, and set the switch to "Out".
Case: The CM-7778V3 features a rugged, outdoor-rated housing that can withstand temperatures up to 140°F. The preamplifier mounts to the antenna mast with the supplied U-bolt assembly just below the antenna. The unit mounts with the connections facing downward to keep moisture out of the housing and the connections dry.
Note: The preamplifier and supplied U-bolt assembly are designed for use with antenna masts up to 1-3/4" in diameter.

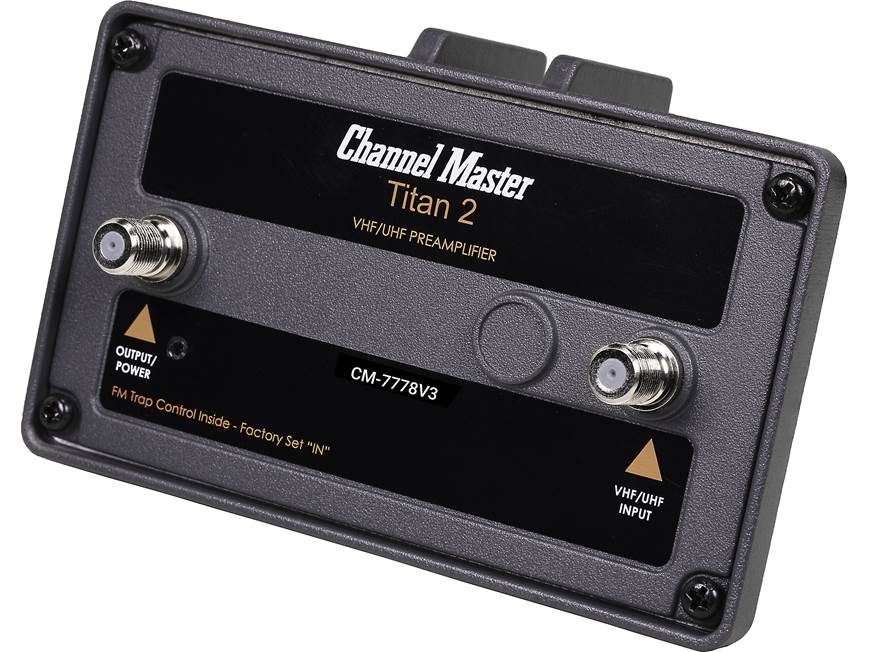

Connections: The CM-7778V3 has two F-type 75-ohm connections at the preamplifier: a combined VHF/UHF input, and an output/power connection. The indoor power supply (AC adapter) connects via coaxial cable, and includes a power inserter to energize the mast-mounted amplifier along the cable.
