About the LG OLED55G5WUA

Product highlights:
- 55.2" screen (measured diagonally)
- designed for wall-mounting; LG SA-G5SN55 pedestal stand sold separately
- 4K screen resolution (3840 x 2160 pixels)
- self-illuminating OLED (Organic Light Emitting Diode) display panel produces near-infinite picture contrast
- pixel-level dimming enables each of the panel's 8.3 million pixels to brighten, dim, or power off completely, for exceptional detail and absolute black
- "evo" panel technology with Brightness Booster Ultimate makes this TV LG's brightest OLED model yet
- bright room ready — Discomfort Glare Free verified by UL Solutions
- High Dynamic Range (Dolby Vision, HDR10, and HLG) for extended picture contrast and brightness when viewing HDR content
- OLED Dynamic Tone Mapping Pro refines image-quality frame-by-frame for expressive details
- Alpha 11 Gen 2 AI Processor 4K with AI Picture Pro improves noise reduction, sharpness, contrast, and color accuracy
- AI Super Upscaling 4K upconverts standard-def and high-def video to near-4K quality
- Filmmaker Mode™ automatically adjusts picture settings to preserve the director's intent
- 120Hz native refresh rate for smooth, clear motion
Video source compatibility:
- stream 4K video sources like Netflix®, Amazon Prime Video, and Disney+ (requires internet speed of at least 20Mbps)
- WebOS 25 user interface with Quick Cards lets you group your favorite apps for easy access
- AI Search helps you find content across all your streaming services
- LG Channels lets you enjoy subscription-free TV with 300+ channels
- Apple TV app lets you rent, buy, and watch titles from Apple's video library, and subscribe to Apple TV channels, without connecting a separate device
- tuner receives over-the-air HDTV broadcasts (antenna required)
- Clear QAM tuner decodes unencrypted digital cable signals up to 1080i without a set-top box (subscription required to receive cable channels)
Smart TV features:
- LG ThinQ® AI makes your TV the hub for all your smart devices
- AI Concierge provides tips and recommendations for the app or source you're using with the press of a button
- Picture & Sound Wizard personalizes your experience
- AI Chatbot uses LLM machine learning to answer questions and help you adjust your settings
- built-in Amazon Alexa intelligent voice assistant
- also compatible with Google Assistant devices
- works with Apple® HomeKit and AirPlay 2 to allow wireless streaming from your iPhone, iPad®, or Mac®
- Google Cast lets you cast video content from your compatible phone or laptop
- Sports Alert lets you set favorite teams and players to receive automated updates
- built-in Wi-Fi 6E (802.11ax) provides fast, reliable wireless streaming
- Multi View lets you split the TV screen into two separate views (HDMI, live TV, and select apps)
- display custom paintings, photos, and more with when you're not watching TV
Gaming features:
- Game Optimizer gives you quick access to your gaming settings
- supports 4K/120Hz for next-gen consoles and 4K/165Hz for high-performance PCs
- ultra-fast 0.1ms response times for seamless gaming
- ALLM (Auto Low Latency Mode) for smooth, lag-free game play
- supports VRR (Variable Refresh Rate); AMD FreeSync Premium™ and Nvidia G-SYNC® compatible
- HGiG (HDR Gaming Interest Group) mode calibrates tone-mapping for accurate detail and shading
- Gaming Portal with support for cloud gaming with Xbox Game Pass, Nvidia GeForce NOW, Luna, and Utomik (subscriptions required)

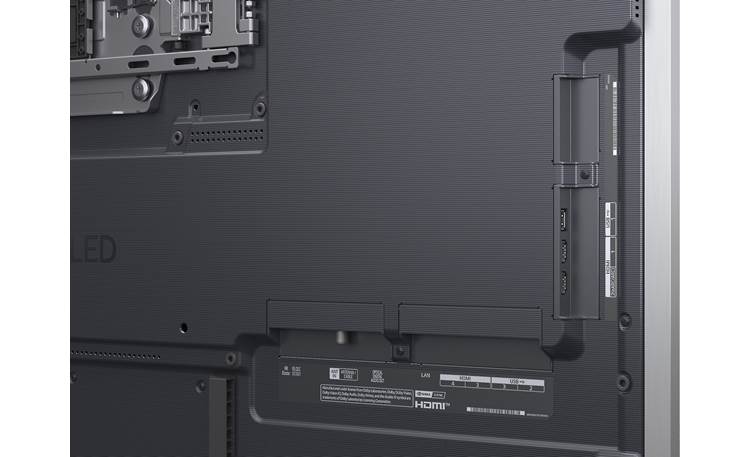

Connections:
- 4 HDMI 2.1 inputs
- HDMI 2 supports eARC (enhanced Audio Return Channel)
- RS-232C input
- RF input for antenna/cable signals
- Toslink optical digital audio output
- Ethernet port for the fastest, most secure internet connection
- 3 USB 2.0 inputs for connecting a thumb drive or other device
- IR (infrared) blaster port
Sound:
- built-in down-firing 4.2-channel speaker system
- supports Dolby® and DTS® including immersive Dolby Atmos®
- Bluetooth® 5.3 wireless audio streaming to a compatible speaker or set of headphones
- LG Sound Sync lets you wirelessly pair compatible LG sound bars to your TV
- AI Sound Pro virtually simulates surround sound for a more cinematic TV experience
- Voice Remastering intelligently boosts voices for clear dialogue
- WiSA-ready: compatible with WiSA USB transmitters and speakers for creating a wireless audio system (up to 2.1 channels)
General info and included accessories:

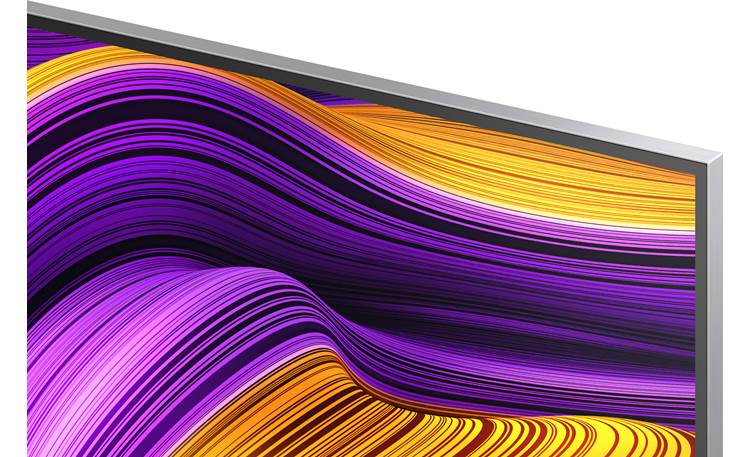

- nearly invisible bezel helps your eyes focus on the picture

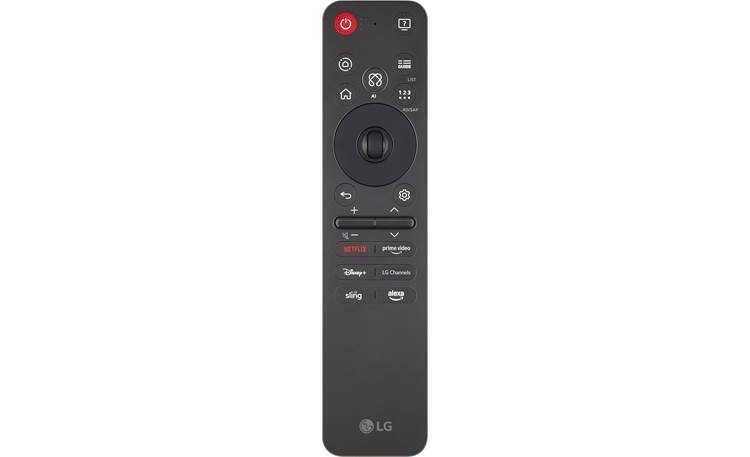

- motion-sensing Magic Remote with built-in microphone for voice control
- Always Ready feature turns the TV into a digital canvas for artwork with the press of a button

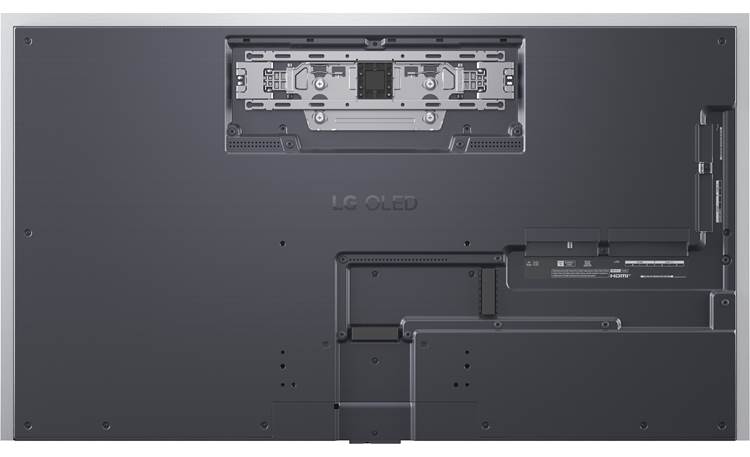

- does not come with a stand (LG flush-mount bracket is included)
- VESA mounting hole pattern: 300mm x 200mm

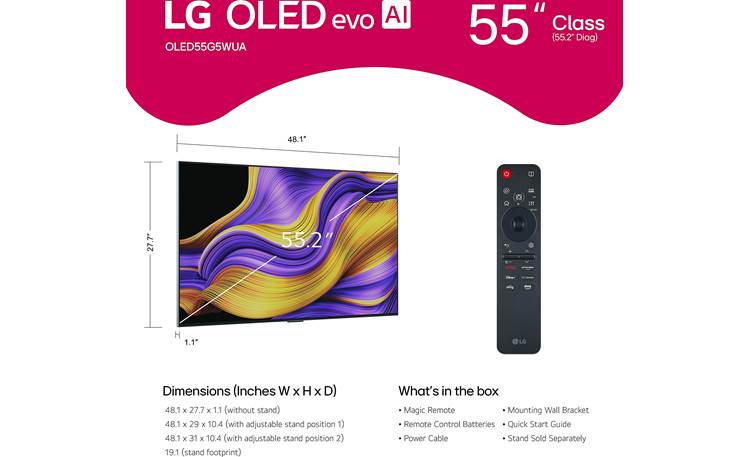

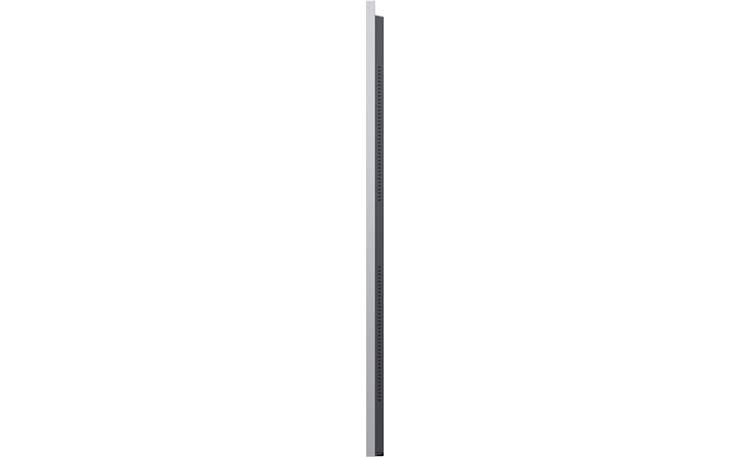

- dimensions: 48-1/2"W x 27-11/16"H x 1/-1/8"D
- weight: 37 lbs.
- warranty: 1 year parts & labor (limited parts warranty covers OLED display panel for 5 years)
- MFR # OLED55G5WUA
- Item # 68955G5W
What's in the box:
- 55" OLED TV
- AI Magic Remote (MR25GA)
- 2 "AAA" batteries
- Wall-mount bracket
- 8 Lag-bolts
- 8 Concrete-anchors
- 4 Self-adhesive plastic strips
- Quick Setup Guide
- Installation Instructions
- Wall-Mount Template
- ThinQ App sheet
- Warranty Card
- Warranty Sheet

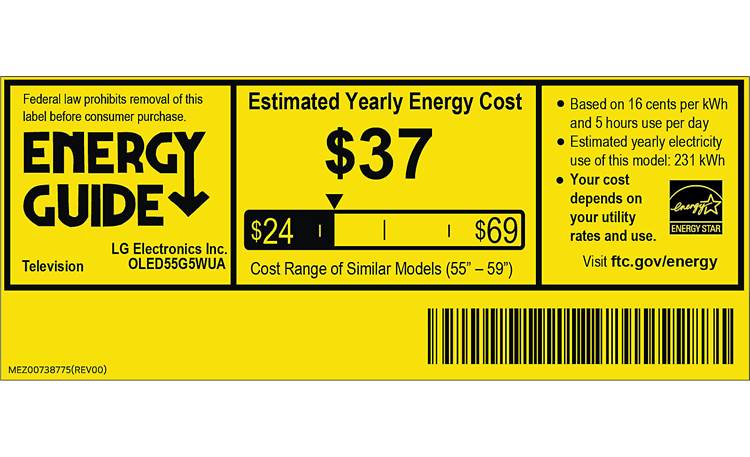

EnergyGuide:

More details on the LG OLED55G5WUA

Features & specs
Display | ||
---|---|---|
Screen Size | 54.5" | |
Aspect Ratio | 16:9 | |
Screen Resolution (pixels) | 3840 x 2160 | |
Screen Refresh Rate | 165 Hz | |
Display Type | OLED | |
Backlight Type | Self-illuminating (no backlight) | |
Quantum Dot Color | No | |
Video Processing Technology | a11 Gen2 AI Processor 4K | |
HDR (High Dynamic Range) | ||
HDR10 | Yes | |
HDR10+ | No | |
HLG | Yes | |
Dolby Vision | Yes | |
Next-gen Gaming Features | ||
VRR (Variable Refresh Rate) | Yes | |
ALLM (Auto Low Latency Mode) | Yes | |
4K/120Hz HDMI Inputs | 4 | |
eARC | Yes | |
Streaming Features | ||
Wi-Fi | 802.11ax | |
Internet Movie Streaming | via WebOS | |
Bluetooth Audio Streaming | Yes | |
Apple AirPlay 2 | Yes | |
Google Cast | Yes | |
Connections | ||
HDMI Inputs | 4 | |
HDMI Version | 2.1 | |
Audio Return Channel | eARC supported | |
Component Video Inputs | 0 | |
Composite Video Inputs | 0 | |
3.5mm Composite A/V Inputs | 0 | |
RF Inputs | 1 | |
USB Ports | Y | |
Optical Digital Audio Output |
1 Rear | |
Analog Audio/Headphone Output | None | |
Control | ||
Voice Remote | Voice/Button-activated | |
Control by app | Apple iOS, Android | |
Amazon Alexa | Built-in | |
Google Assistant | Optional | |
Power Consumption | ||
Estimated Yearly Electricity Use (EnergyGuide) | 231 kWh | |
Estimated Yearly Energy Cost (EnergyGuide) | $37 | |
Dimensions & Mounting Information | ||
Width (inches) | 48-1/8 | |
Height with Stand (inches) | N/A | |
Height without Stand (inches) | 27-3/4 | |
Depth with Stand (inches) | N/A | |
Depth without Stand (inches) | 1-1/8 | |
Stand Width (inches) | N/A | |
Weight with Stand | N/A | |
Weight without Stand | 37 lbs | |
Wall Mountable | Yes | |
Wall Bracket Included | Yes | |
Mounting Hole Pattern | 300 x 300mm | |
Pedestal Stand | Optional | |
Bezel Dimensions | 0.0625 x 0.0625 x 0.0625 | |
General Info | ||
Parts Warranty | 1 Year (5 Years Panel) | |
Labor Warranty | 1 Year | |
Type of Warranty Service | In-home | |
Model Year | 2025 | |
Series Name | LG G5 |
Product Research
Video Section
Audio Section
Network and USB Functions
Voice, App, and Remote Control
Convenience Features
Mounting Options
Video Section
4th Generation OLED Evo Panel: LG's flagship 4th generation OLED evo panel technology creates an incredible viewing experience with stellar picture quality, featuring "Perfect Black" and "Perfect Color" performance (UL Solutions verified) on over 8.3 million self-lit smart pixels - resulting in a beautiful Ultra-HD 4K picture with rich color and accurate detail, even in the brightest of room environments.
- Pixel Level Dimming: LG OLED TV's 8.3 million self-lighting pixels switch off completely for Pixel Level Dimming. As the first display technology that allows self-lighting pixels to switch on and off individually, OLED offers the first "Infinite" contrast ratio. With no light bleed, LG OLED achieves "Perfect Black" levels, for Infinite Contrast. Contrast ratio measures the range from the brightest whites on the screen to the darkest blacks. The deep blacks will offer a greater sense of realism and depth on all content.
- Primary RGB Tandem: By separating the yellow-emitting layer of the existing 3rd generation OLED into distinct red and green layers, color brightness has been increased by 40% (up to 2,100nits). Peak brightness has been enhanced by 33% (up to 4,000nits) through technology that stacks the pure light sources of red, green, and blue into four layers. Furthermore, improvements in the diodes and panel power supply system have resulted in a 20% reduction in power consumption compared to the previous technology.
- Bright Room Ready: LG's Brightness Booster Ultimate is a new suit of light-boosting algorithms used to map and control brightness on a pixel-by-pixel basis, resulting in a sharper, more realistic image that is brighter - even in a well-lit room.
- Ultra-Low Reflection Technology: By utilizing ultra-low reflection technology that blocks more than 99% of external light which interferes with television viewing, accurate colors and details are consistently preserved, even in bright environments. Certified by UL as "Glare Free", you can be confident the LG OLED TV performs great no matter the room or the lighting.
- Ultra Wide Viewing Angle The LG 4th gen OLED evo panel also offers an ultra wide viewing angle, so everyone in the room will have an ideal view of the action with vivid color and excellent contrast.
- Human Friendly: LG's 4th gen OLED evo panel aims to deliver natural light for its viewers with "Low Blue Light" and "Flicker Free" verifications from UL Solutions.
Note: The 4th gen OLED evo panel comes with a 5 year warranty (panel only; labor cost not included). The rest of the TV's parts and labor come with a 1 year warranty.
a11 (Gen 2) AI Processor 4K: LG, the industry leaders of OLED TVs, made their OLED evo panel televisions even better by developing the a11 (Gen 2) AI Processor 4K. LG's most powerful processor ever provides true-to-life images with incredibly rich colors, sharpness and depth to deliver the ultimate picture quality with more realism. As a result of this new image processor, the LG OLED TV can display any content at maximum quality for a truly spectacular viewing experience. The a11 (Gen 2) AI processor 4K provides a 70% improvement in graphic performance and a 30% faster processing speed compared to its a9 predecessor.
- Advanced Color Enhancer: The Advanced Color Enhancer utilizes advanced color mapping technology to effectively correct any color distortions and delivers a picture that is accurate, natural, and lifelike.
- Quad Step Noise Reduction: The a11 (Gen 2) AI Processor 4Kcreates a clearer image with LG's own Quad-step processing technology by reducing grain and banding noise better than many other conventional televisions.
- Frequency-Based Sharpness: The a11 (Gen 2) AI Processor 4K's sharpness enhancer boosts fine detail and texture by accentuating the edges of the object in the picture. This creates greater depth, exceptional details, and more realistic pictures .
- Object Depth Enhancer: The object depth enhancer precisely separates the main object from the background images and analyzes textures and edges. This is then processed differently to make detection clearer and the edges even sharper. It elevates the perceived depth of the whole picture and reveals hidden details.
AI Picture Pro: AI Picture Pro heightens picture quality with its deep learning algorithm (developed from a vast database of over one million visual data) which recognizes content source quality and determines the best upgrade method for optimal visual output. In addition to content source detection, the a11 (Gen 2) AI Processor 4K finely adjusts the tone mapping curve in accordance with ambient conditions to offer optimized screen brightness; leveraging its ability to understand how the human eye perceives images in different lighting. The processor uses the TV's ambient light sensor to measure light levels, automatically adjusting brightness to compensate as needed. Additional AI Modes include Personalized Picture Wizard, Filmmaker Mode, and Dolby Vision IQ.
- Personalized Picture Wizard: The AI-powered Personalized Picture Wizard goes beyond offering several picture presets to ensure images always look precisely how the user wants them to look. You'll simply select a few options that best reflect your ideal picture settings and preferences from a set of images, whether that be with warmer or cooler color tones or with sharper versus more softened images. Subtle variations of these selections combine to create more than 85 million preset possibilities. The Picture Wizard's AI technology then picks out the best option based on the your specific selections, as well as providing descriptions of your picture preferences with easy-to-understand key words such as bright, warm and clear.
- Filmmaker Mode: The Filmmaker Mode provides optimized cinema picture quality certified by UHD Alliance, the standard setting body for UHD-related technologies. The UHD Alliance Filmmaker Mode lets you see a director's vision for his or her movie by translating the director's cinematic vision to the TV with automatic picture and processor settings that deliver true authenticity. Filmmaker Mode even works with the TV's built-in ambient light sensor to maintain the filmmaker's original intent, delivering a truly cinematic experience in various lighting conditions.
- Dolby Vision IQ: Dolby Vision IQ combines the dynamic metadata found in Dolby Vision content with the LG OLED TV's embedded light sensor and AI technology. Dolby Vision IQ will automatically adjust picture settings with precision detail for your Dolby Vision content depending on your room's ambient lighting conditions and content genre.
Ultra HD 4K Resolution w/ AI Super Upscaler: The LG OLED TV has a display resolution of 3,840 x 2,160 (4K) and will display all video at that resolution through its built-in AI Super Upscaler, regardless of input signal. 4K provides four times higher resolution than current 1080p high-definition TVs with a total of 8.3 million pixels. This upgraded AI Super Upscaler utilizes precise pixel-level image analysis, to effectively sharpen objects and backgrounds that may appear blurry - delivering a more clear and vibrant viewing experience. Its detail is so vivid and crisp, even when viewed from close distances; it's nearly impossible to discern a single pixel, even from inches away. Enjoy incredibly flawless images, vivid colors, and picture details as never before. More benefits of Ultra-HD 4K include -
- Greater Sense Of Depth: At 4K, distant objects in a scene can be rendered with greater clarity than at 2K, with more nuances of light and shadow and focus for a greater sense of perceived depth.
- Better Color: Because pixels are units of colored light, their greater quantity in 4K enables more layered transitions and subtler gradations of tones, so the hues we see up on screen will be truer to what we see in nature.
- Sit Even Closer: 2K HD TVs carry a recommended viewing distance of three times (3x) the TV screen height, but with a 4K display you can move in to one-and-a-half times (1.5x) screen height without exposing individual pixels. Sitting closer better fills your field of vision, assuring total immersion in whatever you're watching.
HDR with Dynamic Tone Mapping Pro: HDR (High Dynamic Range video) reproduces a greater dynamic range of luminosity or brightness levels, bringing greater contrast and wider color spectrum to the screen. This increased contrast reveals the subtle nuances of the image, from detailed blacks and shadows to the brightest whites and colors, plus greater depth. Dynamic Tone Mapping Pro technology is used to further reveal hidden details and bring greater depth to every frame by precisely optimizing the brightness and contrasts across the entire screen. Dynamic Tone Mapping Pro splits pictures into blocks and fine-tunes brightness and contrast by analyzing variations in brightness where light enters the scene, creating images that look more three-dimensional. Additionally, the HDR Expression Enhancer, detects and refines important on-screen objects (e.g., people's faces) in each scene; giving them a more lifelike quality with enhanced sharpness and three-dimensionality by applying tone mapping based on deep learning.
- Dolby Vision: Dolby Vision Content has dynamic metadata that is produced during content creation, capturing the dynamic properties of each scene. This dynamic metadata is used to optimize the picture brightness curve on a frame-by-frame basis. Dolby Vision is the preferred HDR format by major Hollywood Studios and delivers the cinematic experience the creator intended by optimizing the picture frame-by-frame.
- HDR10: HDR10 is an open standard and currently the most popular HDR format on the market. It supports 10-bit color and 1,000 nits. It uses static metadata at the start of a movie to tell the receiver and your TV that the video content is encoded using HDR.
- HLG: HLG (Hybrid-Log Gamma) is primarily designed for live video feed and over-the-air broadcasts. It uses no pre-encoded metadata and is backwards compatible with SDR. HLG's native compatibility allows much of today's existing SDR infrastructure to be re-used for HDR in the future.
OLED Motion with ClearMR Certification: The a11 (Gen 2) Processor 4K is designed to support high frame rate (HFR) for producing smoother and clearer motion images at 120 frames-per-second (fps) for better rendering of fast-action video content such as sports and action movies, as well as 165 frames-per-second (fps) for fast-action PC gaming. In addition, OLED Motion (LG's most advanced motion handling technology) helps even further to deliver smooth motion with less stuttering during fast motion scenes. As a result, fast action motion video for sports, movies, and games is dependably crystal clear and virtually blur-free. LG's OLED evo panel gains even further credibility for their razor-sharp picture quality and smooth motion with the Video Electronics Standards Association's (VESA) ClearMR certification.
Game Optimization: OLED TV technology features an incredible low input lag and fast 1ms response time with reduced blurring and added clarity, making it perfect for gaming. The TV also supports VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and HGiG for an optimized gaming experience. You can even toggle between NVIDIA G-Sync and AMD FreeSync technologies for a smooth game experience. Support for NVIDIA G-SYNC and AMD FreeSync enables the TV to match the frame rate from a compatible gaming PC, Xbox, or PlayStation gaming console. Together, these features and technologies allow for fast-moving content with higher resolution, smoother graphics, and no screen tearing.
- ALLM (Auto Low Latency Mode): ALLM lets a game console or PC send a signal to the LG TV which will cause it to automatically switch to a low-latency, low-lag mode for smooth gaming.
- VRR (Variable Refresh Rate): VRR reduces or eliminates lag, judder and frame tearing for more fluid and better detailed gameplay. VRR enables a gaming source such as a console or computer to deliver video frames as fast as it can, which in many cases is slower than the normal static refresh rate.
- HGiG: HGIG (HDR Gaming Interest Group) is a standard for setting color tone and contrast as intended by game developers.
HDMI 2.1: The LG OLED TV is equipped with four HDMI 2.1 inputs. The HDMI 2.1 inputs not only allow you to connect your Blu-ray/DVD player or Satellite/Cable receiver to the TV, but also a laptop or computer.
- 4K Ultra-HD: The four HDMI 2.1 inputs will accept 4K (120/60Hz), 1080p (60/24Hz), 1080i, 720p, and 480p video signals; plus up to 4K/165Hz PC gaming. The television's HDMI inputs do not accept 480i video signals.
- HDCP 2.3: HDCP 2.3 is supported by all of the TV's HDMI inputs. HDCP 2.3 is short for "High bandwidth Digital Content Protection" and is used for 4K video copyright protection for compatibility with 4K Blu-ray players and 4K Satellite/Cable providers.
- 4:4:4 Color Subsampling: All of the HDMI inputs will support up to 4:4:4 chroma subsampling for full color data rendering of 4K video. With 4:4:4 color, luminance (brightness) and chroma (color) are sampled at the same rate, resulting in an RGB color palette as big as the video sampling rate for a video image with more total colors, plus greater color accuracy and detail. You will need to enable this feature in the menu. 4:2:2 and 4:2:0 are also supported by any of the HDMI inputs, by default.
- QMS: Quick Media Switching (QMS) for movies and video uses the HDMI VRR mechanism to eliminate the blackout period when an HDMI Source device switches its video mode. As long as the resolution remains the same and only the frame rate changes, QMS will instantly switch between frame rates.
Note: There are no analog video inputs.
Picture Settings: The LG OLED TV provides preset, user, and expert adjustment of the television's picture settings. These picture settings can be applied to all source inputs or individual source inputs.
- Picture Size: You can select a different aspect ratio depending on input source (analog broadcasting, digital broadcasting, video input).
- Original: changes the aspect ratio to 4:3 or 16:9 depending upon the input video signal
- 16:9: displays an aspect ratio of 16:9
- 4:3: displays an aspect ratio of 4:3
- Vertical Zoom: adjusts the vertical dimension of the screen and aligns the screen vertically
- 4-Way Zoom: adjusts the horizontal/vertical/diagonal dimensions of the screen and aligns the screen horizontally/vertically
- Picture Modes: You can select the picture mode that is best suited to your viewing environment, preferences or video type.
- APS (Auto Power Save): this Energy Saver mode changes the TV's picture brightness based on ambient conditions to reduce power consumption
- Standard: provides optimum viewing for general use
- Vivid: maximizes the effect of the video by strengthening the contrast, brightness, color, and sharpness
- Cinema: optimizes video for watching movies
- Sports: provides fast response speed for sports action
- Game: provides even faster response speeds for fast gaming
- Expert Modes: there are two Expert Modes - ISF Day and ISF Night; the ISF modes allow fine-tuning of the picture for both day and nighttime viewing
- Brightness Settings: The TV offers a variety of settings and adjustments to customize the brightness and contrast level of the television.
- Panel Brightness: adjusts the backlight brightness of the TV panel to brighten or darken the screen
- Contrast: adjusts the contrast between bright and dark areas on the screen
- Screen Brightness: adjusts the tint to brighten or darken the screen
- Auto Dynamic Contrast: optimizes contrast settings based on image brightness
- Gama: adjusts the brightness of dark areas and middle gray level areas of the picture
- Black Level: sets the black level of the screen to the proper level
- Motion Eye Care: automatically adjusts brightness and reduces image blur based on image data to reduce eye strain
- Color Settings: You can adjust the color, depth, and range of the TV.
- Color Depth: adjusts the color depth of screen to make it brighter or darker
- Tint: adjusts the ratio for red and green color in the image
- Color Gamut: maximizes the utilization of colors to increase color quality
- Fine Tune: fine tune the color to your personal taste
- White Balance: adjusts the overall tone of the screen as desired
- Clarity Settings: You are able to adjust a variety of Clarity settings according to your preference and remove noise from the screen.
- Sharpness: increase or decrease edge sharpness for more distinct image
- Super Resolution: provides a crystal-clear picture by improving the details in areas where the picture is blurry or unclear
- Noise Reduction: reduces screen noise without compromising video quality
- MPEG Noise Reduction: removes noise caused by compressing video
- Smooth Gradation: reduces the jagged edges for a smooth picture
- Real Cinema: makes video clips recorded in a film look more natural by eliminating judder effect
- TruMotion: optimizes image quality for fast moving scenes
- Panel Settings: With Panel Settings, you can improve image retention issues (like "burn-in") related to images sticking when the screen has been on for a certain amount of time.
- Pixel Refresher: this improves the quality of the image displayed on the screen by removing image sticking on the display panel
- Screen Shift: this moves the screen slightly at regular intervals to prevent image sticking on the display panel
- Logo Luminance Adjustment: automatically adjusts the luminance (by 20%) of static images that are on-screen for two minutes or more, such as logos within a program, to help prevent image retention
Built-in OTA Tuner: The LG OLED TV features a built-in over-the-air HDTV (ATSC) and Clear QAM tuner, so you don't need a separate set-top box to receive and decode over-the-air HDTV/SDTV or unencrypted Digital Cable signals (up to 1080i); subscription still required to receive cable channels. A single RF-type coaxial input is used to connect an external indoor/outdoor antenna (sold separately).
Audio Section
AI Sound Pro: The LG OLED features AI (Artificial Intelligent) Sound Pro with a dedicated AI Sound Mode and AI Acoustic Tuning, so you hear the perfect sound for your content and room.
- AI Sound Mode: When AI Sound Mode is activated, the TV's sound quality is augmented by an intelligent algorithm that can up-mix two-channel audio to deliver convincing virtual surround sound (even up to 11.1.2ch Dolby Atmos). The AI Sound Mode optimizes output based on content type, making voices clearer in movies, dramas and news broadcasts, among others.
- AI Acoustic Tuning: With the AI Acoustic Tuning feature, the TV can detect the space where it is installed using the included Magic Remote's microphone to optimize the audio of the TV for your environment. When the initial detection is complete, you can select your desired audio mode. You can choose from Standard, Bass, Treble, or Off.
Note: You can also optimize the TV's built-in speaker sound performance by indicating if the television is going to be placed on a stand or mounted on a wall.
Equalizer: The TV provides preset EQ modes. Choose from Smart Sound, Standard, Clear Voice, Cinema, Sports, Music, or Game Optimizer. Clear Voice automatically detects human voices in movies and TV shows, then increases their volume to ensure that the dialog doesn't get lost in the soundtrack. You can make the voice clearer by adjusting to one of the three clarity levels. In addition, you can adjust the TV's sound manually by using the 5-band EQ (100Hz, 300Hz, 1khz, 3khz, 10kHz).
Auto Volume and AV Sync: You can set the TV's volume to automatically adjust for different broadcasting stations, so you can always listen to channels at the desired volume, even after switching the channels. In addition, if the video and sound of the television are not synced, you can adjust the delay of the audio output to match the video. Both of these features are only available when using the TV's internal speakers.
eARC (Enhanced Audio Return Channel): The Enhanced Audio Return Channel within the television's HDMI 2 input enables the TV, via a single HDMI cable, to send audio data "upstream" to an AV receiver; increasing user flexibility and eliminating the need for any separate S/PDIF audio connection. This feature allows audio to be sent from the television to your AV receiver through the same HDMI cable already being used to send audio/video to the television. This eliminates the need for extra cables connected to the TV. eARC allows audio from the TV tuner, Network connection, inserted USB device, HDMI inputs, or any analog connected device to be heard through your eARC compatible AV receiver via the television's HDMI eARC input.
- The TV's HDMI Inputs and LG Store apps (like Netflix or Vudu) can be output as Dolby Atmos, Dolby Digital Plus, Dolby Digital, DTS, DTS:X, or 2ch PCM.
- The audio from the TV's tuner and USB ports can pass as Dolby Digital, DTS, or 2ch PCM.
- DLNA compliant devices will output audio at 2ch PCM only.
- The audio output of the eARC jack cannot be utilized at the same time as the TV's built-in speakers.
Digital Audio Output: The optical digital output terminal will output Dolby Digital (when available) or 2 channel PCM. The digital optical output terminal only sends an audio signal in Dolby Digital/DTS when receiving Dolby Digital/DTS surround sound from a digital broadcast channel through the tuner, network apps, HDMI inputs, and USB ports on the TV. The optical digital audio output will only output in 2ch stereo from sources connected to the TV via stereo RCA.
- You can choose to turn the television speakers off or leave them on with the TV's optical digital output active.
- The optical digital audio output cannot be used simultaneously with the TV's HDMI eARC.
- This TV does not offer an analog audio output.
Built-In Bluetooth: The LG OLED TV offers built-in Bluetooth with support for Bluetooth audio streaming (A2DP), Bluetooth Surround, and Bluetooth Receiver mode.
- Bluetooth Transmitter: Thanks to the TV's built-in Bluetooth 5.1 and support for wireless audio streaming (A2DP), you can connect a single set of Bluetooth headphones, one Bluetooth speaker, or a pair of Bluetooth speakers with the LG TV. You are able to stream audio from any of the TV's built-in sources or connected sources. Both the internal speakers of the TV and a connected Bluetooth speaker can be used to output the sound at the same time. The TV's optical digital output and HDMI eARC will be deactivated when streaming audio to Bluetooth headphones or speaker. The Bluetooth audio output's volume is variable, so volume of your Bluetooth speaker will need to be controlled by both the TV and the Bluetooth speaker for adequate volume level.
- Bluetooth Surround: You can connect a pair of Bluetooth speakers (including the LG XBoom Speakers - sold separately) for wireless surround sound with the TV's built-in speakers. Compatible LG speakers include LG PK7/7W/5/5W, PL7/5, PN7/5, RL3, RM2, RN9/7/5, ON9/7/5.
- Bluetooth Receiver: You can also wirelessly connect a Bluetooth source device (such as your smartphone or tablet) to play audio from your Bluetooth source device through the TV's speakers.
Note: Not guaranteed to be compatible with all Bluetooth devices. Does not support Bluetooth hands-free communication (HFP) for making or answering phone calls.
WiSA Ready: The LG OLED TV is WiSA Ready and compatible with WiSA enabled USB transmitters and WiSA certified speakers (all sold separately) for creating a wireless 2.1ch audio system. Thanks to WiSA technology you can create a wireless 2.1ch speaker system with low-latency (5.1 milliseconds), seamless synchronization (+/-1.0 microseconds), and high-fidelity audio (24-bit/96kHz).
Note: In addition to the LG OLED TV, you'll need a WiSA enabled USB transmitter and WiSA certified speakers/sub to create a wireless 2.1ch speaker setup (all sold separately).
Network and USB Functions
Wired or Wireless Network Connection: The LG OLED supports a wired or wireless network connection via its Ethernet RJ45 jack or built-in WiFi 6E. Via the TV's network connection and your internet provider, you can enjoy select online entertainment services. You can also access music, video, and still-image files stored on your computer, smartphone, or tablet.
- Built-in WiFi: The LG TV offers built-in tri-band (2.4/5/6GHz) WiFi 6E (802.11ax) that allows you to wirelessly access the Internet and your home network. The TV's built-in WiFi 6E provides an ultra stable wireless network connection for the television with easy and quick setup. With this feature, you can easily connect to a wireless LAN and enjoy the benefits of networking in a cable-free environment. A wireless connection requires a home network with an 802.11 access point and internet connection. Supports WPS, WEP, and WPA security; a dual-band Gigabit wireless-N or better router is recommended for 4K streaming.
- Ethernet Jack: The LG OLED is equipped with an Ethernet (LAN) RJ-45 jack for connecting the television to your home network and computer.
LG Content Store: The LG Content Store allows you to access a variety of online entertainment services and content directly on the LG TV through its network connection and your internet provider. You can quickly and conveniently browse for TV Shows, Movies, and more. You can also download and use apps from various categories such as entertainment, lifestyle, news, education, sports, and games. Click here for the latest compatible apps (subscriptions and fees may apply for some online services and content). Below is a list of some of the most popular apps from LG Smart TV Apps.
- Movies and TV Shows: Watch online movie and TV show providers from Apple TV+, Amazon Video, HBO Max, Netflix, Disney+, Paramount+, Peacock TV, ShowTime, Vudu, and more. You'll also be able to watch live TV broadcasts from Hulu Live, fuboTV, Sling TV and YouTubeTV.
- For The Kids: Get access to YouTube Kids, Kidoodle.TV, and more for your children and the young at heart.
- Music and Radio: You can listen to online music and internet radio from Amazon Music, iHeart Radio, Pandora, Spotify, SiriusXM, Tidal, and more.
- Gaming: You will have access to an extensive library of games through gaming industry leaders like NVIDIA GeForce Now, Utomik, Xbox Cloud Gaming, and more. USB-enabled or Bluetooth-enabled gamepad is required and sold separately.
- News, Weather and Sports: Enjoy news, weather, and sports from CBS News, AccuWeather, CBS Sports, and more.
LG Curated Content: LG offers special curated online content for Entertainment and Fitness.
- LG Channels: LG Channels (powered by XUMO) offers 300 free streaming channels sports, news, entertainment, and lifestyle programming (including NBC and CBS News, PBS Digital Studios, Sports Illustrated, Fox Sports, and more). LG Channels features a handy on-screen guide which is integrated into the TV's over-the-air TV channel guide for easy, seamless access.
- LG Fitness: LG is introducing its very first health platform app, LG Fitness, to help you enjoy a healthier lifestyle at home. You can find the ideal workout plan based on the apps recommendations or create your own by choosing from a variety of options such as fast-paced HIIT, full-body stretching or guided meditation, among others, keeping track of their activity and progress on the app's dashboard.
Mobile Device Casting: Quickly and easily enjoy your favorite videos, photos, games, and more from your Apple iOS or Android devices on the LG OLED big screen with Google Cast. Support for Apple AirPlay 2 also lets you cast videos, photos, and more from your Apple iOS device or Mac computer to the LG OLED TV.
- Google Cast: Google Cast lets you cast your favorite entertainment apps and video content from your compatible Android or Apple iOS device using the Google Home App (for Android OS and Apple iOS) to the LG TV. Now you can cast your favorites movies or TV shows (on Netflix, Hulu, Vudu, Google Play, HBO, and more); your favorite music and radio stations (on Spotify, Pandora, iHeartRadio, TuneIn, YouTube Music, and more); Sports highlights (on ESPN, NBC, CBS, and more); plus photos and videos (on YouTube, Google Photos, and more) from your compatible Android or Apple iOS device to the LG TV. For a list of all compatible Google Cast apps click here.
- AirPlay 2: With support for AirPlay 2, you will be able to wirelessly stream content (including videos, photos, music, podcasts, and more) directly from your Apple iPhone/iPad (iOS 12.2 and newer) or Mac computer (OS X 10.14.4 and newer) to the LG TV's big screen - all without the need for an Apple TV or additional wired connection.
DLNA + Plex Content Sharing: DLNA and Plex compatibility lets you stream select video, photo, and audio files stored on your computer to the LG TV over your home's WiFi network. DLNA is supported by Windows (7, 8, 8.1, or 10) and other DLNA network devices and servers. You will also need to download the SmartShare software on your compatible Windows PC. Plex Media Server software is supported by Windows (7, 8, 8.1, or 10) and Mac (OSX 10.9 or newer).
Triple USB Ports: The television features three USB (type-A) 2.0 ports for playback of video, still image, and music files stored on a connected USB memory device. The television can support USB external hard disc drives (up to 2TB) and USB mass storage class devices (up to 32GB). The USB storage devices must be formatted as FAT 32 or NTFS file system. In addition, the TV will charge USB devices that can be charged via USB (max. 5V/0.5A). The LG television even lets you watch a slideshow of your photos (JPEG) while listening to background music (MP3) from an inserted USB device.
- Compatible Video Files: AVI/Xvid, MPEG 1/2/4, MKV, MOV, WMV, and Vob.
- Compatible Photo Files: JPEG, PNG, and BMP
- Compatible Audio Files: MP3, WMA, FLAC, and OGG
Web Browser: The LG Smart TV features a built-in web browser that lets you search the Internet for a particular website by URL or keyword searches. The web browser supports only HTML5 media and not Flash Plug-in. The web browser only replays the following media file formats - JPEG/PNG/GIF. Not all websites will be available for download, because of size and content.
Voice, App, and Remote Control
AI Magic Remote: LG's AI Magic Remote acts as a remote controller, mouse pointer, and voice commander with AI (artificial intelligence). The AI Magic Remote operates the TV as if it were a wireless mouse pointer. It allows you to point the remote at the TV and move through menu options with the movement of the remote. With simple gesture control, LG'S exclusive AI Magic Remote enables you to move the on-screen cursor, navigate menus, drag and drop apps, and select icons. There are also dedicated buttons on the remote for accessing Netflix, Amazon Prime Video, Disney+, Sling, and LG Channels. The AI Magic Remote also features a built-in microphone with artificial intelligence to control the TV with your voice using LG ThinQ or Amazon Alexa. Other AI features include Voice ID, your own Concierge, and a Chatbot.
- AI Voice ID: LG's AI Voice ID adds convenience by recognizing individual voices, automatically switching profiles and delivering content suggestions that match personal tastes.
- AI Concierge: One short press on the AI button on your remote opens up your AI Concierge which provides customized keywords and recommendations based on your search and watching history.
- AI Chatbot: LG's AI Chatbot actively resolves and helps you with your requests. Simply speak to the TV so it can distinguish your request and respond accordingly.
Notes:
- The AI Magic Remote automatically pairs with the TV via Bluetooth and has a wireless operating range up to 32.8'.
- The AI Magic Remote can be programmed to operate other components (such as a Blu-ray player or satellite/cable box) via IR. In addition, the LG TV features an IR input and with an optional IR blaster (sold separately) can be operated from a universal IR remote control (sold separately).
AI (Artificial Intelligence) ThinQ w/ Voice Control: Using the farfield microphone on the TV, you can simply say "Hi LG" to activate voice control; or you can press-and-hold the mic button on the Magic Remote to speak a voice command into the remote's built-in mic. LG goes a step further than basic voice control commands with the integration of AI (Artificial Intelligence) ThinQ. AI ThinQ is able to achieve intelligent voice-activated control by employing Natural Language Processing (NLP) and LG's exclusive deep learning platform (Deep ThinQ). The LG TV with AI ThinQ can process hundreds of voice commands. You are able to speak into the TV's or Magic Remote's built-in mic to enjoy the ultra-convenient features of the latest advanced voice assistant technology with deep learning capability. AI ThinQ lets you use your voice to control television functions, search for content, and even manage your connected smart home devices.
- TV Control: By utilizing the TV's built-in Electronic Program Guide (EPG), AI ThinQ delivers real-time information and locates channels with desired content. You can even say "search for this movie's soundtrack" or "turn off the TV when this program is over" without repeating the program's title or specifying a time. You can also ask the TV to play your favorite show, search for a new movie, check information about a cast member or director, and more. Additional voice commands include - Turn Off, Volume Up/Down, Channel Selection, Switch Input, Control Playback, Content Search and Recommendations, Launch Apps, Change Settings, and more.
- Smart Home Control: Beyond controls for the TV, LG's AI ThinQ uses intelligent voice control to create a hub for your smart home and IoT devices. By functioning as a smart home hub, the LG TV can access LG SmartThinQ and Matter compatible smart home products on your network - such as refrigerators, washers/dryers, robotic vacuum cleaners, air conditioners/purifiers, smart lights and outlets, as well as many other devices that connect to the TV via your home's WiFi network.
Built-In Amazon Alexa: The Magic Remote's built-in microphone also works with Amazon Alexa voice control. You'll be able to control live TV, internet apps, web browser, input selection, volume control, and certain menu settings with only your voice. Not only can you use your voice to control the TV, but also operate other Amazon Alexa enabled devices, control compatible smart home devices, manage tasks, find answers to your questions, and more.
- You will need to setup Amazon Alexa on the TV by pressing and holding the "Alexa" button on the Magic Remote and following the TV's on-screen prompts. Using the farfield microphone on the TV, you can simply say "Alexa to activate voice control; or you can press-and-hold the "Alexa" button on the Magic Remote to speak a voice command into the remote's built-in mic.
- External Alexa enabled devices (sold separately) can also be utilized to operate the TV. You will need to download and setup the free Alexa App (for Apple iOS and Android OS) on your compatible mobile device
- The TV will need to be connected to your home's network and internet provider to utilize Alexa voice control. You will also need to agree to Amazon's privacy statement to enable voice assistant control.
Note: The TV also works with Google Assistant using an external Google Assistant enabled smart speaker (sold separately). Google Assistant functionality can be set up from the TV's on-screen menu and the Google Home App (for Apple iOS and Android OS) on your compatible mobile device.
Apple HomeKit w/ Siri: Apple HomeKit lets you easily and securely control smarthome products using the Apple Home app or by asking Siri on your Apple iOS devices. The LG OLED TV can be added to the Apple Home app and included in scenes or automations with other HomeKit accessories. For example, you can create a "Movie Night" scene in the Home app to easily turn on your TV and dim the lights, and simply ask Siri to launch the scene. The Apple Home app can also be used to directly control select functions of the TV; such as power on/off, input selection, and volume up/down. However, the LG OLED TV cannot be used to control your Apple HomeKit devices
LG ThinQ App: The LG ThinQ App (for Android OS and Apple iOS) allows you to control the OLED TV and compatible smarthome devices from your Apple iOS or Android mobile device. You can also share the screen of your Apple iOS or Android OS on the TV using the LG ThinQ App. The LG OLED and your compatible Android or Apple iOS device must be connected to the same WiFi network.
- TV Control: The LG ThinQ App lets you use your compatible Android or Apple iOS device as a remote control for the TV. You'll be able to change channels, select inputs, search online apps, control the volume, adjust menu settings, and more.
- Smart Home Control: The LG ThinQ App also gives you control over LG ThinQ and Matter compatible smart home devices and appliances from your compatible Android or Apple iOS device. From the ThinQ app on your mobile device you can control and see the status of your compatible LG Washer and Dryer, Air Conditioner, or robot vacuum.
- Screen Share: Screen Share is integrated into the LG ThinQ App, allowing you to view the screen of your compatible Apple iOS or Android OS device on the LG TV screen.
HDMI-CEC: HDMI-CEC (or SIMPLINK) allows you to control other HDMI-CEC compatible components connected to the TV via HDMI from the television's Magic Remote. HDMI-CEC (or SIMPLINK) provides the following remote control functions.
- Instant Play: When you start a HDMI-CEC compatible device which is connected to the TV via HDMI, you can immediately watch content from the device on the TV without having to control anything else.
- Device Control: HDMI-CEC also enables you to control compatible devices connected to the television via HDMI with the TV's remote control.
- Main Power On/Off: Via HDMI-CEC, turning off the TV will turn off all of your HDMI-CEC connected devices. In addition, turning on a HDMI-CEC connected device will turn the TV on.
Keyboard Compatible: The LG OLED TV supports the use of a keyboard and mouse through its USB ports or via Bluetooth. You can enter text with the keyboard when using the Search function and the built-in Web Browser.
Serial Port: You can connect the 3.5mm serial port to an external control device (such as a computer or AV control system) to control the TV's functions externally.
Convenience Features
WebOS 25: LG's latest WebOS 25 on-screen menu system is easy to learn and use. Initial setup is smooth and simple, while connecting to other devices and searching for content is extremely convenient. The intuitive WebOS 25 pulls together all your content choices and serves up entertainment options that neatly organize your recent viewing history, what's on Live TV, what you might like to watch next, and the latest movies, TV shows, apps and games from the LG Content Store. Now you can spend less time navigating and more time enjoying the premium content that you and your family want, accessed right through the television, thanks to LG's intuitive WebOS 25 user interface.
- Program Guide and My Channels: While watching TV, you can easily search for other channels using the Program Guide or My Channels. The television's built-in Program Guide gives you a weekly outlook of what's on TV and detailed information about each program (when applicable). You can select a current program to watch or schedule a future program to watch later. You can also add channels you frequently watch to "My Channels" to easily check which programs are airing on those channels.
- Personalized Search & Recommendations: Leveraging AI, the LG TV learns what your preferences are based on your interests and your previous viewing selections. You can setup personal profiles (up to 10) for each member in your house, so you can enjoy a more customized viewing experience. Under each profile, you can set up fast access to your favorite streaming services, get tailored content recommendations based on viewing history and receive real time alerts to keep up with favorite sports teams. The TV will also remember and display the most recent apps you've used for easier access.
- Who.Where.What?: The features of WebOS 25 provides a variety of information related to the scene or content you are currently watching via Live TV or HDMI (information may vary depending on the program).
- Sports Alert: WebOS 25 gives sports fans a new way to stay informed. Sports Alert gives updates on your favorite teams, start times, and scores; even while you're watching other content. Easily switch to games without searching for the channel. Sports Alert provides real-time alerts for NFL, NBA, MLB, NHL, Premier League and more.
- Quick Settings: The Quick Settings Menu provides quicker access to commonly used functions - such as Picture Mode, Aspect Ratio, Sound Mode, Sound Out, Sleep Timer, and Network.
Note: With LG's Re:New Program, you can enjoy new software updates and feature refreshes for up to 5 years.
View Modes: The LG OLED TV offers unique View Modes such as Multi-View, Room-To-Room Share, and Gallery Mode.
- Multi-View: You can split the TV screen and use up to 4 video sources simultaneously (including Live TV, HDMI, and network apps). You can have two video sources on a split-screen where there is a video image side-by-side, or run another video source on top of another video source and view it as a pop-up screen. You can switch between the audio of both video sources. Only one Live TV video source can be viewed at a time (no dual tuner).
- Room-To-Room Share: Room-to-Room Share lets you mirror Live TV or a HDMI input video source from one 2022-up compatible LG TV to another (up to 5) in your home on the same wireless network, without the need for an additional cable or satellite both in the other room. Some 2022-up LG TVs allow sharing and receiving of this content, while other 2022-up LG TVs are only receivers. This LG OLED TV supports both the transmission and receiving.
- Gallery Mode: The Gallery mode turns the TV into a digital picture frame, displaying pre-loaded artwork, downloadable artwork, and even your own USB downloaded picture files (JPEG format only). You can choose one piece of artwork or begin a slide-show. You can even create custom backgrounds using voice commands, adding a more personal and creative touch to your viewing experience.
Closed Captions and Audio Guidance: The LG OLED TV offers Closed Captions and Voice Guidance for the hearing and visually impaired. The TV provides Analog Closed Captions and Digital Closed Captions for the hearing impaired. You can also activate Voice Guidance, which describes when you change channels or inputs, adjust the volume up or down, and make changes in the menu settings.
Parental Control: Parental Control can be used to block specific channels, ratings, and other viewing sources (external input and application block). The Parental Control Function is used to block program viewing based on the ratings sent by the broadcasting station. The default setting is to allow all programs to be viewed. Viewing can be blocked by choosing the type of the program and the categories. It is also possible block a specific channel. The Parental Control function is protected by a 4-digit user password.
Energy Saving Feature: The Energy Saving feature helps to save electric power by adjusting the screen brightness; you can select from six modes - Auto (based on ambient room conditions), Minimum, Medium, Maximum, Screen Off, or Off.
On/Off and Sleep Timers: You can program the television to turn On and turn Off at a certain time. You can set the On and Off timer to Daily, Mon-Fri, Mon-Sat, Sat-Sun, or Once. You can also set the input, channel, and volume level for the On Timer. If you do not press any button within 2 hours after the TV turns on with the On Timer, the TV will automatically revert back to standby mode. The Sleep Timer turns the TV off at the preset time (10, 20, 30, 60, 90, 120, 180, or 240 minutes).
Built-in Customer Support: The LG Smart TV offers built-in customer support to help your learn functions and diagnose problems.
- On-Screen User Guide: The TV offers a built-in, on-screen User Guide to help you learn how to use your new TV.
- Picture/Sound Tests: This customer support function executes picture and sound tests to make sure you have the TV properly connected.
- LG Remote TV Service: LG Remote TV Service can allow LG Customer Service to help you perform menu actions and resolve many problems remotely. To use this feature make sure your TV is connected to the internet.
Software Update: You can update the TV with the latest software to enhance the product operation and/or add new features via the TV's network connection. Visit LG's Support Site for the latest firmware/software updates.
Mounting Options

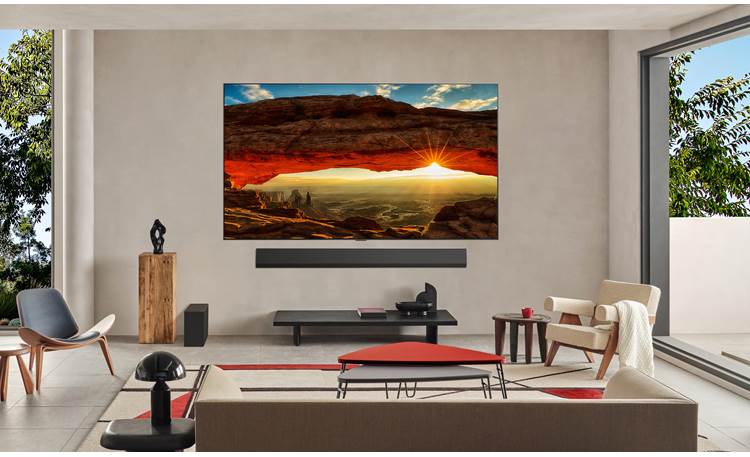

Gallery Design: This OLED TV is part of LG's Gallery Design Series with an art-inspired look and design. It is crafted with an unbelievably thin bezel (0.0625" thick) and slim profile (1.125" deep) that puts the spotlight on your viewing content and not the television. The included wall-mount bracket allows the TV to mount flush to the wall like a piece of art in a gallery.

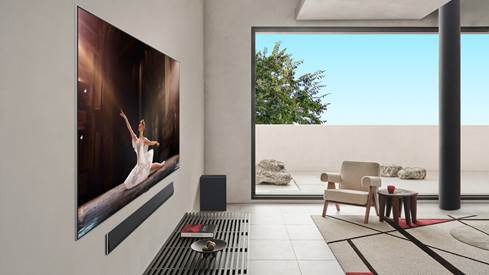

Included Wall-Mount Bracket: The LG OLED TV comes with a wall-mount bracket the practically mounts the TV flush to the wall. The bracket features a fixed position and does not swivel, tilt, or extend. The included bracket mounts to a custom installed horizontal wood stud or concrete wall using 8 lag-bolts (plus, 8 concrete anchors). The mounting bracket measures 17.8125" (w) x 5.125" (h) x 0.5" (d).
Note: This TV does not come with a pedestal stand or pedestal feet. However, an optional pedestal stand is available and sold separately.
Optional Wall-Mount Brackets: If you prefer to use a bracket that tilt, swivels, or extends, you can purchase one separately (see Accessories Tab). The TV features four M6 (6mm) threaded inserts with a horizontal spacing of 300mm and vertical spacing of 300mm. The TV weighs 38 lbs.
Note: The TV's 300mm x 200mm VESA mount pattern measures 21.375" from the side of the TV and 2.25" from the bottom of the TV.
Ventilation Requirements: When mounting the TV on the wall (with optional bracket) leave 4" of clearance on each side of the television and 4" above/below the television for adequate ventilation.
Attached AC Power Cord: The television features an attached 6' AC power cord. The power cord is fitted with a right-angle AC plug that sits 1.0" from the wall.
The LG OLED55G5WUA replaces these items:
- LG's OLED evo panel with Brightness Booster Max offers brilliant, colorful, high-contrast images
- smooth, lag-free gaming: 4K/120Hz and 4K/144Hz support plus built-in cloud gaming
- built-in Amazon Alexa intelligent voice assistant
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
