SoundExtreme EV30011 Mono EV amplifier for 48-volt to 72-volt systems — 300 watts RMS x 1 at 2 ohms

Name: SoundExtreme EV30011
Brand: SoundExtreme
SKU: 698EV30011
Price: 299.99 USD
Availability: InStock

Item # 698EV30011

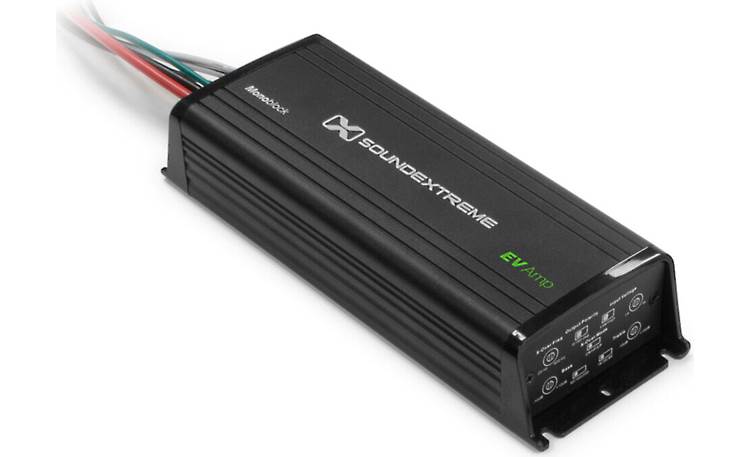

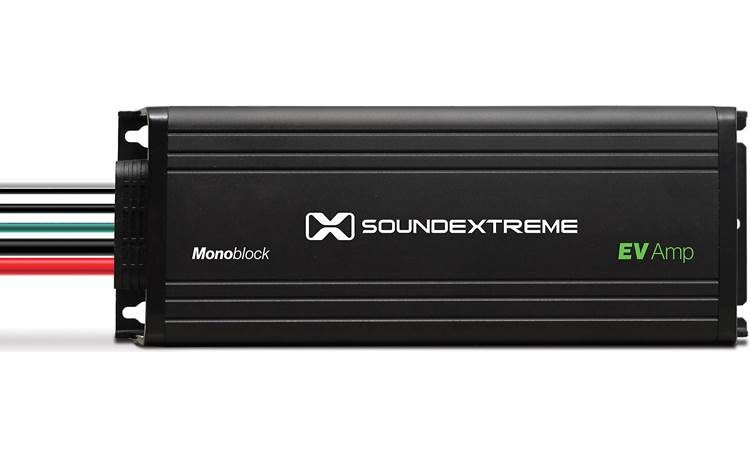

SoundExtreme's EV30011 mono amp makes it easy to add bass to your high-voltage electric vehicle or golf cart.

mono EV amp

1/7

More Photos

2/7

Only at Crutchfield

3/7

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

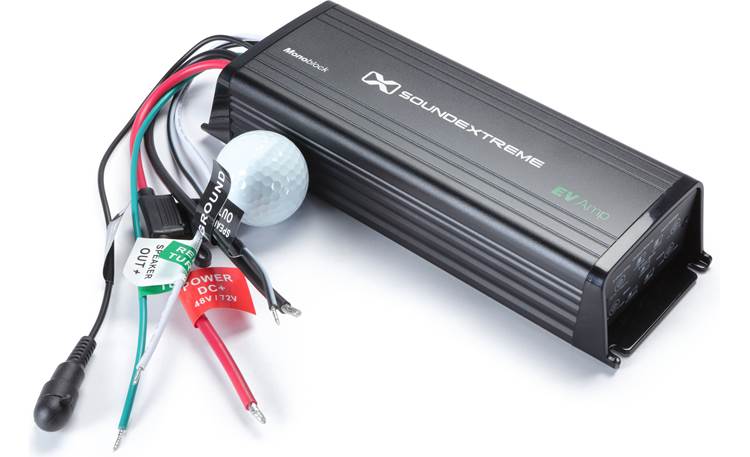

Golf ball shown for scale

SoundExtreme EV30011 Only at Crutchfield

SoundExtreme EV30011 Golf ball shown for scale

SoundExtreme's EV30011 mono amp makes it easy to add bass to your high-voltage electric vehicle or golf cart.

Item # 698EV30011

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$299.99

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Buck Pomerantz

Bass on the go

Like to play your loud beats wherever you go? SoundExtreme's EV30011 compact mono all-weather amplifier for electric vehicles will broadcast your bass with power and high-fidelity in virtually any kind of vehicle using a 48-volt to 72-volt battery system, with no expensive voltage-matching step-down converter interface device needed for installation. This amp is 100% waterproof, with a sealed die-cast aluminum chassis and control cover that keep the interior components fresh and free of water, dirt, and salt — and can be hosed off clean after a dirty day's drive.

Full-range power

The EV30011 pumps out up to 300 watts RMS of full-range power, so it's ideal for a subwoofer or an individual speaker element in a large stereo system where each component has its own power source. The onboard electronic crossover has the frequency range and precision to accommodate a wide variety of different speaker types — like tweeters, midrange drivers, and subwoofers. Treble and bass EQ controls help tune the signal for your particular application. There's also a phase control so you can tune a sub for maximum bass impact at the driver's position.

Product highlights:

mono EV amplifier
- 180 watts RMS x 1 at 4 ohms
- 300 watts RMS x 1 at 2 ohms
Texas Instruments High-Definition Class D amp technology
- frequency response: 20-20K Hz
- operating voltage: 48V-72V
- not compatible with 12V or 36V systems (see SoundExtreme AMP30011 for 12V version)
variable high- or low-pass filter (20-400 Hz, 24 dB/octave)
bass EQ: -10 dB to +10 dB at 50, 100, or 200 Hz
treble EQ: -10 dB to +10 dB at 1K, 3K, or 8K Hz
switchable output polarity: 0/180°

More info:

IP67-rated sealed water- and dirt-proof die-cast aluminum chassis
preamp and speaker-level inputs
wiring and hardware not included with amplifier
- 8-gauge power and ground leads recommended
fuse rating: 7.5A/80V
dimensions: 9.82"W x 1.85"H x 3.3"D
warranty: 2 years
MFR # SEI-AMPEV30011
Item # 698EV30011
California customers: Please click here for your Proposition 65 WARNING.

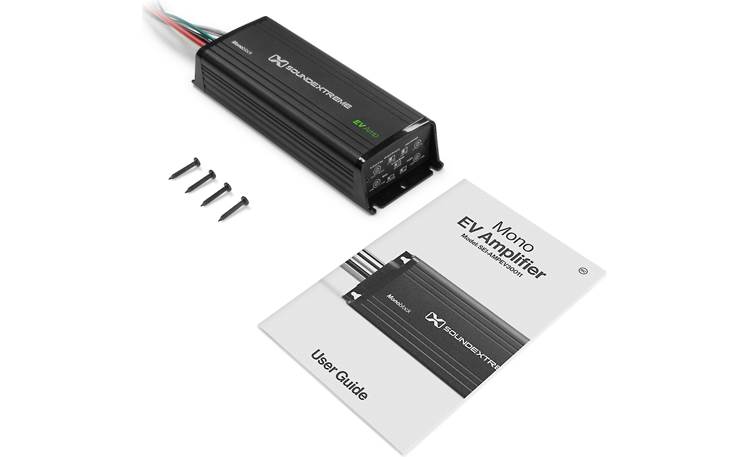

What's in the box:

SoundExtreme EV30011 owner's manual

Mono amplifier with attached 10" wiring harness (inline 7.5A/80V ATC fuse)
Six 1" screws
User guide
Mounting template

Researched by Crutchfield's Mark G.

Product Research

Features

Marine Amplifier: The SoundExtreme AMPEV30011 (SEI-AMPEV30011) Mono EV Amplifier is a compact and powerful amplifier designed specifically for 48V to 72V electric golf carts, UTVs, ATVs, and other outdoor electric powersports vehicles. It features a completely waterproof and dustproof chassis, with all of the wiring connections made through a sealed harness on end end of the amplifier. The SoundExtreme AMPEV30011 amplifier has a tiny footprint (9.82" x 1.85" x 3.30") which allows you to mount it in tight spaces.

Note: The SoundExtreme AMPEV30011 Mono EV Amplifier is designed to operate with electric vehicle batteries ranging from 48- to 72-volts, and cannot be used with 12- or 24-volt electrical systems.

Waterproof & Dustproof: The SoundExtreme AMPEV30011 carries an IP67 rating, making it impervious to water and dust.

Class D Amplification: The AMPEV30011 features state-of-the-art Texas Instruments High Definition Class D amplification, providing high power and minimal distortion in a compact marine-grade design. The AMPEV30011 can provide the following output power (@ < 2% THD + N):

180 watts @ 4-ohms
250 watts @ 3-ohms
300 watts @ 2-ohms

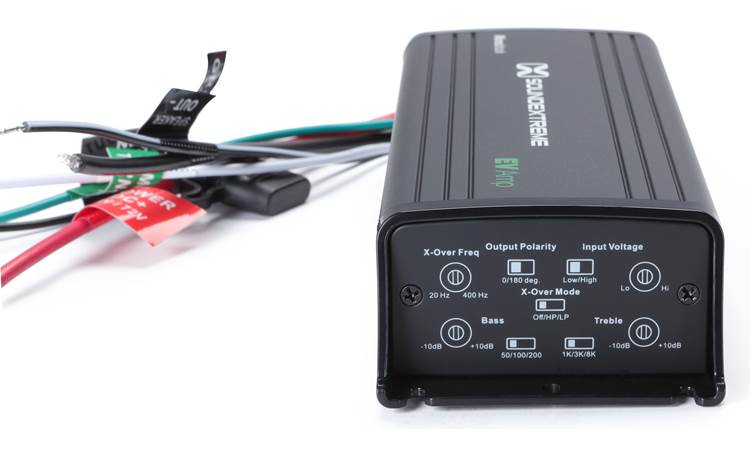

Control Panel: All of the AMPEV30011 controls are located on one side-panel and protected by a cover to help keep the controls dry, and to prevent unwanted adjustments. The cover screws can be removed with a Philips-head screwdriver (not included). The rotary controls and slide switches require the use of a narrow flat-head screwdriver (not supplied) to make adjustments. Controls include:

Crossover Mode: A 3-way switch let you set the crossover type: Low-pass (LPF), High-pass (HPF), or Off (Full Range).
Crossover Frequency: A crossover frequency dial provides a LP/HP cutoff range from 20 Hz to 400 Hz, with a 24dB/octave slope.
Output Polarity: A 2-way switch lets you invert the output signal; options include 0° and 180°.
Input Voltage: Two 2-way switches determine the type of input signals: Low (500mV to 3V) and High (3V-14.5V).
Sensitivity: A rotary control lets you match the amplifier to the source unit. The input sensitivity of the amp ranges from 500mV to 3V (Low mode), and 3V-14.5V (High mode).
Bass & Treble: Two rotary dials let you add or reduce the selected Bass and Treble frequencies; two 3-way switches let you select the frequency to be affected:
- Bass: 50 Hz, 100 Hz, 200 Hz
- Treble: 1 kHz, 3 kHz, 8 kHz
Status LED: An LED indicator on the wiring harness end of the amp will light Green when the amp is operating normally, and will flash Orange/Green if it goes into protection mode due to Overheating, Overcurrent, or a Short-Circuit on a speaker output.

Connections: The AMPEV30011's wiring is located at one end of the amplifier in a single 10" sealed harness. All wiring except the RCA input consist of bare-ended wire:

Power & Ground: The amplifier's 10 AWG power wire features an in-line waterproof fuse holder with a 7.5A/80V ATC fuse inserted. The mono EV amp can operate on voltages between 32V and 82V. The ground wire is also 10 AWG.
- Note: A 10 AWG amplifier wiring kit is recommended and is sold separately.
Remote Turn-on: A 12 AWG remote turn-on wire can be connected to your headunit's remote output wire or to a switched +12V power source.
Speaker Outputs: A pair of 12 AWG wires provides the single mono speaker output.
Audio Input: The amp features a single mono RCA input jack. If the source unit does not offer a preamp level output you can use an RCA-to-speaker wire adapter, such as the JL Audio XD-CLRAIC2-SW (sold separately). The amp's RCA connector has a waterproof cap for protection when not in use.
