About the SoundExtreme Marine Speakers

Product highlights:
- 2-way marine speakers
- built-in RGBIC LED lighting included (LEDCast-enabled controller or LEDCast radio required and sold separately)
- 8" UV-protected polypropylene and carbon fiber blend woofer with Santoprene rubber surround
- 1.5" titanium tweeter with double neodymium magnet design
- handles up to 75 watts RMS (250 watts peak power)
- 4-ohm impedance

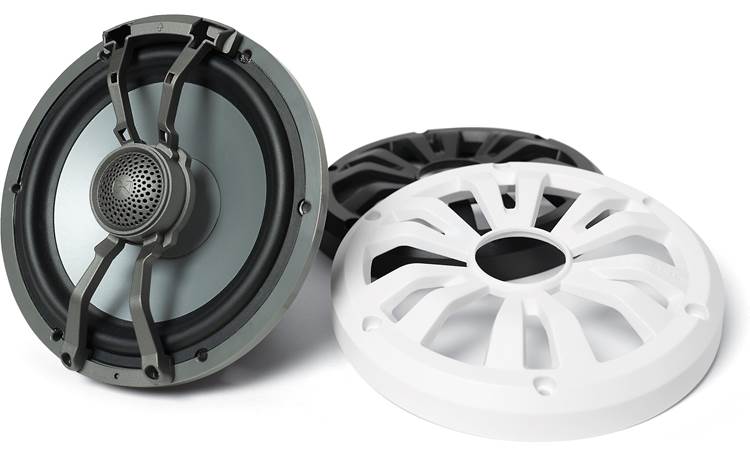

- black and white grilles included
- ideal for boats or off-road vehicles
- IP66 waterproof rated
- frequency response: 60-20,000 Hz
- sensitivity: 92 dB
- cutout diameter: 6.89"
- frame diameter: 9.72"
- top-mount depth: 3.53"

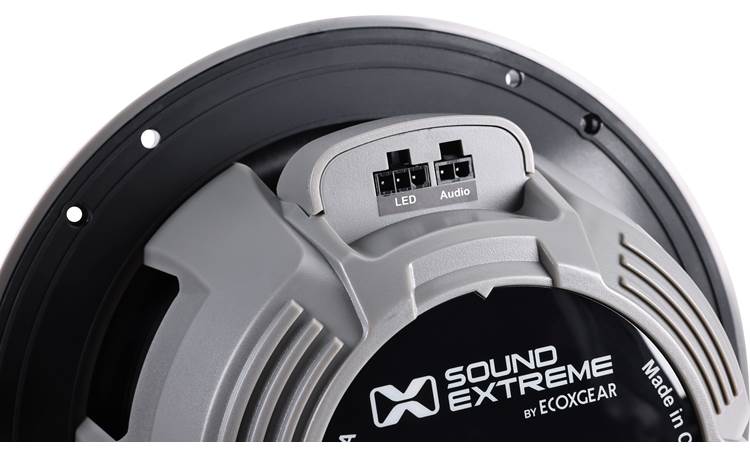

- includes speaker wire connector, LEDCast lighting control cable, LED extension cables, LED cable Y-splitter
- warranty: 2 years
- MFR # SEI-SESPKR80
- Item # 698SPKR80
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
SoundExtreme Marine Speakers owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 White grilles
- 2 Black grilles

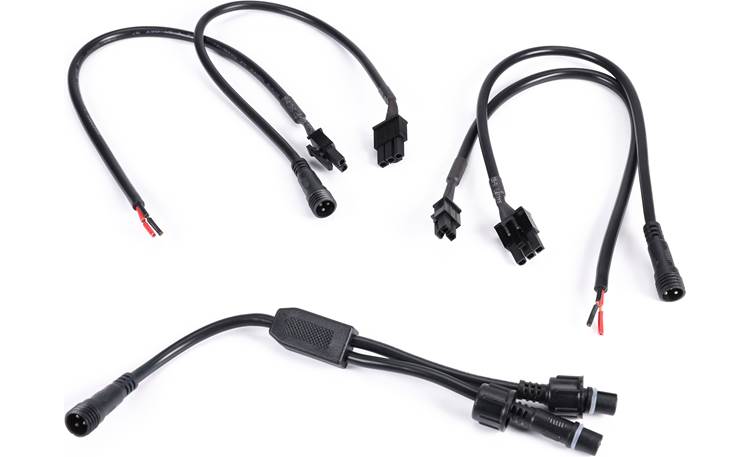

- Two 12" Speaker harnesses (2-pin plug on one end and tinned bare wire on the other)
- Two 12" LED Power harnesses (3-pin plug on one end and threaded coupler on the other)
- LED Power Y-Adapter

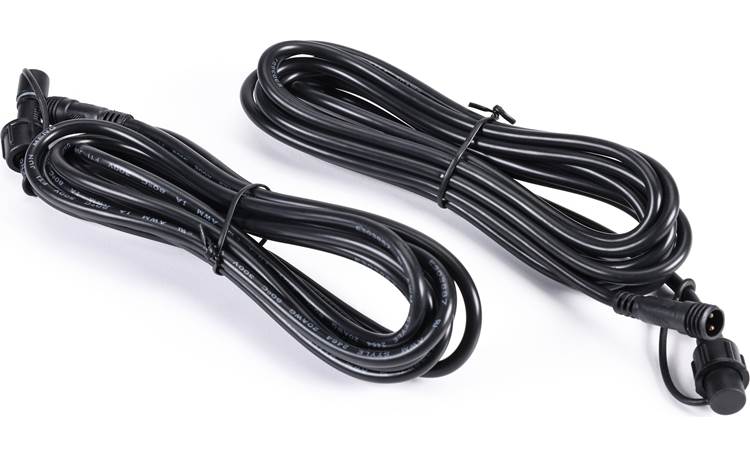

- Two 10' LED Power cable extensions (threaded coupler on both ends)
- Sixteen 1-1/2" Stainless steel screws
- Twelve 3/8" Stainless steel screws
- User guide
- Warranty information
- Template
More details on the SoundExtreme Marine Speakers

Features & specs
General | ||
---|---|---|
Speaker Size | 8 | |
Design | 2-way | |
Tweeter Design | 1.5" Dome | |
Tweeter Composition | Titanium | |
Woofer Composition | Mica/Carbon/Polypropylene | |
Woofer Surround | Santoprene Rubber | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity |
92 dB at 1 watt | |
Frequency Response | 60 - 20k Hz | |
Max RMS Power Handling | 75 | |
Peak Power Handling (Watts) | 250 | |
Impedance (Ohms) | 4 | |
Top-mount Depth (Inches) | 3 5/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 7 1/16 | |
Bolt Circle | 8.524 |
Product Research
Features

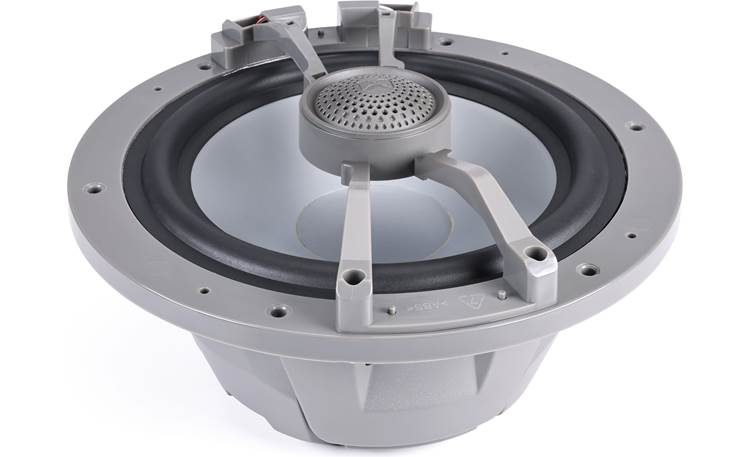

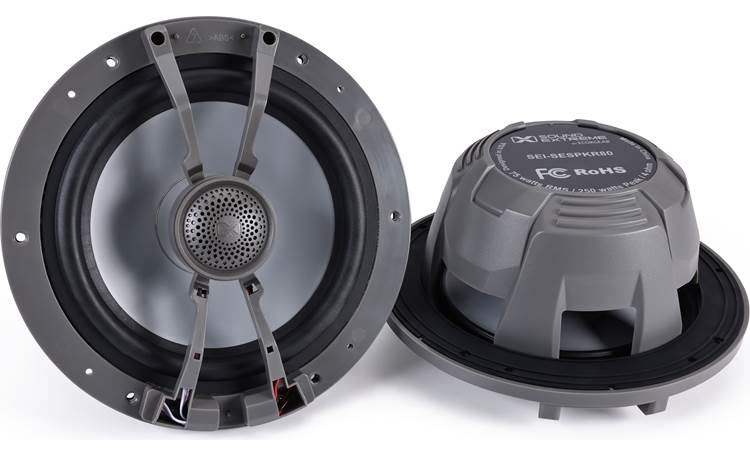

Tweeters: The tweeters are bridge mounted, rather than mounted to a pole piece, thus there is no chance of water leaking through the woofer cone.

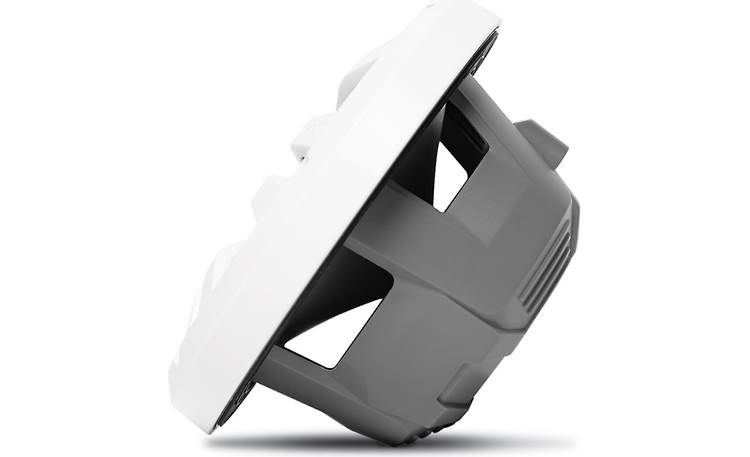

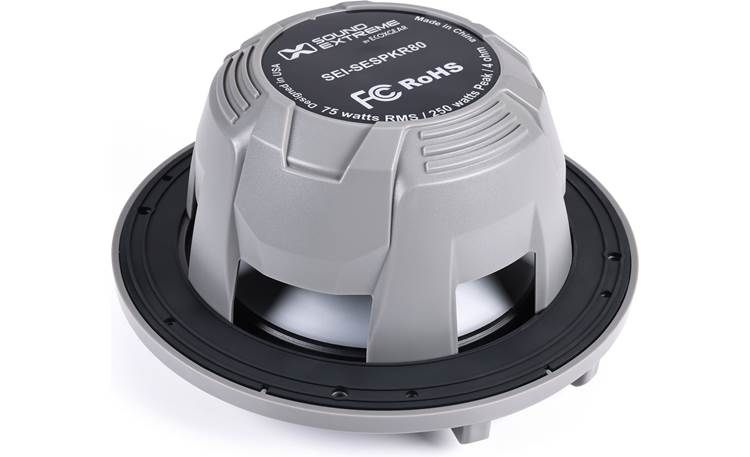

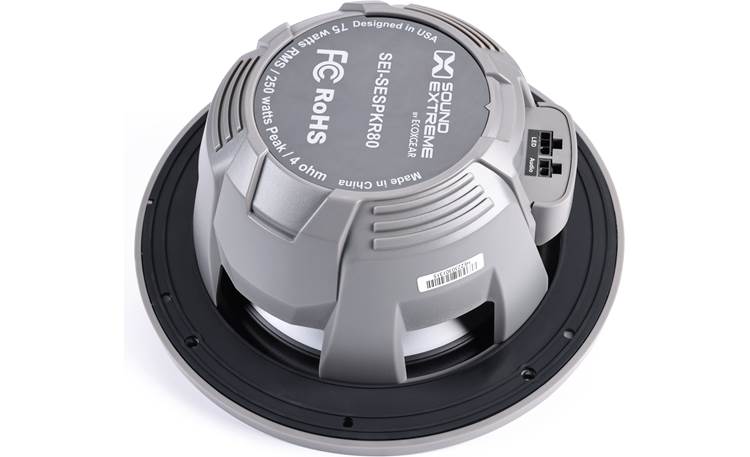

Baskets: The speaker baskets are made of ASA plastic (Acrylic Styrene Acrylonitrile) for weather and UV resistance. The baskets enclose the woofers' motor structures and crossovers to prevent corrosion.
LEDs: There are multi colored LEDs behind the bridge structure under the tweeter, to create a glow on the woofer cone. An LEDCast compatible radio or the LEDCast controller (item numbers 698MRN1DIN and 698LEDZ4, both sold separately) is required to control the LED lighting. A 12-volt power supply is needed for either to power the LEDs.

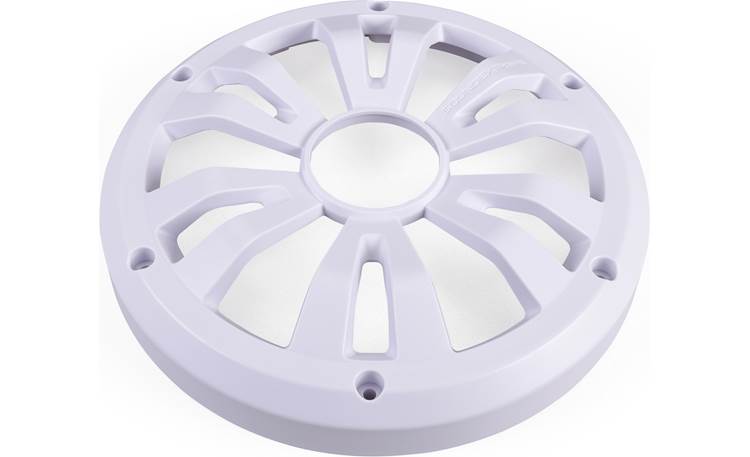

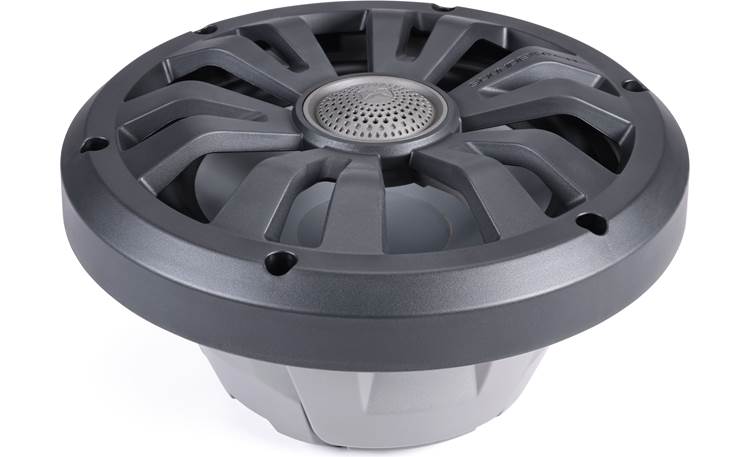

Grilles: Two pair of grilles are included; choose Black or White.
