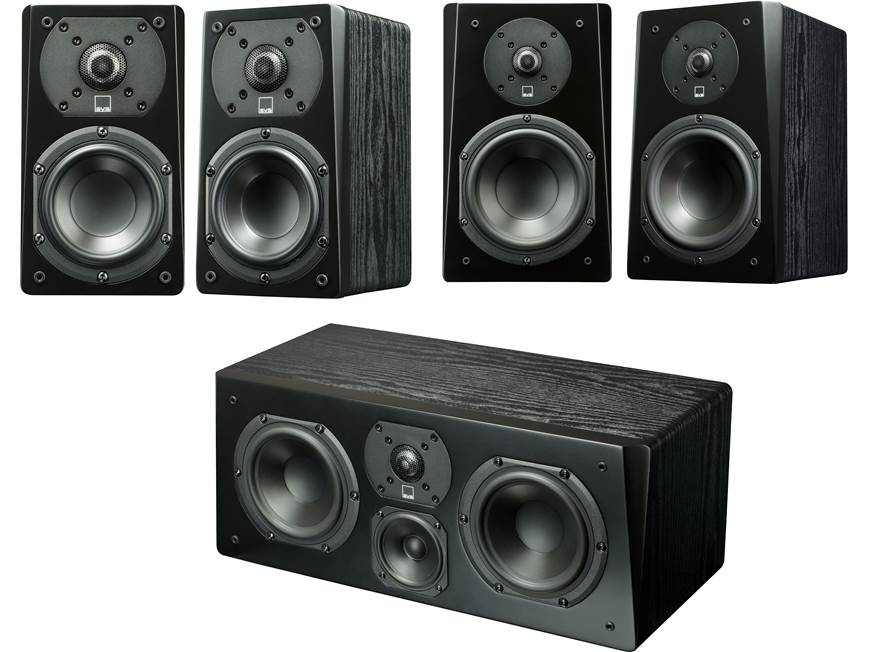

SVS Prime 5.0 Home Theater Speaker System Featuring SVS Prime Bookshelf, Center, and Satellite speakers (Black Ash)

Prime Satellite Speakers
Prime Center Channel
Prime Bookshelf Speakers

Prime Satellite Speakers

1" Aluminum Dome Tweeter: The Prime Satellite speaker's 1" aluminum dome tweeter is light, efficient, and rigid, and plays crystal clear at high volumes for an exceptional transient response. The tweeter utilizes an FEA-optimized diffuser for even greater clarity with a sense of utter transparency, while also offering an "airy" presentation and incredibly unveiled highs so female vocals and dialogue always sound natural, crisp and smooth.

4.5" Mid-Woofer: Thoughtfully designed for acoustic excellence, the 4.5" mid-woofer is mounted in its own dedicated and completely sealed compartment to ensure smooth, precise and clear midrange and bass output that's free from coloration. The polypropylene cone material is extremely light and rigid and maintains a flat frequency response with excellent handling across the foundational mid-range frequencies. The mid-woofer also utilizes an aluminum shorting ring to reduce gap inductance and lower distortion, while its vented voice coil former minimizes air compression artifacts. The mid-woofer's cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer.

SoundMatch Crossover Design: The innovative SoundMatch Crossover is a 2.3kHz (12dB/oct) two-way design with premium-grade capacitors, air-core inductors, and heavy-trace printed circuit boards. This high performance crossover network delivers outstanding phase coherency and time domain behavior. The crossover's tapered array offers expansive, yet focused and precise soundstage, resulting in accurate frequency response at all listening positions in the room. The precise tuning of the SoundMatch Crossover also ensures pinpoint accuracy of highs, mids, and lows, while maintaining pristine signal purity.

Performance Driven Cabinet Design: The Prime Satellite loudspeaker cabinet design offers a modern industrial feel with acoustic enhancements. The speaker cabinet's chamfered front baffle, flush-mounted drivers, tapered edges, and acoustically transparent FEA optimized grille minimize edge diffraction and improve on-axis high frequency response for clear, precise sound staging. Each speaker cabinet also utilizes a 1" wide-flared rear-firing port for greater efficiency and smoother response. All of these advancements are packed into a compact but attractive cabinet, that's available in a piano gloss black, piano gloss white or premium black ash finish.

5-Way Binding Posts: The SVS Prime Satellite loudspeakers are outfitted with 5-way binding post terminals for connection of bare wire, pin-connectors, spade-lugs, and banana connectors (single or dual). Use 18AWG speaker wire for wire runs up to 10', 16AWG speaker wire for wire runs up to 25', 14AWG speaker wire for wire runs up to 50', and 12AWG speaker wire for wire runs up to 75'.

Mounting Options: The SVS Prime Satellite loudspeakers offer flexible mounting options to suit your home theater application.

• Table-Top Mount: The Prime Satellite speakers can simply be placed on a stand, shelf, or table-top. Each satellite includes stick-on feet that can be attached to the bottom of the speakers to protect them when placed on speaker stands and other surfaces. The rubber feet add approximately 0.125" to the overall height of the speakers.
• Wall-Mount: Each Prime Satellite loudspeaker comes with a pre-installed keyhole bracket that makes wall-mounting the speaker simple and convenient (mounting screws not included). There is also a 1/4"-20 threaded insert on the back of each speaker cabinet for wall mounting the speakers using articulating wall-mount brackets (sold separately - see Accessories Tab). Before hanging, be sure to attach a set of the included rubber bumpers to each lower back corner of the Prime Satellite (these will help keep the speaker level, and prevent spinning on the wall).

Applications & Placement: The SVS Prime Satellite loudspeakers can be used in a dedicated 2.1ch stereo setup or in a multichannel home theater system as fronts and/or surrounds. Proper placement of the front and surround speakers is essential to achieve the smoothest frequency response, optimal imaging and the most spacious, three-dimensional soundstage.

• Front Speakers: Stereo imaging and soundstage are affected by loudspeaker location and the listening position, relative to each other and room boundaries. Moving the loudspeakers away from room boundaries will tend to improve stereo imaging and spaciousness by attenuating and delaying boundary reflections, thus optimizing direct sound and helping to preserve spatial information in the recording. Toeing-in the loudspeakers 5°-10° can often improve imaging, however this is also a function of the distance from nearby boundaries and the ratio of direct-to-reflected sound, so experimentation with toe-in is recommended to obtain optimal results. The location of the front loudspeakers relative to nearby boundaries will excite various "room modes" which will affect the bass response of the loudspeakers. Generally, placing the loudspeakers closer to room boundaries (particularly corners) will increase the bass response. Conversely, moving the loudspeakers away from boundaries and corners will reduce the bass response.
• Surround Speakers: In a 5.1ch system, the side surround speakers should be located 90°-110° off-axis. For the best sense of spaciousness, the tweeter height should be about 2' above ear level. In a 7.1ch system, dedicated rear surround speakers are placed behind the primary seating position for enhanced rear panning effects. Place the rear surround speakers at 135°-150° off-axis, relative to the primary seating position. As with the side surround speakers, position the rear surround tweeters about 2' above head level when seated.

Optional Powered Sub: A SVS powered sub (sold separately) makes a great addition to the Prime series of loudspeakers.

Satellite Speaker Dimensions: Width = 4.9375", Height = 8.8125", Depth = 6.375

Prime Center Channel

3-Way Center Channel Speaker: The SVS Prime Center is a true 3-way center channel loudspeaker designed with high quality components and sophisticated engineering to provide sonic excellence. From its premium grade drivers and sophisticated SoundMatch three-way crossover to the extra-thick baffle, internal bracing, and FEA optimized tweeter diffuser, the Prime Center channel speaker is well-equipped play the most important role in a home theater sound system.

1" Aluminum Dome Tweeter: The Prime Center speaker's 1" aluminum dome tweeter is light, efficient, and rigid, and plays crystal clear at high volumes for an exceptional transient response. The tweeter utilizes an FEA-optimized diffuser for even greater clarity with a sense of utter transparency, while also offering an "airy" presentation and incredibly unveiled highs so female vocals and dialogue always sound natural, crisp and smooth.

Polypropylene Midrange & Woofers: The Prime Center speaker houses one 3.5" polypropylene midrange driver and two 5.25" polypropylene woofers. The polypropylene cone material is extremely light and rigid and maintains a flat frequency response with excellent handling across the foundational midrange and bass frequencies. The driver's cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer. Each driver also employs a vented voice coil former to minimize air compression artifacts.

• 3.5" Midrange Driver: Thoughtfully designed for acoustic excellence, the 3.5" midrange drive is mounted in its own dedicated and completely sealed compartment to ensure smooth, precise and clear midrange that's free from coloration.
• Dual 5.25" Woofers: The two 5.25" woofers utilize a rugged  motor and long-stroke suspension for high output. The woofers also utilize aluminum shorting rings to reduce gap inductance and lower distortion.

SoundMatch Crossover Design: The innovative SoundMatch Crossover is a 3-way design with premium-grade capacitors, air-core inductors, and heavy-trace printed circuit boards. This high performance crossover network delivers outstanding phase coherency and time domain behavior. The crossover's tapered array offers expansive, yet focused and precise soundstage, resulting in accurate frequency response at all listening positions in the room. The precise tuning of the SoundMatch Crossover also ensures pinpoint accuracy of highs, mids, and lows, while maintaining pristine signal purity.

• Midrange-to-Tweeter Crossover: 2.4 kHz (12 dB/octave slopes)
• Woofer-to-Midrange Crossover: 350 Hz (12 dB/octave slopes)

Performance Driven Cabinet Design: The Prime Center utilizes a FEA-optimized MDF cabinet with internal bracing to eliminate resonances. The speaker cabinet's chamfered front baffle, flush-mounted drivers, tapered edges, and acoustically transparent FEA optimized grille minimize edge diffraction and improve on-axis high frequency response for clear, precise sound staging. A separate sealed midrange enclosure improves sound quality and enhances imaging, while dual 1" wide-flared rear-firing ports provide greater efficiency and smoother bass response. All of these advancements are packed into an attractive cabinet, that's available in a piano gloss black or premium black ash finish.

5-Way Binding Posts: The SVS Prime Center loudspeaker is outfitted with 5-way binding post terminals for connection of bare wire, pin-connectors, spade-lugs, and banana connectors (single or dual). Use 18AWG speaker wire for wire runs up to 10', 16AWG speaker wire for wire runs up to 25', 14AWG speaker wire for wire runs up to 50', and 12AWG speaker wire for wire runs up to 75'.

Placement & Mounting Options: The center channel should be placed directly on-axis, relative to the primary seating position. As with the main front speakers, placing the tweeter at/near head level when seated is optimal. But depending on the placement of the video display or projection screen, this is not always possible. If the center channel must be located below head level, then an upward tilt of the speaker is recommended to improve mid/high frequency response and dialog intelligibility.

• Stick-on rubber feet are include that attach to the bottom of the speaker to protect it when placed on a shelf or stand. The rubber feet add approximately 0.125" to the overall height of the speaker.
• The Prime Center is not wall mountable.

Center Channel Dimensions: Width = 18.6875", Height = 7.6875", Depth = 9.125"

Prime Bookshelf Speakers

1" Aluminum Dome Tweeter: The Prime Bookshelf speaker's 1" aluminum dome tweeter is light, efficient, and rigid, and plays crystal clear at high volumes for an exceptional transient response. The tweeter utilizes an FEA-optimized diffuser for even greater clarity with a sense of utter transparency, while also offering an "airy" presentation and incredibly unveiled highs so female vocals and dialogue always sound natural, crisp and smooth.

6.5" Polypropylene Woofer: Thoughtfully designed for acoustic excellence, the Prime Bookshelf speaker's 6.5" woofer is mounted in its own dedicated and completely sealed compartment to ensure smooth, precise and clear midrange and bass output that's free from coloration. The polypropylene cone material is extremely light and rigid and maintains a flat frequency response with excellent handling across the foundational mid-range frequencies. The woofer utilizes a rugged  motor and long-stroke suspension for high output, along with aluminum shorting rings to reduce gap inductance and lower distortion. Low frequency extension is shockingly deep and effortless considering the cabinet size and the Prime Bookshelf speaker can hit reference volume with amazing clarity, no distortion, and headroom to spare.

SoundMatch Crossover Design: The innovative SoundMatch Crossover is a 2-way design (2.3kHz @ 12dB/oct) with premium-grade capacitors, air-core inductors, and heavy-trace printed circuit boards. This high performance crossover network delivers outstanding phase coherency and time domain behavior. The crossover's tapered array offers expansive, yet focused and precise soundstage, resulting in accurate frequency response at all listening positions in the room. The precise tuning of the SoundMatch Crossover also ensures pinpoint accuracy of highs, mids, and lows, while maintaining pristine signal purity.

Performance Driven Cabinet Design: The Prime Bookshelf utilizes a FEA-optimized MDF cabinet with internal bracing to eliminate resonances. The speaker cabinet's chamfered front baffle, flush-mounted drivers, tapered edges, and acoustically transparent FEA optimized grille minimize edge diffraction and improve on-axis high frequency response for clear, precise sound staging. Each speaker cabinet also utilizes a 1.7" wide-flared rear-firing port for greater efficiency and smoother response. All of these advancements are packed into an attractive cabinet, that's available in a piano gloss black or premium black ash finish.

5-Way Binding Posts: The SVS Prime Bookshelf loudspeaker is outfitted with 5-way binding post terminals for connection of bare wire, pin-connectors, spade-lugs, and banana connectors (single or dual). Use 18AWG speaker wire for wire runs up to 10', 16AWG speaker wire for wire runs up to 25', 14AWG speaker wire for wire runs up to 50', and 12AWG speaker wire for wire runs up to 75'.

Mounting Options: The Prime Bookshelf speakers can simply be placed on a stand, shelf, or table-top. Each speaker includes stick-on rubber feet that can be attached to the bottom of the speakers to protect them when placed on speaker stands and other surfaces. The rubber feet add approximately 0.125" to the overall height of the speakers. There are no included brackets, no keyhole slots, and no threaded inserts to wall mount the speakers.

Applications & Placement: The SVS Prime Bookshelf loudspeakers can be used in a dedicated 2.1ch stereo setup or in a multichannel home theater system as fronts and/or surrounds. Proper placement of the front and surround speakers is essential to achieve the smoothest frequency response, optimal imaging and the most spacious, three-dimensional soundstage.

• Front Speakers: Stereo imaging and soundstage are affected by loudspeaker location and the listening position, relative to each other and room boundaries. Moving the loudspeakers away from room boundaries will tend to improve stereo imaging and spaciousness by attenuating and delaying boundary reflections, thus optimizing direct sound and helping to preserve spatial information in the recording. Toeing-in the loudspeakers 5°-10° can often improve imaging, however this is also a function of the distance from nearby boundaries and the ratio of direct-to-reflected sound, so experimentation with toe-in is recommended to obtain optimal results. The location of the front loudspeakers relative to nearby boundaries will excite various "room modes" which will affect the bass response of the loudspeakers. Generally, placing the loudspeakers closer to room boundaries (particularly corners) will increase the bass response. Conversely, moving the loudspeakers away from boundaries and corners will reduce the bass response.
• Surround Speakers: In a 5.1ch system, the side surround speakers should be located 90°-110° off-axis. For the best sense of spaciousness, the tweeter height should be about 2' above ear level. In a 7.1ch system, dedicated rear surround speakers are placed behind the primary seating position for enhanced rear panning effects. Place the rear surround speakers at 135°-150° off-axis, relative to the primary seating position. As with the side surround speakers, position the rear surround tweeters about 2' above head level when seated.

Bookshelf Speaker Dimensions: Width = 8.0625", Height = 13.25", Depth = 10.3125"
