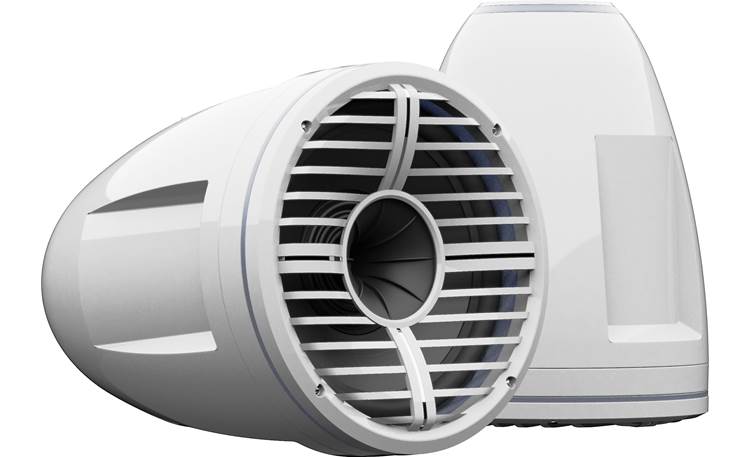

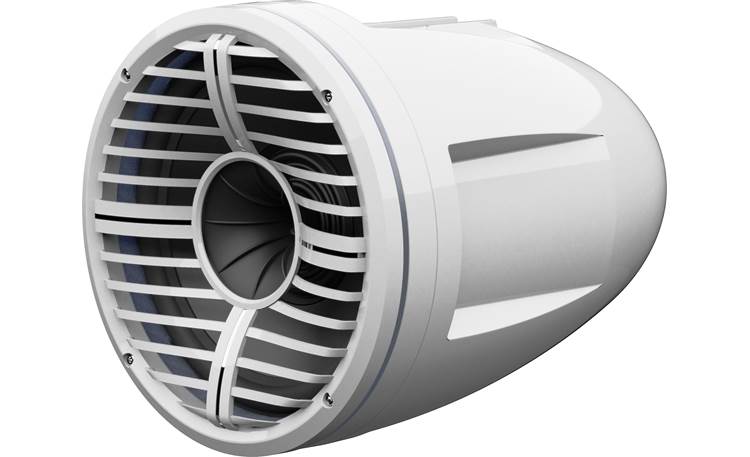

About the Wet Sounds Rev10 HD-W

Product highlights:
- 10" wakeboard tower speakers (pair)
- exclusive REV TEC driver technology for outstanding performance
- 10" Kevlar-reinforced woofers with polyurethane surround
- titanium horn load compression drivers
- reinforced composite enclosures
- power handling: 300 watts RMS (600 peak)
- frequency response: 66Hz - 20kHZ
- speaker sensitivity: 90.9dB @1W/m
- integrated front and rear LED light rings
- three grille styles to choose from
- X-mount adapters or swivel clamps required (sold separately)
- hang weight: 14.33 lbs. each
- warranty: 2 years
- MFR # Rev 10 HD-W
- Item # 700R10HXWW
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
- Two 10" marine tower speakers (white) w/ attached 4" speaker harness and 9" RGB harness
- Two 10" XW-W tower speaker grilles
- Eight 12mm hex-head screws
- Instruction manual
More details on the Wet Sounds Rev10 HD-W

Features & specs
General | ||
---|---|---|
Tweeter Composition | Titanium | |
Woofer Composition | Polymer composite | |
Woofer Surround | Santoprene rubber | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity |
90.9 dB at 1 watt | |
Style | Wakeboard tower | |
Frequency Response | 66Hz-20k | |
Max RMS Power Handling | 300 | |
Peak Power Handling (Watts) | 600 | |
Impedance (Ohms) | 4 |
Product Research
Features
Overview: The Wet Sounds Tower Speaker bundle includes a pair of Wet Sounds REV 10 HD 10" tower speakers and a matching set of Wet Sounds XW-style speaker grilles.REV TEC Technology: The REV 10 HD marine tower speaker uses Wet Sounds' proprietary REV TEC technology. Unlike most conventional designs, REV TEC technology provides remarkable volume and amazing full range sound quality on-axis and off-axis at long distances, even while riding outside the wake and being almost parallel to boat.
Note: The Wet Sounds REV 10 HD marine tower speakers do not incude mounting clamps or mounting hardware, which must be purchased separately.

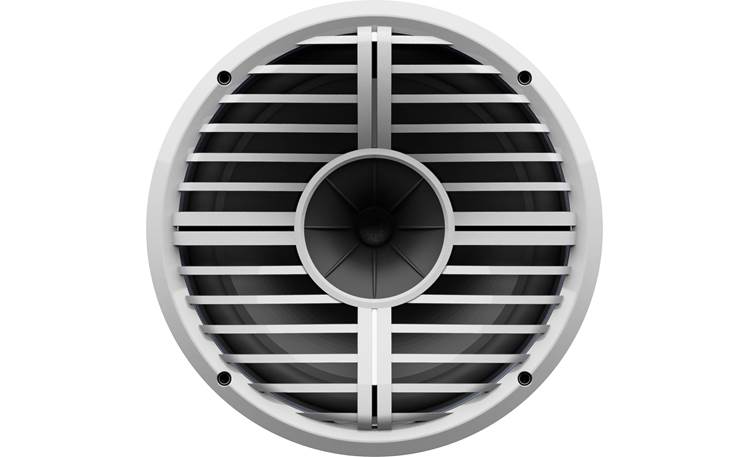

HLCD Driver Design: The REV 10 HD tower speaker utilizes a 10" Advanced Polymer Composite cone woofer, with a Santoprene rubber surround, and a coaxially-mounted 1" horn-loaded compression driver (HLCD) made of titanium for stellar performance in the marine environment. The high frequency transducer is Wet Sounds' proprietary titanium HLCD (horn loaded compression driver). This driver was designed to provide a wide; horizontal trajectory that would not only produce sound in the directed path but will disperse sound off axis with little to no degradation. The HLCD is considered to be one of the most efficient transducer designs providing remarkable output while using less power. Wet Sounds unique (patent protected) design incorporates the HLCD mounted to the rear of the midbass driver. Wet Sounds Pro-Axial design allows the compression sound to travel through the voice coil former and out of the (patent protected) horn flare that is mounted coaxially. This provides phenomenal volume and accurate clarity.
Crossover Network: A full passive crossover network delivers tuned frequencies to the drivers resulting in rich smooth sound.

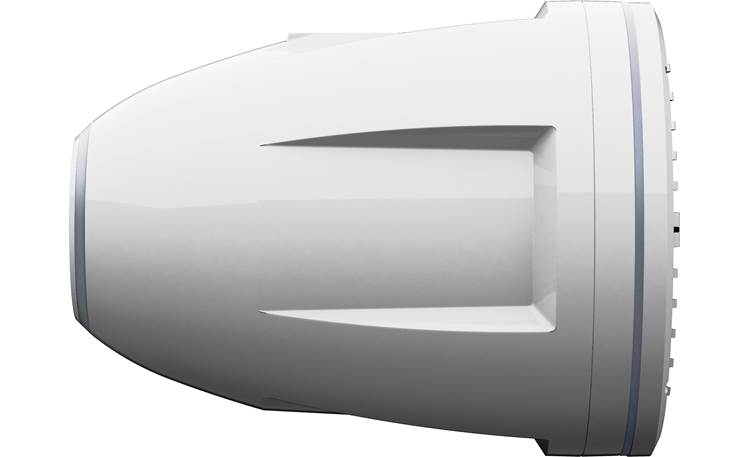

Rugged Marine Enclosure: The REV 10 HD marine tower speakers utilize an advanced composite enclosure that's been specifically designed for the harsh marine environment. The enclosure carries a 1,000-hour ASTM-D4587 UV-resistance rating, as well as ASTM-B117 salt-spray resistance rating.

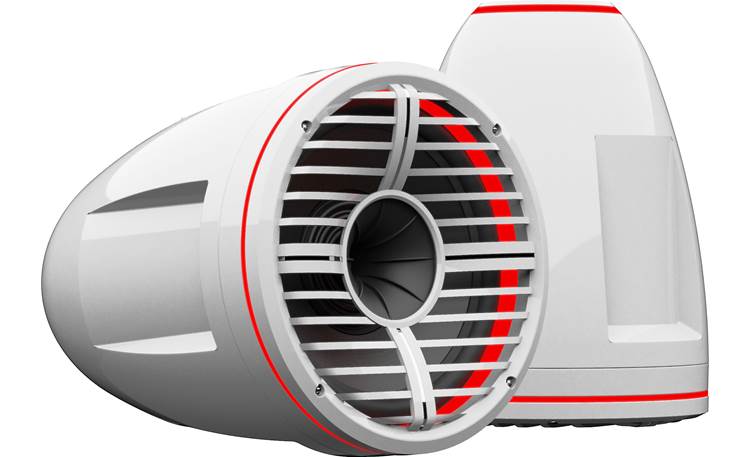

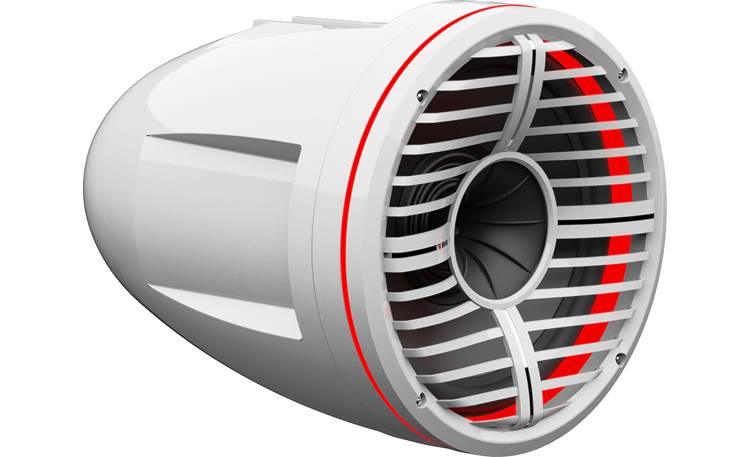

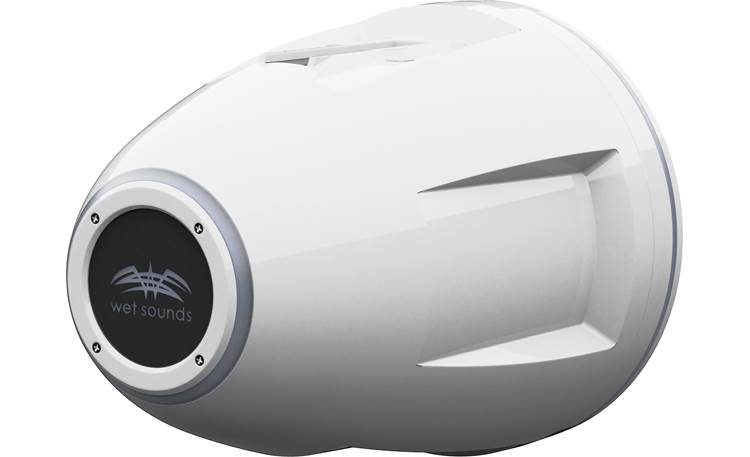

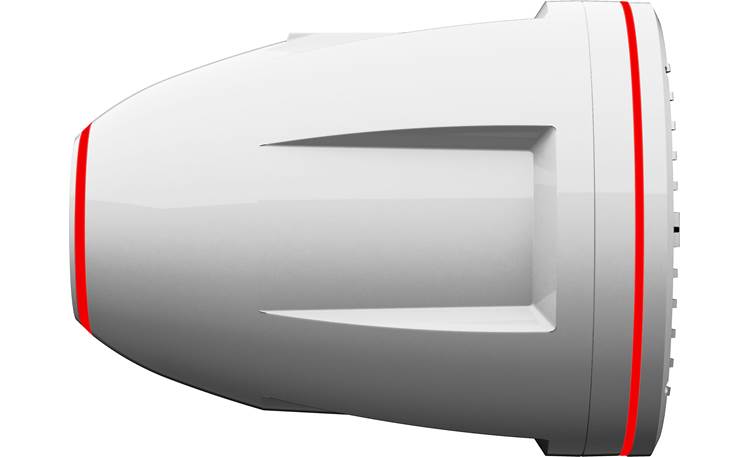

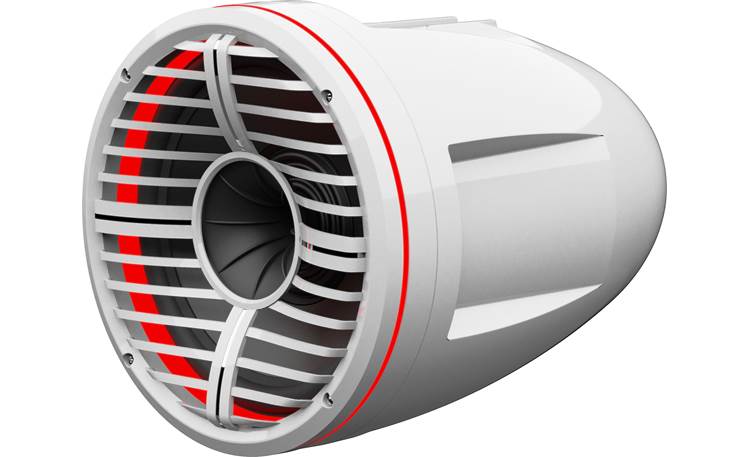

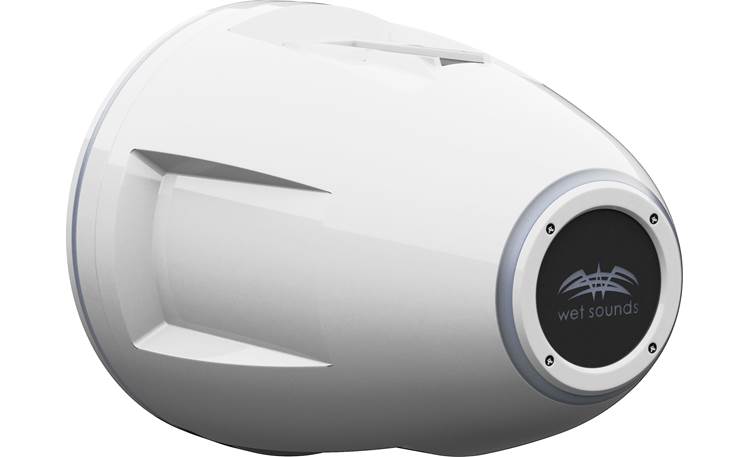

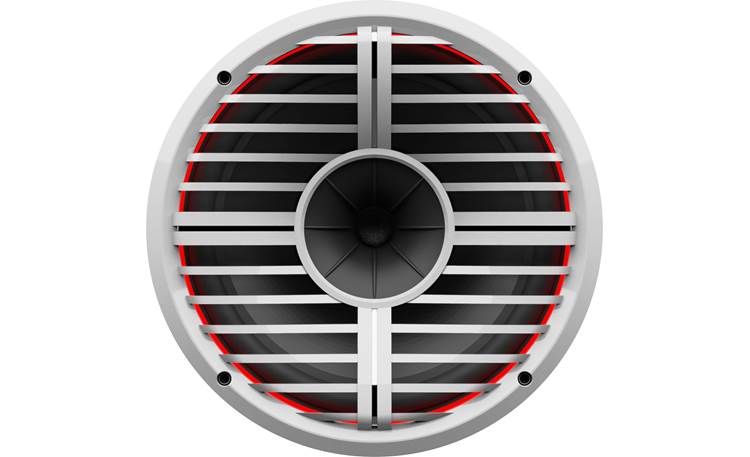

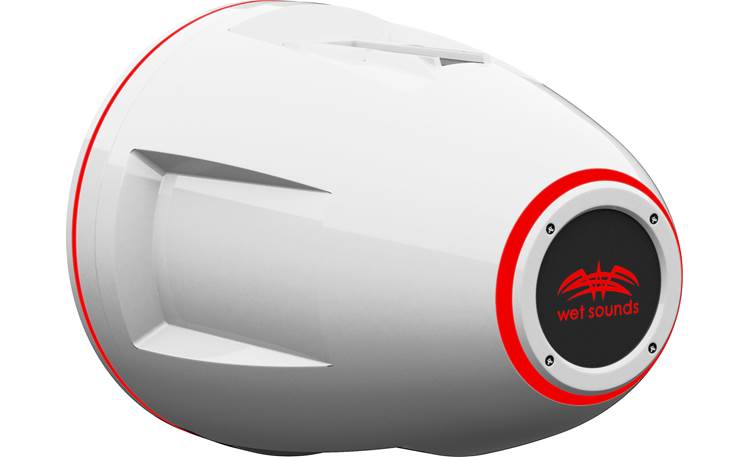

RGB LED Light Rings: The REV 10 HD marine speakers feature integrated light rings around the woofer cone and around the the rear logo badge. A 9" lighting wire harness, terminated in a 4-pin Molex plug, is provided for connection and includes a Black +12V (+) wire along with Red, Green, and Blue Ground (-) wires, letting you choose a static LED color. Available static color options include: Red, Green, Blue, Lime Green, Magenta, Aquamarine, and Blue-White. An optional RGB LED lighting controller (sold separately - please see the Accessories tab) can be used for additional color options.
Speaker Harness: The marine tower speakers feature an attached 4" speaker harness, terminated in a 2-pin Molex plug, containing Red and Black wires for positive and negative connections to your marine amplifier.

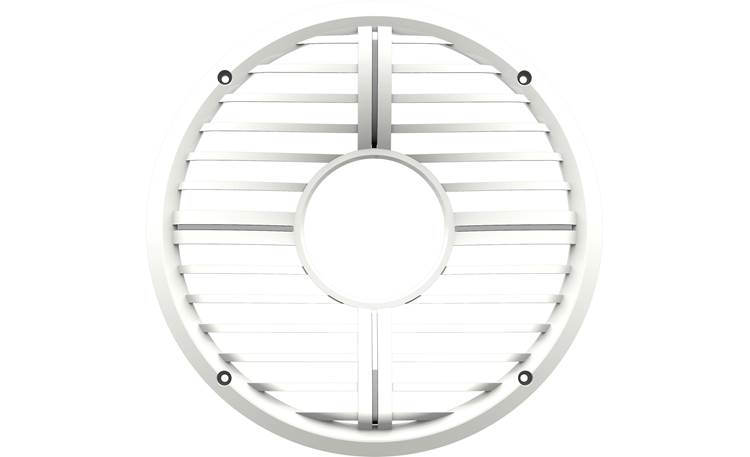

Grilles: The Wet Sounds REV 10 HD marine tower speaker bundle includes a pair of Wet Sounds XW-style speaker grilles.
Optional Mounting Clamps: The Wet Sounds REV 10 HD marine tower speakers do not include mounting clamps or mounting hardware. The marine tower speakers can be installed using Wet Sounds TC3-S clamps (swivel) or X-Mount Adapter kit (both sold separately).
