Coastal Source Bi-amped 2.1 Outdoor System

Features
Sonos Port
SAS300/4-SPR-C1 Amplifier & Enclosure
8.0 2-Way Mini Ellipse Bollard
10.0 Bollard Subwoofer
Coastal Source 25' Extension Cables
Warranty Information

Features

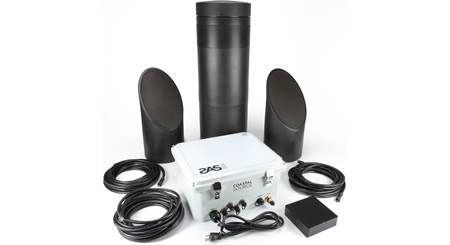

System Overview: This Coastal Source outdoor speaker system includes a Sonos Port zone player, a Coastal Source SAS300/4-SPR-C2 amplifier and outdoor enclosure, two 10.0 2-Way Ellipse Bollard full-range outdoor speakers, a 14.0 Bollard Subwoofer, and three Coastal Source 25' speaker extension cables for a complete landscape sound system.

Sonos Port

Sonos Port: The Sonos Port is a network audio player that can be used to add Sonos capability, with support for wireless multiroom audio streaming from a variety of online music services and AirPlay 2, to your existing home entertainment system that features a free analog or digital audio input. The Sonos Port is outfitted with a stereo analog RCA output and a digital coaxial (RCA) output to connect the network audio player to your existing stereo integrated amplifier, AV receiver, or powered speakers. You can set the stereo analog RCA output to fixed or variable, so you can adjust the volume level from your connected amplifier or the Sonos Port.

Sonos Wireless Multiroom Audio Eco-System: The Port is part of the Sonos wireless multiroom audio eco-system consisting of a family of wireless network speakers, players, and amplifiers. Start with a single Sonos product and add more Sonos products over time. With multiple zones, you can play the same or different songs in different rooms of your home. Compatible distributed audio sources include internet radio, online music services, local network music libraries, as well as hardwired inputs. Up to 32 Sonos devices and 16 groups can be connected in one system. The Sonos Port is compatible with the new Sonos S2 operating system (OS) and the older Sonos S1 operating system (OS).

• Sonos S2 OS Compatible Products: The Sonos Five, One SL, Roam, ARC, Beam (Gen 2), Sub (Gen 3), and any Sonos products released after May 2020 will only be compatible with Sonos S2.
• Sonos S2 and S1 OS Compatible Products: The Sonos Play:1, Play:3, Play:5 (Gen 2), Playbase, Playbar, Connect (Gen 2), Connect:Amp (Gen 2), One (Gen 1/2), Beam, Amp, Port, Boost, Move, and Sub (Gen 1/2) support both Sonos S2 and S1 operating systems.
• Sonos S1 OS Compatible Products: The Sonos CR200 Controller, Zone Player, Bridge, Connect (Gen 1), Connect: Amp (Gen 1), and Play: 5 (Gen 1) will only support the older S1 operating system.

Notes:

• If you have have both, older "legacy" Sonos products and newer Sonos products in your system, you have the option to create two separate eco-systems - one that will be controlled with the older Sonos S1 controller app and the other that will be controlled by the newer Sonos S2 controller app.
• Click here for more information regarding Sonos "Legacy" S1 versus the new Sonos S2 Operating System and App.

Mounting Options: The Sonos Port can simply be placed on top of stable flat mounting surface; such as a shelf, table-top, or piece of AV furniture. It is designed to be mounted horizontally (not vertically). You can fit three Port devices across a standard rack and take up only 1 rack unit of vertical space. There should be at least 2" of space around the Port for adequate ventilation. The Sonos Port does not wall-mount.

AC Power Adapter: The Sonos Port comes with an external AC power adapter that will plug into the back of the network audio player and into an AC power wall outlet or surge protector (sold separately). The external AC power adapter features an attached 6.5' cord.

Two Ways to Connect Wirelessly: In order to enjoy internet radio, online music services, your local network music libraries and Apple AirPlay 2, you'll need to connect the Sonos Port to your home's wireless network router and ISP (internet service provider). Sonos brings your great sounding music wirelessly to any room in your house, without a big wiring project through WiFi or its SonosNet mesh network.

• WiFi Wireless Network: Sonos can also operate over your home's existing WiFi network (802.11 b/g/n/ac; 2.4/5GHz). Because you are connecting wirelessly to your home's existing WiFi network, you do not need to hardwire a Sonos Boost to your router/modem. The Sonos system's wireless range will be dependent on your home's existing WiFi network. Sonos products manufactured after March 2014 are loaded with the proper firmware and ready to go out of the box for WiFi connectivity. All Sonos products manufactured prior to that date will require a wired connection to facilitate a firmware upgrade and hereafter they will be able to work over WiFi.
• SonosNet Wireless Mesh Network: Sonos can utilize its own SonosNet proprietary wireless mesh network technology to provides superior wireless range for whole-house coverage, ensure synchronous music playback, and avoid sources of wireless interference. The transmitting range of the Sonos wireless system is approximately 100', depending upon your home's layout. In addition to the Sonos Port, you will need a Sonos Boost (sold separately) connected to your network router/modem via a Ethernet cable.

Notes:

• You cannot connect the Sonos system via both the SonosNet proprietary mesh network and WiFi; you will need to choose one. Sonos recommends using its proprietary SonosNet wireless mesh network over WiFi when applicable.
• The Sonos proprietary mesh network will provide a more secure wireless connection with fewer interruptions for optimum performance.
• WiFi is subject to greater interference from other WiFi and 2.4GHz or 5GHz devices on your network.

Ethernet Port (10/100 Mbps): In addition to its built-in SonosNet Wireless Mesh Network and WiFi, the Sonos Port is also equipped with one Ethernet port (10/100 Mbps). Use it to wire directly to your router to operate Sonos if WiFi is unstable, or use the Ethernet port to provide Internet accessibility to non-wireless devices if you're using a SonosNET Boost setup.

Internet Radio Stations: Sonos offers a wide variety of Internet Radio stations and services. Some Internet Radio Services require a paid subscription and fees. Click here for all available Internet Radio Services.

• Sonos Radio: Sonos Radio is a free service that brings the best of Sonos and partner services into one place, making it even easier to listen to radio and discover new music on your system. Sonos Radio features thousands of live radio stations to choose from; lisen to music news, sports, and more from over 60,000 local and global stations. You even get a special selection of genre stations with music expertly curated by Sonos.
• iHeartRadio: iHeartRadio delivers all your favorite music and radio in one free service. Thousands of the best live Radio stations from across the country. Custom Stations created from 20 million songs and over 800,000 artists. You tell us an artist you like and iHeart Radio will build a playlist you love. iHeartRadio is free to listen with no capped hours or monthly subscription fees.
• Pandora: Pandora gives you personalized radio that plays what you love and continually evolves with your tastes. Start with the name of an artist, song, genre, or comedian, and create a station. If you are not sure what to listen to, you can browse through our hundreds of curated genre station to find the perfect match for your mood. You can choose between Pandora's free ad-supported account or a Pandora Plus ad-free account with higher 192kbps bit-rate.
• TuneIn: TuneIn gives you access to the world's radio stations, shows and podcasts, all for free. Over 100,000 channels from every corner of the earth, plus live and on-demand radio shows from around the world.
• SiriusXM: With SiriusXM, you can stream up to 155 channels of commercial-free music, play-by-play and sports talk, world class news, comedy, exclusive entertainment, and more. Search to easily find channels, shows, episodes and more. You'll need a SiriusXM subscription that also offers internet streaming.

Online Music Services: Sonos offers a wide variety of online music services. Some online music services require a paid subscription and fees. Click here for all available online music services.

• Apple Music: Apple Music is a subscription-paid streaming service with over 60 million songs ad-free. Easily find your favorite artists, discover new music, listen to curated playlists, and get exclusive artist content and interviews. Follow lyrics while you listen, tap ahead, or sing along with lyrics view. Enjoy at home, in the car, and across all your devices.
• Amazon Music: here are three tiers of access to Amazon Music on Sonos. Amazon Music Unlimited customers can stream tens of millions of songs and listen to curated playlists, stations, and weekly new releases, available to Prime Members for only $7.99/month (non-Prime price: $9.99/month). Amazon Music HD is a new tier of premium quality music with more than 50 million songs in High Definition (HD). At just $12.99/month for Prime members or $14.99/month for Amazon customers, Amazon Music HD makes high quality, lossless audio accessible to all music fans. Existing Amazon Music Unlimited subscribers (Individual or Family Plan) can upgrade to Amazon Music HD for an additional $5/month. Prime Music is a curated, on-demand, ad-free music streaming benefit featuring a growing selection of two million songs, and personalized recommendations at no additional cost with your Amazon Prime Membership.
• Deezer: Deezer is a subscription-paid online music service that offers you over 43 million songs at your fingertips. Stream almost any song you can think of or kick back with an endless selection of playlists, mixes, albums. You'll need a Deezer Premium+ or Deezer HiFi account to use Deezer with Sonos.
• Google Play Music: Google Play Music makes it easy to discover, play, store and share the music you love. With an Unlimited Subscription, you can enjoy unlimited listening to millions of songs, create custom radio and skip as much as you want. Sonos works with both the Free and Unlimited Subscription account types. Free accounts on Sonos only have access to your uploaded Library. You can use Google Radio with a free account by playing from the Google Play Music app to Sonos (Android devices only).
• Napster: Napster is a paid online music service that provides you with a music collection complete with millions of songs, entire albums and artist hits spanning the decades. Enjoy more than 30 million tracks at 320kbps AAC.
• Qobuz: Qobuz is a paid streaming service that gives you access to more than 40 million tracks. Discover new artists and albums with selections and playlists from musical experts. On Sonos you can stream 320kbps MP3 streams through the Qobuz Premium Subscription or experience high-quality FLAC (16-bit /44.1kHz) streaming using the Qobuz Hi-Fi Subscription.
• Spotify: Spotify is an online music service giving users the ability to stream music on demand to Sonos using Spotify's unique technology. Spotify and Sonos will allow access to all of your existing Spotify playlists and their entire catalog. Sonos supports Spotify Free and Spotify Premium accounts. A Spotify Free account allows you to search for Spotify artists, albums, and playlists in the Sonos app. When listening to music with a Spotify Free account, you're limited to six song skips per hour.
• Tidal: Tidal streams music in lossless, high fidelity audio quality, ensuring the best sound experience possible. Discover new and old favorites with news, recommendations, curated playlists, moods and genres. All with High Fidelity Streaming. Create and edit your own playlists with more than 25 million tracks available. Tidal offers two paid streaming platforms - Tidal HiFi (Lossless FLAC 16-bit/44.1kHz) or Tidal Premium (AAC 320kbps).
• YouTube Music: YouTube Music is a subscription-paid online music service allows you to easily find what you're looking for and discover new music. Get playlists and recommendations served to you based on your context, tastes, and what's trending around you.

AirPlay 2 with Siri: AirPlay 2 is an advanced and easy-to-use wireless multiroom audio platform for iTunes, Apple Music, and other compatible Apple iOS apps. With AirPlay 2 you can play any audio from your Apple iOS device (running iOS 11.4 or later) or Mac computer (running OS X 10.13.2) on select Sonos components and other compatible AirPlay 2 speakers throughout your home. You can choose to play audio in one room, play the same audio in grouped rooms, or play the same audio in every room. If you are an Apple Music subscriber, you can even play different music in different rooms (you can control and group directly from Apple's Music App and Home app on your Apple iOS device). You'll be able to ask Siri-enabled devices (like your Apple iPhone, iPad, or Watch) to control playback of your Apple Music content on the Sonos unit. You can even watch videos and movies from YouTube and Netflix on your compatible Apple iOS device or Mac computer with perfectly synced audio on the Sonos product.

• Compatible AirPlay 2 Devices From Sonos: Sonos Arc, One (Gen 1/Gen 2), One SL, Five, Play:5 (Gen 2), Amp, Port, Playbase, and Beam (Gen 1/Gen 2) all support AirPlay 2.
• Non-Compatible AirPlay 2 Devices from Sonos: Even though the Sonos Play:1, Play: 5 (Gen 1)Play:3, Playbar, Connect, Connect:Amp, and ZonePlayer are not AirPlay 2 compatible, you can still group these Sonos devices with an AirPlay 2 compatible Sonos product (listed above) to unlock AirPlay for your entire system.

Music Libraries: Sonos supports playback of music from any computer or network-attached storage (NAS) device on your home network where you have shared music folders. Sonos can play music stored on up to 16 PCs, Macs or NAS (Network Attached Storage) devices on your home network, supporting the most popular audio formats. Sonos indexes your music folders so you can view your music collection by categories (such as artists, albums, composers, genres, or tracks).

• File Formats: Sonos supports the following audio file formats - MP3 (compressed), WMA (compressed), AAC (MPEG4), Ogg Vorbis, Audible (format 4), Apple Lossless, FLAC (lossless), WAV (uncompressed), and AIFF (uncompressed).
• Sampling Frequencies: Supported sampling rates include 16kHz, 22.5kHz, 24.0kHz, 32.0kHz, 44.1kHz, and 48kHz.

Analog Input: The Sonos Port is equipped with a stereo analog RCA input for connecting an external line-level device, such as a CD player. If you want to connect a turntable, you'll need a turntable with a built-in phono preamplifier or an external phono preamp (sold separately - see Accessories Tab). This analog input can be distributed throughout a Sonos multiroom audio eco-system.

Note: The Sonos Port is not outfitted with a digital audio input.

Sonos S2 App: Sonos S2 is a new app (for Apple iOS 11.0+ / Android OS 7.0+ / Mac OSX 10.11+ / Windows 7+) that powers the next generation of Sonos products. The Sonos S2 app offers new features, usability updates, and more personalization moving forward. The updated app makes it even simpler for you to search for content, control the sound, and personalize your listening experience. Use the Sonos S2 app to setup your Sonos speaker system, control your Sonos speaker system, stream your favorite internet radio stations and online music services, access local network music libraries, and personalize your speaker system.

• Setup: The app lets you easily setup the Sonos speaker system. Get step-by-step instructions for setting up a new system and/or adding more speakers to your system.
• Control: With the Sonos S2 app, you can control all your Sonos speakers, soundbars, and components. Adjust volume levels, group products to play in sync, or play something different in every room.
• Music & Radio: The Sonos S2 app brings together hundreds of internet radio stations and online music services. You also get access to local network music libraries on your smartphone, tablet, laptop, or desktop computer. Use the app to browse all your music, podcasts, radio, and audiobooks all in one place.
• Personalized Settings: Save favorites and room groups to My Sonos to get to the music faster, create alarms so you can wake up to a favorite radio station or playlist, filter out explicit content, and more.
• Security: Enhanced protocols, including support for elliptic curve cipher suites in SSL/TLS, keep your system safer and your data more secure.

Notes:

• The Sonos Port is also compatible with the older Sonos S1 Controller app, if you have older Sonos "legacy" gear already in your home.
• Some older Sonos products ("legacy" products) will not support the advances of the S2 app due to their memory and processing power. If you own any of these products, you can continue to use your system as you do today. See System Requirements for more details.

Optional Voice Control: You can control your Sonos system through any Alexa or Google Assistant enabled device (including the Sonos One, Sonos Beam, Amazon Echo, and Google Home - all sold separately). Specific control functions will vary by digital voice assistant.

• Amazon Alexa: You can ask Alexa to play music on a specific Sonos device in a specific room of your home from these featured music services (Apple Music, Amazon Music, TuneIn, Pandora, iHeartRadio, SiriusXM, & Spotify). Using the Alexa app, you can group your Sonos products and your Alexa-enabled devices together. This makes it easier for Alexa to control your Sonos products based on which room or area they are in. You can pause, resume, and skip songs, as well as change the volume with all Sonos compatible online music services. Click here for more information regarding Amazon Alexa on Sonos.
• Google Assistant: You can ask Google to play music on a specific Sonos device in an specific room of your home from these featured music services (Google Play, Spotify, YouTube Music, Pandora, Deezer, Tidal, TuneIn, and iHeartRadio). You can pause, resume, and skip songs, as well as change the volume with all Sonos compatible online music services. Click here for more information regarding Google Assistant on Sonos.

Notes:

• The Sonos Five does not have a built-in microphone for voice control. A separate Alexa or Google Assistant enabled device is required and sold separately for voice control.
• You can only configure your Sonos system to work with one digital voice assistant; choose either Alexa or Google Assistant (you cannot use both). You will need to search and enable the Sonos skill from the Alexa or Google Home app on your mobile device or computer. Your Sonos equipment and Amazon Alexa-enabled devices must be on the same wireless network.
• Sonos and Alexa or Google Assistant work together using a single Amazon or Google account. If you have a second Sonos system in another location, you'll need to use a second Amazon or Google account if you'd like to use Alexa. An Amazon or Google account can only be in use on one Sonos system at a time.

12V Trigger Out: The Sonos Port is outfitted with a 12V trigger output that consists of a 3.5mm jack. This 12V trigger output automatically turns on your connected amplifier to more reliably initiate playback.

Automatic Updates: The Sonos Port supports free automatic software updates so you will always have the newest features and music services to enjoy. Simply register the One and Sonos will automatically notify you when software updates are available through the Sonos Controller app. By simply pressing one button your system updates itself. The Sonos Port must be connected to your home network and the internet for automatic software updates.

Internet Service Provider: You'll need a high-speed, wired internet service provider connection such as cable, fiber, or DSL. Wireless internet connections such as satellite, mobile hotspots, or 4G LTE routers can experience delays between the internet connection and Sonos and are not supported. Using these types of connections can cause music to not play, skip, or cut out completely.

Wireless Setup: All Sonos products support 2.4GHz WiFi (802.11 b/g) and Open, WEP, and WPA/WPA2 Personal WiFi security standards. Some newer Sonos products support dual-band 2.4/5GHz WiFi (802.11 b/g/n/ac) and WPA3.

• The network must not contain enterprise access points that have been configured to require certificates or other forms of enterprise authentication. If you are using multiple access points, make sure they are all set to the same 2.4GHz or 5GHz wireless channel.
• Networks using wireless range extenders are known to cause issues with Sonos systems that are configured in a wireless setup. If you need to extend your home WiFi to use Sonos in a wireless setup, we recommend using a WiFi mesh router to do so.
• Sonos cannot connect to guest networks or networks that use a Port page to login.

Wired Setup Requirements: A Sonos system operating in a wired setup will require one of your Sonos products to remain connected to the router via Ethernet cable at all times. If your Sonos system is in a wired setup and you use a WiFi mesh router with multiple wireless nodes, we recommend wiring your Sonos product directly to the primary wired mesh node. Avoid wiring any Sonos products to the wireless mesh nodes. If you are on a corporate or advanced network, it must not block Spanning Tree Protocol (STP).

Note: Ethernet over Power devices (also known as HomePlugs or Powerline adaptors) are not supported by Sonos. While they may work for some systems, they tend to cause intermittent problems with Sonos. EoP adapters create an added delay between your network and Sonos. If the internet connection is too slow or the delay is too great, it can cause your music to skip or cut out completely or your players to drop off from the network.

Sonos S1 or S2 Controller App: Sonos offers a Sonos Controller app for Apple iOS 11.0+, Android OS 7.0+, Mac OSX 10.11+, and Windows 7+. The Sonos S2 is a new app and operating system (OS) that powers the next generation of products and experiences. In addition to new features, usability updates, and more personalization moving forward, Sonos S2 enables higher resolution audio technologies for music and home theater. Most Sonos products are compatible with S2. Some older Sonos "legacy" products will not support the advances of S2 due to their memory and processing power. The older Sonos "legacy" app is referred to as the Sonos S1 app.

• Sonos Products That Support the Sonos S1 and S2 Controller App: Play:1, Play:3, Play:5 (Gen 2), Playbase, Playbar, Connect (Gen 2), Connect:Amp (Gen 2), One (Gen 1/2), Beam, Amp, Port, Boost, Move, Sub (Gen 1/2).
• Sonos Products That Only Support The New S2 Controller App: Five, One SL, Roam, ARC, Sub (Gen 3), and any Sonos products released after May 2020.
• Sonos Products That Only Support The Old S1 Controller App: CR200 Controller, Zone Player, Bridge, Connect (Gen 1), Connect: Amp (Gen 1), Play: 5 (Gen 1).

Notes:

• If you have have both, older "legacy" Sonos products and newer Sonos products, you have the option to create two separate eco-systems - one that will be controlled with the older Sonos S1 controller app and the other that will be controlled by the newer Sonos S2 controller app.
• Click here for more information regarding Sonos "Legacy" S1 versus the new Sonos S2 Operating System and App.

Supported Audio Files: Supported audio files from online music services and local music libraries include MP3, WMA, AAC, OGG, FLAC, ALAC, AIFF, and WAV. Sonos can supports FLAC music files up to 16-bit/44.1kHz for "CD-quality" sound. All supported sample rates include 16kHz, 22.5kHz, 24.0kHz, 32.0kHz, 44.1kHz, and 48kHz. Internet Radio streams are supported only in WMA, MP3, and AAC.

Dimensions: Width = 5.50", Height = 1.625", Depth = 6.25"

SAS300/4-SPR-C1 Amplifier & Enclosure

Overview: The Coastal Source SAS300/4 (C1) is a fully DSP-enabled outdoor amplifier that can provide up to 75W x 4 (300W total). Designed for outdoor use, the SAS300/4 (C1) comes pre-installed inside a water-tight, polycarbonate and stainless steel enclosure. Mounting brackets are provided for wall-mounting the amplifier enclosure. The SAS300/4 (C1) carries an IP68 weatherproof rating for outdoor use, but must be mounted in a shady area away from direct sunlight.

Note: The SAS300/4 (C1) amplifier's DSP comes pre-configured for use with the included Coastal Source B10SW8BN 8" 10.0 Bollard landscape subwoofer and the EB82W6.5BN 8.0 2-way Mini Ellipse Bollard landscape speakers.

Sonos Port: The Coastal Source SAS300/4 (C1) is pre-configured for use with the included Sonos Port network audio player. The SAS300/4 (C1) amplifier and enclosure include pre-attached connections for plugging your Sonos Port into the amplifier and into the enclosure. The amplifier mounting plate also includes a bracket for mounting a Sonos Port inside the amplifier's enclosure. An internal DC power plug is provided for powering a Sonos Port from the main AC power input.

Note: The enclosure's Line In and Ethernet connections do not come pre-connected to the input of the amplifier. When a Sonos Port is installed, it gets connected to both sets of cables, providing a pass-thru connection from the enclosure ports to the amplifier.

Enclosure Inputs & Outputs: All connections to the SAS300/4 (C1) enclosure feature watertight connectors designed for outdoor use.

• Ethernet: An RJ-45 input connection on the amplifier enclosure gets internally connected to the Ethernet Input on a Sonos Port module. A corresponding RJ-45 cable on the amplifier attaches to the Ethernet Output on the Sonos Port.
• Line In: A 5P connector on the enclosure terminates in a pair of RCA plugs for connecting to the Line In on a Sonos Port, while a second set of RCA cables from the amp get connected to the Sonos Port Line Out jacks.
• Speaker Outputs (1-4): Four 2-pin Coastal Connect (CC) ports provide the speaker output connections. The enclosure speaker outputs are per-connected to the amplifier's output.
• AC Power: An attached 80" (6.7') AC power cord is internally connected to the amplifier and includes an additional DC connector for powering a Sonos Port module. The SAS300/4 (C1) amplifier operates on 100-240VAC @ 50/60Hz.

Note: The Line In and Ethernet inputs have no connection to the amplifier until a Sonos Port is installed.

Dimensions: Width = 15.24", Height = 7.22", Depth = 16.0" (including cables)

8.0 2-Way Mini Ellipse Bollard

Speaker Overview: The Coastal Source 8.0 2-Way Mini Ellipse Bollard (EB82W6.5BN) is a full-range speaker designed for in-ground and above-ground installations where directional sound is desired with a simplistic contemporary style.

Construction: The 8.0 Mini Ellipse Bollard 2-way speaker features a 6.5" woofer and a 1" Titanium dome tweeter with an articulating mount that lets you aim the tweeter for optimum performance. Both drivers are housed in a durable fiberglass enclosure designed for outdoor use. The Mini Ellipse Bollard can provide a wide 120˚ of sound dispersion that can cover between 50 and 150 sq. ft. of listening area.

Power & Connections: The 8.0 Mini Ellipse Bollard features a pair of male CC (Coastal Connector) input connectors for connection to an amplifier. The included Coastal Connection cables feature threaded connector-ends designed to provide a watertight connection that's rated for direct-burial. The Mini Ellipse Bollard can handle 25W-100W (maximum).

Installation: The 8.0 Mini Ellipse Bollard speaker can be either landscape or hardscape installed. For landscape installations, the speaker can be installed in-ground with the woofer and mid/tweeter grilles exposed. Optional Landscape Stakes and a Theft Guard (both sold separately) can be used to mount the speaker above-ground while maintaining a stable installation. The 8.0 Mini Ellipse Bollard can also be hardscape mounted to flat surfaces. Optional Isolation Spikes (sold separately) allow the speaker to safely sit on a hard surface, while a Hardscape Mount bracket (sold separately) allows the speaker to sit inside a recessed mounting area of a flat surface.

Dimensions: Diameter = 8.0", Height = 17.65"

10.0 Bollard Subwoofer

Subwoofer Overview: The Coastal Source 10.0 Bollard Subwoofer (B10SW8BN) is designed for in-ground and above-ground installations and features a sleek design that can be easily hidden within a landscape, yet looks great when installed out in the open.

Construction: The 10.0 Bollard features an 8" subwoofer driver that offers higher performance and efficiency than conventional outdoor speakers. The subwoofer driver is housed in a durable roto-molded composite enclosure designed for outdoor use. The Bollard subwoofer can provide 360˚ of sound dispersion that can cover 100-400 sq. ft. of listening area.

Power & Connections: The 10.0 Bollard features a pair of male CC (Coastal Connector) input connectors for connection to an amplifier. The Ellipse Bollard subwoofer can handle between 100W (minimum) and 300W (maximum). The subwoofer also includes an additional set of inputs on the bottom of the chassis, letting you mount and connect an optional Coastal Source 10.0 Bollard Satellite (sold separately) onto the top of the subwoofer. The two sets of input signals should be crossed over at 120Hz before connecting to the speakers - 120Hz and up going to the Satellite and 120Hz and down going to the Subwoofer. The included Coastal Connection cables feature threaded connector-ends designed to provide a watertight connection that's rated for direct-burial.

Installation: The 10.0 Bollard subwoofer can be either landscape or hardscape installed. For landscape installations, the speaker can be installed in-ground with the woofer grille exposed. Optional Landscape Stakes and a Theft Guard (both sold separately) can be used to mount the speaker above-ground while maintaining a stable installation. The 10.0 Bollard subwoofer can also be hardscape mounted to flat surfaces. Optional Isolation Spikes (sold separately) allow the speaker to safely sit on a hard surface, while a Hardscape Mount bracket (sold separately) allows the speaker to sit inside a recessed mounting area of a flat surface.

Dimensions: Diameter = 10.0", Height = 30.0"

Coastal Source 25' Extension Cables

Cable Overview: The included Coastal Source Coastal Connect Extension Cables are durable, marine-grade outdoor cables designed for speaker audio as well as low-voltage lighting. The 25' cables feature 2-conductors of 12 AWG wire, each with a high strand-count for better conductivity. Each 12 AWG conductor is marine-tinned and protected by a durable PVC jacket. The pair of conductors has an additional thick outer jacket for added protection and all-weather durability. The Coastal Connect cable is terminated in male/female Coastal Connect plugs that feature gold-plated pins and threaded connectors for IP67 waterproof integrity. Additional available lengths include: 5', 10', 50', and 100' (all sold separately). Coastal Source Coastal Connect Extension Cables are designed for direct burial applications.

Warranty Information

• Sonos Port: 1 Year Parts & Labor
• Coastal Source SAS300/4-SPR-C1 Amp/Enclosure: 2 Years Parts & Labor
• Coastal Source EB82W6.5BN Speakers: 5 years Parts & Labor
• Coastal Source B10SW8BN Subwoofer: 5 Years Parts & Labor
• Coastal Source C2512/2BK Extension Cables: 5 Years Parts & Labor
