Name: Boyo VTL17LTJ
Brand: Boyo
SKU: 707VT17LTJ
Price: 49.99 USD
Availability: InStock
Rating: 4.5 (279 reviews)

by Crutchfield's Alexander H.

Active parking lines and LED lights

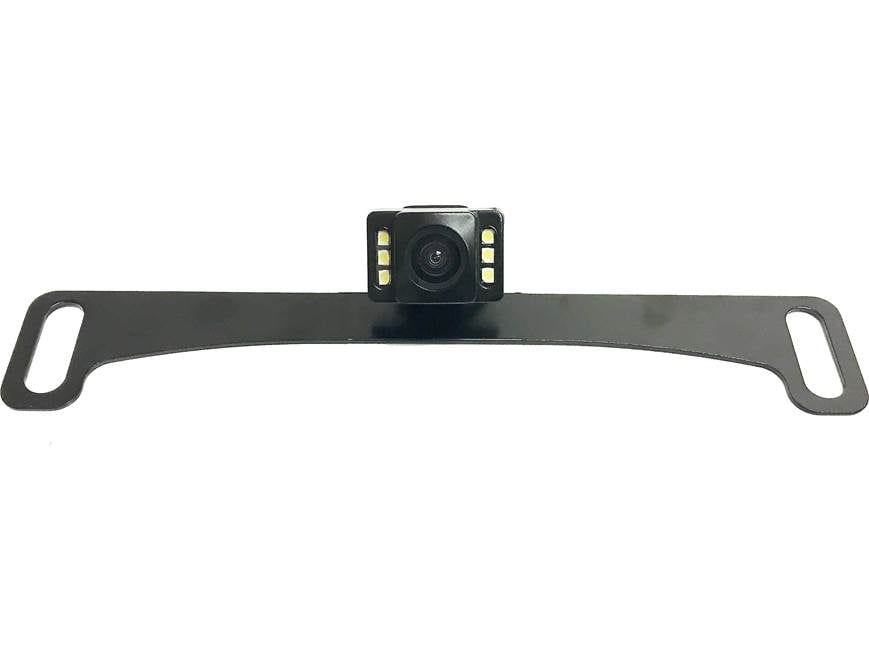

Parking lots can get crazy. But Boyo's VTL17LTJ all-weather backup cam will guide you with active parking lines that help you into your space. Boyo makes installation more straightforward by mounting this cam onto a sturdy strap that stealthily attaches behind any license plate.

KEEP READING

Active parking lines and LED lights

Nice view

Once you power the camera and run the included video cable to the compatible aftermarket monitor or receiver in your dash, you'll see a 170º wide-angle view when you're backing up your vehicle. Boyo builds in powerful LED lights to ensure a detailed picture when you're driving at night or in a parking garage, while selectable reverse image and parking lines also make this a perfect choice if you want a front camera.

Installing this camera yourself? Here's what you should know.

What does it do? Unless otherwise noted, a backup camera is only intended for use backing up your vehicle. (If you require a front-view or constant rear-view camera, check for that capability.)

What tools and supplies will I need? A panel tool, a wire cutter/stripper, a soldering iron, and a rosin-core solder with heat shrink tubing are recommended, along with whatever tools are needed to remove the radio from the dash.

How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.

Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the dash. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the dash, which will not be a straight shot. Each camera's cable length is listed.

READ LESS

Product highlights:

waterproof backup camera and bar-style mount
features LED lights and active parking lines
compatible with any radio with an RCA video input (most aftermarket models, only a few factory)
170-degree wide angle
selectable reverse image and parking lines
works in low light
resolution: 600 TV lines (720 x 480)
22' RCA extension cable
warranty: 1 year
MFR # VTL17LTJ

What's in the box:

Boyo VTL17LTJ owner's manual

Backup camera w/ license-plate bracket (attached 4.5' cable)
20.5' Extension cable
RCA male-to-male coupler
Surface-mount bracket
2 Self-tapping screws
2 Machine screws
Two-sided tape
User Manual
Warranty Card
Product Registration Card

Featured review

Great image and worked perfectly. Installation wasn't too tough. I took my time and powered IR and Camera from Reverse taillight. Used trigger wire with video end to head unit to trigger camera view. Only thing, is the moving lines concept does not work well, it was distracting.

Joshua from STOW, OH

See all 279 reviews

Customer Q&A

Would this work with a Pioneer avh 2550nex?

Greetings Steven, and thank you for your question. Any aftermarket stereo that has a camera input can use this camera including your AVH-2550NEX.

Loading reviews...

Average review:

279 reviews

Thanks for submitting your review

Most reviews are processed and published within 5 business days. You will receive a confirmation email once your review has been published.

Filter by rating

filterStar

Customer photos

Customer provided image, click to load a larger version.

Verified customer

Verified employee review

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Have questions for

Crutchfield response

Was this helpful?

<< >>

Researched by Crutchfield's Russ B.

Features & specs

Features and Specs
Camera Type	Rear or Front
Resolution	720 x 480
Parking Guidelines	Active
Lux Rating	0
Selectable Views	N
Reversed Image	Both
Horizontal Viewing Angle	---
Vertical Viewing Angle	---
Wireless	No
Plug type	Composite

The Boyo VTL17LTJ replaces these items:

Product Research

Features

Front or Backup Camera: The Boyo VTL17LTJ can be used as a backup camera with a mirror image or front camera with a normal image. To use as a front camera, cut the small White loop wire to get normal viewing image (make sure to tape both ends of wire when cut).

Note: The Boyo VTL17LTJ is meant as a driving aid only; never solely rely on the camera. In addition to using the camera, always look around you to make sure everything is clear.

CMOS Image Sensor w/ LED Lights: The Boyo VTL17LTJ backup camera is equipped with a CMOS image sensor with a 720 (h) x 480 (v) resolution for high quality video. Integrated LEDs on either side of the camera provide excellent visibility at night.

Wide Viewing Angle + Angle Adjustment: The VTL17LTJ backup camera offers a 170° wide viewing angle (diagonal), so you can see more of what's behind you. You can also physically angle the camera's mounting bracket up or down (between 30°-40°) for the best view behind your vehicle.

Dynamic Park Assist Lines: The Boyo VTL17LTJ will display park assist lines on your connected monitor to aid you in backing up into a parking spot. A built-in gyro-sensor allows the park assist lines to dynamically curve as you steer and angle your vehicle.

Note: The dynamic park assist lines can be turned on or off. To disable the dynamic park assist lines, you must cut the small Blue loop wire (make sure to tape both ends of wire when cut).

Waterproof (IP67): The Boyo VTL17LTJ features a waterproof (IP67) housing to protect it from the elements. It's totally protected against dust and protected against the effect of immersion between 15cm and 1m for the duration of 30 minutes.

Composite Video Output: The Boyo VTL17LTJ backup camera if fitted with a composite video connector (RCA) which makes it compatible with virtually any in-dash receiver with integrated video monitor and a composite video camera input. The total length of the camera's video cable is 25', while the total length of the power/ground cable is 9'.

Mounting Options: The Boyo VTL17LTJ backup camera features an integrated license plate bracket which mounts behind your vehicle's license plate frame (mounting hardware is included). A surface-mount bracket is also included, if prefer to not use the license plate mounting bracket.

The Boyo VTL17LTJ is designed to work best on vehicles that have a license plate located at the center and above the bumper. If your vehicle has a plate location that is offset to the left side, right side or your plate is located under the bumper then the VTL17LTJ may not provide optimum performance.
The backup camera must be mounted at a 30° to 40° angle for proper sensitivity, accuracy, and performance. It should not be mounted horizontally or vertically straight.
