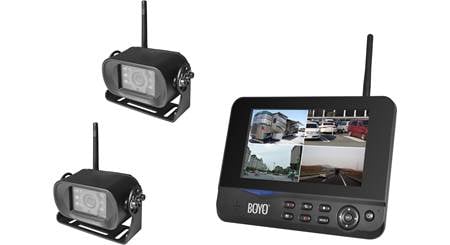

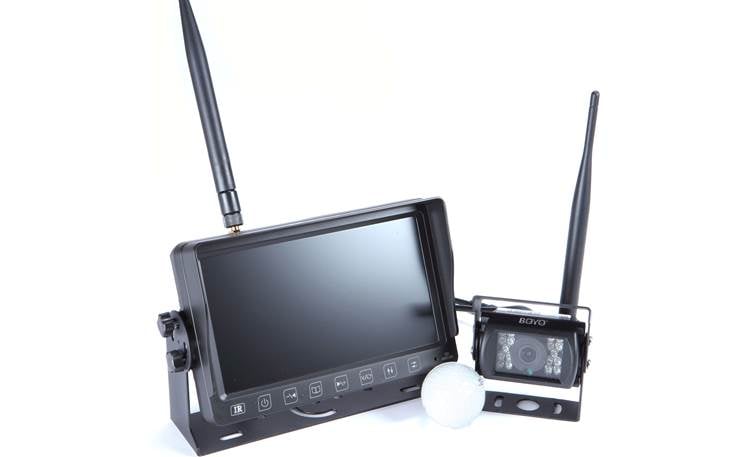

Boyo VTC703AHD-Q2 7" monitor recording capability plus two wireless heavy-duty cameras

Item # 707VTC7032

Boyo's wireless dual-cam system takes the pain out of reversing, and it's easier to install than wired counterparts.

Find what Fits your vehicle

Remove

Checking fit...

Boyo's wireless dual-cam system takes the pain out of reversing, and it's easier to install than wired counterparts.

California customers:
Please click here for your Proposition 65 warning.

1 question - 1 answer

Item # 707VTC7032

Ships free today

In stock
$369.99

About the Boyo VTC703AHD-Q2

Alexander H.

Wireless viewing and recording system

Backing up an RV or trailer can be stressful. Boyo's VTC703AHD-Q2 wireless dual-camera system takes the pain out of reversing cumbersome rigs, and it's easier to install than wired counterparts. You'll still have to wire each component for power, but a 300-foot wireless video transmission range eliminates the need for lengthy wiring runs and gives plenty of leeway for placing the two rugged, night vision-enhanced cameras. Plus, the included 7" monitor lets you record video from your cameras.

Wireless viewing and recording system

Backing up an RV or trailer can be stressful. Boyo's VTC703AHD-Q2 wireless dual-camera system takes the pain out of reversing cumbersome rigs, and it's easier to install than wired counterparts. You'll still have to wire each component for power, but a 300-foot wireless video transmission range eliminates the need for lengthy wiring runs and gives plenty of leeway for placing the two rugged, night vision-enhanced cameras. Plus, the included 7" monitor lets you record video from your cameras.

Sturdy display

The 7" monitor for the VTC703AHD-Q2 video system mounts on just about any dash — then just plug the power cable into your vehicle's 12-volt power plug. Boyo gives you video recording capability with on-demand and timed control, so you can capture key moments from every video feed. The system saves all video to a microSD card (not included) with storage up to 128GB. You'll find the microSD slot built into the monitor. While two cameras are included in this system, up to four compatible cameras can be incorporated. Choose from single, double, triple, and four-way monitoring on the display.

Two cams included

With two cameras, you can monitor more as you move, and built-in trigger wire capability lets you use one as a backup cam. Each camera includes a built-in microphone that transmits audio to the monitor's built-in speaker, so you can have someone speak directions from outside your rig when you need to get in and out of tight spots.

Note: You'll have to wire power and ground connections to the monitor and cameras.

READ LESS

Product highlights:

  • wireless system with two cameras and 7" recording-capable monitor
  • includes a dash-mount stand, antennas, video and power cables, and installation parts
  • transmission distance up to 300'
  • resistant to wireless interference
  • ideal for large trucks and vans
Camera Specifications:
  • built-in microphone
  • CMOS image sensor with color video output
  • 110° horizontal viewing angles
  • resolution: 1920 x 1080
  • reverse image selectable
  • infrared illumination up to 12'
  • wired DC 12V/24V power required
  • IP68 waterproof rating
Monitor Specifications:
  • built-in speakers
  • selectable parking lines
  • resolution: 1024 x 600
  • 7" color TFT LCD monitor
  • manual and timer recording
  • accepts up to 4 cameras
  • monitor displays up to 4 views at once
  • video saves to microSD cards up to 128GB (not included)
  • wired DC 12V/24V power required (12-volt vehicle adapter included)
  • warranty: 1 year
  • MFR # VTC703AHD-Q2

What's in the box:

  • 7" Wireless monitor w/ attached 16" DC power input cable
  • 2 Wireless cameras w/ pre-mounted bracket and attached 17" DC input cable
  • Monitor bracket
  • 4 Threaded mounting knobs
  • Three 6.5" antennas
  • Lighter adapter w/ 57" DC cable (installed 5A AGU fuse)
  • Three 3' DC hardwire adapters w/ inline 2A ATO fuse (DC plug on one end / bare-ended power/ground wires on other end)
  • User manual
  • Product registration
  • Warranty information

Customer reviews for Boyo VTC703AHD-Q2

Loading reviews...

Average review:

5.0 out of 5 stars
1 review

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Boyo VTC703AHD-Q2

Russ B.

Features & specs

Features and Specs
Camera Type Multi-view
Resolution 1920x1080
Parking Guidelines Selectable
Lux Rating Not given
Selectable Views Camera selection
Reversed Image Both
Horizontal Viewing Angle 110 Degrees
Vertical Viewing Angle 85 Degrees
Wireless Yes
Plug type N/A
The Boyo VTC703AHD-Q2 replaces these items:

Product Research

Features

Overview: The Boyo VTC703AHD-Q2 wireless camera system features a dash mounted 7" color IPS, TFT LCD monitor and 2 heavy-duty wireless cameras, designed for installation in trucks, vans, SUVs, and larger vehicles. Both of the included cameras can be configured as a backup camera, front-facing, side-facing, or for monitoring a truck bed or trailer contents. The wireless camera system operates on a 2.4GHz signal with a transmitting range of up to 300' (maximum).

Cameras: The VTC703AHD-Q2 camera kit includes 2 cameras with pre-installed, adjustable mounting brackets that allows them to be installed on top of a flat surface at the front, side, or rear of the vehicle. Each camera features a CMOS image sensor with a 110˚(h) and 85°(v) viewing angle with 1920(h) x 1080(v) resolution.

  • Night Vision: Built-in Infrared LEDs can provide night vision up to approximately 12' behind the vehicle.
  • Weatherproof: The Boyo cameras carry an IP68 waterproof rating, making them impervious to weather.
  • Pairing: Both cameras come pre-paired to the monitor, but may need to be re-paired. Pairing is done by selecting Pairing in the setup menu, which starts a countdown, and plugging/unplugging the camera power cable a couple of times. When pairing is successful, the camera image will be displayed on the monitor.

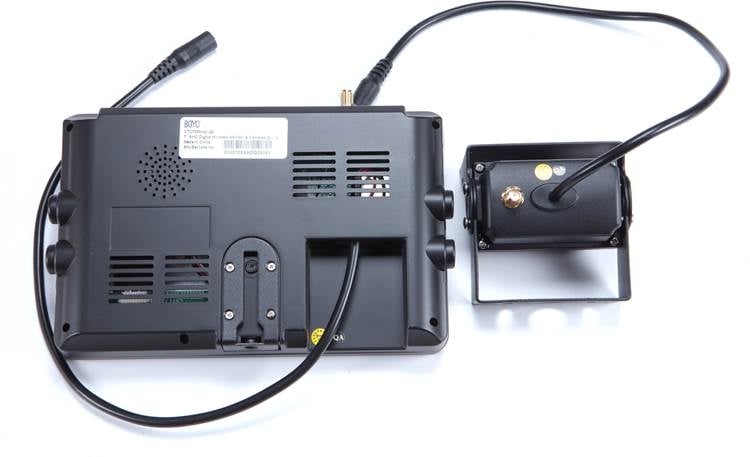

Monitor: The 7" color TFT LCD wireless monitor features a 16:9 display with a resolution of 1024(h) x 600(v). The monitor includes an adjustable mounting bracket, allowing it to be installed on a dash or console. Camera images can be set to display Normal, Mirror, Flip, and Mirror-Flip.

  • Display Modes: The included monitor lets you display one or more camera images:
    • One Picture: Uses the full screen to display one camera's image.
    • Split Screen: Two camera images can be viewed side-by-side, with various combinations available when using optional additional cameras (e.g. cameras 1&2, 2&4, 1&3, etc.).
    • Four Camera Images: Displays up to 4 camera images onscreen simultaneously (additional wireless cameras sold separately). Selections include Quad and H-Split viewing.
  • Recording: The VTC703AHD-Q2 lets you record camera images to an SD memory card (sold separately). SD cards (Class 10 or higher) up to 128GB are supported. Recording can be set overwrite the oldest content, when the SD card is full, or set to stop recording. Recorded video can be played back on the monitor.

    Note: Recording is only possible with an SD card inserted into the monitor, which is sold separately.

Wiring: The VTC703AHD-Q2 monitor and cameras require power and ground for operation.

  • Camera: Each of the included cameras features a built-in 17" DC cable and includes a 3' DC-to-bare wire adapter for connecting it into the vehicle's electrical system.
  • Monitor: The Boyo monitor can be powered from a lighter or auxiliary power socket using the included 57" lighter adapter. An additional 3' DC-to-bare wire harness lets you tie into the vehicle's electrical system for power and ground.

Wireless Video: The VTC703AHD-Q2 operates on a 2.4GHz wireless transmission between the cameras and the monitor, eliminating the need for running long video cables. 6.5" adjustable antennas are provided for both the monitor and the cameras.

Mounting: Hardware for mounting both the cameras and the monitor are included. Each camera features an adjustable mounting bracket, allowing it to tilt up and down. A monitor bracket allows the monitor to be mounted on a dash or console, and can be tilted up/down for optimum viewing.

Specifications:

  • Camera:
    • Image Sensor: CMOS
    • Resolution: 1920(h) x 1080(v) pixels
    • Viewing Angle: 110° Horizontal, 85˚ Vertical, 140˚ Diagonal
    • Waterproof Level: IP68
    • IR Night Vision Distance: Approximately 12'
    • Operating Voltage: 9V - 32V DC
    • Operating Frequency Range: 2.4GHz - 2.4835GHz
    • Wireless Transmission Range: Approximately 300'
  • Monitor:
    • Display: 7" IPS TFT LCD
    • Resolution: 1024(h) x 600(v)
    • Display Format: 16:9
    • Operating Voltage: 9V - 32V DC
    • Operating Frequency Range: 2.4GHz - 2.4835GHz

Loading accessories...

Customer Q&A

1 question already asked

Q
Is the monitor waterproof? We use these on our fire trucks to record and watch our portable water tanks while drafting operations.
matt  Feb 17, 2022
1 answer
A
The monitor is not waterproof; only the cameras are waterproof with an IP68 rating. At the time of this reply, we do not offer a version of this which has a waterproof monitor. This may change in the future and I recommend contacting an advisor by calling 1-800-324-9695 to check.
jason  Feb 20, 2022 (Staff)
