Boyo VTCRH2 Rear-view video system for trailers and RVs with 5" monitor and two wireless cameras

Name: Boyo VTCRH2
Brand: Boyo
SKU: 707VTCRH2
Price: 299.99 USD
Availability: InStock
Rating: 4.5 (3 reviews)

Item # 707VTCRH2

Boyo's VTCRH2 system includes two wireless cameras with magnetic mounts, rechargeable batteries, and a 700' range.

Place these wireless cams with magnetic mounts wherever you need them

1/6

2/6

Only at Crutchfield

3/6

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Boyo VTCRH2 Place these wireless cams with magnetic mounts wherever you need them

Boyo's VTCRH2 system includes two wireless cameras with magnetic mounts, rechargeable batteries, and a 700' range.

Item # 707VTCRH2

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$299.99

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Alexander H.

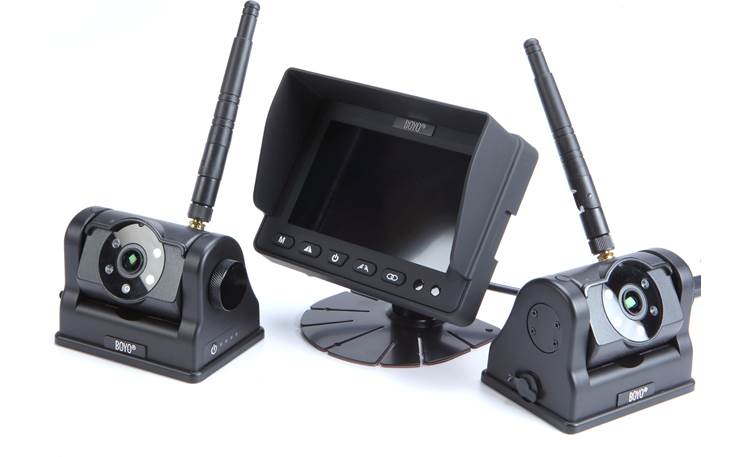

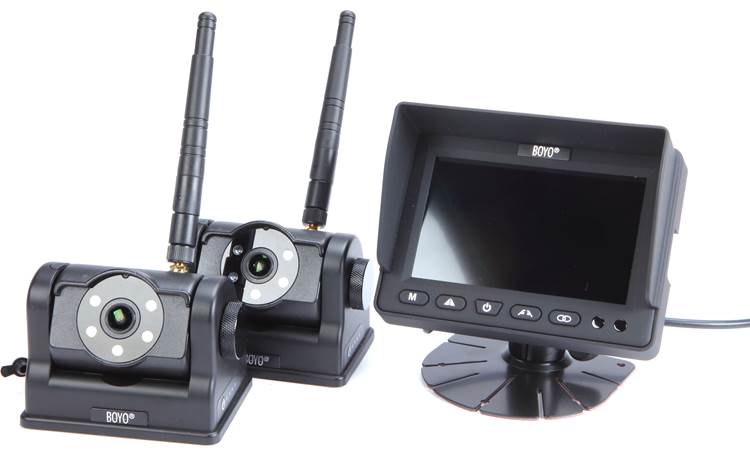

Rear-video system for trailers and RVs

File this under, "Why didn't someone think of this sooner?" Boyo's VTCRH2 wireless rear-view system includes two wireless cameras with magnetic mounts, rechargeable batteries, and a 700-foot transmission range. You can place the cams pretty much wherever you need them and enjoy a wireless video feed on the included 5" LED monitor - it's the only unit in the system that needs constant wired power.

Nifty display

Mount the monitor on your dash or windshield with the suction cup or adhesive mount - then just plug the power cable into your vehicle's 12-volt power port. This easy power option means you can swap the system between vehicles without any hassle.

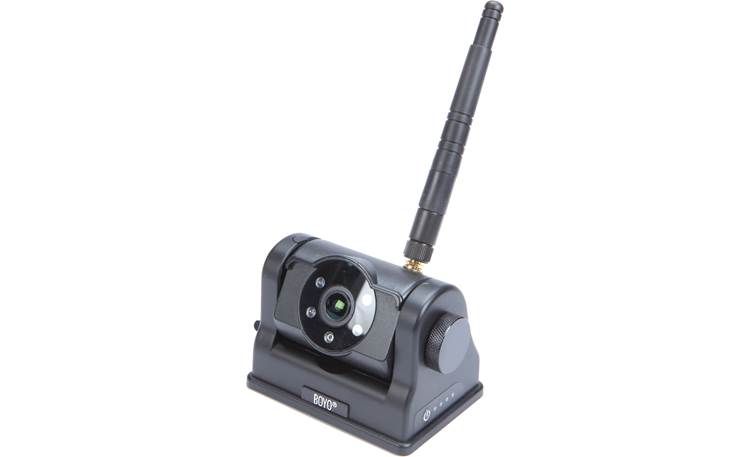

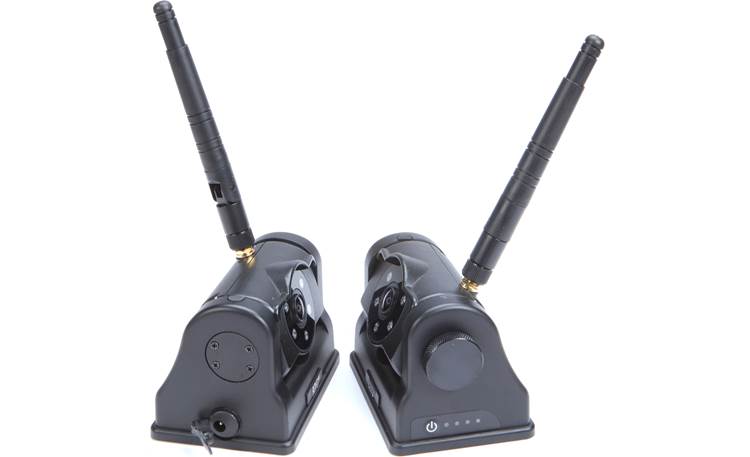

Two rechargeable cameras

Both wireless cameras have rechargeable batteries that hold 18-hour charges. That makes these cams wireless in every sense of the word. And thanks to sturdy magnetic mounts, you can place these cams where you need them, when you need them, and remove them when you don't.

Product highlights:

wireless system with two wireless cameras and 5" monitor
transmission distance up to 700'
2.4GHz digital wireless signal
ideal for boat trailers, horse trailers, and RVs

Camera Specifications:

CMOS image sensor with color video output
viewing angle: 130° (diagonal)
resolution: 1280x720
infrared night vision
18-hour battery life
battery charger included
IP68 dust and waterproof rating

Monitor Specifications:

resolution: 1024 x
5" color TFT LCD monitor
detachable sunshade
selectable parking lines
suction cup and adhesive mounts
wired DC 12V/24V power required (vehicle 12-volt lighter adapter and hardwire cables included)
warranty: 1 year
MFR # VTCRH2
Item # 707VTCRH2
California customers: Please click here for your Proposition 65 WARNING.

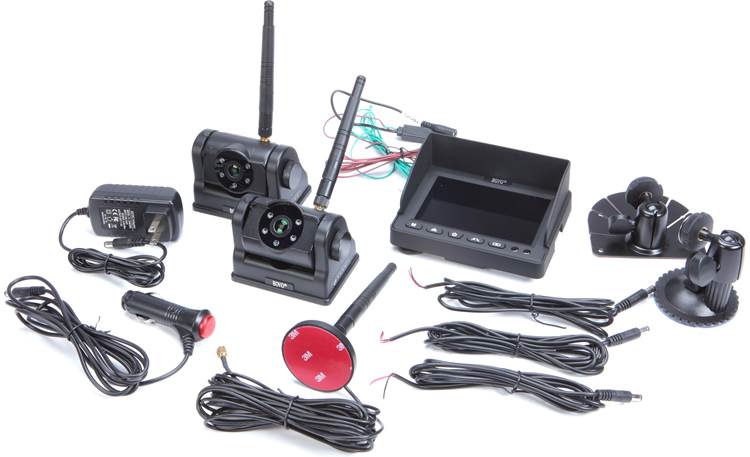

What's in the box:

Boyo VTCRH2 owner's manual

5" Monitor w/ attached 22" DC input cable and 8.5' Cam1 & Cam2 trigger wires
2 Wireless cameras w/ magnetic bases
Three 4" antennas
Adhesive monitor mount
Suction-cup monitor mount
Antenna mount w/ 3M adhesive & magnetic base (attached 16.5" antenna cable)
Three 6.5' DC power cables (DC plug on one end / bare-ended power&ground wires on other end)
Lighter adapter w/ attached 7' DC cable
AC Power adapter w/ attached 45" DC cable (12VDC/2A output)
User manual
Camera notice
Warranty information
Product Registration card

Researched by Crutchfield's Russ B.

Features & specs

Features and Specs
Camera Type	Rear, side
Resolution	1280x720
Parking Guidelines	Selectable
Lux Rating	Not given
Selectable Views	Camera selection
Reversed Image	Both
Horizontal Viewing Angle	130 degrees
Vertical Viewing Angle	---
Wireless	Yes
Plug type	Wireless

Product Research

Features

Overview: The Boyo VTCRH2 wireless backup camera system features a dash mounted 5" IPS LED wireless monitor and two heavy-duty wireless backup cameras, designed for installation in RVs, trucks, and boat/horse trailers. The wireless camera system operates on a 2.4GHz signal with a transmitting range of approximately 700'.

Note: The Boyo VTCRH2 is meant as a back-up aid only; never solely rely on the rear-view camera system when backing-up. In addition to using the rear-view camera, always look behind you to make sure everything is clear when backing up your vehicle.

Cameras: The VTCRH2 includes two rear-view cameras with magnetic bases, allowing them to be installed to any flat, ferrous-metal surface at the rear of the vehicle. Each camera features a 1/2.7" CMOS image sensor with a 130° diagonal viewing angle and 1280(h) x 720(v) resolution. Built-in Infrared LEDs can provide night vision behind the vehicle. The cameras carry an IP68 waterproof rating, making them impervious to weather. The cameras feature built-in 6400mA rechargeable batteries that can provide up to 18 hours of use on a full charge. Charging can be done using the included DC lighter adapter or AC power supply, and takes approximately 10 hours to fully charge. A Power button on each camera, along with 4 LEDs, can be used to activate the cameras while providing the battery charge-level. Both camera's viewing angle can be adjusted from 0˚-100˚.

Monitor: The 5" IPS LED wireless monitor features a 16:9 display with a resolution of 1024(h) x 800(v). The monitor includes two mounting brackets - a suction-cup mount and a 3M adhesive mount, allowing it to be installed on a dash or console. Both mounts feature ball-in-socket adjustments that can provide a wide range of tilt and swivel options for positioning the monitor. The wireless monitor also features a built-in sun visor. 4" adjustable antennas are provided for both the monitor and the two wireless cameras. The monitor's front-panel controls access the menu options for adjusting Brightness, Contrast, Saturation, Image (reverse/normal), and Parking Guidelines activation.

Power: The VTCRH2 operates on a 2.4GHz wireless transmission between the cameras and the monitor, eliminating the need for running long video cables. The monitor requires power and ground connections to the vehicle, using either the provided 7' lighter adapter cable or one of the 6.5' hardwire cables. Two additional 6.5' power/ground hardwire cables are included for wiring the cameras into the vehicle's electrical system, if not running them on battery power.

Specifications:

Cameras:
- Image Sensor: 1/2.7" CMOS
- Resolution: 1280(h) x 720(v) pixels
- Viewing Angle: 130° Horizontal
- Waterproof Level: IP68
- Operating Voltage: 5V-24V DC
- Operating Frequency Range: 2.4GHz - 2.4835GHz
- Battery Capacity: 6400mA
- Battery Working Time: Approximately 18 hours
Monitor:
- Display: 5" IPS LED
- Format: 16:9
- Resolution: 1024(h) x 800(v)
- Operating Voltage: 12V - 24V DC
- Operating Frequency Range: 2.4GHz - 2.4835GHz

Loading accessories...

2 questions already asked

I've never seen so many wires in a "wireless" system. What are all the wires for?

preston Sep 01, 2023

1 answer

Most of the wiring in this system is used to provide power for the various components.

zachary Sep 01, 2023 (Staff)

Can the monitor do split screen to view each camera image simotaniously?

benjamin Apr 09, 2022

1 answer

Yes it can do multiple cameras on the screen at the same time I put the left and right side of my trailer on it at the same time.

jason Apr 09, 2022
