Boyo VTL17AI Backup camera with intelligent obstacle alerts

Name: Boyo VTL17AI
Brand: Boyo
SKU: 707VTL17AI
Price: 99.99 USD
Availability: InStock
Rating: 3.0 (1 reviews)

Item # 707VTL17AI

This cam is constantly monitoring for any activity behind you and gives you an audible alert when braking is advisable.

Front

1/8

2/8

Only at Crutchfield

3/8

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

This cam is constantly monitoring for any activity behind you and gives you an audible alert when braking is advisable.

Item # 707VTL17AI

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$99.99

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Alexander H.

Intelligent detection for less anxiety

Crowded parking lots are full of surprises, and Boyo's VTL17AI backup cam has your back. Literally. Built-in intelligent detection warns you when all manner of things roll, tumble, drive, or walk into the trajectory zone of your vehicle when you're in reverse. This Boyo cam is constantly monitoring for any activity behind you and gives you an audible alert when braking is advisable. You'll also see color-coded visual alerts on your connected monitor or touchscreen stereo to help you gauge how far away the object is.

A great picture too

Once you power the camera and run the included video cable to the compatible aftermarket monitor or receiver in your dash, you'll see a 170º wide-angle view and a detailed picture even when you're driving at night or in a parking garage. Boyo also makes installation more straightforward by mounting this cam onto a sturdy strap that stealthily attaches behind any license plate.

Installing this camera yourself? Here's what you should know.

What does it do? Unless otherwise noted, a backup camera is only intended for use backing up your vehicle. (If you require a front-view or constant rear-view camera, check for that capability.)

What tools and supplies will I need? A panel tool, a wire cutter/stripper, a soldering iron, and a rosin-core solder with heat shrink tubing are recommended, along with whatever tools are needed to remove the radio from the dash.

How much wiring is required? Wiring instructions vary from camera to camera. Some cameras have power wiring that can only be connected near the radio. Others let you power the camera at compatible reverse lights. In all cases, the camera must be wired for power and ground, the camera's video output must be connected to the radio/monitor, and the radio/monitor must be connected to a reverse trigger in your vehicle. Some radio replacement interfaces supply a reverse trigger wire for the radio -- using that wire to power your camera will damage the interface.

Will the included video cable be long enough? You'll need to route the camera's video cable from its mounting location outside your vehicle into your vehicle's cabin and all the way to the screen in the dash. This often requires drilling a small hole in your vehicle or filing some metal and or plastic. You'll also need to estimate the length of cable needed to run from the camera to the dash, which will not be a straight shot. Each camera's cable length is listed.

Product highlights:

waterproof backup camera and bar-style mount
intelligent obstacle detection with color-coded alerts
- detects pedestrians, cars, trucks, motorcycles, etc.
- buzzer with selectable volume included for audible alerts
compatible with any radio with an RCA video input (most aftermarket models, only a few factory)
170-degree wide angle
works in low light (0.1 Lux)
IP68 waterproof and dustproof rating
selectable parking lines
27.5' video extension cable
resolution: 976 (H) x 592 (V)
warranty: 1 year
MFR # VTL17AI
Item # 707VTL17AI
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

Boyo VTL17AI owner's manual

AI Backup camera with license-plate bracket and attached 14" video cable

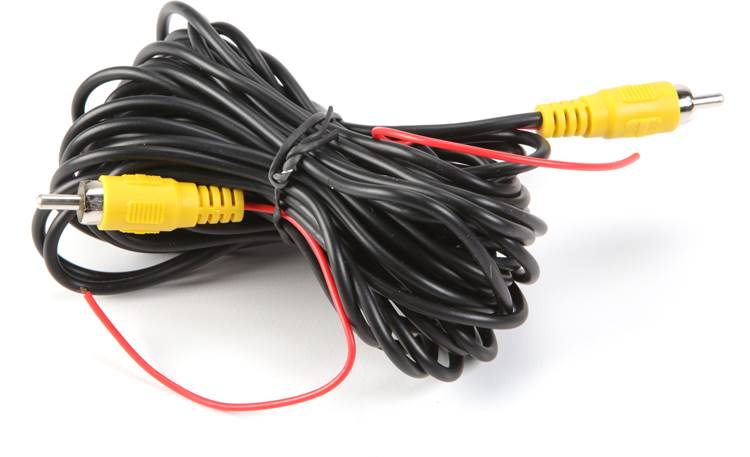

24.5' Video extension cable

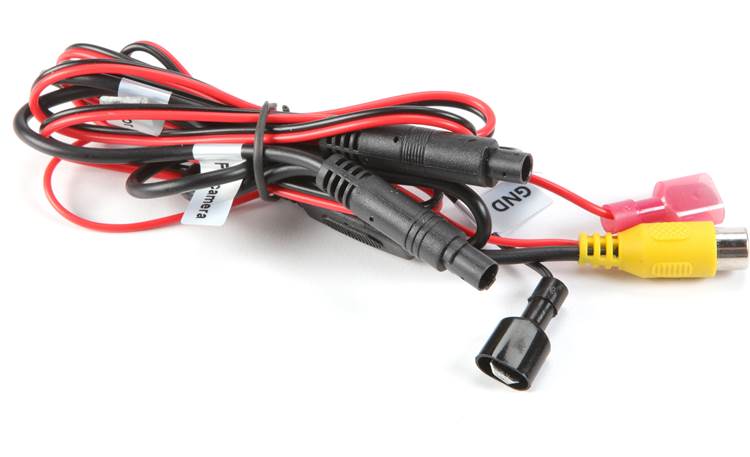

20" Power harness with attached 3' power & ground wires
Buzzer with 3M adhesive backing and attached 24.5' cable
2 Wire taps
User manual
Warranty information
Product registration

Researched by Crutchfield's Russ B.

Features & specs

Features and Specs
Camera Type	Rear
Resolution	976 x 592
Parking Guidelines	Selectable
Lux Rating	0.1
Selectable Views	N
Reversed Image	Mirror
Horizontal Viewing Angle	130 Degrees
Vertical Viewing Angle	---
Wireless	No
Plug type	Composite video

Product Research

Features

Backup Camera: The Boyo VTL17AI is an AI backup camera that can detect pedestrians, vehicles, and objects behind your vehicle while reversing.

Note: The Boyo VTL17AI is meant as a driving aid only; never solely rely on the camera. In addition to using the camera, always look around you to make sure everything is clear.

GC2053 CVBS Image Sensor w/ AI: The Boyo VTL17AI backup camera is equipped with a 1/2.9" GC2053 CVBS image sensor with a 976 (h) x 592 (v) resolution for high quality video. Integrated AI technology can help detect pedestrians, vehicles, and other objects behind you.

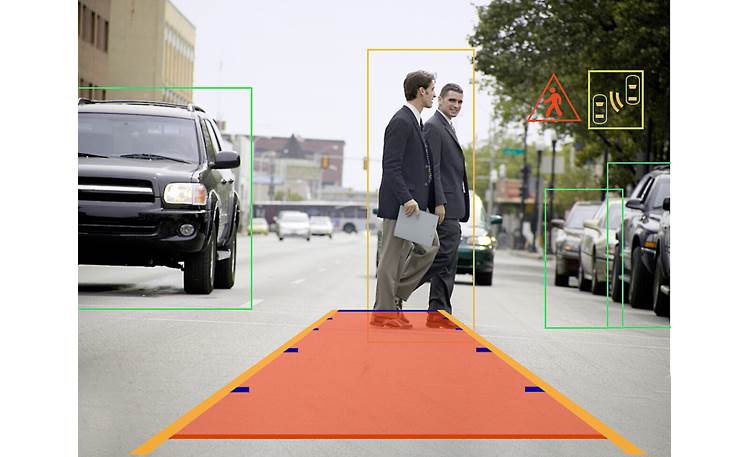

Guidelines: Selectable parking guidelines can be displayed, and will change color when an object is detected within the boundry area.

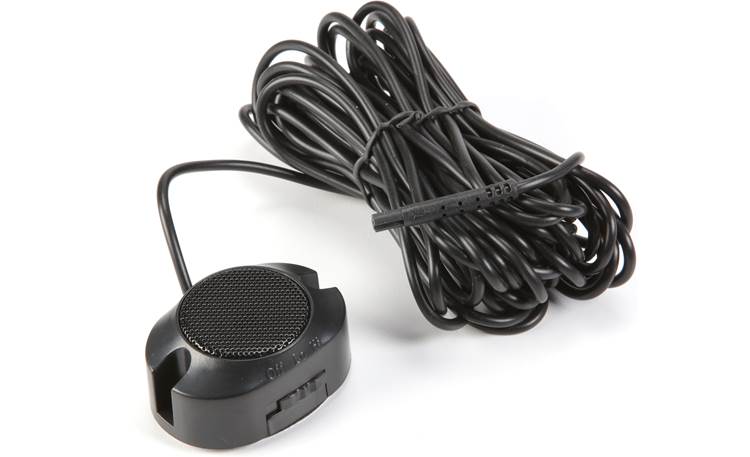

Audible Alarm: In addition to a visual alert, the VTL17AI includes a dash-mountable buzzer that will sound when an object is detected. The buzzer features a 3-way switch for changing the alert volume: Hi, Lo, and Off.
Operation Selection: A Green loop-wire on the camera cable determines how the VTL17AI functions:

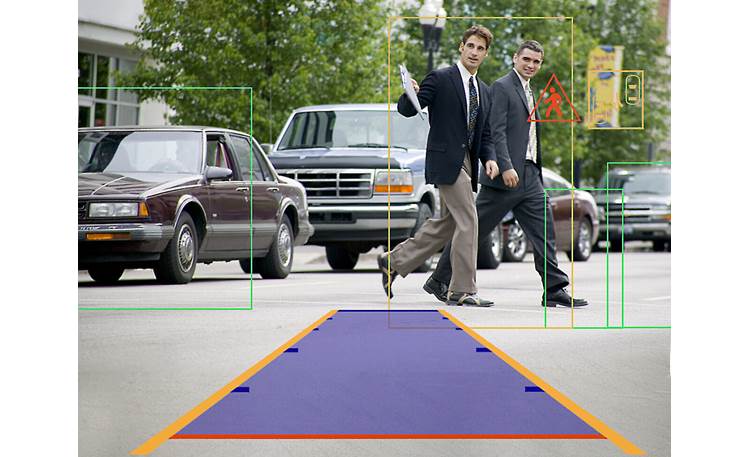

- Cut (default): The alarm area will be displayed in Blue in the camera view, and will change to Red when an object enters the area. The buzzer will also sound an audible alarm. The audible alarm can be turned off using the switch on the buzzer.
- Uncut: If the Green loop-wire ends are connected together, the AI camera will detect obstacles in the camera view, but no parking guidelines will be displayed and the audible alarm will be silent.

Wide Viewing Angle + Angle Adjustment: The VTL17AI backup camera offers a 170° wide viewing angle (diagonal), so you can see more of what's behind you. You can also physically angle the camera's mounting bracket up or down (between +30°-30°) for the best view behind your vehicle.

Waterproof (IP68): The Boyo VTL17AI features a waterproof (IP68) housing to protect it from dust and water.

Composite Video Output: The Boyo VTL17AI backup camera's extension cable is fitted with a composite video connector (RCA) which makes it compatible with virtually any in-dash receiver with integrated video monitor and a composite video camera input. The total length of video cable is 27.5', while the total length of the power/ground cable is 4.5'.

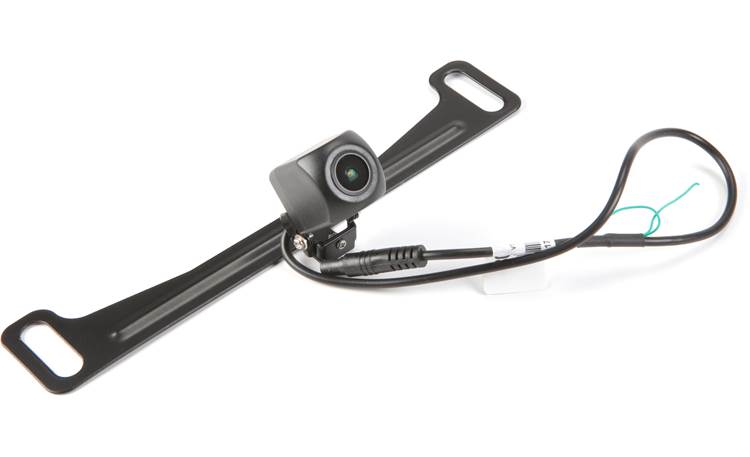

Mounting Options: The Boyo VTL17AI backup camera features an integrated license plate bracket which mounts behind your vehicle's license plate frame (mounting hardware not included).

Note: The Boyo VTL17AI is designed to work best on vehicles that have a license plate located at the center and above the bumper. If your vehicle has a plate location that is offset to the left side, right side or your plate is located under the bumper then the VTL17AI may not provide optimum performance.
