Klipsch Heritage Active Crossover Active crossover and DSP system for Klipsch Heritage Klipschorn AK7

Name: Klipsch Heritage Active Crossover
Brand: Klipsch
SKU: 714KHAK7XO
Price: 3499.0 USD
Availability: InStock

Item # 714KHAK7XO

The Heritage Active Crossover uses advanced digital signal processing to help your Klipschorn AK7s sound their best.

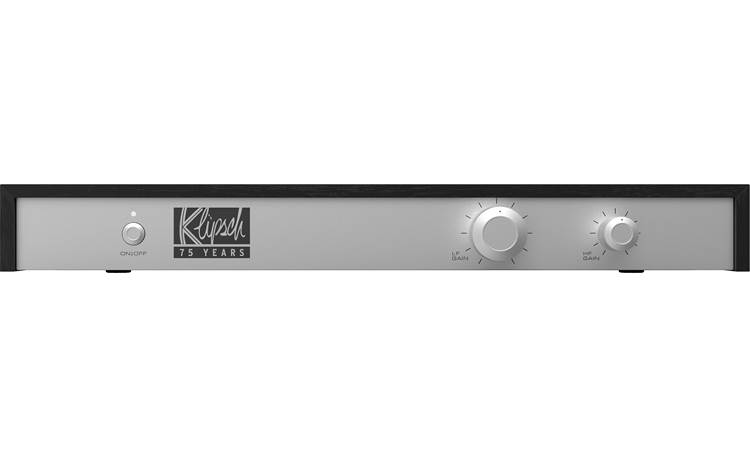

Front

1/5

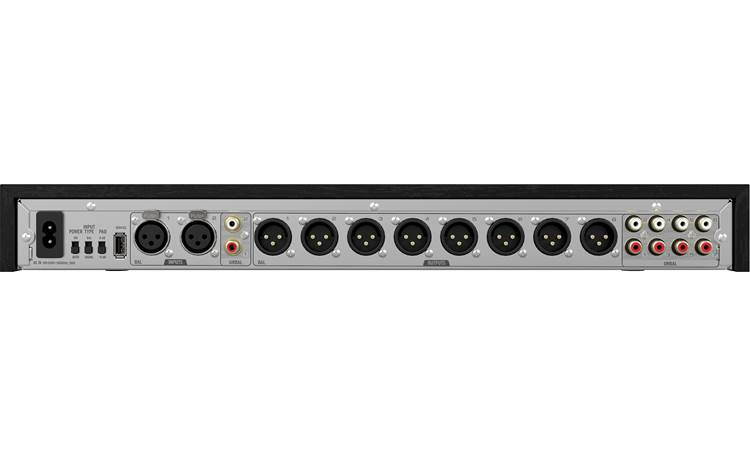

Back

2/5

Only at Crutchfield

3/5

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Klipsch Heritage Active Crossover Only at Crutchfield

The Heritage Active Crossover uses advanced digital signal processing to help your Klipschorn AK7s sound their best.

Item # 714KHAK7XO

Ships free

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

Low stock

$3,499.00

Add to cart

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Archer A.

Get the best possible performance from your Klipschorn AK7 speakers

Alongside the release of Klipsch's new Klipschorn AK7 speakers comes their matching Heritage Active Crossover. It uses advanced DSP (digital signal processing) to make these iconic speakers sound their absolute best. Please note: using this crossover requires three stereo amplifiers, one each for the high-frequency, midrange, and low-frequency drivers.

Powerful processing for clearer sound

This active crossover was tuned by the legendary Roy Delgado for the Klipschorn's full frequency range. Its powerful processing serves two important functions. First, it performs time alignment, ensuring that the sound from each of the drivers hits your ears at the same time. Second, it helps the speakers provide a flat, neutral response by adjusting the frequency balance.

The result? You can experience the sheer output and lively dynamics that made the Klipschorn a household name, now refined for better clarity and definition than ever before.

Product highlights:

active crossover system for Klipsch Klipschorn AK7 loudspeakers
must be used with 3 separate amplifiers
advanced DSP (digital signal processing)
- EQ balancing for even sound
- active time alignment makes each driver's sound reach your ears at the same time
adjust the high and low frequencies using front-panel gain control knobs
front-panel indicator LED shows power status, clipping, and stand-by

Rear connections:

balanced XLR and unbalanced RCA inputs for connecting your preamp
4 pairs of balanced XLR and unbalanced RCA outputs for connection to amplifiers

Other info:

rear-panel auto on/always on switch
rear-panel input selector switch for choosing between balanced and unbalanced inputs
gain reduction switch (0dB to -9dB) to reduce clipping
THD (20-20,000 Hz): 0.001%
signal-to-noise ratio: 115dB
removable power cord
17"W x 2-3/4"H x 14-1/8"D
weight: 8.9 lbs.
warranty: 1 year
MFR # 1080126
Item # 714KHAK7XO

What's in the box:

Klipsch Heritage Active Crossover owner's manual

Active crossover
AC power cord
Manual

Researched by Crutchfield's Research Team

Product Research

Features

Heritage Active Crossover: The Klipsch Heritage Active Crossover is designed specifically for Klipsch's newest Klipschorn AK7 loudspeaker. Tuned by legendary acoustician Roy Delgado, this advanced DSP active crossover delivers unparalleled time and phase alignment, balanced EQ, and true-to-source response.

Digital Signal Processing: The Klipsch Heritage Active Crossover uses advanced DSP technology to precisely manage crossover points, ensuring a seamless transition between frequency bands while preserving the power, detail, and realism the Klipsch Klipschorn AK7 speakers are known for. It also adjusts for horn throat depth and wavelength, delaying the signal to specific speakers to ensure that all sound arrives simultaneously at the listener's ears.

Variable LF & HF Controls: The Heritage Active Crossover offers user-adjustable Low-Frequency (LF) and High-Frequency (HF) gain controls, allowing listeners to fine-tune the system. This ensures optimal performance across different audio setups, enhancing clarity and tonal accuracy without introducing coloration.

Balanced & Unbalanced Connectivity: The Heritage Active Crossover is outfitted with both balanced XLR and unbalanced RCA connectivity. A balanced XLR connection provides stronger audio signal with better noise rejection and higher sound quality.

XLR Inputs/Outputs: There is a set of set of balanced XLR inputs and four sets of balanced XLR outputs.
RCA Inputs/Outputs: There is a set of unbalanced RCA inputs and four sets of unbalanced RCA outputs.

AC Power Cord: The Heritage Active Crossover comes with a detachable AC power cord that will plug into the back of the unit and into and AC wall outlet or surge protector/line-conditioner (sold separately).
