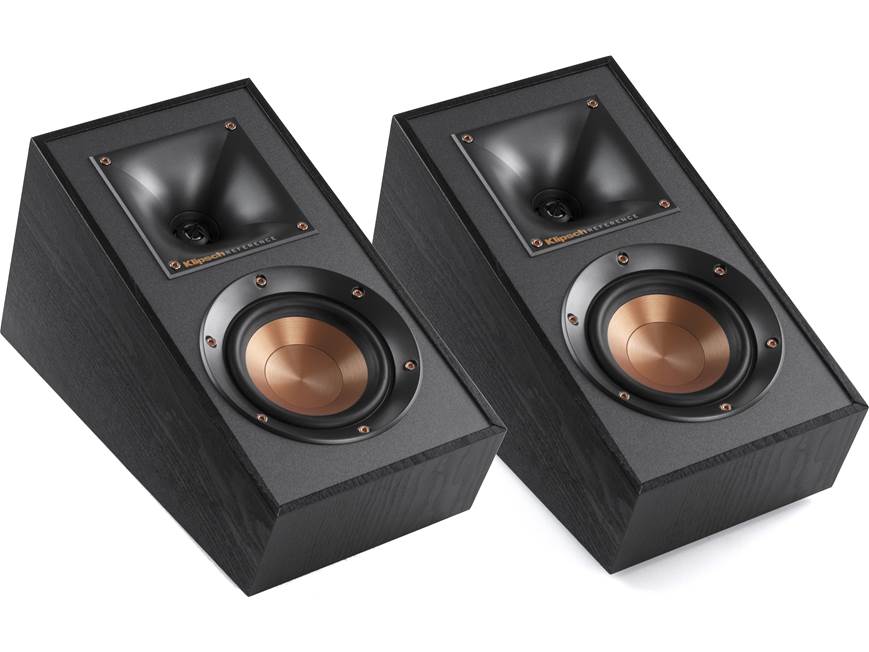

Klipsch Reference R-41SA Dolby Atmos® enabled add-on speakers

Item # 714R41SA

These speaker feature angled drivers to reflect sound off of your ceiling for Dolby Atmos.

These speaker feature angled drivers to reflect sound off of your ceiling for Dolby Atmos.

California customers:
Please click here for your Proposition 65 warning.

11 questions - 34 answers

Item # 714R41SA

About the Klipsch Reference R-41SA

Eric A.

Take your Klipsch home theater to a higher level

Maybe you've heard about Dolby Atmos. It's an expanded type of surround sound that enhances your movie soundtracks by accurately positioning sounds all around you — including above you. If you've got Reference tower speakers, the add-on R-41SA pair lets you add "height" sound effects to movie night.

Take your Klipsch home theater to a higher level

Maybe you've heard about Dolby Atmos. It's an expanded type of surround sound that enhances your movie soundtracks by accurately positioning sounds all around you — including above you. If you've got Reference tower speakers, the add-on R-41SA pair lets you add "height" sound effects to movie night.

How do they work?

Each R-14SA speaker has a 4" woofer and a horn-loaded tweeter on its top baffle. These drivers are angled to reflect sound off of your ceiling and back down to your listening position. These compact add-on modules sit right on top of your existing Reference speakers. Use a pair with your front speakers for a "5.1.2" system. With a compatible receiver, you can even add another pair to the rear surround speakers for an even more enveloping experience.

The R-41SA can also be wall-mounted for use as regular surround speakers.

Does your receiver have what it takes?

You'll need a home theater receiver with Dolby Atmos in order to get enhanced surround sound with these speakers.

Build a complete Klipsch Reference Dolby Atmos system

Floor-standing speakers: Klipsch R-610F, Klipsch R-620F, and Klipsch R-820F
Bookshelf speakers: Klipsch R-41M and Klipsch R-51M
Center channel: Klipsch Reference R-34C and Klipsch R-52C
Powered subwoofers: Klipsch R-10SW and Klipsch R-12SW


Product highlights:

  • Dolby Atmos add-on speakers
  • designed to sit on top of floor-standing front or back speakers
  • drivers are angled up to reflect sound off the ceiling, for a heightened soundstage and overhead effects
  • connect to a Dolby Atmos compatible receiver's height channels
  • can also be used as wall-mounted standard surround speakers
  • 90° x 90° Tractrix® horn with 1" LTS (Linear Travel Suspension) aluminum tweeter
  • 4" spun copper IMG (injection-molded graphite) woofer
  • acoustic suspension (sealed) cabinet design
  • frequency response: conforms to Dolby Atmos specification
  • impedance: 8 ohms compatible
  • sensitivity: conforms to Dolby Atmos specification
  • power handling: up to 50 watts RMS (100 watts peak)
  • MDF cabinet with durable textured wood grain vinyl finish
  • anti-vibration rubber feet and built-in keyhole slot wall-mounting brackets (mounting screws not included)
  • gold-plated binding post speaker terminals
  • 5-3/4"W x 7"H x 13"D
  • weight: 6 lbs. each
  • warranty: 5 years
  • MFR # 1065840

What's in the box:

  • 2 Dolby Atmos-enabled surround loudspeakers
  • 2 Grilles (installed)
  • Quick Setup Guide
  • Important Safety Instructions
  • Warranty Information

Customer reviews for Klipsch Reference R-41SA

Loading reviews...

Average review:

5.0 out of 5 stars
122 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Klipsch Reference R-41SA

Stacey B.

Features & specs

Type Atmos toppers
Enclosure Ported
Finish MDF/Wood-grain
Color Black
Tweeter Type Tractrix Horn
Tweeter Size (inches) 1
Midrange Size (inches) N/A
Woofer Size (inches) 4
Woofer Composition Copper-spun IMG
Woofer Surround Rubber
Power Range up to 50
Sensitivity ---
Impedance (Ohms) 8
Frequency Response Not given Hz
Connector Type Binding post
Bi-amp Inputs No
Wall-mountable Yes
Bracket Included Fixed keyhole mount
Parts Warranty 5 Years
Labor Warranty 5 Years
The Klipsch Reference R-41SA replaces these items:

Product Research


Dolby Atmos Elevation Speaker: Enhance your home theater system with the overhead sound effects of the Klipsch R-41SA Dolby Atmos speaker. By leveraging Klipsch proprietary horn-loaded controlled directivity technology, the R-41SA bounces sound off the ceiling to create an astonishing, immersive listening experience.

Note: Dolby Atmos delivers captivating, object-based sound that places and moves audio anywhere in the room to bring entertainment alive all around the audience. With Dolby Atmos sound comes alive from all directions, including overhead, to fill a home theater with astonishing clarity, power, detail and depth. Learn more out Dolby Atmos here.

Application & Mounting Options: In addition to delivering overhead sound effects as a Dolby Atmos speaker topper for Klipsch and other brands of floorstanding and bookshelf loudspeakers; the R-41SA is designed to be wall-mounted as a front, rear or side elevation speaker; or as a versatile side or rear surround sound speaker. There is a keyhole slot on the back, as well as four integrated rubber feet on the bottom of the speaker.

  • Dolby Atmos "Topper" Dimensions: Keep in mind the R-41SA's dimensions when using it as a Dolby Atmos topper, as it must be able to rest on top of your floorstanding or bookshelf loudspeaker. It measures 5.75" (w) x 7.125" (h) x 12.75" (d). The rubber feet on the bottom of the speaker have a footprint that measures 4.5" (w) x 10.125" (d).
  • Wall-Mount Dimensions: When wall mounted, the R-41SA measures 5.75" (w) x 12.75" (h) x 7.125" (d).

1" Horn-Loaded Tweeter: The R-41SA Dolby Atmos speaker features Klipsch's proprietary Tractrix Horn technology mated with a 1" aluminum LTS tweeter, for impressive high-end response and greater extension, enhanced imaging and powerful dynamics.

  • 90°x90° Tractrix Horn: Klipsch exclusive 90º x 90º Tractrix horn technology ensures that the R-41SA high frequency energy is aimed at the ceiling and bounces down to the listener with laser precision - all while reducing artificial reverb or filtering. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music
  • LTS (Linear Travel Suspension): Behind each horn lies a 1.0" tweeter with a linear travel suspension. Klipsch exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced, detailed performances. In addition, Using Kapton (an extremely light and rigid material) in the tweeter suspension provides high efficiency and improve resolution and detail.

4" Copper-Spun IMG Woofer: The Klipsch R-41SA Dolby Atmos speaker houses a single 4" Copper-Spun IMG woofer. The Copper-Spun IMG (Injection Molded Graphite) woofer is exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion.

MDF Cabinet: The R-41SA Dolby Atmos speaker features a MDF cabinet with a scratch-resistant, textured wood grain vinyl that seamlessly integrates into almost any room or decor. The enclosure's reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy.

Acoustically Transparent Grille: The Klipsch R-41SA Dolby Atmos speaker comes with a removable, black cloth grille that is magnetic and acoustically transparent.

Binding Posts: The Klipsch Reference series Dolby Atmos speaker is fitted with sturdy binding posts to ensure a secure connection to many types of cable and connectors. The binding post terminals will accept banana plugs (single only), pin-connectors, spade-lugs and bare wire (up to 10AWG). Two plastic caps will need to be removed to use banana plugs.

Reference Series: The Klipsch Reference series consists of four floorstanding speakers (R-610F/R-620F/R-820F/R-625FA), two bookshelf speakers (R-41/R-51M), two center channel speakers (R-34C/R-52C), and one Dolby Atmos speaker (R-41SA) - all sold separately. The Klipsch Reference series line-up of loudspeakers sound great in stereo and home theater applications.

Optional Powered Sub: For bigger & deeper bass response, pair the Klipsch Reference series loudspeaker with one of Klipsch's powered subwoofers (sold separately

Loading accessories...

Customer Q&A

11 questions already asked

How do you hook up add on surround sound speakers?
mikestro  Mar 10, 2023
1 answer
Greetings Mike, and thank you for your question. Perhaps it would be better to call one of our advisors at 800-324-9695 and check with them. wiring will depend highly on the A/V receiver you are using.
hogan  Mar 10, 2023 (Staff)
How do you hook up add on speakers ?
mikestro  Mar 10, 2023
1 answer
This will depend on which speakers and receiver you have. For detailed assistance with this project, please reach out to our advisors via online chat or phone at 1-800-324-9695.
zachary  Mar 10, 2023 (Staff)
Can I have these on the floor? I got them for dirt cheap and have the Klipsch reference theatre pack 5.1. Will that make this 5.1.2? I have satellite speakers that are not standing and mounted to wall. Any help or tips is helpful! Thanks!
travis  Aug 03, 2022
1 answer
Greetings Travis, and thank you for your question. These by design go on top of larger bookshelf speakers, or floor standing speakers. They do have a slot on the back for wall hanging as well. Sitting on the floor might not get you the reflection off the ceiling correctly.
hogan  Aug 03, 2022 (Staff)
If I have an old popcorn ceiling, will the effect be muted?
andy  Mar 03, 2022
3 answers
I have the same ceiling what I had to do was turn it up just a little bit more than normal and it's fine
matthew  Mar 07, 2022
i wouldn't think so. and if you gear is like mine. a mic will balance it out during setup
robert  Mar 04, 2022
That is actually a good question and I???m not 100% sure if the answer either way but I have enjoyed watching Atmos enabled audio since adding these to make a 5.1.2 system. A lot of people recommend in-ceiling down firing speakers for their height speakers but I didn???t go that route for many different reasons and I???m not disappointed. I also have popcorn ceilings and can still easily hear the height effects sometimes more than others depending on what I???m watching. Hope that helps some!
russell  Mar 03, 2022
Can I use these as front surround on a 7.2 receiver that has a front surround out?
preston  Feb 05, 2022
2 answers
jimmy  Feb 05, 2022
I used as front high atmost and they works fine, they should be perfect aswell as surround.
breidys  Feb 05, 2022
Do they come with brackets for wall mounting as surround sound speakers?
david  Nov 24, 2020
3 answers
matthew  Mar 07, 2022
renzo  Nov 24, 2020
I think they have a key hole in them to hang from a screw. I wouldn???t suggest using these for surrounds however. They are angled to bounce of the ceiling. They also lack mid bass being a 4 inch woofer. They work great for ATMOS though.
lynsey  Nov 24, 2020
Can these be used with Sonos?
mrbman  Jul 18, 2020
2 answers
They should work, however I am not familiar with SONOS
michael  Feb 22, 2021
I own these speakers and they are not made to work with Sonos from what I can tell. I have never tried to use them with Sonos, but these speakers are made to be wired to a receiver. Their is nothing smart about the speakers and they are not wireless speakers.
david lawrence  Jul 18, 2020
If putting these atop your front main speakers on a 5.2 set up how do you wire them? Do you parralell them to the fronts Or to another output?
thomas  Dec 15, 2019
8 answers
These are designed Dolby Atmos and should be used and connected as "height" speakers in your system to get the effect of sound from above.. If your receiver doesn't process Dolby Atmos and you are still wanting to use these they should most likely be used as a rear surround or similiar and not as a "front" as I'm guessing your wanting to add them to your front towers.. These should run at higher Hz frequency setting than fronts typically would in order to achieve a higher crisp sound from them. I hope this helps..
nicholas  Dec 31, 2019
These are Dolby Atmos speakers....originally for 6.1 and beyond,but you can use them however you like. If you want surround you the dedicated output for them, never parallel. Always observed polarity. Rock on!!!!!!
luis a  Dec 31, 2019
To wire them correctly, your receiver should have connections dedicated to outputting the atmos signal to these speakers.
albert  Dec 30, 2019
You will need a separate out power your receiver.
roy  Dec 30, 2019
I used another output
dustan  Dec 30, 2019
You will need a 7.1 channel receiver at a min. It also needs to have Dolby ATMOS. You would then hook these up to the 7-9th channel etc, and in your setup menu set them as atmos. Hope this helps.
lynsey  Dec 30, 2019
I hooked them up directly to my amp which had separate hookup for atmos speakers.
simon  Dec 15, 2019
I'm assuming you mean 5.1.2 or 5.2.2 ((main.subwoofer(s).atmos)) for Dolby Atmos setup? If so, you will need to run them from separate channel's. For a 5.x.2 your receiver will need a minimum of 7 channels with the last two channels dedicated to the Atmos speakers and set to the 5.x.2 Atmos setting. If your just adding additional speakers to an existing 5.x ((main.subwoofer(s)) setup then yes you would run them parallel with your front mains if that is where you plan to put them and if you only have a 5 channel receiver.
curtis  Dec 15, 2019
c_innova  Apr 03, 2019
5 answers
Anything is possible but my question to you is, why? For one these may look small but they are heavy. Second if you are using them as Atmos speakers and using them correctly according to Dolby Atmos Laboratories recommendations then there is no need because they project sound off the ceiling back down to the listening area. I have these and they do exactly as they were made to do and sound great.
curtis  Apr 14, 2019
I don't think it would be a good idea, these speakers are fairly heavy and only have a single keyhole slot on the bottom, I imagine they would rattle unless you modified them for a firmer mount.
david  Apr 05, 2019
possibly do a ceiling mount..extra work, i have them on a wall shelf setting by bose 301's works great less headache..use wire channeling to neatly hide speaker wires....
william  Apr 04, 2019
I would not recommend that simply because of the weight of the speakers.
david lawrence  Apr 03, 2019
I suppose you could, but they're quite heavy, and could hurt someone badly if they fell
david  Apr 03, 2019
What is the crossover setting I should use for this speaker? I???d like to go with 80Hz if it allows. Right now I use 100Hz just to be safe. Looked into the specs on Klipsch website and it doesn???t have the lower range of Hz capability of this speaker. Thank you.
tintin  Feb 17, 2019
4 answers
That setting is perfect.
luis a  Dec 31, 2019
First of all these speakers have 4 inch woofs,that dont produce deep be safe with 100Hz. Or go with your receivers crossover setting.ENJOY.....and MAY THE FORCE BE WITH YOU.
luis a  Feb 20, 2019
I have mine on 100.
connie  Feb 19, 2019
The frequency response for this speaker is 80 Hz to 21kHz, however the filter cutoff frequency is 4.2 kHz at the upper range. Therefore, if the speaker performs exactly to spec, you could use a crossover setting of 80Hz.
albert  Feb 19, 2019
cant place them in front. Will I get the same effect if I use them as my surrounds to the left and right of my seating or in the back? 7.1 setuo
jpetro  Jan 25, 2019
4 answers
I am assuming your going to wall mount these as "surrounds"? If i am correct then you can use these in that manner however these type of speakers will be just that, surround, as you stated 7.1 which will be work. According to Dolby Laboratories the Dolby Atmos enabled speaker setup, which you can find several articals online, state that these type of speakers should be mounted in front at the left and right position preferably on top of the floor speakers firing upward for proper Atmos effect. Then your speaker configuration would be 5.1.2 assuming you have fronts, rears, center & subwoofer. Otherwise your setup of 7.1 is just 7.1 surround which you will loose the Atmos effect. I have these speakers setup in the 5.1.2 configuration as mentioned above and I love it. You do get that direct overhead Atmos effect which you would not get with them being mounted as surrounds.
curtis  Jan 25, 2019
I purchased these for Atmos but they can be used as surrounds for your setup. These should give you clearer highs as they are meant to project sound. Hope this helps.
josue  Jan 25, 2019
I would think they would work fine for what you want to do, could always call crutchfield and ask advisor but I think they will tell you the same thing, but does not hurt to ask they are very knowledgeable, I don't want to mislead you
casey  Jan 25, 2019
I have these on top of my front mains, use them in a 5.1.2 setup, wonderful speakers, does make a difference, highly recommend, if receiver is capable of running these in that setup you will not be disappointed, hope that answers your question
casey  Jan 25, 2019
