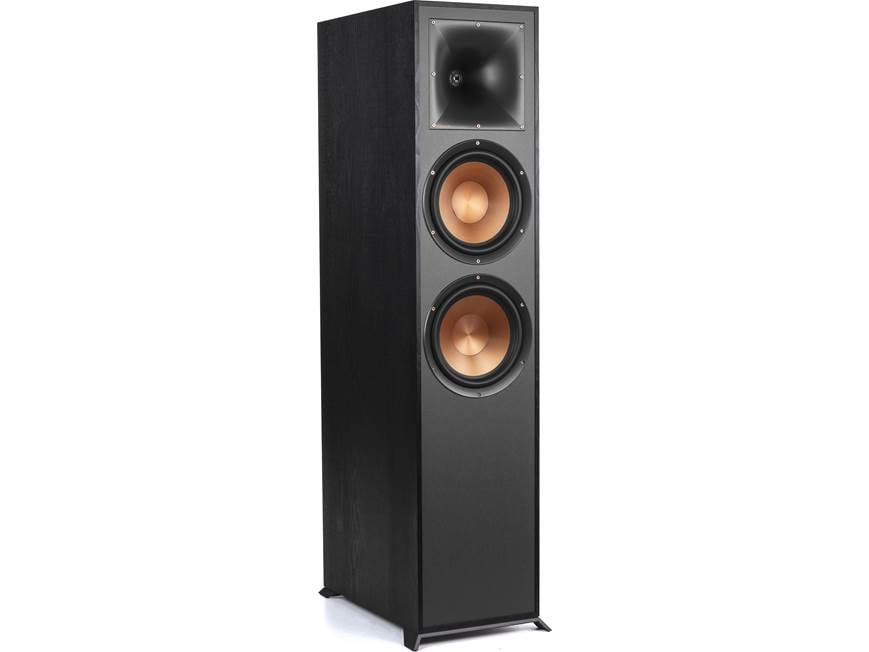

Klipsch Reference R-820F Floor-standing speaker

Item # 714R820F

It boasts dual 8" woofers for thunderous bass and warm, clear mids, plus a 1" horn tweeter for crisp, extended, highs.

It boasts dual 8" woofers for thunderous bass and warm, clear mids, plus a 1" horn tweeter for crisp, extended, highs.

California customers:
Please click here for your Proposition 65 warning.

12 questions - 28 answers

Item # 714R820F

About the Klipsch Reference R-820F

Eric A.

A powerful performer

Looking for a floor-standing speaker that blends power and performance? Each Klipsch R-820F boasts dual 8" woofers for thunderous bass and warm, clear mids, plus Klipsch's signature 1" horn tweeter for crisp, extended, highs. But you don't have to take our word for it. Discover for yourself the effortless, dynamic sound that's made Klipsch loudspeakers a big Crutchfield customer favorite for years.

A powerful performer

Looking for a floor-standing speaker that blends power and performance? Each Klipsch R-820F boasts dual 8" woofers for thunderous bass and warm, clear mids, plus Klipsch's signature 1" horn tweeter for crisp, extended, highs. But you don't have to take our word for it. Discover for yourself the effortless, dynamic sound that's made Klipsch loudspeakers a big Crutchfield customer favorite for years.

Tractrix horns enhance highs and lows

We're used to seeing the Tractrix horn on the front of Klipsch speakers, where it enhances high notes from the tweeter. These speakers use them to improve bass, too.

Look around the back, and you'll see that instead of the conventional round port tube found on many speakers, Klipsch uses a Tractrix horn-shaped opening for smoother, more efficient airflow in and out of the cabinet. The resulting decrease in air turbulence makes for cleaner, more powerful bass with reduced port noise and low-frequency distortion.

Build a complete Klipsch system

You can build a great sounding stereo system using a pair of R-820Fs, or team them with other Klipsch Reference speakers and a subwoofer for high-impact home theater.

Center channel speakers: Klipsch R-34C and Klipsch R-52C
Surround speakers: Klipsch R-14S
Floor-standing speakers: Klipsch R-610F and Klipsch R-620F
Bookshelf speakers: Klipsch R-41M and Klipsch R-51M
Subwoofers: Klipsch R-112SW, Klipsch R-115SW


Product highlights:

  • frequency response: 35-21,000 Hz (±3dB)
  • impedance: 8 ohms compatible
  • sensitivity: 97 dB
  • power handling: up to 150 watts RMS (600 watts peak)
  • 90° x 90° Hybrid Cross-Section Tractrix® horn with 1" LTS (Linear Travel Suspension) aluminum diaphragm tweeter
  • two 8" spun-copper IMG cone woofers
  • bass-reflex design
  • rear-firing Tractrix port provides fast, efficient airflow from the cabinet for clear, powerful bass
  • magnetically attached grille for a clean, streamlined look
  • durable textured wood grain vinyl finish
  • gold-plated binding post speaker terminals
  • built-in angled feet for increased speaker stability
  • 10-15/16"W x 43"H x 17-1/2"D
  • weight: 54 lbs.
  • warranty: 5 years
  • MFR # 1065833

What's in the box:

  • Floorstanding loudspeaker
  • Grille (installed)
  • 2 Feet
  • 4 Screws
  • Quick Setup Guide
  • Important Safety Instructions
  • Warranty Information
  • Loudspeaker Feet note

Featured video:

Customer reviews for Klipsch Reference R-820F

Loading reviews...

Average review:

5.0 out of 5 stars
174 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on

This review was collected as part of a promotion



Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Klipsch Reference R-820F

Stacey B.

Features & specs

Enclosure Ported
Finish MDF/Wood-grain vinyl
Color Black
Tweeter Tractrix Horn
Tweeter Size (inches) 1.0
Midrange Size (inches) N/A
Woofer Size (inches) 8
Woofer Composition Copper-spun IMG
Woofer Surround Rubber
Built-in Powered Sub No
Dolby Atmos Drivers No
Connector Type Binding post
Bi-amp Inputs No
Parts Warranty 5 Years
Labor Warranty 5 Years
Power Range up to 150
Frequency Response 35-21k Hz
Sensitivity 97 dB
Impedance (Ohms) 8
Subwoofer Amp Power ---
Height (inches) 43-1/8
Width (inches) 10-7/8
Depth (inches) 16-3/4
Weight 54 lbs
The Klipsch Reference R-820F replaces these items:

Product Research


1" Horn-Loaded Tweeter: The R-820F floorstanding loudspeaker features Klipsch's proprietary Tractrix Horn technology mated with a 1" aluminum LTS tweeter, for impressive high-end response and greater extension, enhanced imaging and powerful dynamics.

  • 90°x90° Tractrix Horn: The square Tractrix Horn delivers a 90° (w) x 90° (h) dispersion pattern for a broader sound-stage. Klipsch exclusive Tractrix horn technology ensures that the speaker's high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology provides clarity, dynamics, and detail for your movies and music
  • LTS (Linear Travel Suspension): Behind each horn lies a 1.0" tweeter with a linear travel suspension. Klipsch exclusive Linear Travel Suspension (LTS) minimizes distortion for enhanced, detailed performances. In addition, Using Kapton (an extremely light and rigid material) in the tweeter suspension provides high efficiency and improve resolution and detail.

Dual 8" Copper-Spun IMG Woofers: The Klipsch R-820F floorstanding speaker houses two 8" Copper-Spun IMG woofers. The Copper-Spun IMG (Injection Molded Graphite) woofers are exceptionally light while being extremely rigid - providing remarkable low frequency response, with minimal cone breakup and distortion.

Tapered Crossover: The Klipsch Reference series floorstanding loudspeaker utilizes a tapered array crossover (2kHz) to smooth the transition between the tweeter and woofers, improve midrange definition, and widen dispersion.

Rear Tractrix Port: The rear-firing Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

MDF Cabinet: The Klipsch R-820F floorstanding speaker features a MDF cabinet with a scratch-resistant, textured wood grain vinyl that seamlessly integrates into almost any room or decor. The enclosure's reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy.

Acoustically Transparent Grille: The Klipsch R-820F floorstanding speaker comes with a removable, black cloth grille that is magnetic and acoustically transparent.

Binding Posts: The Klipsch Reference series floorstanding speaker is fitted with sturdy binding posts to ensure a secure connection to many types of cable and connectors. The binding post terminals will accept banana plugs (single only), pin-connectors, spade-lugs and bare wire (up to 10AWG). Two plastic caps will need to be removed to use banana plugs.

Stabilizer Feet: The Klipsch R-820F includes two stabilizer feet that will need to be installed to the bottom of the speaker enclosure using the included hardware. Each stabilizer foot features two integrated rubber pads safe for hardwood, tile, laminate, and vinyl flooring. No carpet spikes are included, and the speaker will not support optional carpet spikes or other type of feet.

Note: The Klipsch Reference series floorstanding speaker should not be used without the stabilizer feet installed, due to stability and sound performance reasons.

Application & Placement: The Klipsch R-820F floorstanding loudspeaker can be used in a dedicated stereo application or in a home theater application as front and/or rear speakers.

  • Front Placement: For optimum performance in a stereo application or as front speakers in a home theater application, Klipsch suggests placing the loudspeakers 6' to 15' apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5x the distance separating the speakers.
  • Rear Placement: When used as surround speakers in a home theater setup, the loudspeakers should be placed by the walls directly adjacent to the listening position. Another option would be by the wall behind the listening position.

Reference Series: The Klipsch Reference series consists of four floorstanding speakers (R-610F/R-620F/R-820F/R-625FA), two bookshelf speakers (R-41/R-51M), two center channel speakers (R-34C/R-52C), and one Dolby Atmos speaker (R-41SA) - all sold separately. The Klipsch Reference series line-up of loudspeakers sound great in stereo and home theater applications.

Optional Powered Sub: For bigger & deeper bass response, pair the Klipsch Reference series loudspeaker with one of Klipsch's powered subwoofers (sold separately).

Loading accessories...

Customer Q&A

12 questions already asked

Looking for a stereo receiver with bluetooth for these speakers R-820F. Will use in my 3 car garage. Reviews for stereo receivers doesn't sound very promising. not wanting to spend a fortune?
jim  May 01, 2022
2 answers
I use these with a vintage 1970s receiver. I use a device that connects with the receiver through RCA cables. I love the speakers.
george  May 02, 2022
The Klipsch R 820F speakers are very efficient,requiring very little power to drive them. I would say that a receiver with a rating of 50 watts or better(per channel)would get these puppies pumping.I am currently using a Yamaha AS-701 integrated amp delivering 100 watts per channel which is more than enough power. Hope this helps.
raymond  May 02, 2022
magnetically attached grille for R - 820F Klipsch Speakers how can i buy them?
demetrius  Mar 09, 2022
1 answer
I would think that you can order thru the klipsch manufacturer ,and if not the adviser at Crutchfield should be able to direct you in the right direction.
kirkwood a  Mar 09, 2022
Is it good for large room space?
victor  Nov 01, 2021
1 answer
Yes...they are very nice for a larger room room size is 30 × 30
richard j  Nov 01, 2021
What is the material used for the stand, particularly legs that touch the floor?
juan  Aug 15, 2021
3 answers
mark  Aug 15, 2021
The feet on bottom of speaker are made of plastic.
nicholas  Aug 15, 2021
micheal r.  Aug 15, 2021
Is this 3 Way or 2 Way speaker? If you could elaborate on this, I would appreciate.
smita  Aug 13, 2021
3 answers
It's a two-way. My very first speakers very good bang for the buck!!!
christopher  Aug 14, 2021
P. S. add a crown Amp to these speakers, they bring out all of the midrange and you will fall in love with the sound.. I run surrounds on emotiva but crown on the towers.. Unbelievable even at low volume listening..
gregory  Aug 13, 2021
Klipsch are only known to be a 2 way speaker! I've listened to everything in this price range, the R 600 m on speaker stands are just as good as the towers... JBL are 2 way, amazing though but pricey.. Those new polk reserves have great midrange but there 2 way.... The only downside of these rf 820,s are there not the best in imaging... If there on sale buy them, if not get the R 600 m less real estate..
gregory  Aug 13, 2021
Are the R 820F made in China?
bullitt  Apr 08, 2021
4 answers
Yes! speaker R 820F is made in China
samuel  May 02, 2021
Yes they are.
marcie  May 01, 2021
Yes. Most of Klipsch products are manufactured in China now.
jacob  Apr 30, 2021
I imagine they are. I know they are not made in America. Great speakers.
frederick  Apr 30, 2021
would the jvc receiver rx-8030vbk work well with the klipsch 820f floorstanding speakers? The receiver pushes out 130 watts per channel and the klipsch 820f's have an rms of 150watts a piece. It sounds safe, just wanted to make sure.
michael  Nov 29, 2020
3 answers
Yes you won't have any problem that is enough power to move those speakers. Later on you want to ad a separated amplifier if you want to ad more speakers to you system.
otto  Nov 29, 2020
Yeah, you should be fine. I have mine hooked up to Maranz amp pushing 150 watts per channel. They sound great and I've never had an issue with them.
randy  Nov 29, 2020
Should work great!
chris von  Nov 29, 2020
Can anyone help me decide between the Klipsch r26fa, rp280f and the r820f?
jay  Sep 05, 2020
1 answer
Personally,having both the rp280f and the r820f ,I would spend the extra $ and get the reference premier.i use the r820 f as a rear b side pair.they are both really nice speakers for the money
james  Sep 05, 2020
Can anyone help me decide between the Klipsch RP280F, R26F and the R820F?
jay  Sep 05, 2020
2 answers
Be sure your room can handle the larger speaker.If so R820F are excellent
mark  Aug 15, 2021
out of those three get the RP 280 F if possible
christopher  Aug 14, 2021
What size and type of wire to use ?
doug  Jul 14, 2020
4 answers
14 gage
paul cecil  Aug 22, 2020
14 gauge
pasquale  Jul 15, 2020
Descent wires literally speak volumes. I can't justify $ 1600 top end set of wires. I do however use the 14 ga crutchfield wires with gold plated banana clips. Made a very noticeable improvement over standard 16 ga speaker wire. I aslo run a Klipsch sub woofer, for it I went with the Austere V cable about $80. Very happy with the quality and how much better my sub works with a quality wire.
kerry l.  Jul 15, 2020
I use Crutchfield Flat Speaker Wire and it works great! 16-gauge wire (50-ft. roll) Crutchfield Item # 007CFL16L
chris von  Jul 15, 2020
Do these speakers require a "burn in" period? I haven't seen anything to that effect in the owner's manual or reviewer comments.
timothy r  Jun 20, 2020
3 answers
Not that i am aware of i can't ever remembering to burn in speakers on phono cartridges. Now you might need to try them in different spots in your playing area to see where the will give you your best sound output.
paul cecil  Aug 22, 2020
I've had mine for a little over 2 years now and they sounded gorgeous out of the box. Didn't notice any change in sound quality with use.
john  Jun 21, 2020
Every speaker needs to run first for a period before it develops its characteristics.
deitrace  Jun 20, 2020
Do you think they would be better with an 80W amp or a 60w in order to get the best of them without jeopardizing quality or blowing them with excesive power?
pinata  Jan 04, 2020
1 answer
Thanks for your question. For information on selecting the best amp I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.
kristina  Feb 06, 2020 (Staff)
