About the Klipsch RSM-400
Product highlights:
- 4" injection-molded polypropylene woofer
- 3/4" titanium compression driver
- frequency response 79-20,000 Hz (±4dB)
- sensitivity: 85 dB
- impedance: 8 ohms
- handles up to 40 watts of continuous power
- paintable cabinet made of all-weather ABS plastic
- IPX6-rated weather-resistant
- five-way binding posts
- detachable grilles with set-screws for a secure fit
- rotating logo for horizontal or vertical installation
- adjustable "C-style" bracket for easy wall-mounting
Dimensions and warranty:
- 9-11/16"W x 6-9/16"H x 6-13/16"D (including bracket)
- weight: 4.25 lbs. (each)
- warranty: 5 years
- MFR # 1072011
- Item # 714RSM400B
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Klipsch RSM-400 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- 2 Outdoor loudpeakers (black)
- 2 Grilles (pre-installed)
- 2 Mounting brackets (pre-installed)
- 4 Bracket knobs (pre-installed)
- Four 6mm screws
- Owner's Manual
More details on the Klipsch RSM-400
Features & specs
| Installation & setup | ||
|---|---|---|
| Type | Surface Mount | |
| Built-in amplification | No | |
| Bluetooth | No | |
| Wall-mountable | Yes | |
| Bracket included | Adjustable bracket | |
| Connector type | Binding post | |
| Driver details | ||
| Tweeter type | Tractrix Horn | |
| Tweeter size (inches) | 0.75 | |
| Midrange size (inches) | N/A | |
| Woofer size (inches) | 4.0 | |
| Woofer composition | Polypropylene | |
| Woofer surround | Rubber | |
| Audio specs | ||
| Power range (watts) | up to 40 | |
| Sensitivity | 85 dB | |
| Impedance (ohms) | 8 | |
| Frequency response | 79-20k Hz | |
| Enclosure | Sealed | |
| Dimensions & other info | ||
| Height (inches) | 6-9/16 | |
| Width (inches) | 9-11/16 | |
| Depth (inches) | 6-13/16 | |
| Weight (pounds) | 4.25 | |
| Parts warranty | 5 Years | |
| Labor warranty | 5 Years | |
Product Research
Features
IPX6 Rated: The Klipsch RSM-Series RSM-400 outdoor loudspeaker is IPX6-rated, making it water and weather resistant. It its protected against the most challenging weather conditions; including heavy rain fall, snow, sleet, and ice. the RSM-Series speaker can be used in outdoor or indoor applications.
Note: The RSM-400 outdoor loudspeaker is water and weather resistant, but should never be submerged into water.
2-Way Driver Design: The Klipsch RSM-400 loudspeaker utilizes a 2-way driver design that features 0.75" Tractrix Horn loaded titanium dome tweeter and a 4" polypropylene cone woofer for dynamic, full-range sound.
- 0.75" Tractrix Horn Loaded Titanium Dome Tweeter: The RSM-400 outdoor speaker has a 0.75" Tractrix Horn loaded titanium dome tweeter for high-frequency clarity and detail. The Tractrix Horns delivers a 90 x 90 degree dispersion pattern for a broader sound-stage.
- 4" Polypropylene Cone Woofer: The Klipsch outdoor loudspeaker also houses a 4" polypropylene cone woofer for well balanced mid/bass performance outdoors.
ABS Enclosure With Aluminum Grille: The RMS-400 loudspeaker employs a rugged ABS sealed enclosure for high performance outdoor sound. The included aluminum grille is mounted to the speaker cabinet with set screws to ensure a secure fit regardless of the outdoor environment. The RMS-400 is available in a black or white finish. However, you can paint the enclosure and grille to better match your outdoor space.
Binding Post Terminals: The Klipsch RSM-400 outdoor speaker is outfitted with a set of binding post terminals that will accommodate bare wire (up to 12AWG). The binding post terminals are located on the back of speaker enclosure and behind the mounting bracket. Due to the location of the binding post terminals, banana plugs, pin-connectors, and spade-lugs cannot be used.

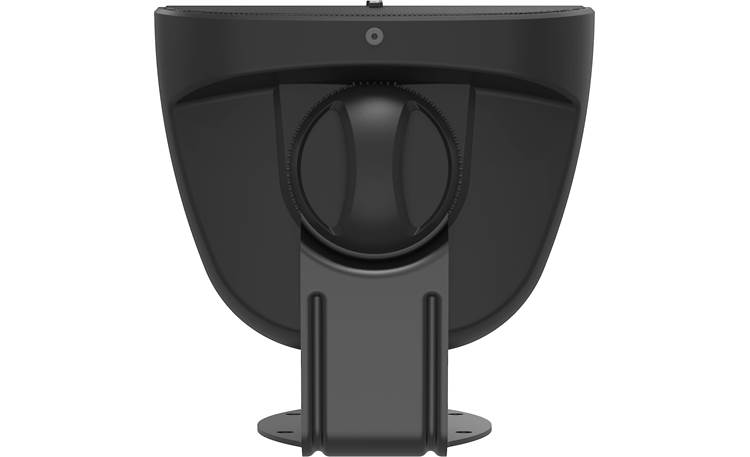

Mounting Options: The Klipsch RSM-400 speaker can be mounted outdoors or indoors using the included bracket system. The mounting bracket system is corrosion resistant powder coated zinc and offer great placement flexibility. It allows you to rotate the speaker almost 180 degrees after it's been mounted, letting you direct the sound to different areas as needed. If the speaker is mounted vertically, the bracket allows it to swivel side to side. If the speaker is mounted horizontally, the bracket allows it to swivel up and down. The speaker's shape and mounting bracket design even makes corner placement easy.
- Speaker & Bracket Dimensions: 9.665" (w) x 6.556" (h) x 6.780" (d)
- Speaker Only Dimensions: 9.462" (w) x 6.556" (h) x 5.145" (d)
- Weight: 4.25 lbs
Note: There is also a 3/8" threaded insert on the back of the speaker cabinet that can be used with other types of wall-mount brackets (sold separately - not available at Crutchfield).
