About the Nuvo NV-SUBIWDUAL8
Stout in-wall bass
Stout in-wall bass
Every home theater or music system deserves solid bass, but not every room has the space for a large self-powered sub. That's where in-wall subwoofers, like Nuvo's NV-SUBIWDUAL8, can come in handy. This subwoofer delivers precise bass while hiding discreetly inside your wall.

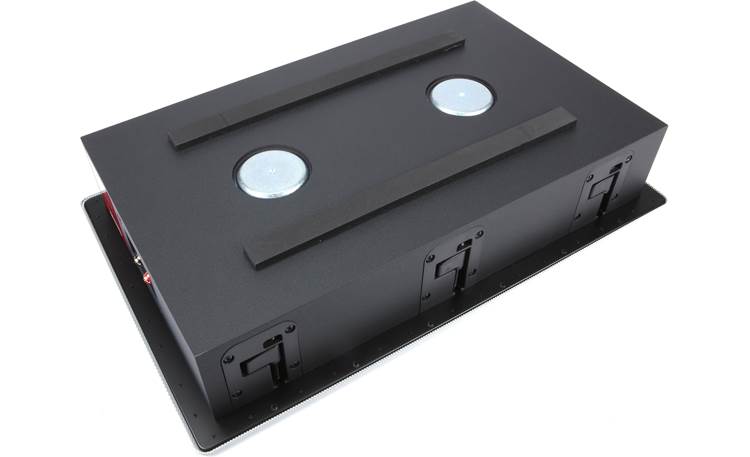

This in-wall sub uses two 8" high-output subwoofers to deliver low-end thump. The woofers are enclosed in a non-resonant MDF cabinet to cut down on unwanted vibration inside and behind your walls. Despite having a wooden backbox, the sub is only a little over 4" in depth.
Separate amp required
The 8" woofers are passive and require external amplification. For the best results, you'll want to grab Nuvo's NV-SUBAMP500 amplifier. The SUBAMP500 is a mean machine in its own right, boasting an impressive 250-watt power output into 8 ohms, front-mounted screen, EQ options, and much more.
DIY installation
If this is a do-it-yourself install, check out our guide to installing in-wall speakers, along with our selection of in-wall speaker wire.
Product highlights:
- two 8" high output woofers
- woofers are housed in a sealed MDF enclosure
- requires a separate amplifier, like the matching Nuvo NV-SUBAMP500
- handles up to 250 watts RMS
- frequency response: 35-200 Hz
- impedance: 8 ohms
- sensitivity: 85 dB
- removeable magnetic grille
- cutout required: 12"W x 19-7/8"H
- mounting depth: 4-1/8"
- overall dimensions: 13-3/4"D x 21-5/8"H x 4-1/4"D
- weight: 26 lbs.
- warranty: lifetime
- MFR # NV-SUBIWDUAL8
What's in the box:
Nuvo NV-SUBIWDUAL8 owner's manual
- In-wall passive subwoofer
- Grille
- Instruction Sheet
- Cutout Template
Reviews (2)
Customer reviews for Nuvo NV-SUBIWDUAL8
Loading reviews...
Average review:
5.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Nuvo NV-SUBIWDUAL8
Features & specs
| Features | ||
|---|---|---|
| Quantity in Package | Single | |
| Tweeter | --- | |
| Aimable Tweeter | No | |
| Woofer Composition | Not given | |
| Woofer Surround | Rubber | |
| Connector Type | Spring post | |
| Bi-Amp Inputs | No | |
| Built-in Back-box | No | |
| Moisture Resistance | ||
| Indoor (Moisture-resistant) | No | |
| Outdoor (Partial Exposure) | No | |
| Outdoor (Full Exposure) | No | |
| Specs | ||
| Tweeter Size | N/A | |
| Midrange Size | N/A | |
| Woofer Size | 8 | |
| Speaker Shape | Rectangle | |
| Cutout Width | 12 | |
| Cutout Height | 19.875 | |
| Mounting Depth | 4.125 | |
| Power Range (Watts) | Up to 250 | |
| Sensitivity | 85 dB | |
| Impedance (Ohms) | 8 | |
| Frequency Response | 35-200Hz | |
| Parts Warranty | Lifetime | |
| Labor Warranty | Lifetime | |
Product Research
Features
In-Wall Dual 8" Passive Subwoofer: The Legrand Nuvo NV-SUBIWDUAL8 is an in-wall passive subwoofer with two high-output 8" cone woofers that deliver discrete, powerful bass for music and home theater applications. Pair up to two NV-SUBIWDUAL8 subwoofers with one of the Nuvo subwoofer amplifiers (NV-SUBAMP200 or NV-SUBAMP500 - both sold separately). The NV-SUBIWDUAL8 can also be used with other bands and models of subwoofer amplifiers (sold separately).
Sealed MDF Cabinet: The Nuvo NV-SUBIWDUAL8 features an acoustic suspension (sealed) cabinet that is constructed of durable MDF with an aluminum frame for a distortion-free, superior bass experience. A rectangular magnetic, steel white grille is included (the grille is paintable).
Spring Post Terminals: The NV-SUBIWDUAL8 is outfitted with a set of spring post terminals that will accept bare wire (up to 12AWG) and pin-connectors. Due to the location and angle of the spring post terminal, banana plugs (single or dual) are not supported.
Mounting Options: The NV-SUBIWDUAL8 passive subwoofer requires a rectanglular cutout in the wall that measures 12.0" (w) x 19.875" (h) x 4.125" (d). Six swivel "dog-leg" clamps with integrated mounting screws around the enclosure secure the speaker in the wall. There needs to be at least 0.8125" of clearance around the inside of the cutout to accommodate the swivel "dog-leg" clamps. The "dog-leg" clamps will accommodate up to 1.5" drywall thickness.
