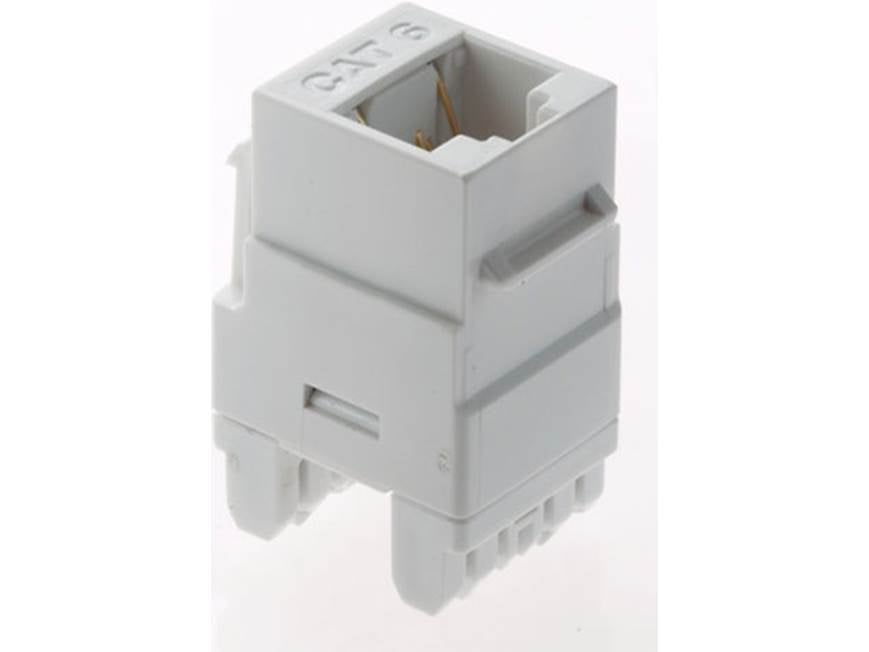

About the On-Q CAT-6 RJ-45 Keystone Connector
This CAT-6 RJ-45 Keystone Connectors fits in all On-Q keystone wall plates. Connect it to CAT-5, CAT-5e, or CAT-6 cables to create an Ethernet port for networking applications.
- creates an Ethernet port
- fits in all On-Q keystone wall plates
- connects to CAT-5, CAT-5e, or CAT-6 cables terminated with RJ-45 plugs
- special retention caps ensure secure termination of wires
- warranty: 1 year
- MFR # WP3460WH
What's in the box:
- White Keystone insert with RJ45/Cat 6 data/phone jack
- Clear plastic wire cover
- Wiring diagram
Customer reviews for On-Q CAT-6 RJ-45 Keystone Connector
Average review:5.0 out of 5 stars
Thanks for submitting your review
More details on the On-Q CAT-6 RJ-45 Keystone Connector
Overview: The On-Q WP3425-WH is a white plastic Keystone insert with an RJ45 Cat 6 data/phone jack, designed to be used with On-Q Keystone straps or wall plates. The insert has an 8-conductor 110 style punch down connection on the back. In addition to this insert you will need the appropriate in-wall wiring, along with either a standard keystone wall plate or an outlet strap with a decorator wall plate.
Installation Overview: The OnQ Keystone connectors (available in F-type connectors, Cat 5/RJ-45, Speaker screw terminals and binding posts, and multi-colored RCA jacks) provide terminals for in-wall audio and video cables in a single-gang or dual-gang box. Outlet straps and standard keystone wall plates, into which the keystone connectors snap, are available in 1, 2, 3, 4, or 6 port versions. When using an outlet strap, a matching decorator wall plate covers the outlet strap and wiring for a clean installation.
