Definitive Technology UIW RCS II In-ceiling multi-purpose speaker with built-in back-box

Item # 735RCS2

A built-in enclosure helps this versatile in-ceiling speaker deliver focused, dynamic sound for music and home theater.

A built-in enclosure helps this versatile in-ceiling speaker deliver focused, dynamic sound for music and home theater.

1 question - 1 answer

Item # 735RCS2

Low stock
$849.00 each

Other options

About the Definitive Technology UIW RCS II

Kramer Crane

Dynamic overhead sound from Def Tech

Definitive Technology has a great-sounding option for your custom-installed audio system. The UIW RCS (Reference Line Source) II in-ceiling speaker uses an angled-baffle design to bring sound down and toward you, making it a great choice for the front left, center, or right channel in your home theater system.

Dynamic overhead sound from Def Tech

Definitive Technology has a great-sounding option for your custom-installed audio system. The UIW RCS (Reference Line Source) II in-ceiling speaker uses an angled-baffle design to bring sound down and toward you, making it a great choice for the front left, center, or right channel in your home theater system.

Pair the UIW RCS II with Reference Line Source in-wall speakers for seamless, voice-matched sound throughout your room.

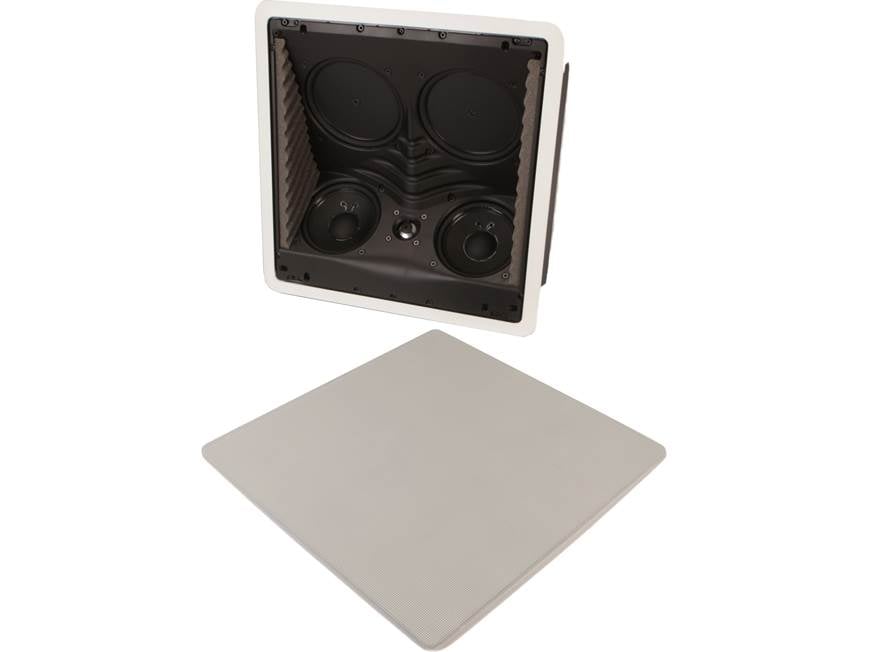

Definitive Technology UIW RCS II In-ceiling multi-purpose speaker with built-in back-box

The integrated sealed enclosure helps deliver excellent sound while keeping dust and dirt away.

Dual passive radiators help deliver extra punch

The UIW RCS II pairs two 5-1/4" polypropylene midrange/bass drivers with a 1" aluminum dome tweeter to produce the natural, revealing sound Def Tech is known for.

Dual 6-1/2" pressure-coupled passive radiators help reinforce this in-ceiling speaker's impressive bass output.

A built-in enclosure elevates performance

One of my favorite features of the UIW RCS II is the back-box that's built onto the speaker.

This carefully designed enclosure helps the speaker deliver consistently focused, well-balanced sound no matter what kind of space is behind it in your ceiling. It also keeps dust and dirt out.

DIY installation

You can paint the included grille to have your speaker blend in with your room's décor.

If this is a do-it-yourself install, check out our guide to installing in-ceiling speakers, along with our selection of in-wall speaker wire.

READ LESS

Product highlights:

  • ideal for an in-ceiling music system, or as part of a custom-installed home theater system
  • built-in back-box ensures well-balanced sound and protects against dust and dirt
  • angled-baffle design for directing sound toward your listening position
  • 1" aluminum dome tweeter
  • dual 5-1/4" polypropylene cone midrange/bass drivers with cast baskets
  • dual 6-1/2" pressure-coupled passive radiators for extended bass response
  • frequency response: 22-30,000 Hz
  • nominal impedance: 8 ohms
  • sensitivity: 92 dB
  • magnetic grille is paintable to match your décor
  • cutout dimensions: 14-3/8"W x 14-3/8"H
  • overall dimensions: 15-1/2"W x 15-1/2"H
  • mounting depth: 5-7/8"
  • warranty: 5 years
  • MFR # UDSA

What's in the box:

  • In-ceiling loudspeaker
  • Grille
  • 5 Long gaskets
  • 1 Short gasket
  • Paint mask
  • Wall template
  • Owner's Manual
  • Online Product Registration Card

Customer reviews for Definitive Technology UIW RCS II

Loading reviews...

Average review:

5.0 out of 5 stars
2 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Definitive Technology UIW RCS II

Stacey B.

Features & specs

Features
Quantity in Package Single
Tweeter Hard-dome
Aimable Tweeter No
Woofer Composition Polypropylene
Woofer Surround Butyl Rubber
Connector Type ---
Bi-Amp Inputs No
Built-in Back-box Yes
Moisture Resistance
Indoor (Moisture-resistant) Yes
Outdoor (Partial Exposure) No
Outdoor (Full Exposure) No
Specs
Tweeter Size 1
Midrange Size N/A
Speaker Shape Square
Woofer Size 5.25
Cutout Width 14.375
Cutout Height 14.375
Mounting Depth 5.875
Power Range (Watts) 10-250
Sensitivity 92 dB
Impedance (Ohms) 8
Frequency Response 22-30kHz
Parts Warranty 5 Years
Labor Warranty 5 Years

Product Research

Features

D'Appolito Driver Array: The Definitive Technology UIW RCS II in-ceiling speaker features a D'Appolito driver array angled down and aimed at the listening area . The D'Appolito driver array consists of two 5.25" cast-basket midbass/midrange drivers and a 1" pure aluminum tweeter, as well as two 6.5" pressure-coupled planar low bass radiators. Because of  its active driver/bass radiator combination the RCS II achieves an extended low-frequency response, which is deep and dynamic with a smooth and controlled roll-off that allows it to seamlessly blend with a subwoofer such as Definitive Technology's in-wall IWSub 10/10 or the UIW Sub Reference (sold separately).

Proprietary Wave Launch Technology: Proprietary Wave Launch (patent pending) baffle geometry and acoustic treatment materials serve to create the illusion that the speakers are directly in front of the listener rather than up in the ceiling. The precisely configured dual angled baffles incorporate a uniquely effective acoustic treatment which combines a computer-optimized ribbed surface with special dampening panels in order to achieve a linear uncolored sound combined with three-dimensional imaging in which acoustic events seem to effortlessly float in space.

Non-Resonant Sealed Enclosure: The RCS II features a non-resonant sealed medite (a dense wood product) enclosure to deliver the tight, detailed bass and uncolored midrange of audiophile free-standing speakers in every installation. The performance of open back built-in speakers will vary depending on the nature of the ceiling cavity behind the speaker. But Definitive Reference series speakers with integrated enclosures sound superb every time.

Paintable: The UIW RCS II in-ceiling loudspeaker's grille and frame can be spray painted to match the color of your wall without any loss of sound quality. Simply remove the grille from the speaker and place it on a drop cloth, newspaper, or plastic sheet and spray paint it with canned spray paint that closely matches the desired finish/color (available at home improvement stores). A paint mask is supplied to protect the drivers when painting the frame.

Spring-Loaded Speaker Terminals: The UIW RCS II in-ceiling loudspeaker features a pair of heavy-duty, gold-plated, spring-loaded posts designed to accept up to 10 gauge wire, banana plugs (single only), or pin-connectors.

Applications: The Definitive Technology UIW RCS II is intended for use as an in-ceiling front main left, center or right channel speaker, as well as a rear or side surround speaker in custom installed home theater systems of the highest quality. In addition, it can be used as a superb left or right speaker in a high quality stereo music system.

In-Ceiling Installation: Six rotating dogleg clamps and four 3.5" wood screws make the RCS II easy to install in either new or existing construction and provide secure, non-resonant mounting for ultimate audiophile performance free of vibrations and buzzes. In-ceiling installation requires a cutout of 14.375" (w) x 14.375" (h) x 5.875" (d). A 1" of clearance is required around the cutout, on the outside mounting surface, to clear the in-ceiling speaker's bezel. A 1.25" of clearance is required around the cutout, on the inside mounting surface, to clear the dogleg clamps.

Loading accessories...

Customer Q&A

1 question already asked

Q
Can these be used as dolby atmos in-ceiling speakers?
gino  Jan 18, 2022
1 answer
A
Yes but I would use those as your front L/C/R speakers. Use the Definitive Technology UIW RSS II for the height Atmos part. These speakers are awesome!
heath  Jan 18, 2022
