Bowers & Wilkins 705 S3

Features

1" Solid Body Tweeter-on-Top Decoupled Carbon Dome: The Bowers & Wilkins 705 S3 bookshelf loudspeaker houses a 1" Carbon Dome tweeter that utilizes a Solid Body Tweeter-on-Top design for uncompromising high performance sound that will reveal subtle nuances that you've never heard in your music before.

• 1" Decoupled Carbon Dome Tweeter: The 1" Decoupled Carbon Dome tweeter is purpose-built for the 700 Series and delivers a dramatic improvement on B&W's aluminum double dome tweeter (found in the 600 Series) by raising the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail. The tweeter is decoupled from the mounting assembly and hardware using synthetic gel to prevent any unwanted vibrations from reaching the tweeter. The result is breathtaking clarity and definition.
• Solid Body Tweeter-on-Top Design: The Solid Body Tweeter-on-Top design is borrowed from B&W 800 Series Diamond and helps the speaker convey uncanny realism, presence and transparency. Milled from a solid block of aluminum, the solid body tweeter housing design creates an acoustically optimized enclosure for the tweeter that is exceptionally inert and resistant to resonance. The result is a more natural, spacious, and open sound.

Note: There is some "play" in the tweeter housing mounted on top of the bookshelf loudspeaker enclosure. This is normal and specifically designed this way to prevent unwanted vibration between the tweeter housing and speaker enclosure.

6.5" Continuum Cone Midbass/Midrange Driver: The 705 S3 bookshelf loudspeaker features a single 6.5" Continuum cone midbass/midrange driver, borrowed from B&W's 800 Series Diamond. Thanks to its woven-coated material and composite construction, the Continuum cone provides a natural and open sound by avoiding the abrupt transitions in behavior that can impair the performance of a conventional drive unit and cause distortion. As a result, voice and instruments are delivered with purity and precision.

Flowport Technology: The B&W 705 S3 bookshelf speaker utilizes Flowport Technology to create smooth, deep, and efficient bass response. Its bass reflex enclosure features a rear-firing, dimpled flared port that provides natural bass response without turbulent noise or distortion. If you want to reduce the volume of bass without moving the speaker further from the wall, fit the included foam plug into the rear-firing port for lesser bass response.

Note: You can adjust the bookshelf speaker's low-frequency performance using the supplied foam plug. The foam plug is two-pieces, allowing for a degree of fine-tuning using either the outer, larger-diameter piece in isolation or the two parts together. Using solely the outer, larger-diameter foam piece will deliver less bass attenuation than the complete foam plug assembly.

Acoustically Transparent Magnetic Grille: The Bowers & Wilkins 705 S3 bookshelf loudspeaker comes with an acoustically transparent magnetic grille that's easy to install, looks great, and doesn't get in the way of the sound.

Dual Binding Post Terminals: The bookshelf speaker has two sets of heavy-duty binding posts connected by jumper straps. The binding post terminals will accept bare wire, pin connectors, spade connectors, or banana plugs (single only). There are plastic inserts that will need to be removed from the binding post terminals in order to use banana plugs. Using the dual binding posts terminals, you can choose to bi-amp or bi-wire the speaker (when facing the back of the cabinet - the left set of binding posts are for the high frequency drivers; the right set of binding posts are for the low frequency drivers).

• Bi-Wiring: Bi-wiring can provide noticeable improvements in the overall transparency of your loudspeakers. Run separate speaker wires to the low & high frequency drivers from a single amplifier.
• Bi-Amping: Bi-amping allows you to use separate amplifiers for the high & low frequency sections of your loudspeaker for greater dynamic range & lower distortion. We recommend that your separate amplifiers have identical gain to preserve the speaker's voicing balance.

Note: Make sure the jumper straps between the dual binding post terminals are removed when making a bi-amp or bi-wire type of connection.

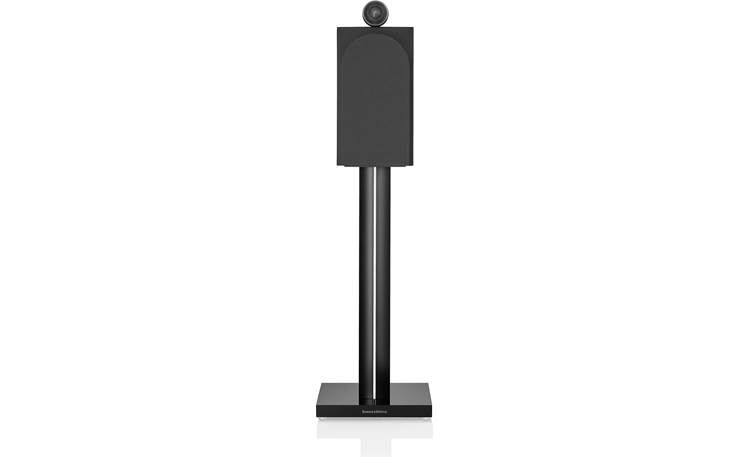

Mounting Options: The Bowers & Wilkins 705 S3 bookshelf loudspeakers can be placed on a set of speaker stands (sold separately - see Accessories Tab), a table-top, shelf, or other piece of furniture. The included self-adhesive rubber feet prevent unwanted vibration and protect your furniture from scratches (the feet add approximately 0.1875" to the overall height of the speaker).

• The B&W 705 S3 bookshelf speaker should be mounted as close to ear level of the main seated listening position as possible.
• Moving the speaker further from the walls will generally reduce the volume of bass. Space behind the speakers will also help to create an aural impression of depth.
• Conversely, moving the speakers closer to the walls will increase the volume of bass.

Note: The B&W 705 S3 does not come with a mounting bracket, threaded insert, or keyhole slot to wall-mount the speaker.

Applications: The Bowers & Wilkins 705 S3 bookshelf is a great choice for 2ch stereo music applications, as well as multichannel home theater setups.

• Stereo Music: The bookshelf speakers should be positioned between 4.9375' and 9.875' apart at two corners of an equilateral triangle completed by the listening area at the third corner. The speakers should be approximately 1.625' away from the back wall, and at least 1.625' away from any side walls.
• Home Theater: If the bookshelf speakers are to be used for the front channels in a home theater system, position the speakers within approximately 1.625' of the sides of the TV screen to keep the sound image in scale with the visual image. The speakers should ideally be at least 1.625' away from any side walls.

Bowers & Wilkins 700 Series: The Bowers & Wilkins 700 Series consists of three floorstanding loudspeakers (702 / 703 / 704), three bookshelf loudspeakers (705 / 706 / 707), and two center-channel loudspeakers (HTM71 / HTM72). The 700 Series by Bowers & Wilkins brings your movie and music soundtracks to life with dynamics and details you've never heard before.

Optional Powered Subwoofers: Give your 700 Series loudspeaker setup even more impactful bass with one of Bowers & Wilkins' powered subwoofers (sold separately - see Accessories Tab).
