About the PSB SubSeries 450
PSB's flagship powered sub
Enjoy powerful, pinpoint-precise bass all the way down to 20 Hz with PSB's flagship SubSeries 450.
PSB's flagship powered sub
Flat frequency response down to 20 Hz is a bit of a rarity in the powered subwoofer world, but that's exactly what the PSB SubSeries 450 brings to the table. Bass this powerful and accurate ensures a visceral experience with dynamic and explosive movie soundtracks. It also provides a deep, rock-solid foundation for music, opening up the soundstage for a larger, more atmospheric listening environment. Savor every kick of a bass drum, plucked note on an upright double-bass, or rush of air from a pipe organ.
Powered by NAD Electronics
When two legendary audio companies like PSB Speakers and NAD Electronics join forces, you can bet great things are going to happen. For starters, the SubSeries 450 employs a custom-designed, high-current 400-watt amplifier by NAD. The amp's advanced digital signal processing (DSP) allowed PSB to maximize the sub's performance, ensuring the flattest possible frequency response while maintaining high bass output levels with extremely low distortion. PSB then matched the amplifier with a potent, front-firing 12" driver with two pressure-coupled, side-firing passive radiators for an unbeatable combination of superior bass clarity and deep-down musicality.
- frequency response: 20-150 Hz (±3dB)
- low frequency cutoff (-10dB): 15 Hz
- high-current Class D Discrete MOSFET amplifier custom built by NAD Electronics
- power output: 400 watts RMS (1,000 watts dynamic peak)
- front-firing 12" polypropylene woofer cone
- two 10" side-firing passive radiators
- bass-reflex (passive radiator) enclosure
- continuously variable low-pass 50-150 Hz crossover
- rear-panel volume, crossover, and variable 180° phase controls
- line-level and LFE inputs/outputs
- gold-plated binding post speaker-level inputs
- USB power port (5 volts, 500mA) for wireless adapters
- remote trigger input
- auto on/off
- ultra-low, energy-saving <0.5W standby power consumption
- detachable power cord
- high-gloss black lacquer finish
- 16-1/4"W x 15-3/4"H x 17-13/16"D
- weight: 45 lbs.
- warranty: 5 years subwoofer, 1 year amplifier
- MFR # SS450
What's in the box:
- Powered subwoofer
- Detachable grille
- 8' Power cord
- Owner's Guide (En/Fr/Sp)
- Specifications sheet
- Warranty Card
Customer reviews for PSB SubSeries 450
Average review:5.0 out of 5 stars
Thanks for submitting your review
More details on the PSB SubSeries 450
Features & specs
|Woofer Size (inches)||12|
|Amplifier Output (watts)||400|
|Frequency Response||20-150 Hz|
|Preamp-Level Inputs||LFE, Stereo RCA|
|Speaker-Level Inputs||Binding post|
|Low-Pass Crossover Freq||50-150 Hz|
|High-Pass Crossover Freq||None|
|Speaker Parts Warranty||5 Years|
|Speaker Labor Warranty||5 Years|
|Amplifier Parts Warranty||1 Year|
|Amplifier Labor Warranty||1 Year|

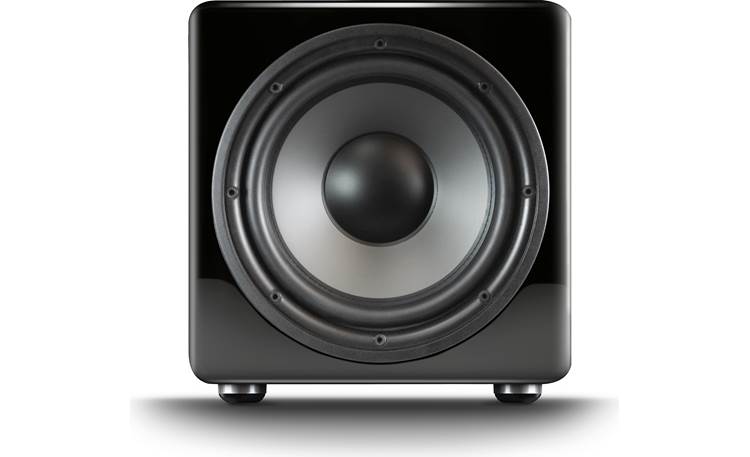

12" Woofer: The 12" woofer is built on a powerful motor using a 75oz magnet and a2-3/4" voice coil for high efficiency and power handling. The 6" spider assures perfect alignment at high SPLs which directly translates into very low distortion. The treated felt cone offers an ideal combination of stiffness and damping. Combined with a 1" rubber surround, this driver can respond to the lowest frequencies while maintaining perfect pistonic motion without "cone breakup" often encountered on lesser drivers.
Dual 10" Passive Radiators: To extend bass response into the infrasonic region, two 10" passive radiators are used to sum the back wave output of the 12" woofer with the front wave. The two passive radiators are free of any wind noise or "port chuff" that can be a problem at very high sound pressures.
Class D Amplifier (by NAD): The PSB SubSeries 450 employs a very advanced amplifier developed by NAD specifically for this application. The massive power supply is capable of the instantaneous high current required for accurate and powerful bass response and is combined with an advanced Class D output stage. This amplifier features an extremely high damping factor and high current output, two of the most important parameters for tight and powerful bass output. It is also highly efficient and includes a very low power (<0.5W) standby mode, making the woofer instantly available yet very low in power consumption.
DSP (Digital Signal Processing): The use of digital signal processing has allowed PSB's engineering team to maximize all aspects of performance; low bass extension with low distortion, the flattest frequency, freedom from overload, and ideal crossover characteristics. As a result, the PSB SubSeries 450 powered subwoofer meets the demands of the most dynamic and explosive movie and music soundtracks

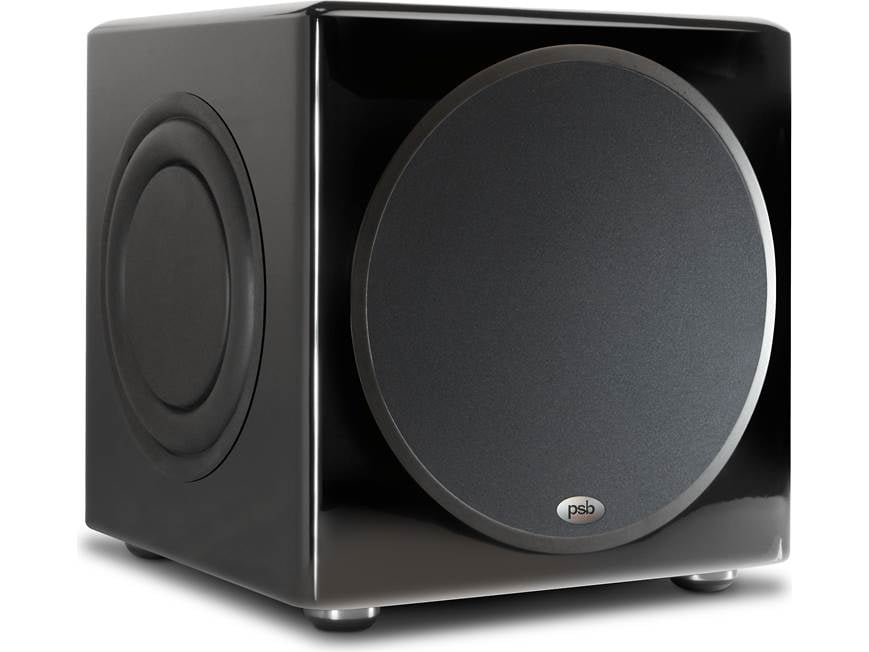

High-Gloss Cabinet: The PSB SubSeries 450 powered subwoofer features a soft-edged, cubic shaped cabinet with a beautifully, high-gloss black lacquer finish.
Controls: Adjustments for crossover frequency and volume level, as well as variable phase/delay, perfectly align the PSB SubSeries 450 powered subwoofer with the full range speakers in your system. These controls are found on the rear-panel of the powered sub.
- Volume Level: The rotary volume knob controls the output level of the powered subwoofer, relative to the volume of the other speakers in the system.
- Variable Crossover: The low-pass crossover adjusts the high-frequency roll-off of signals sent to the subwoofer. The control is continuously variable from 50 Hz to 150 Hz, and allows you to precisely match the subwoofer's bass production with your system's main left & right stereo speakers.
- Phase/Delay Dial: The phase/delay dial allows for the adjustment of the phase & delay of the subwoofer in relation to the speakers used in the system. The phase/delay is adjustable from 0 to 360 degrees.
Connections: The PSB SubSeries 450 powered subwoofer offers multiple connection options.
- LFE Input/Output: A single gold-plated RCA jack (LFE) is provided for connecting the powered subwoofer to your AV receiver's LFE output. Since the subwoofer/LFE outputs are filtered by most receivers/processors, the subwoofer's variable low-pass filter is not required and is bypassed. The powered subwoofer also has an LFE output for adding additional subwoofers.
- Stereo RCA Inputs: Two gold-plated RCA jacks are provided for connecting your source unit via the low-level input. If your receiver or integrated amplifier has preamp outputs, or if you are using a preamplifier without a designated subwoofer/LFE output, the preferred connection is to use a stereo RCA cable plugged into both left and right inputs. If the preamp outputs are unfiltered, the subwoofer's internal crossover should be used.
- Stereo RCA Outputs: The sub also has gold-plated RCA low-level output jacks, useful if your amp has pre-out/main-in jacks, or when using a separate preamp and amplifier. The low-level output is internally processed by the sub's active crossover; the high-pass slope is 12dB/octave and the crossover point is fixed at 80Hz.
- Speaker-Level Input: Two pairs of 5-way binding post terminals (for left & right channel) are provided for connecting the powered sub with speaker wire. The terminals will accept bare wire, spade lugs, pin connectors, and single or dual banana plugs.
Auto On/Off: The powered subwoofer features a main power switch on the back panel. When switched to On, the subwoofer is initially in stand-by mode, awaiting the presence of an audio signal. When the signal is received, the subwoofer turns on automatically. When no signal is detected, the sub's amp will automatically turn off after approximately 15 minutes. In the Off position, the subwoofer will not power up.
