Large Outdoor Shiplap TV Lift Cabinet Residential-grade cabinet for TVs up to 77" (Mocha)

Name: Large Outdoor Shiplap TV Lift Cabinet
Brand: TV Lift Cabinet
SKU: 784LORGSMO
Price: 4999.0 USD
Availability: InStock

Item # 784LORGSMO

This weatherproof cabinet features a motorized lift that raises your outdoor TV for viewing and lowers it for storage.

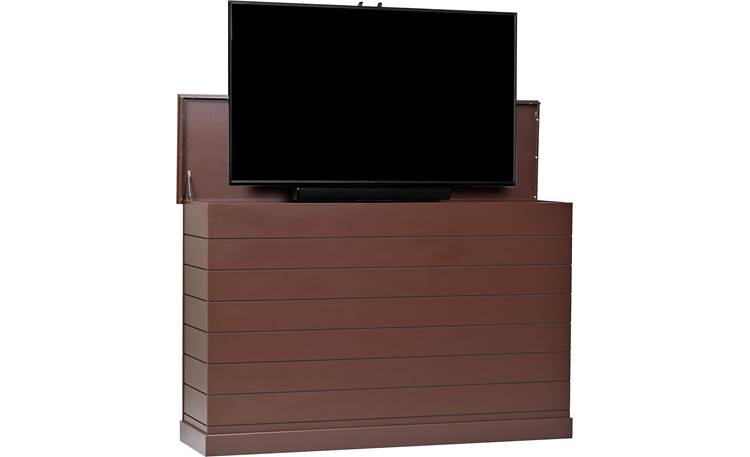

Front (TV not included)

1/9

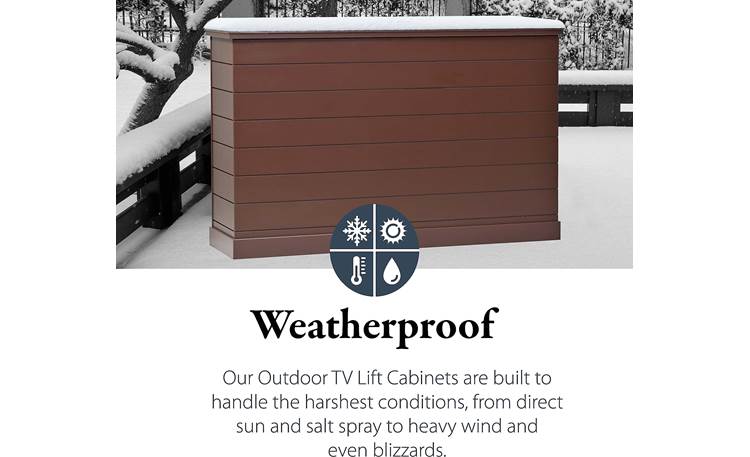

Weatherproof

2/9

Only at Crutchfield

3/9

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

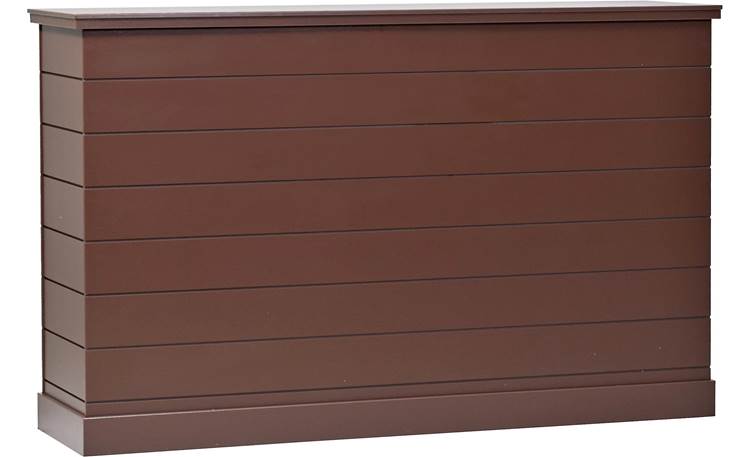

Left front

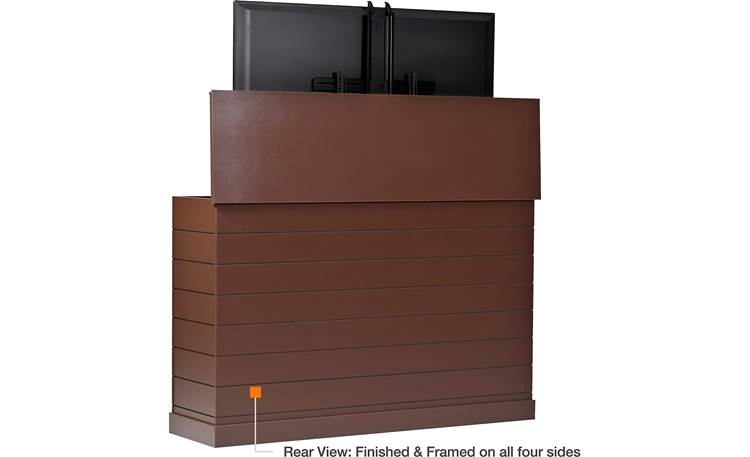

Back (TV not included)

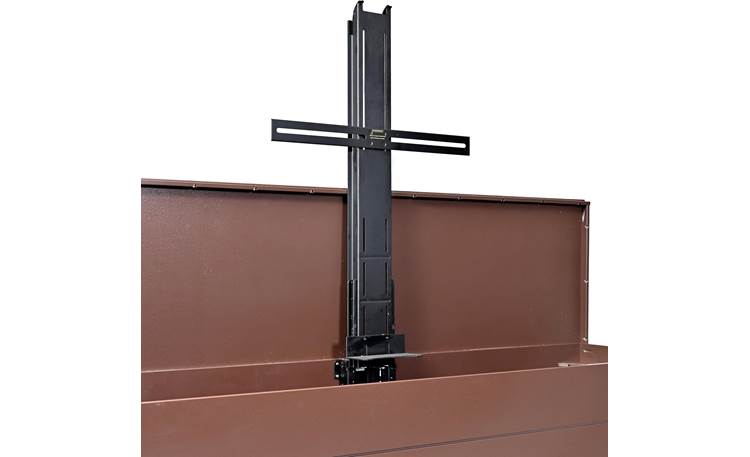

Universal TV mount included

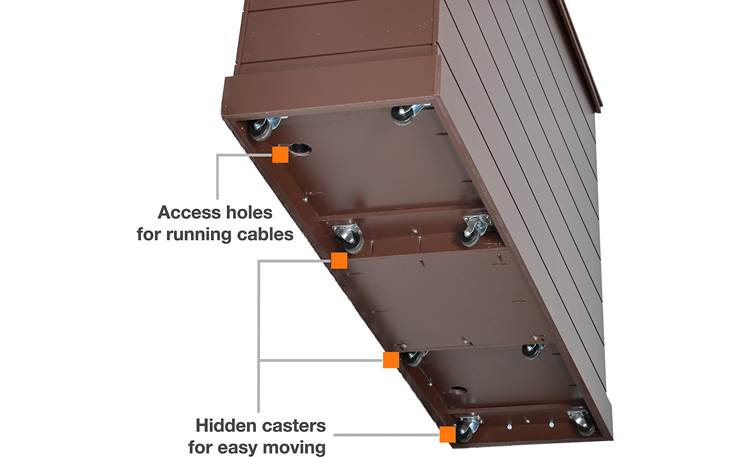

Bottom view

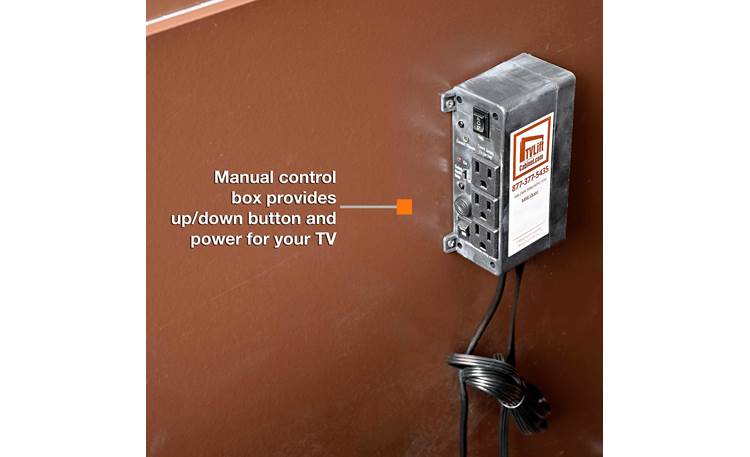

Manual control box with three outlets

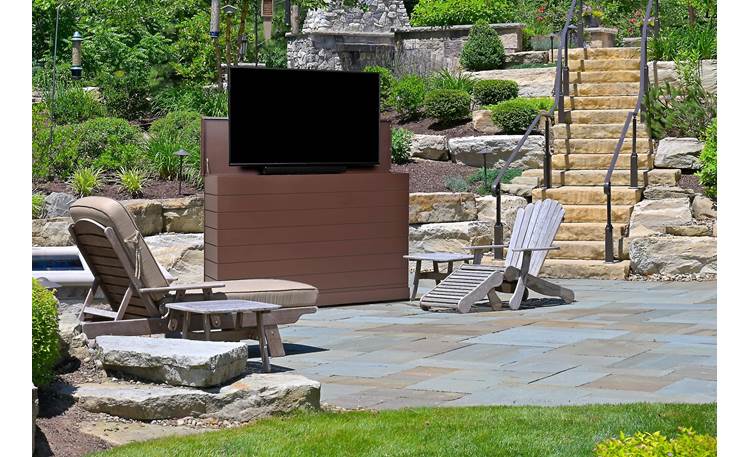

ideal for outdoor TVs

Large Outdoor Shiplap TV Lift Cabinet Front (TV not included)

Large Outdoor Shiplap TV Lift Cabinet Weatherproof

Large Outdoor Shiplap TV Lift Cabinet Only at Crutchfield

Large Outdoor Shiplap TV Lift Cabinet Left front

Large Outdoor Shiplap TV Lift Cabinet Back (TV not included)

Large Outdoor Shiplap TV Lift Cabinet Universal TV mount included

Large Outdoor Shiplap TV Lift Cabinet Bottom view

Large Outdoor Shiplap TV Lift Cabinet Manual control box with three outlets

Large Outdoor Shiplap TV Lift Cabinet ideal for outdoor TVs

This weatherproof cabinet features a motorized lift that raises your outdoor TV for viewing and lowers it for storage.

Item # 784LORGSMO

Ships free from manufacturer to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

$4,999.00

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Ralph Graves

Smart, stylish storage for outdoor TVs

This motorized cabinet from TV Lift Cabinet offers a simple TV installation for your deck or patio. Don't leave your mounted outdoor TV exposed to the elements year-round. Keep it safe inside this residential-grade shiplap cabinet and just raise the screen when it's showtime. The cabinet is made of durable, UV-proof HDPE (high-density polyethylene). It's weatherproof — impervious to salt spray, heavy winds, and even blizzards.

The cabinet accommodates TVs up to 77" in screen size and weighing up to 120 lbs. Hidden casters let you roll the cabinet into position wherever you'd like it. Connect the power cable and use the lift controls on the cabinet or on the included remote to elevate the TV for viewing.

Practical design

The cabinet is finished on all four sides, so you don't have to keep it parked next to a wall. There are openings in the cabinet floor for cables. The control box is built into the interior and includes three power outlets (one current sensing).

Product highlights:

for most TVs up to 77" and weighing up to 120 lbs.
maximum TV size (without stand): 69"W x 40"H x 6"D
pre-installed motorized TV lift
built-in control box
- three onboard electrical outlets
cable management holes in cabinet floor
weatherproof HDPE (high-density polyethylene) construction
- 3/8"-thick panels
stainless steel piano hinge
universal TV mounting bracket with included mounting hardware
built-in hidden casters
remote control included
72-1/2"W x 45-1/4"H x 20-1/4"D
AC power required
warranty: 1 year
MFR # AT00SL-LARGE-MOCHA
Item # 784LORGSMO

What's in the box:

TV lift cabinet
TV mounting bracket
Remote control
Two M8x25mm screws
Two M6x30mm screws
Two M5x30mm screws
Two M4x30mm screws
2 Plastic washers
2 Plastic caps
AC power cord (attached)
Installation Instructions

Researched by Crutchfield's Stacey B.

Product Research

Feature

Weatherproof HDPE Construction: The outdoor TV Lift Cabinet features residential-grade 3/8" thick panels made from HDPE (high-density polyethylene). HDPE is engineered to survive harsh outdoor conditions and will not corrode, rot, delaminate or splinter, and are UV protected to ensure its color and beauty lasts for years to come.

Motorized TV Lift: This outdoor TV Lift Cabinet features a TV mounting bracket with a residential-grade motorized lift. It can accommodate most flat-panel TVs up to 77" that weight up to 120 lbs. The TV's pedestal stand or feet will need to be removed. The TV can measure up to 69.0" (w) x 40.0" (h) x 6.0" (d) without the stand or feet installed. Use this guide to help measure your flat-panel television. The TV mounting bracket does not swivel or tilt.

Control Options: The residential-grade outdoor TV Lift Cabinet includes an interior control box and comes with an RF remote to operate up/down functions of the motorized TV lift. You can also install an optional external up/down switch (sold separately - not available at Crutchfield).

Control Box: A control box mounted inside the outdoor TV Lift Cabinet provides manual up/down operation of your mounted TV.
RF Remote: The included RF remote control provides wireless up/down operation of the TV Lift Cabinet. Because the remote is RF (radio frequency) and not IR (infrared), the remote does not have to be pointed directly at the TV Lift Cabinet.
Optional External Switch: You can also connect an external up/down switch (sold separately - not available at Crutchfield) to the control box and mount the optional up/down switch away from the TV Lift Cabinet.

Hidden Cable Management & Casters: The residential-grade outdoor TV Lift Cabinet has hidden access holes underneath the bottom for running cables. The TV Lift Cabinet also has hidden casters to make moving and positioning the cabinet for the ideal spot a lot more easier.

Power Requirements: The control box mounted inside the commercial outdoor TV Lift Cabinet provides three 3-prong AC power outlets - one for your TV and two other outlets for media source components. Your TV should be plugged into the outlet labeled "(IR) current sensing" to allow your TV to automatically lower when the TV powers off (may not work with all brands and models of TVs). The control box features an attached AC power cord that will need to be plugged into an outdoor-rated GFCI 3-prong AC power outlet.

Made In USA: The residential-grade outdoor TV Lift Cabinet is designed and manufactured in the USA, plus comes with a 1 year warranty.
