About the iDatalink Maestro APX-S8-FO1 Dash & Wiring Kit
Product highlights:
- allows you to install a Kenwood or JVC Direct Replacement radio with an 8" or 10" screen in select 2011-23 Ford vehicles with factory 8" MyFord Touch radio (also requires the Maestro RR or RR2 module)
- retains appearance of factory dash
- retains the following factory features (if present):
- factory amplifier with turn-on, fader, gain, and speed-compensated volume
- steering wheel audio controls with two function buttons and expandable radio functions
- backup camera with dynamic parking guidelines and park assist chimes
- secondary vehicle display (if factory equipped)
- factory climate display/controls and vehicle settings from head unit's screen
- USB ports
- warning chimes
- adds these features:
- display vehicle information
- selectable performance gauges including "Track Pack" gauges
- read/reset check engine codes
- provides 12V/15A accessory power and illumination outputs
- provides outputs (parking brake, reverse, vehicle speed sensor [VSS]) needed to install a navigation or multimedia receiver
- warranty: 1 year
- MFR # APX-S8-FO1
- Item # 794APS8FO1

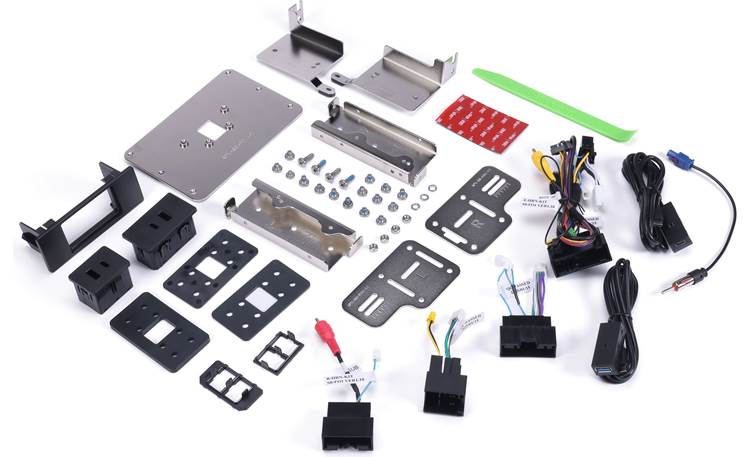

What's in the box:
iDatalink Maestro APX-S8-FO1 Dash & Wiring Kit owner's manual
If you need assistance accessing this owner's manual, please give us a call.- APX-S8-F01-01 mounting plate
- APX-S8-FO1-01 bracket
- APX-SB-FO1-02 bracket
- APX-S8-FO1-13 mounting bracket
- APX-SB-FO1-14 mounting bracket
- APX-S8-FO1-13 bracket
- APX-S8-FO1-14 bracket
- Vehicle/interface harness
- Sub harness
- A-HRN-KIT speaker harness
- C-HRN-KIT speaker harness
- USB-C cable
- USB-C to USB-A cable
- Large USB housing
- Small USB housing
- USB trim-panel
- 2 USB trim-rings
- 3 USB trim-plates
- Antenna adapter
- 3M tape
- Pry-tool
- Ten M5x6mm screws
- Four M5x16mm screws
- Four M5x8mm screws
- 4 Nuts
- 4 Split-washers
- "GND" screw
- Quick Start Guide
More details on the iDatalink Maestro APX-S8-FO1 Dash & Wiring Kit
Product Research
Feature
S8-FO1 APX Installation Kit: The iDatalink Maestro APX Series S8-FO1 kit allows the installation of an APX-compatible Kenwood or JVC aftermarket radio with 8" or 10" screen in select Ford & Lincoln vehicles when used in combination with the iDatalink Maestro RR or RR2 Car Radio Replacement Interface module (sold separately).
- Vehicle Compatibility: Select 2011-2023 Ford & Lincoln vehicles with factory 8" MyFord Touch radio. Click here for list of compatible vehicles.
- Radio Compatibility: APX-compatible Kenwood & JVC aftermarket radios with 8" or 10" screen - including the DAX8000S, DAX800XR, DAX1050XR, KW-Z800AW, and KW-Z1000AW.
Notes:
- The S8-FO1 installation kit requires the purchase of the iDatalink Maestro RR or RR2 (sold separately) and the download of a vehicle specific firmware from iDatalink Weblink Desktop (for Windows and Mac).
- In some installations, the Kenwood KCA-A150EX or JVC KS-UA50 extension cable will also be required and sold separately.
Direct T-Harness Compatible: The S8-FO1 supports iDatalink Direct T-Harness (sold separately) for direct connection to a compatible APX-compatible Kenwood or JVC aftermarket head unit (some hardwiring may still be required).
Factory Fit: The S8-FO1 installation kit includes mounting hardware and harnesses to retain your vehicle's factory radio bezel and controls for a factory appearance with aftermarket performance, and without the need of a plastic dash kit.
Retained Factory Features: The S8-FO1 installation kit, along with the iDatalink Maestro RR or RR2 interface module, allows you to retain the following Ford factory features (if applicable).
- Factory Amplifier: Retains premium Sony factory amplifier with turn-on and fader control.
- Climate Display & Control: The factory climate display and control can be accessed from the touchscreen of your APX compatible aftermarket head unit.
- Vehicle Settings: Access and modify factory vehicle settings through the compatible aftermarket head unit's touchscreen.
- Secondary Vehicle Display: Secondary vehicle display is retained (if factory equipped) with audio information, hands-free information, and internal navigation.
- Steering Wheel Controls: Factory steering wheel controls are retained with two function buttons and expandable radio functions.
- USB Retention: Factory USB ports are retained and allow a wired USB connection for Apple CarPlay or Android Auto from your new aftermarket radio.
- Advanced Camera Features: Factory backup camera is retained with parking guidelines, as well the factory 360 camera. If you add an aftermarket front and/or side cameras (sold separately) to your APX-compatible head unit that is equipped with multiple camera inputs, the vehicle's factory auto camera switching feature is also retained.
- Warning Chimes: Factory warning chimes are retained through the use of the S8-FO1 installation kit.
Extra Features: The following Extra features are added when using the Maestro RR or RR2 Car Radio Replacement Interface module and the S8-FO1 installation kit.
- Vehicle Info: Tire Pressure Display, Battery Voltage Display, Read/Reset Engine Codes, and Door Open Status with Warning.
- Gauges: Selectable Performance Gauges, "Track Pack" Gauges, and Read/Reset Check Engine Codes.
Outputs: The S8-FO1 installation kit provides Navigation, Accessory Power, and Illumination Outputs to make installation simpler.
- Navigation: Parking Brake, Reverse Light, and VSS (Vehicle Speed Sense).
- Accessory Power Output: 12V/15A Accessory Power Output
- Illumination Output: Illumination Output
