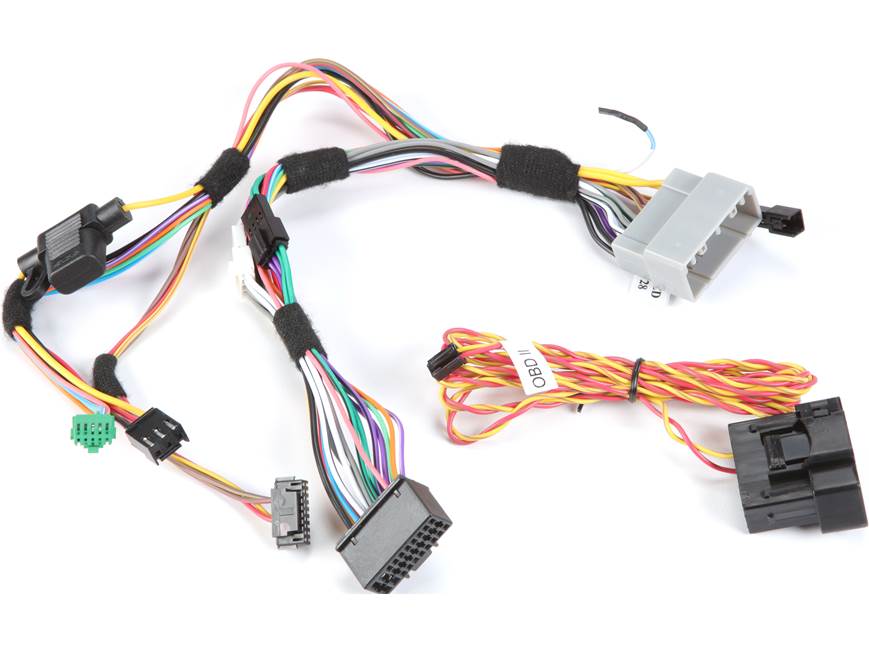

iDatalink HRN-HRR-CH2 Vehicle-specific Harness Front

iDatalink HRN-HRR-CH2 Vehicle-specific Harness Other

iDatalink HRN-HRR-CH2 Vehicle-specific Harness Only at Crutchfield

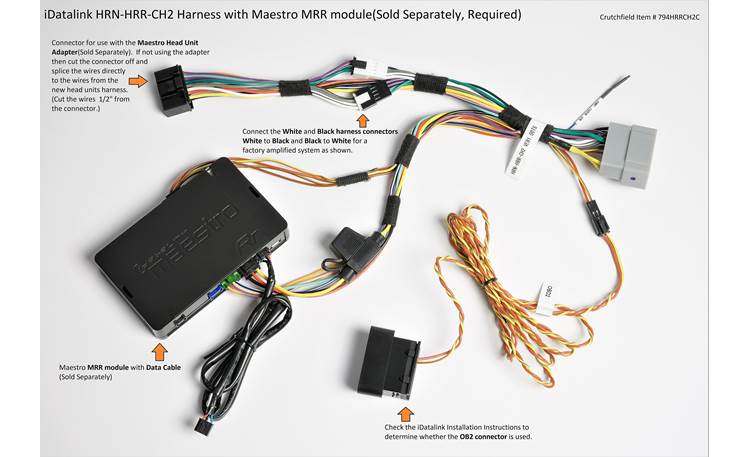

iDatalink HRN-HRR-CH2 Vehicle-specific Harness Tech Graphic

iDatalink's HRN-HRR-CH2 interface harness allows you to connect a new car stereo in select 2004-10 Chrysler, Dodge,...

Item # 794HRRCH2C

Free 1-day shipping to Virginia on orders $50+

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$44.99

Add to cart

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

iDatalink meets Chrysler

iDatalink's HRN-HRR-CH2 interface harness allows you to connect a new car stereo in select 2004-10 Chrysler, Dodge, and Jeep vehicles, working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module. Once the new car stereo is connected, you'll retain the use of your steering wheel audio controls and your factory amp in these vehicles. If you're installing an iDatalink-ready car stereo, you'll also retain your fader control.

The package includes connectors that plug in between the Maestro module, your Chrysler radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.

An iDatalink-ready car stereo takes full advantage of this harness

If you're buying a compatible iDatalink-ready car stereo, you'll enjoy the outstanding performance of your receiver, plus seamless touchscreen control over most of the factory features in select Chrysler-built vehicles. You'll also appreciate the additional features added by the adapter, including the ability to view performance gauges and vehicle information on the screen with select iDatalink-ready receivers. the module also supplies the outputs (parking brake, reverse, speed sense) you'll need to install a navigation receiver.

Plug directly into your new stereo

This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminate the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.

Installation note: The HRN-HRR-CH2 harness must be used with the iDatalink Maestro ADS-MRR or ADS-MRR2 module to connect a new car stereo to your Chrysler-made vehicle.

Product highlights:

allows installation of a new receiver in select Chrysler vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)
retains the use of your steering wheel audio controls and factory amp in select vehicles
displays engine performance data on touchscreen with iDatalink-ready receivers
works with iDatalink's "Head-unit Direct" harnesses, eliminating need for splicing
warranty: 1 year
MFR # HRN-HRR-CH2
Item # 794HRRCH2C

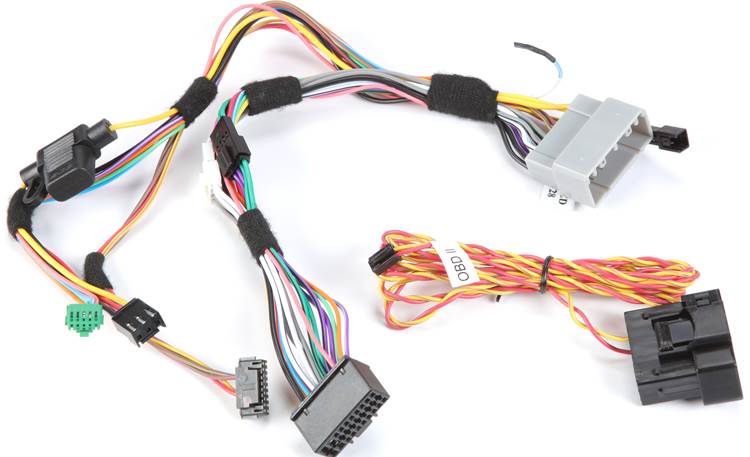

What's in the box:

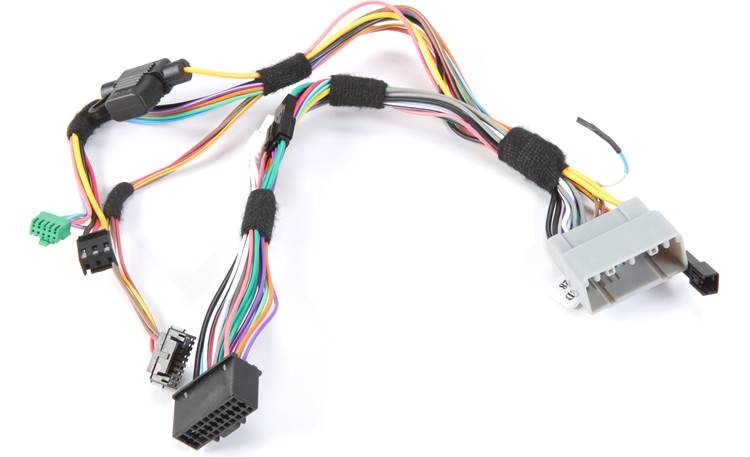

Vehicle/radio installation harness

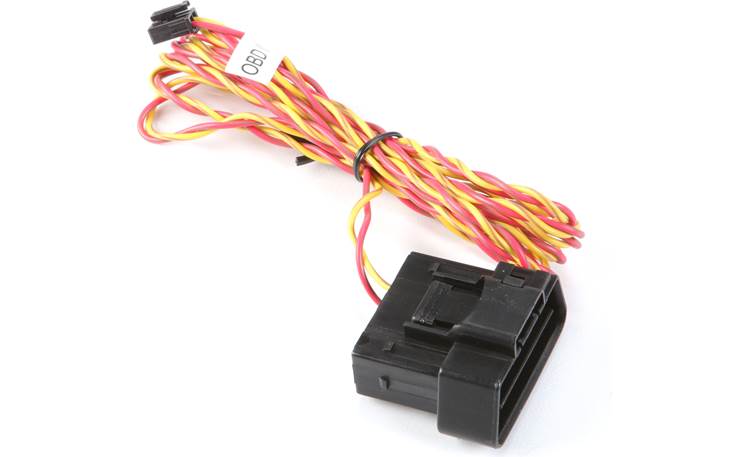

OBDII harness

Researched by Crutchfield's Stacey B.

The iDatalink HRN-HRR-CH2 Vehicle-specific Harness replaces these items:

iDatalink HRN-RR-CH2 Interface Harness

Product Research

Features

Installation Harness: The iDatalink Maestro HRN-HRR-CH2 installation harness greatly simplifies the installation of the Maestro RR or RR2 Car Radio Replacement Interface module (sold separately) in select Chrysler, Dodge, and Jeep vehicles when replacing your factory radio with an iDatalink Serial Port compatible head unit (can also be used with non-iDatalink compatible head units).

Vehicle Compatibility: Click here for a list of compatible Chrysler, Dodge, and Jeep vehicles.
Radio Compatibility: Click here for a list of fully compatible aftermarket head units with an iDatalink Serial Port.

Note: The iDatalink Maestro HRN-HRR-CH2 installation harness requires the purchase of the iDatalink Maestro RR or RR2 (sold separately).

Head Unit Connection: The HRN-HRR-CH2 supports iDatalink's Direct T-Harnesses (sold separately) for direct connection to select iDatalink Serial Port compatible head units, replacing the wiring harness that comes with your aftermarket stereo (some hardwiring may still be required). If connecting to an aftermarket head unit that does not support an iDatalink Direct T-Harness, you'll need to cut off and remove the 20-pin black connector from the HRN-HRR-CH2 harness and splice each wire directly to the aftermarket radio's corresponding wire.

Flashing Module via Weblink Desktop: The iDatalink Maestro RR (ADS-MRR) will need to be loaded with correct firmware before installation. The included USB cable plugs into your computer and allows you to "flash" the Maestro RR with the appropriate firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware.

Retained Features: The following factory features (if applicable) are retained when replacing your factory radio with a compatible iDatalink Serial Port head unit from using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-HRR-CH2 installation harness.

Factory Amplifier: Retains factory premium audio amplifier with turn-on, fader, and gain adjustment.
Steering Wheel Controls: Factory steering wheel controls are retained with two function buttons and expandable radio functions.

Note: When installing an aftermarket head unit without the iDatalink Serial Port, only steering wheel control and amplifier turn-on are retained (no fader or gain adjustment).

Extra Features: The following Extra features are added when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit using the Maestro RR or RR2 Car Radio Replacement Interface module and HRN-HRR-CH1 installation harness.

Vehicle Info: Tire Pressure Display, Battery Voltage Display, Read/Reset Engine Codes, and Door Open Status with Warning.
Gauges: Selectable Performance Gauges, "Track Pack" Gauges, and Read/Reset Check Engine Codes.

Outputs: The HRN-HRR-CH1 provides Navigation, Accessory Power, and Illumination Outputs to make installation simpler.

Navigation: Parking Brake, Reverse Light, and VSS (Vehicle Speed Sense).
Accessory Power Output: 12V/15A Accessory Power Output
Illumination Output: Illumination Output

The iDatalink HRN-HRR-CH2 Vehicle-specific Harness replaces these items:

iDatalink HRN-RR-CH2 Interface Harness

Connect a new car stereo and retain steering wheel audio controls and factory amp in select 2004-10 Chrysler-made vehicles

ADS-MRR or ADS-MRR2 module also required

75 reviews

allows installation of a new receiver in select Chrysler vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)
retains the use of your steering wheel audio controls and factory amp in select vehicles

Loading accessories...

1 question already asked

I have a ram 1500 stock radio and wantng to upgrade can you please tell me what I need to do it and poss upgrade my speakers is this what I need to get more volume Not sure what I need as far as harnesses .. I know I need radio adapter and some type of harness ?

gary Jun 19, 2024

1 answer

Greetings Gary. Thank you for your question. For product recommendations, please call one of our advisors at 800-324-9695.

thomas Jun 19, 2024 (Staff)
