iDatalink KIT-EXP1 Dash and Wiring Kit Install and connect a new iDatalink-ready car stereo in select 2011-19 Ford Explorer vehicles — MRR or MRR2 module also required (Black)

Item # 794KEXP1

Get the additional features of an aftermarket radio in your Explorer with the My Ford Touch radio.

Find what Fits your vehicle

Remove

Checking fit...

Get the additional features of an aftermarket radio in your Explorer with the My Ford Touch radio.

Item # 794KEXP1

Ships free

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
On backorder
Expected: 7/22/2025
$429.99

Other options

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

About the iDatalink KIT-EXP1 Dash and Wiring Kit

Product highlights:

  • allows you to install an iDatalink-ready double-DIN radio in select MyFord Touch-equipped Ford vehicles
  • also requires the Maestro ADS-MRR or ADS-MRR2 module
  • includes dash kit, wiring harness, and other wiring
  • includes hard button climate controls
  • retains steering wheel audio controls
  • retains factory backup camera (if equipped) including advanced camera features
  • retains climate controls and hazard button
  • retains factory menus
  • displays vehicle information and gauges on new receiver's screen
  • supplies outputs (parking brake, reverse, vehicle speed sense [VSS]) for navigation and multimedia receivers
  • warranty: 1 year
  • MFR # KIT-EXP1
  • Item # 794KEXP1

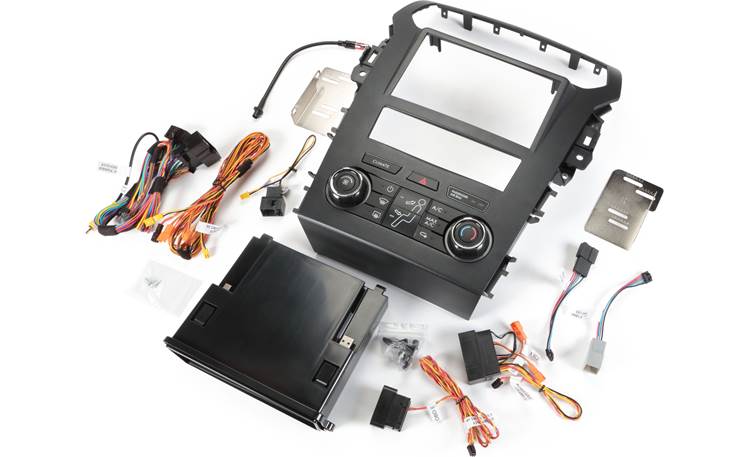

What's in the box:

iDatalink KIT-EXP1 Dash and Wiring Kit owner's manual

If you need assistance accessing this owner's manual, please give us a call.
  • Dash kit with integrated climate control
  • Pocket with USB ports (pre-installed rubber mat)
  • 2 Radio brackets
  • Wiring harness
  • Extension harness
  • MIC1/MIC2 harness
  • Yellow/black wire harness
  • Antenna adapter
  • OBDII harness
  • 2 HVAC harnesses
  • 2 Screws
  • 2 Clips
  • 2 Rubber sleeves
  • Quick Start Guide

More details on the iDatalink KIT-EXP1 Dash and Wiring Kit

Stacey B.
The iDatalink KIT-EXP1 Dash and Wiring Kit replaces these items:

Product Research

Features

Vehicle Compatibility: The iDatalink Maestro KIT-EXP1 consists of a dash kit and vehicle harness designed specifically for select 2011-2019 Ford Explorer vehicles (with factory 4.3" radio screen). The KIT-EXP1 lets you replace the factory radio with an iDatalink Serial Port compatible head unit using the Maestro RR or RR2 Car Radio Replacement Interface module (sold separately).

  • Click here for a list of compatible Ford vehicles.
  • Click here for a list of compatible aftermarket radios with an iDatalink Serial Port (not compatible with non-iDatalink Serial Port radios).

Note: The iDatalink Maestro KIT-EXP1 requires the purchase of the iDatalink Maestro RR or RR2 (sold separately) and the download of a vehicle specific firmware from iDatalink's Weblink Desktop (for Windows and Mac).

Head Unit Connection: The KIT-EXP1 supports iDatalink's Direct T-Harnesses (sold separately) for direct connection to select iDatalink Serial Port compatible head units, replacing the wiring harness that comes with your aftermarket stereo (some hardwiring may still be required).

Flashing Module via Weblink Desktop: The iDatalink Maestro RR or RR2 will need to be loaded with correct firmware before installation. The included USB cable plugs into your computer and allows you to "flash" the Maestro RR or RR2 with the appropriate firmware to prepare it for installation. Simply download Weblink Desktop (for Windows and Mac) onto your computer to access the appropriate firmware.

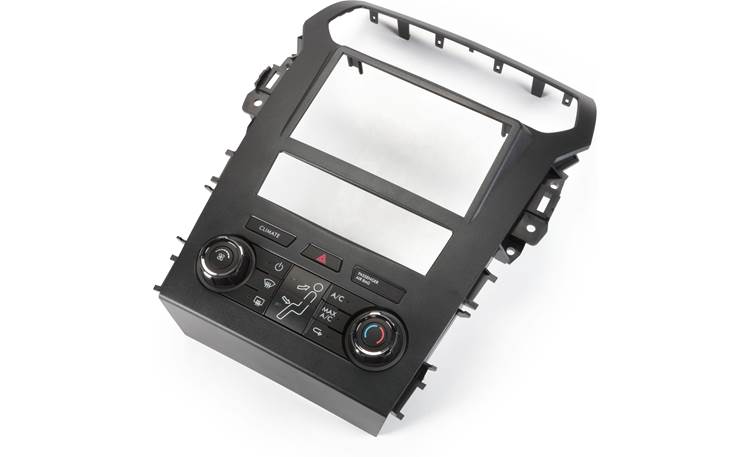

Factory Fit & Finish Kit with Integrated Climate Control: The KIT-EXP1 Installation Integration Kit features a factory grade fit & finish to match the contour and color of your vehicle's dash. The dash kit is compatible with double-DIN Datalink Serial Port compatible head unit.

  • Integrated Climate Controls & Hazard Button: The included dash kit features integrated climate controls with push-buttons and 3-way rotary dials. A hazard button is also included.
  • Built-In Pocket with USB Ports: The dash kit also features a built-in pocket with a USB-A and USB-C port. Your aftermarket radio's rear-panel USB-A and USB-C port will need to plug into these USB ports inside the pocket (USB cables not included). As long as your new aftermarket receiver has a high-amperage charging port (1.5A or greater), the USB ports should support Apple CarPlay and Android Auto operation. However, the number of variables involved means we can't guarantee compatibility.

Retained Features: The following factory features (if applicable) are retained when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit using the Maestro RR or RR2 Car Radio Replacement Interface module and KIT-EXP1 integration installation kit.

  • Climate Control & Hazard Button: Climate controls are integrated into the included dash kit. A hazard button is also built into the kit.
  • Steering Wheel Controls: Factory steering wheel controls are retained with two function buttons and expandable radio functions.
  • Advanced Camera Features: Factory backup camera is retained with parking guidelines and visual park assist, as well the factory 360 camera feature. If you add an aftermarket front camera (sold separately) to your iDatalink compatible head unit that is equipped with multiple camera inputs, the vehicle's factory auto camera switching feature is also retained.

Extra Features: The following Extra features are added when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit using the Maestro RR or RR2 Car Radio Replacement Interface module and KIT-EXP1 installation kit.

  • Vehicle Info: Tire Pressure Display, Battery Voltage Display, Read/Reset Engine Codes, and Door Open Status with Warning.
  • Gauges: Selectable Performance Gauges, "Track Pack" Gauges, and Read/Reset Check Engine Codes.

Outputs: The KIT-EXP1 provides Navigation, Accessory Power, and Illumination Outputs to make installation simpler.

  • Navigation: Parking Brake, Reverse Light, and VSS (Vehicle Speed Sense).
  • Accessory Power Output: 12V/15A Accessory Power Output
  • Illumination Output: Illumination Output

The iDatalink KIT-EXP1 Dash and Wiring Kit replaces these items:


Adding...
Metra 99-5858CH Dash and Wiring Kit

Metra 99-5858CH Dash and Wiring Kit

Install a new car stereo and retain steering wheel and climate controls in select 2011-15 Ford Explorer vehicles — single- or double-DIN radios
Charcoal Gray
  • retains steering wheel audio controls, retained accessory power (RAP), factory backup camera, and balance and fade controls
  • provides 12V/10A switched accessory output and R.A.P. (retained accessory power)
  • provides navigation outputs (parking brake, reverse, and speed sense)

Loading accessories...

Customer Q&A

1 question already asked

Q
How do you use the rear climate controls with the KIT-EXP1?
craig  Nov 03, 2024
1 answer
A
Hey Craig, so typically if the rear climate physical controls are ever removed or not present with the install, those are usually controls that can be taken care of within the radios settings since you will need to get an iDatalink Ready radio to install with this kit. For details on installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on what you will need for an installation and what will retain once we have the correct trim information to reference.
red  Nov 03, 2024 (Staff)
