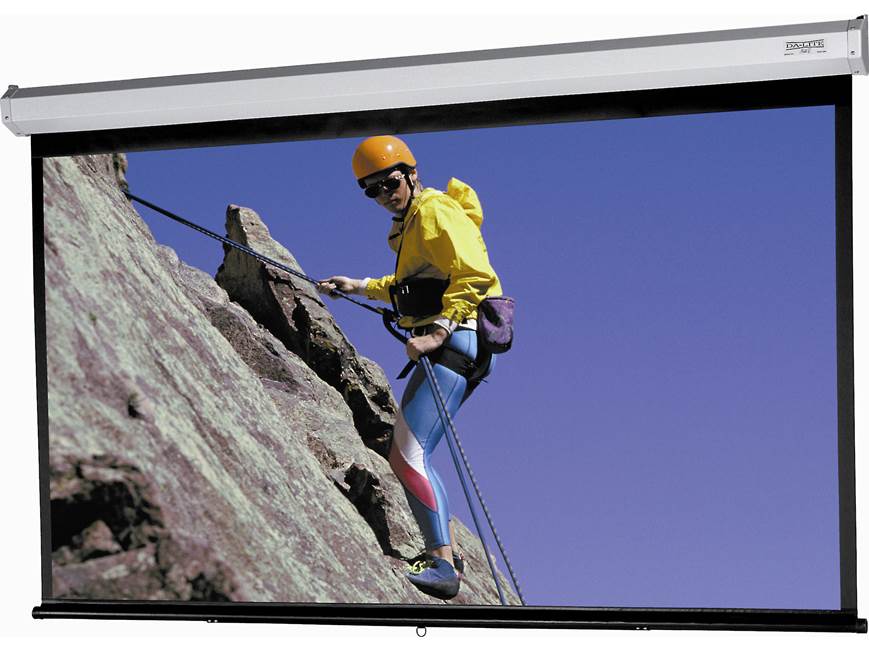

About the Da-Lite 85414 Model C with CSR

Product highlights:
- 92" diagonal image size (16:9 aspect ratio)
- viewing area: 80"W x 45"H
- Matte White surface with screen gain of 1.0
- designed for use with non-HD projectors
- optimal viewing angle range is 60° half-angle, 120° total
- black border around viewing area enhances perceived picture brightness and contrast
- vinyl screen material is durable and easy to clean
- Controlled Screen Return system ensures quiet, controlled return of the screen into the case
- screen is housed in a sturdy metal case
- case length: 87-5/16"
- pull cord included
- Note: this screen does not include hardware for securing it to the wall or ceiling
- made in USA
- warranty: 1 year
- MFR # 85414
- Item # 8091092CSR
What's in the box:
Da-Lite 85414 Model C with CSR owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Pull-down projection screen
- Brackets
- Hardware
- Accessories
- Documentation
More details on the Da-Lite 85414 Model C with CSR

Product Research
Features
Overview: This Da-Lite Model C manual pull-down projection screen is equipped with Da-Lite's Controlled Screen Return (CSR). It comes with the Matte White screen fabric. It is ideal for use in a large conference room, classroom, or training room. It has a powder-coated white, 21-gauge octagonal steel case. Permanently lubricated steel ball bearings, combined with nylon bushings and a heavy-duty spring assembly, give you smooth, dependable operation for years.
Controlled Screen Return: The exclusive Da-Lite Controlled Screen Return (CSR) ensures the quiet controlled return of the screen into the case, providing optimal performance and smooth, consistent operation. Screens with the CSR feature must be fully extended; there are no intermediate stopping positions.
Viewing Area: The screen has a 92" (diagonal) viewing area with a 16:9 aspect ratio, perfect for viewing your HDTV programs and movies. The viewing area is 45" high and 80" wide.
Screen Surface: The Matte White screen surface is the most versatile and uniform for front projection when you have some control over ambient light. It has a gain factor of 1.0, which means the amount of light projected on the screen is returned to the viewer at the same brightness. It provides wide viewing angles (+/- 60° from center) and perfect uniformity, while maintaining accurate color or black and white reproduction. The screen surface is washable with mild soap and water, flame retardant, and mildew resistant.
Installation: This Da-Lite projection screen can be wall-mounted, ceiling-mounted, or suspended from the ceiling on hooks. If wall-mounted, the screen should be mounted to a wall stud or some reinforcement within the wall. Concrete or brick walls require special fasteners and anchors. If ceiling-mounted, you should ensure that the ceiling has adequate reinforcement to attach the screen brackets or hook anchors.
Note: The screen does NOT include the hardware for securing it to the wall or ceiling.
